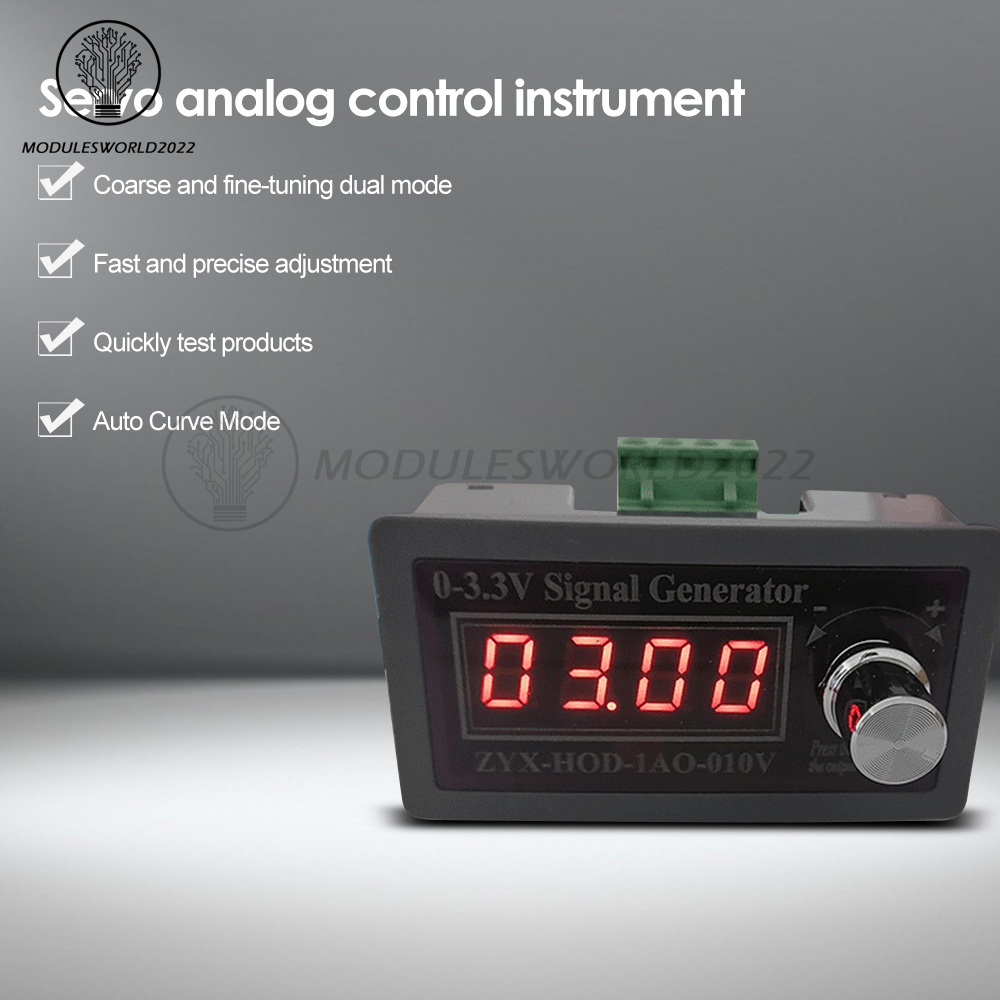

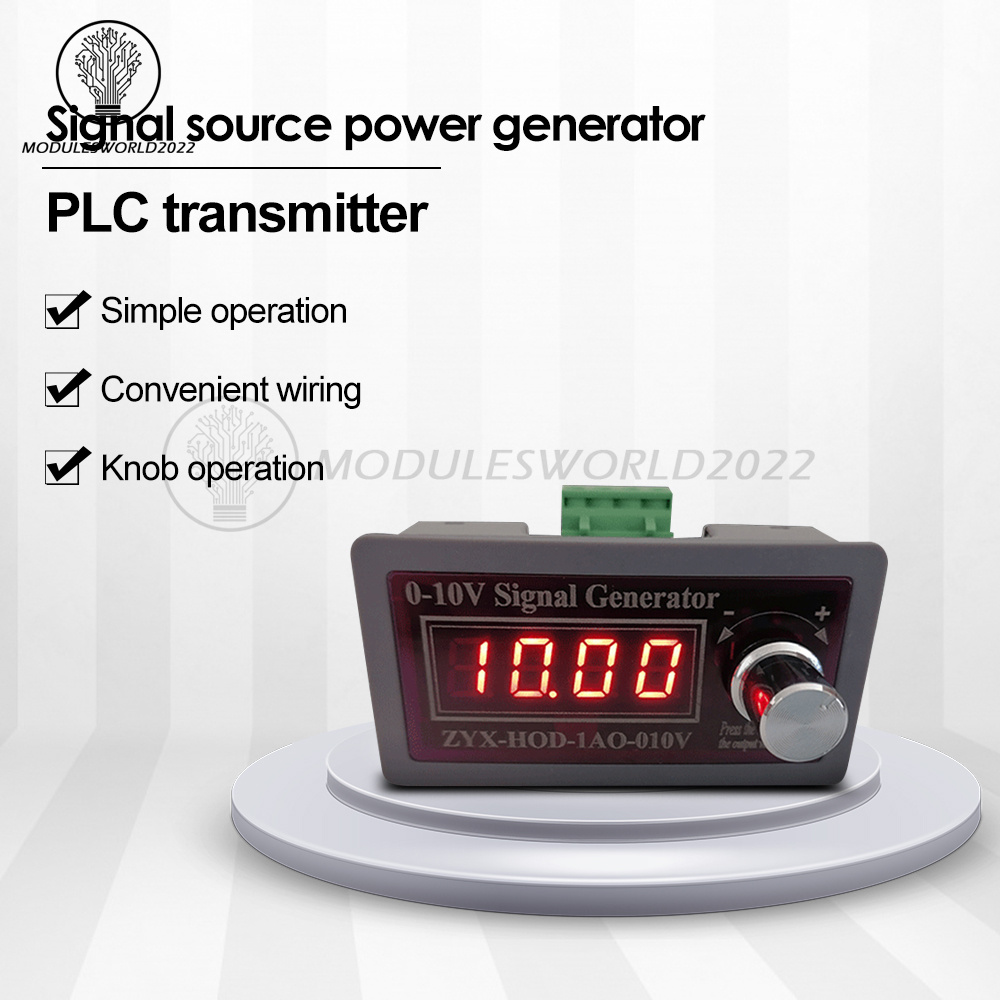

Type A : PLC frequency conversion servo analog control
Product Description:
1. Strong practicability and wide range of uses to ensure stable and long-term effect

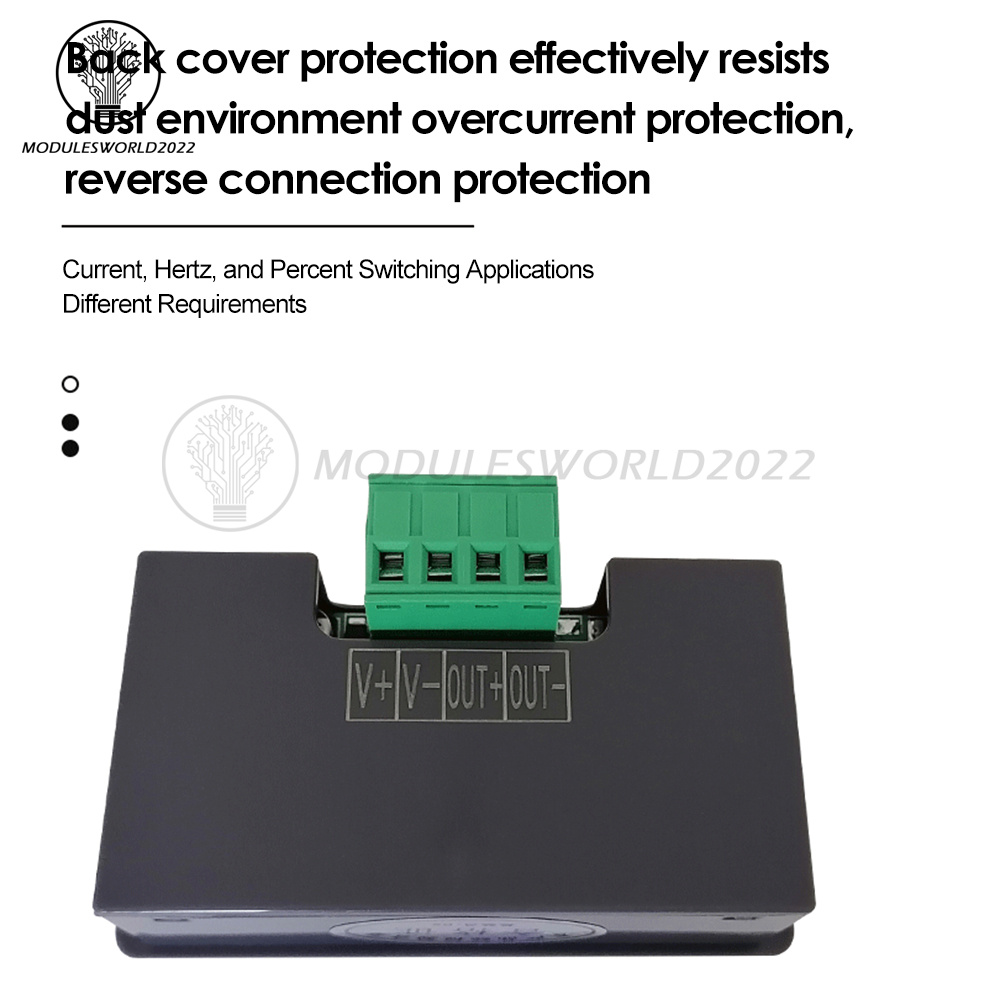

2. The back cover protection effectively resists dust environment overcurrent protection, reverse connection protection
3. Strict thermal design, stable output and long service life
4. High precision, strong load, programmable
5. The number of calibratable rotation circles can be set to 1-50 circles
1. Strong practicability and wide range of uses to ensure stable and long-term effect
2. The back cover protection effectively resists dust environment overcurrent protection, reverse connection protection
3. Strict thermal design, stable output and long service life
4. High precision, strong load, programmable
5. The number of calibratable rotation circles can be set to 1-50 circles

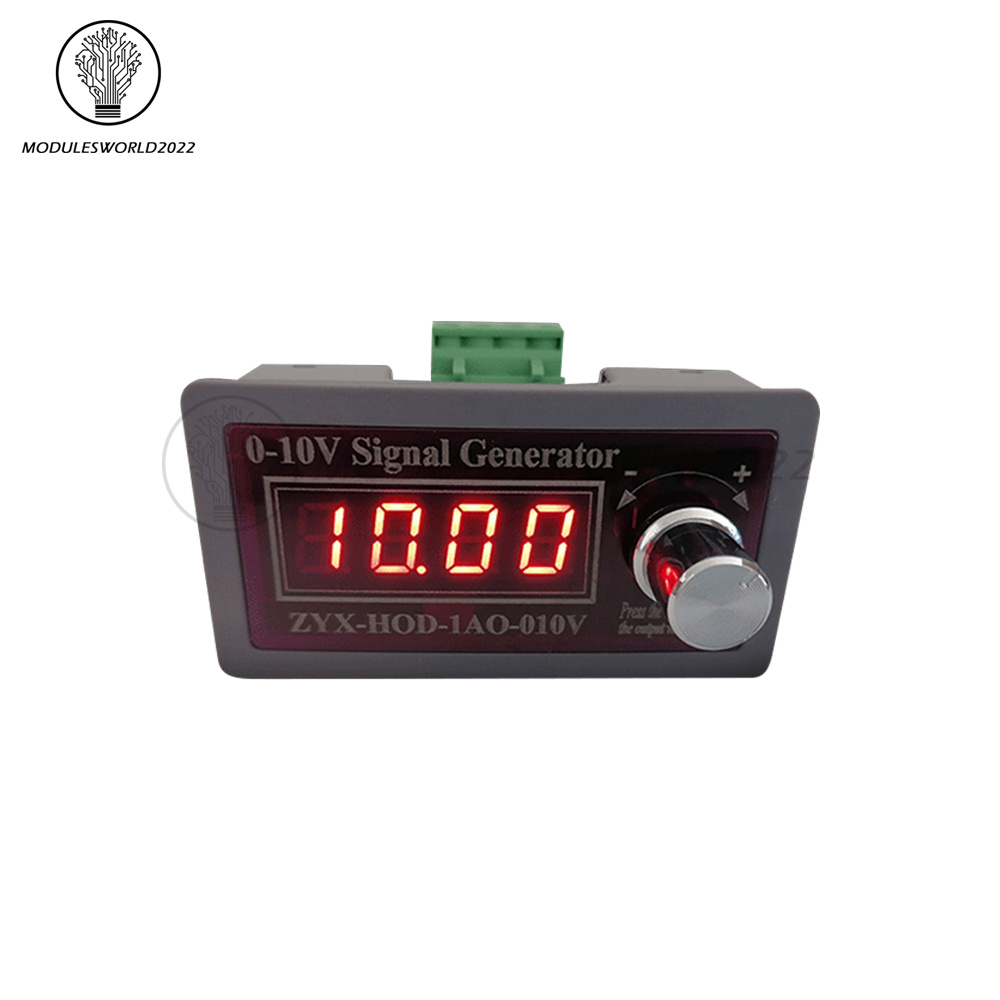

Product parameters:
0-3.3V / 0-10V voltage signal generator (optional)
Supply voltage: DC15V~30V
Output voltage: 0V~10V
Load capacity: maximum output current of 0.2A
Adjustment accuracy: 0.01V
Output accuracy: 0.01V
Display element: 4-digit 0.4-inch digital tube
Working temperature: -10~60℃
0-3.3V / 0-10V voltage signal generator (optional)
Supply voltage: DC15V~30V
Output voltage: 0V~10V
Load capacity: maximum output current of 0.2A
Adjustment accuracy: 0.01V
Output accuracy: 0.01V
Display element: 4-digit 0.4-inch digital tube
Working temperature: -10~60℃

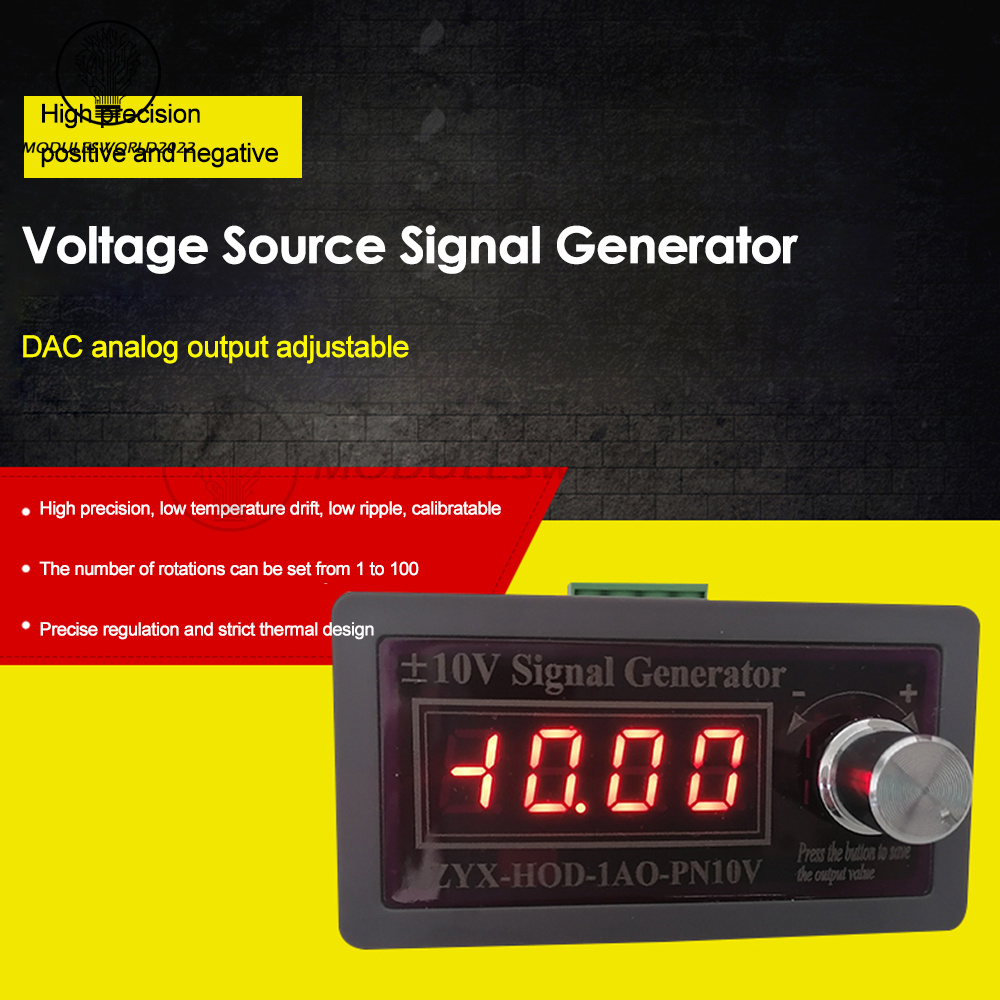

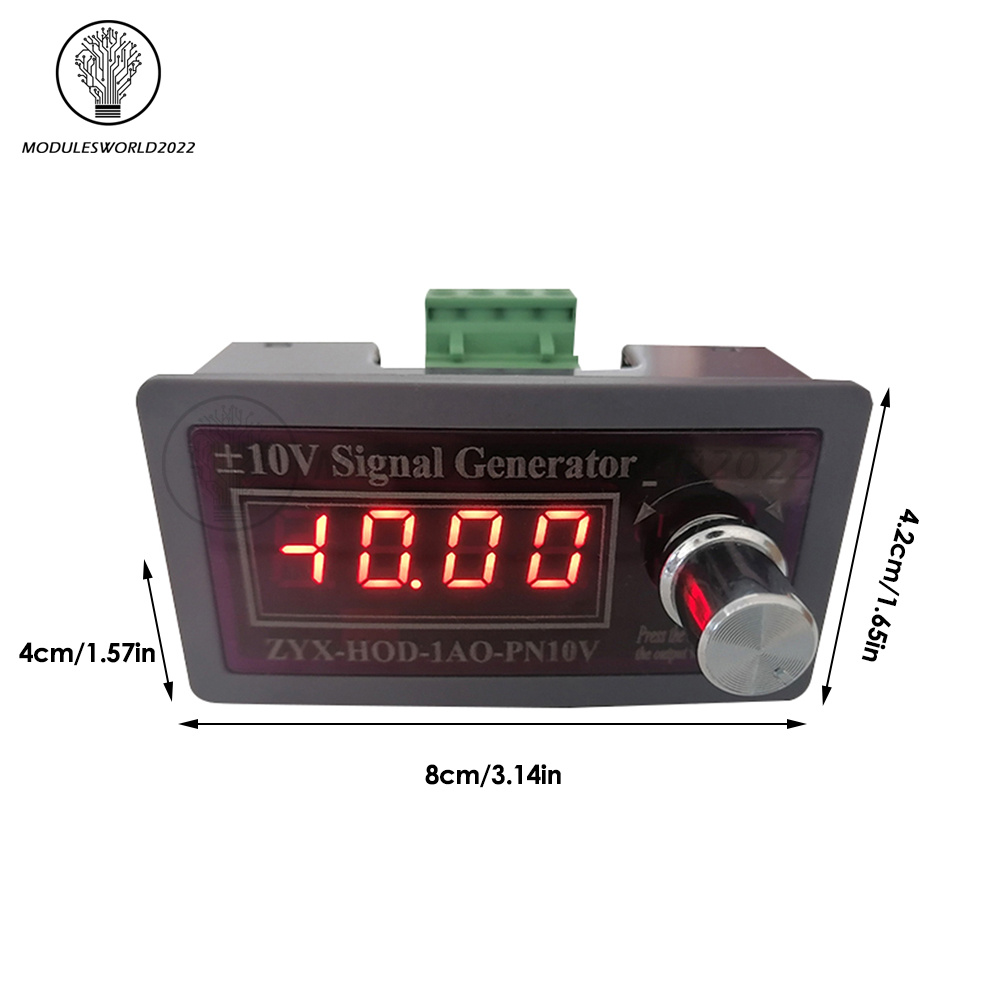

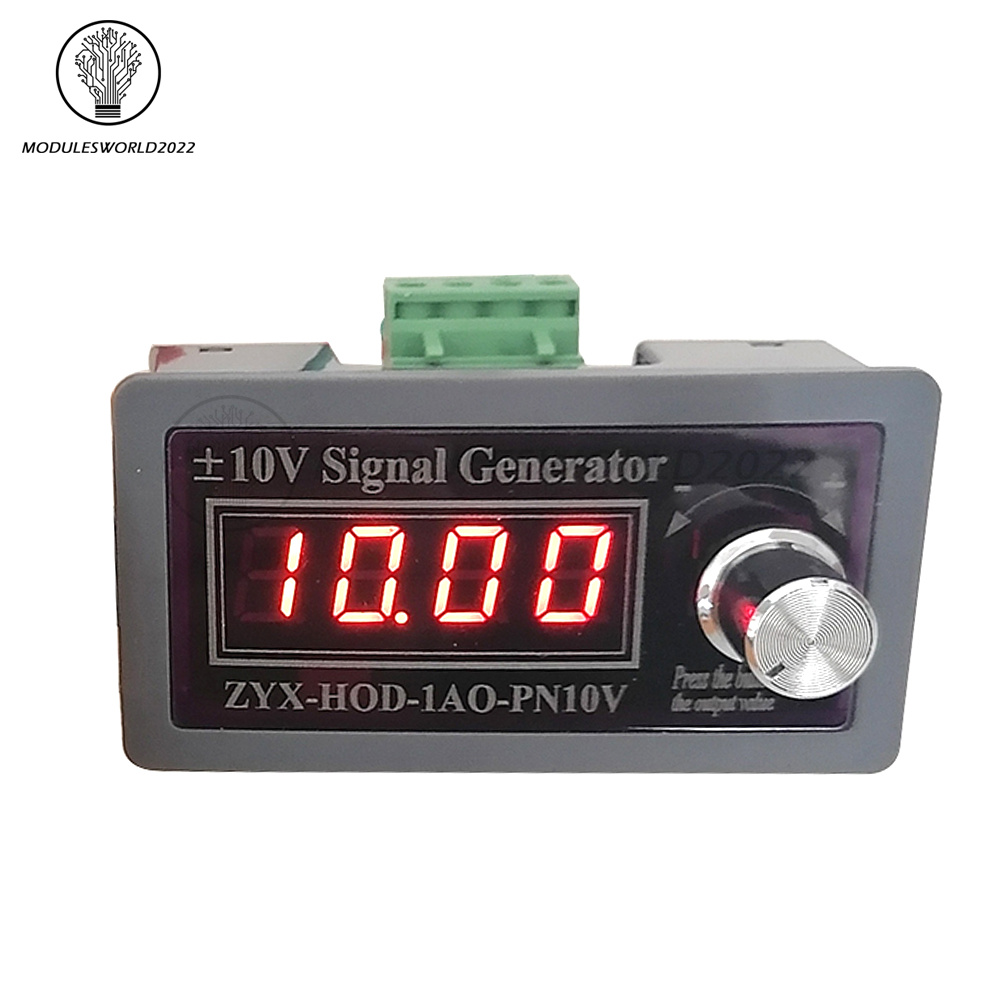

Type B： DAC analog output
Product Description:

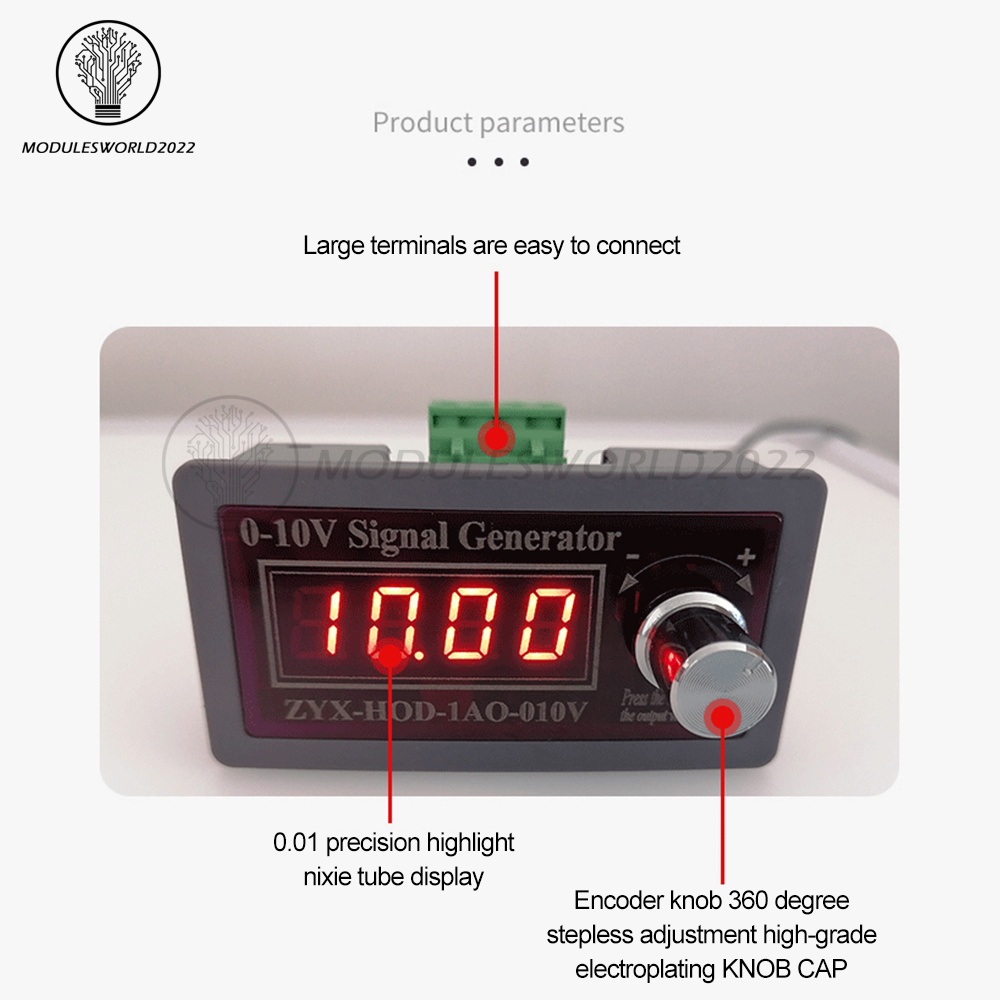

1.5MM large terminal, the required screwdriver is consistent with the conventional instrument, which is convenient for wiring;
2. Single power supply, internal dual power supply voltage regulation, high reliability, high precision; 3.4-bit 0.4-inch high-brightness large digital tube display, dedicated chip driver for clear display;
4. Coarse and fine-tuning mode can be set, and the number of turns can be set, which is convenient for quick and precise adjustment;
5. The output range can be set: ±10V, ±5V, 0~10V, -10~0V, 0~5V, etc.;
6. The display mode can be set: actual voltage/0-100.0%/50Hz, just look at the value;
7. Linear output, can be calibrated, the actual output can be consistent with the customer equipment display;
8. Digital encoder, bright electroplating knob, durable and not affected by the environment;
9. Display accuracy 0.01V, output accuracy 0.01V, high-precision linear output;
1.5MM large terminal, the required screwdriver is consistent with the conventional instrument, which is convenient for wiring;
2. Single power supply, internal dual power supply voltage regulation, high reliability, high precision; 3.4-bit 0.4-inch high-brightness large digital tube display, dedicated chip driver for clear display;
4. Coarse and fine-tuning mode can be set, and the number of turns can be set, which is convenient for quick and precise adjustment;
5. The output range can be set: ±10V, ±5V, 0~10V, -10~0V, 0~5V, etc.;
6. The display mode can be set: actual voltage/0-100.0%/50Hz, just look at the value;
7. Linear output, can be calibrated, the actual output can be consistent with the customer equipment display;
8. Digital encoder, bright electroplating knob, durable and not affected by the environment;
9. Display accuracy 0.01V, output accuracy 0.01V, high-precision linear output;
Product parameters:

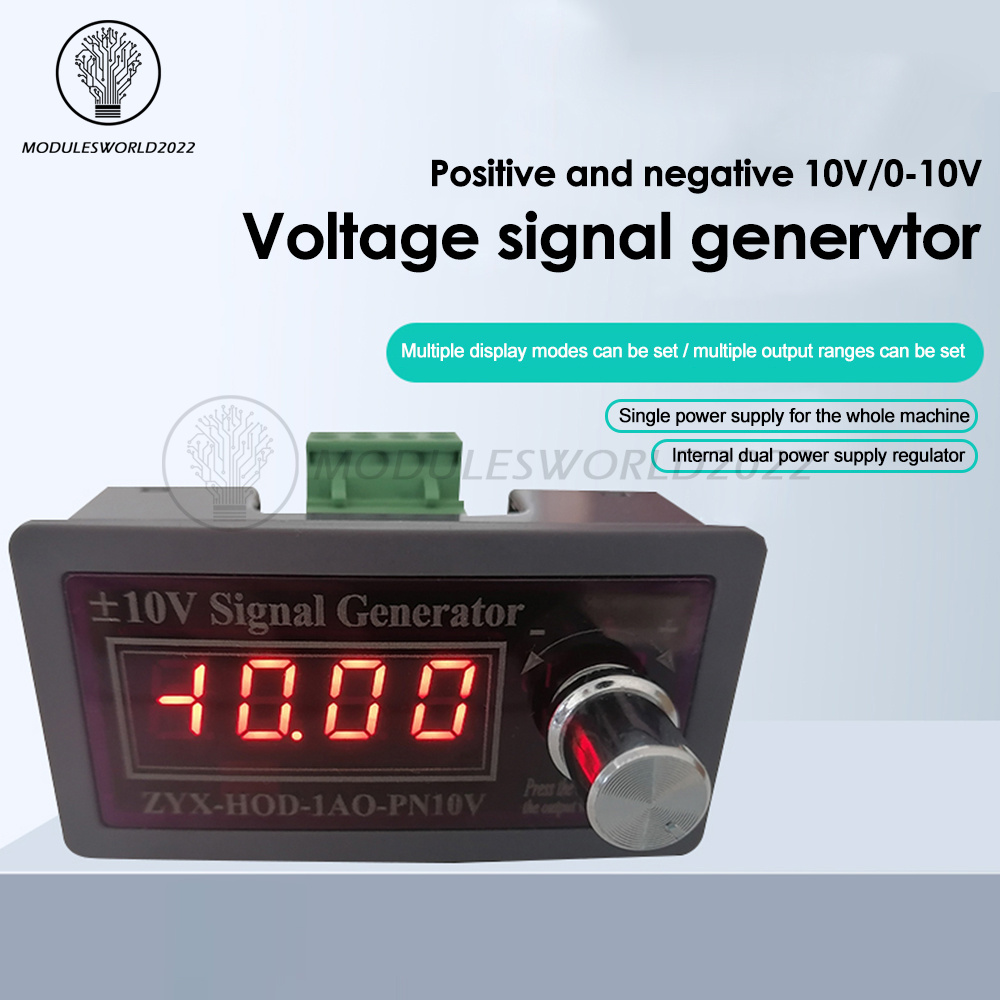

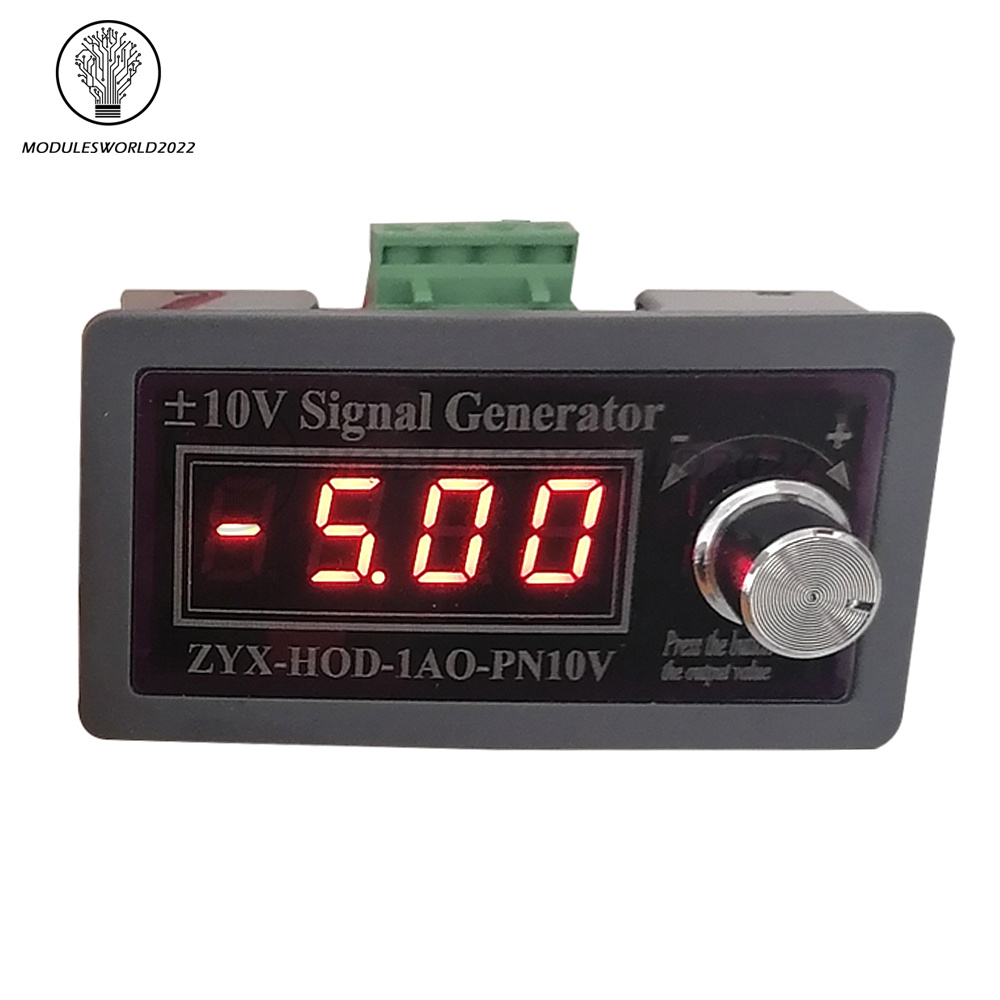

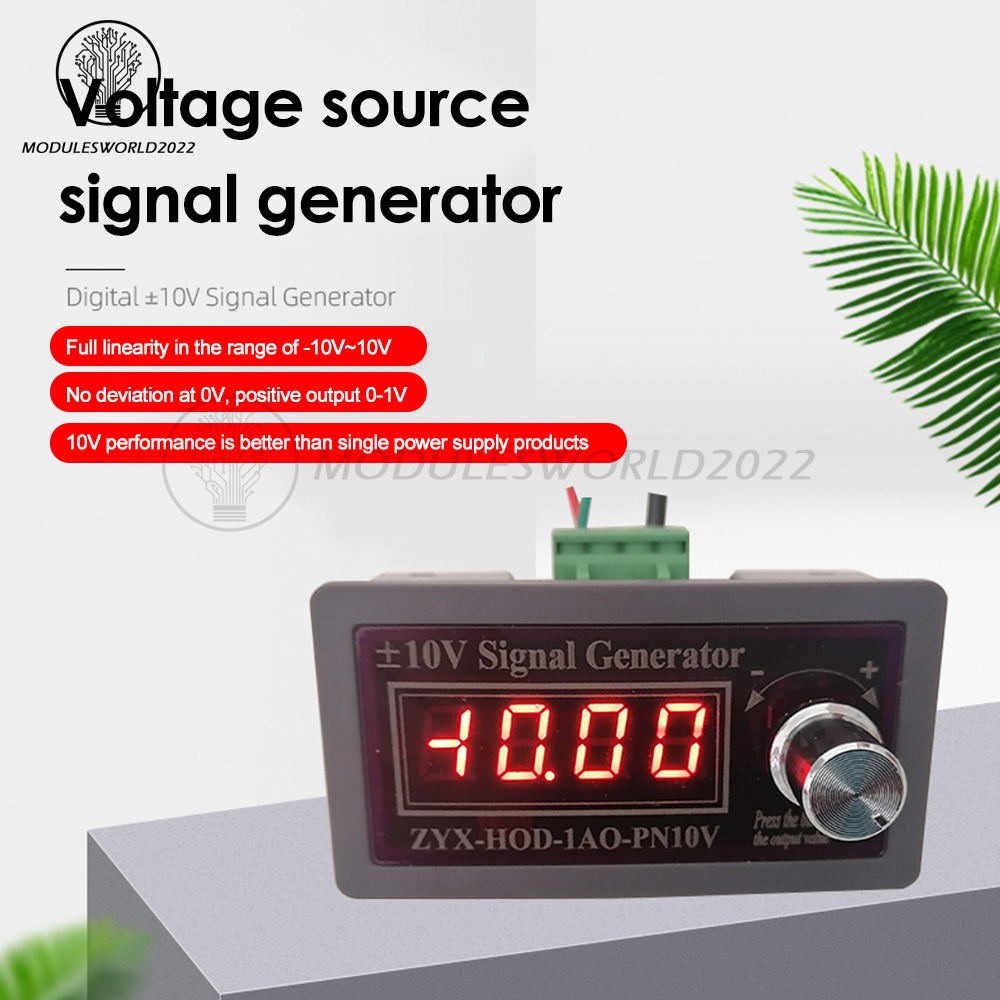

±10V/0-10V voltage signal generator (optional)
Sampling channel: 1 analog output channel, output -10~10V/0~10V/0~5V and other voltage signals.
Channel characteristics: Internal dual power supply voltage regulation, high reliability, high precision, strict thermal design, stable output.
Power supply protection: 7-28VDC power supply, with over-current protection and anti-reverse connection design.
Product accuracy: display accuracy 0.01V; operation accuracy 0.01V; maximum load current 20mA.
Human-machine interface: 4-digit digital tube display, high brightness, three display modes can be switched: voltage/percentage/HZo
Rotary encoder, 20 pulses in one circle, setting the parameters of coarse and fine adjustment can adjust the output in 1-100 circles.
Scope of application: widely used in modern industry. Working temperature: -10~60°C, working humidity: <80%.
±10V/0-10V voltage signal generator (optional)
Sampling channel: 1 analog output channel, output -10~10V/0~10V/0~5V and other voltage signals.
Channel characteristics: Internal dual power supply voltage regulation, high reliability, high precision, strict thermal design, stable output.
Power supply protection: 7-28VDC power supply, with over-current protection and anti-reverse connection design.
Product accuracy: display accuracy 0.01V; operation accuracy 0.01V; maximum load current 20mA.
Human-machine interface: 4-digit digital tube display, high brightness, three display modes can be switched: voltage/percentage/HZo
Rotary encoder, 20 pulses in one circle, setting the parameters of coarse and fine adjustment can adjust the output in 1-100 circles.
Scope of application: widely used in modern industry. Working temperature: -10~60°C, working humidity: <80%.
Pakcage include:
Voltage Signal Generator*1
