Description:

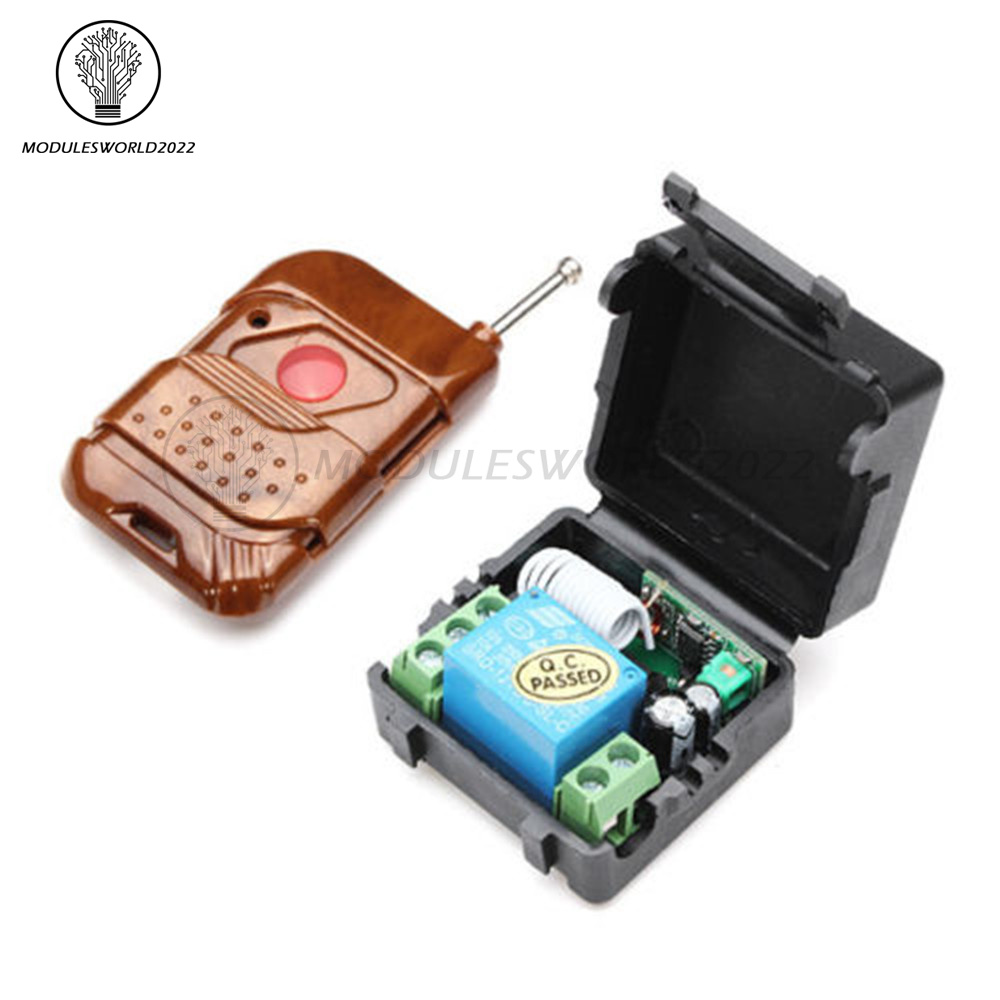

1 Channel
Remote control:Working voltage: DC 12V
Frequency: 315MHz
Encoding type: Fixed code
Firing range: 100 meter (the actual use is about 10-30 meters)
Size: 63 x 39 x 11.5mm
Shock resistance: 4.7M
Control switch:
Operating voltage: DC 12V
Operating frequency: 315MHz
Receiver sensitivity: <-105dB
Encoding type: Fixed code, welding code to achieve the pairing (oscillation resistance is 820K)
Size: 32 x 32 x 16.5mm
Tpye: Inching
Package included:
1PC*Wireless Transmitter + Receiver

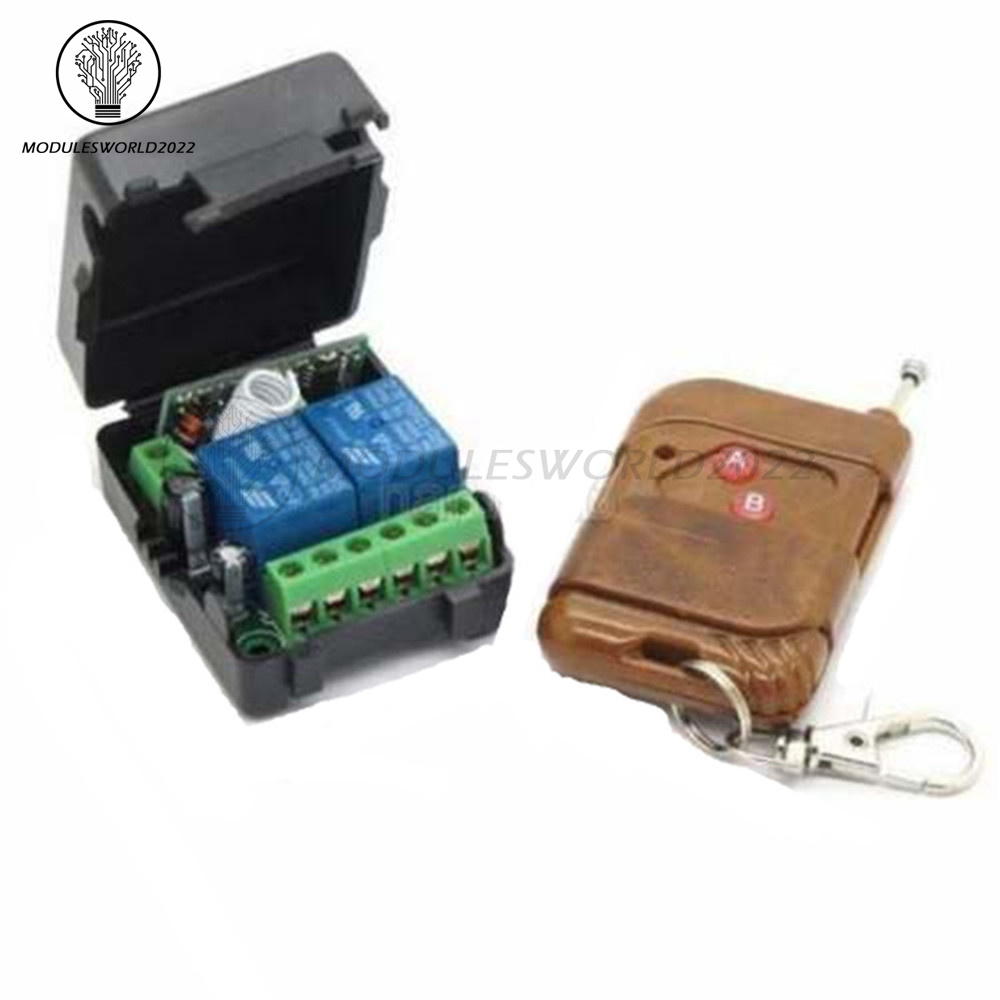

2 Channel
Receiver parameters:
Operating voltage: DC12V
Working frequency: 315MHZ
Contact capacity: ≤ 10A/250VAC; 10A/30VDC
Receiver sensitivity:>-105dB
Remote control distance: 50~ 100m (open area) (please stretch the antenna in order to achieve effective distance)
Control approach: four normally open (normally closed) contacts
Encoding type: fixed code; pad code
Module size: 55mm × 40 mm× 20mm
Work status: Self-locking
Shock resistance: 270K
Remote control parameters:
Operating voltage: DC12V
Operating Current: ≤ 10mA
Operating frequency: 315MHz
Transmission Distance: 50~ 100m (open area) (please stretch the antenna in order to achieve effective distance)
Encoding type: fixed code; pad code
Dimensions: 51 mm× 39mm × 13.5mm
Oscillation resistance: 4.7m
Package Included:
1PC*wireless Transmitter+ Receiver

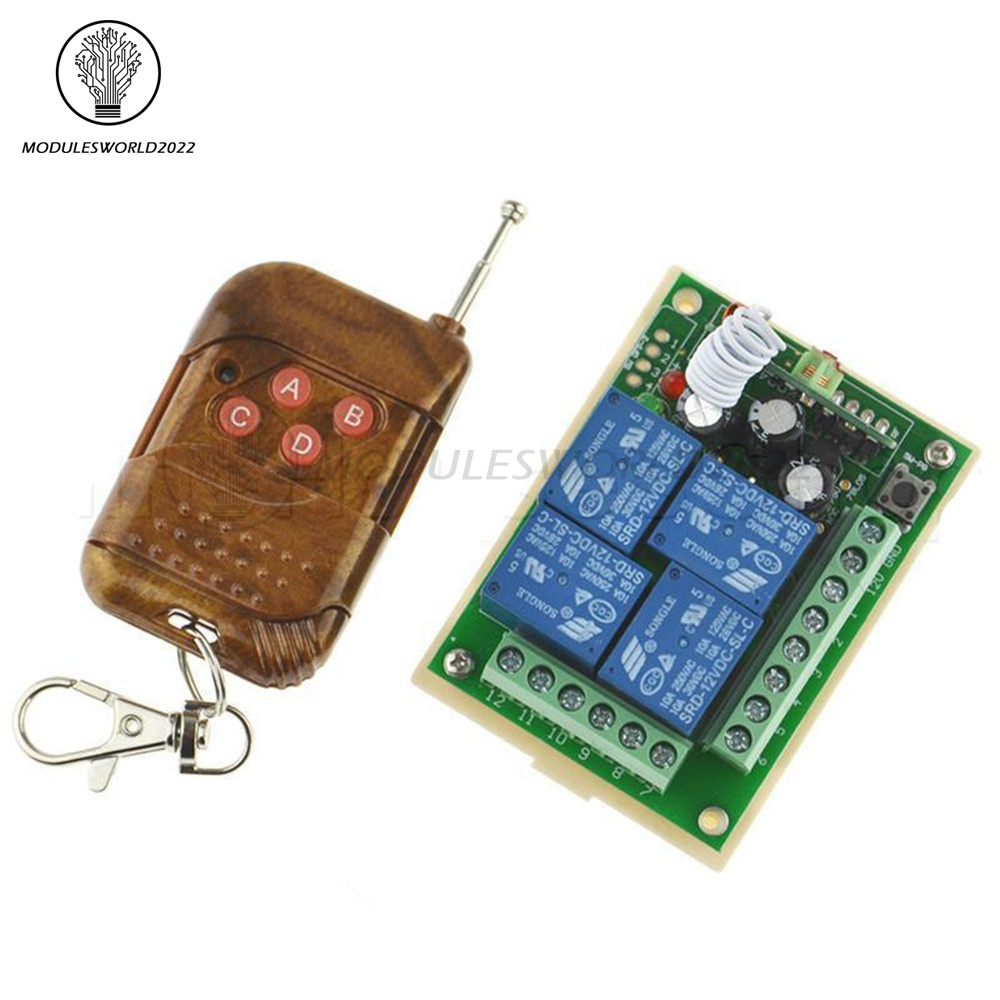

4 Channel

Transmitter
Battery Type: 1pc L1028 battery (not included)
Remote Distance:20-30m (Theoretical value)
Receiver
Input Voltage: DC 12V
Operating Frequency: 433/315MHZ (We send 433MHZ in normal, if you need 315MHZ, please leave us a message/email.)
Channel Numbers: 4 CH
Operation Way: Inching, Self-locking
Coding Way: Intelligent Learning
Operating Temperature: -40°C ~ +80°C
Output Current: ≤ 10A
Receiver Sensitivity: ≥-105dBm
Factory Default: Self-locking
Code:Learning Code (jog/Non-Latched .inter-lock/Latched .self-lock /Self Latched)
Board Dimension: 72.5x52.5x23mm
Case Dimension: 74x53x30mm
Package Included:
1PC*Wireless Transmitter + Receiver

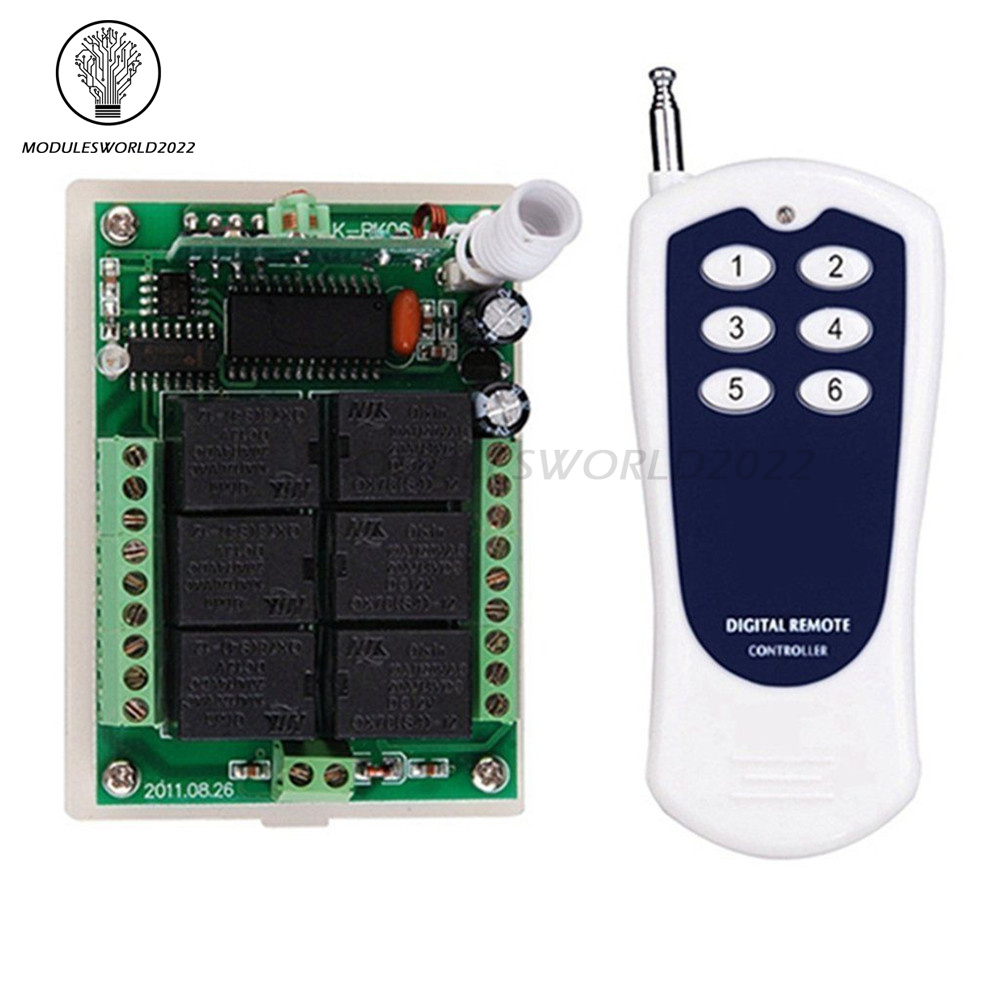

6 Channel
About Receiver:
Model No.: AK-RK06S-12
Channel: 6 CH
Radio Frequency: 315MHZ/433MHZ
Operating Voltage: DC12V
Operating Type: Jog /Momentary/Non-Latched (Press and hold->On, Release->Off )
  nterlock /Latched (Press -> On; Press other button -> Off ) Self-lock/Toggle (Press->On, Press again->Off)
Coding Type: Learning code
Maximum Working Current: 10A
Output Mode: Without voltage output (also called Contact output)
Step-down approach: resistance-capacitance (RC)
About Transmitter:
Model No.: AK-12-6
Buttons: 6 Buttons
Working Voltage: DC12V (battery not included)
5/433MHz
Remote Control Distance: 50-200m
Encode: Fixed code by soldering and learning code
Package included:
1PC*Remote Control Switch
1PC*Transmitter

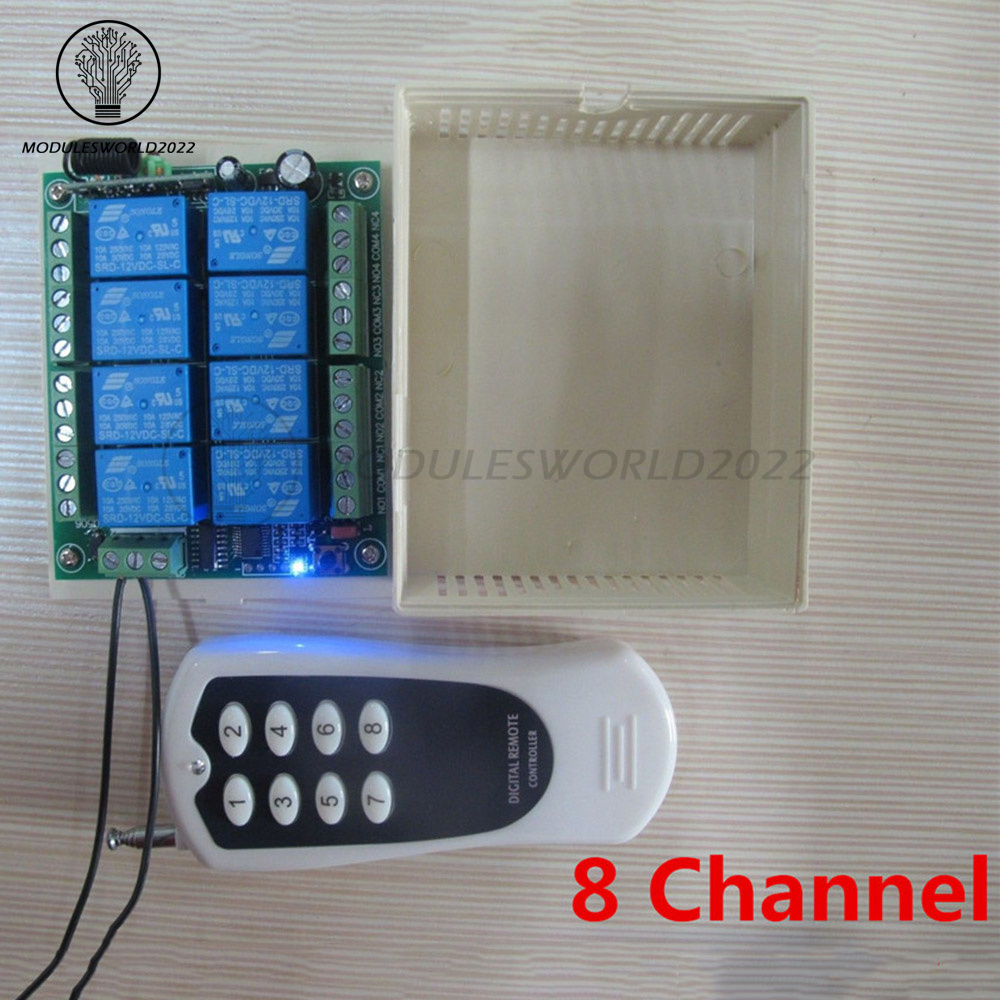

8 Channel

Remote Control:
Working Volt: DC12V (battery not included)
Working Current: 30mA
Frequency: 315MHz
Encoding Type: Fixed code, learning code
Firing Range: 1000 meter
Size: 85 x 37 x 18mm / 3.34 x 1.45 x 0.70in (L x W x H)
Encoding a key for the short-circuit block 2-8 keys for the pad
Shock resistance: 3.3M-4.7M

Control Switch System:
Operating Voltage: DC12V
Operating Frequency: 315MHz
Receiver Sensitivity: -90dBm
Maximum Load: 5A
Encoding Type: Learning code
Size: 87 x 75 x 17mm / 3.7 x 2.16 x 0.66in (L x W x H)
Working way: jog, inter-lock, self-lock (can be changed randomly)
Package Included:
1PC*Remote (battery not included)
1PC*Receiver (with box)

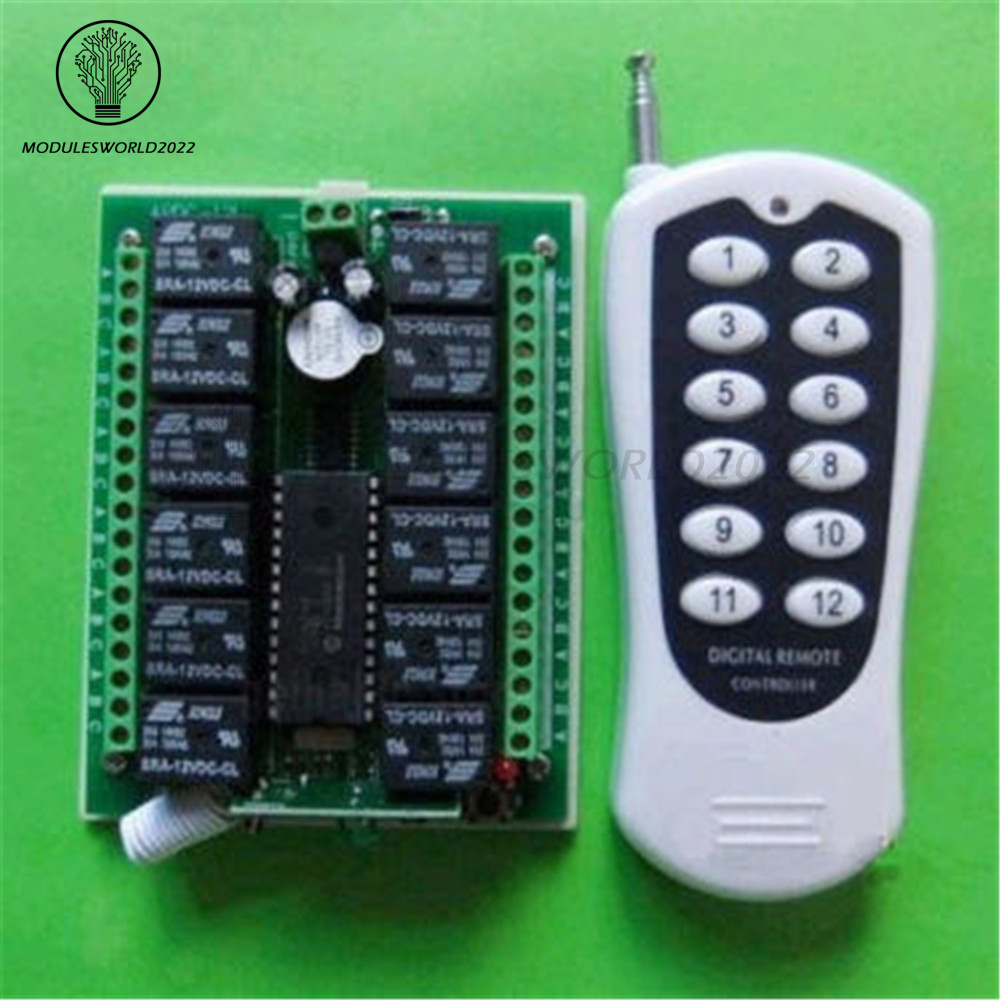

12 Channel

Attention Please:Battery is not inclued.
Radio frequency: 315MHz
Operating Voltage : 12V DC
Decode: Learning Code
Operating Type : Momentary/Toggle/Latch selectable
Relay : 10A 120VAC, 20A/14V DC
Size : 98mm x 80mm x 27mm
12CH Transmitter :
Radio frequency : 315 MHz
Operating Voltage : 23A 12VDC Battery
Decode : Fixed code, Soldering
Transmitting Distance : 800m
Package Included:
1PC*Transmitter & Receiver

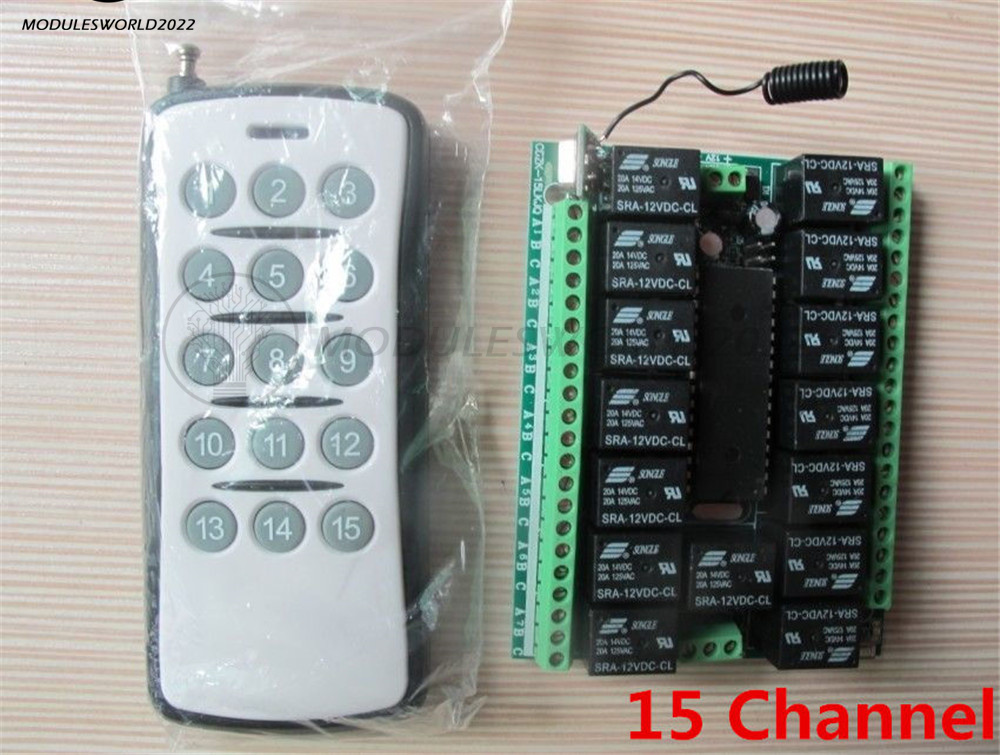

15 Channel

Working Volt: DC12V
 quiescent current: 7-8mA
Frequency: 315MHz(315 ~ 433MHz and other frequencies optional)
Firing Range: 1000 meter
Receiver Sensitivity: ≤-105dBm
Maximum Load: 10A
Encoding Type: Match Code
Size: 115 x 73 x 16mm Output working way:
Self-lock :connect the s1 with the cutting out cap
Jog:the cutting-out cap is non-occupation, S1 and S2 do not connect either
inter-lock:Connect the S2 with the Cutting out cap
Jog----  press one button is ON   . loosen your finger on the same button  is    OFF  .need one channel switch and one buttons remote control )
Self -lock----- press one button for one time is  ON  .press the same button again is OFF  .need one channel switch and one buttons remote control
Inter-lock-------press one button is ON , press another button is OFF . (need one channel switch and  2 buttons remote control
Package Included:
1PC*Transmitter+ Receiver
