Feature:
8-35V ultra wide input voltage,12V 24V car can be perfect support
High quality double layer gold plating USB mouth,life is 2 times as long as ordinary USB
Output with overvoltage protection, to see the effective protection of the mobile phone
The input uses the MOS tube back protection to maximize the conversion efficiency and reduce the loss
Industry advanced flat line large current inductance, low current heat,high conversion efficiency
The 4 USB is supported by 2A current charging, the current is fast and the total output current can reach 8A
4 high quality patch capacitors, and then increase the capacity of MLCC, the output ripple is lower, and the interference is smaller
Charge recognition IC compatible apple An Zhuoquan series products, the vast majority of mobile phones can reach the fastest charging speed
The synchronous rectification scheme can effectively reduce the calorific value and improve the efficiency, and the maximum efficiency can reach 96%

Specifications:
Input voltage:DC 8-35V
Input current:5.5A
Output voltage:5.2V
Output current:total maximum 8A, self-adaptive, mobile phone single port charge up to 2A.
Dynamic response speed:300us (load flow change 5%)
Conversion efficiency:95% (measured at 12V to 5.2V3.5A, efficiency is related to differential pressure and load size.)
Load regulation:0.2-0.3% (measured by 10% load and 12V input)
Ripple & Noise:120mVP-P (20MHz Bandwidth 12V to 5.2V3A Measured)
Switching frequency:100KHz
No-load current:18mA (measured by 5V at 12V)
Wiring method:IN input OUT input Terminal block DC block

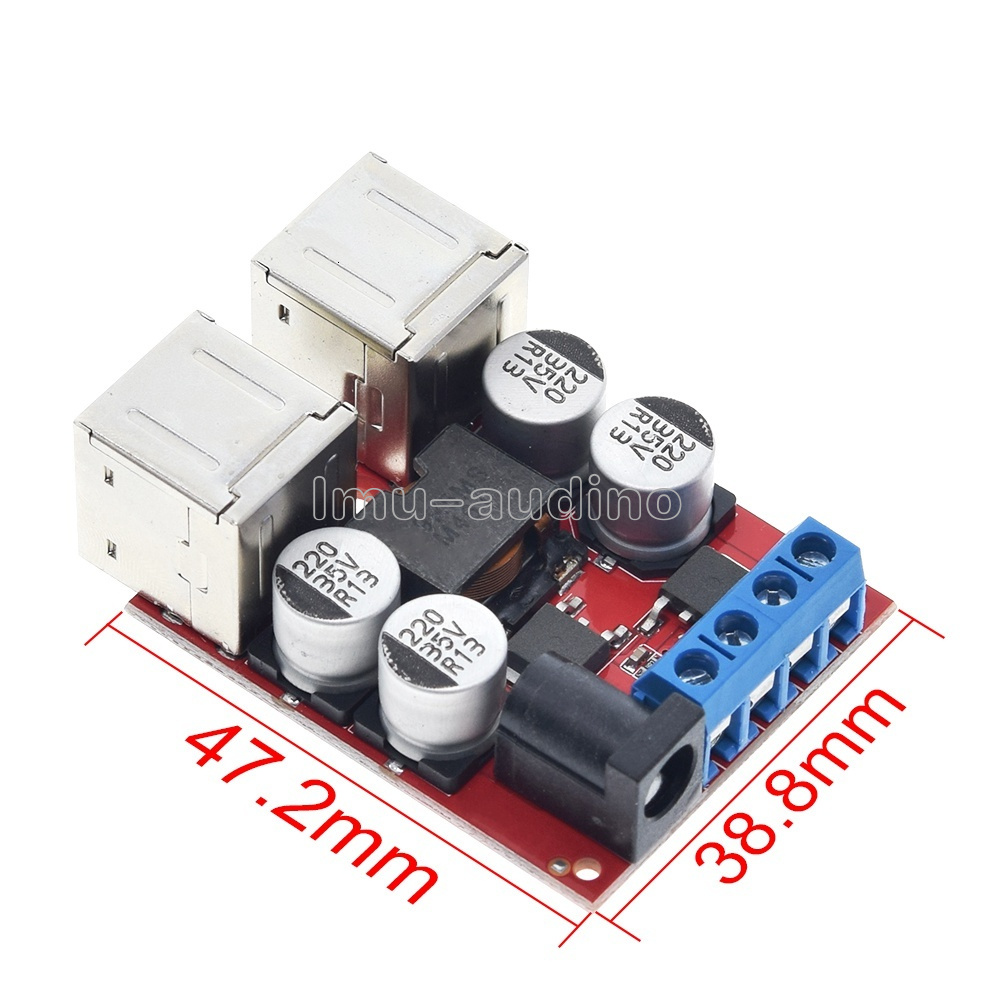

Size:5.3x3.9cm/2.09x1.54inch











Note:
Please allow 1-3mm error due to manual measurement.pls make sure you do not mind before you bid.
Due to the difference between different monitors,the picture may not reflect the actual color of the item.Thank you!








Package includes:







1x DC-DC Vehicle Charging Module
