All the shipping way won't allow the item with gas go to there aircraft. So all the wheels are without gas to arrive to you. When you get it, please inflate the wheel firstly.

Dear buyer:
Reminder: In order to avoid the failure caused by the mismatch between the motor and the controller, if you need the controller, please contact me. If you match your own controller, please use the controller first because the wiring sequence may be different Adjust the self-learning function of the controller. If the controller does not have a self-learning function, you can use a multimeter to test it. If the current is less than 1, you can link. If you don’t know how to test, you can also contact the store, thank you!

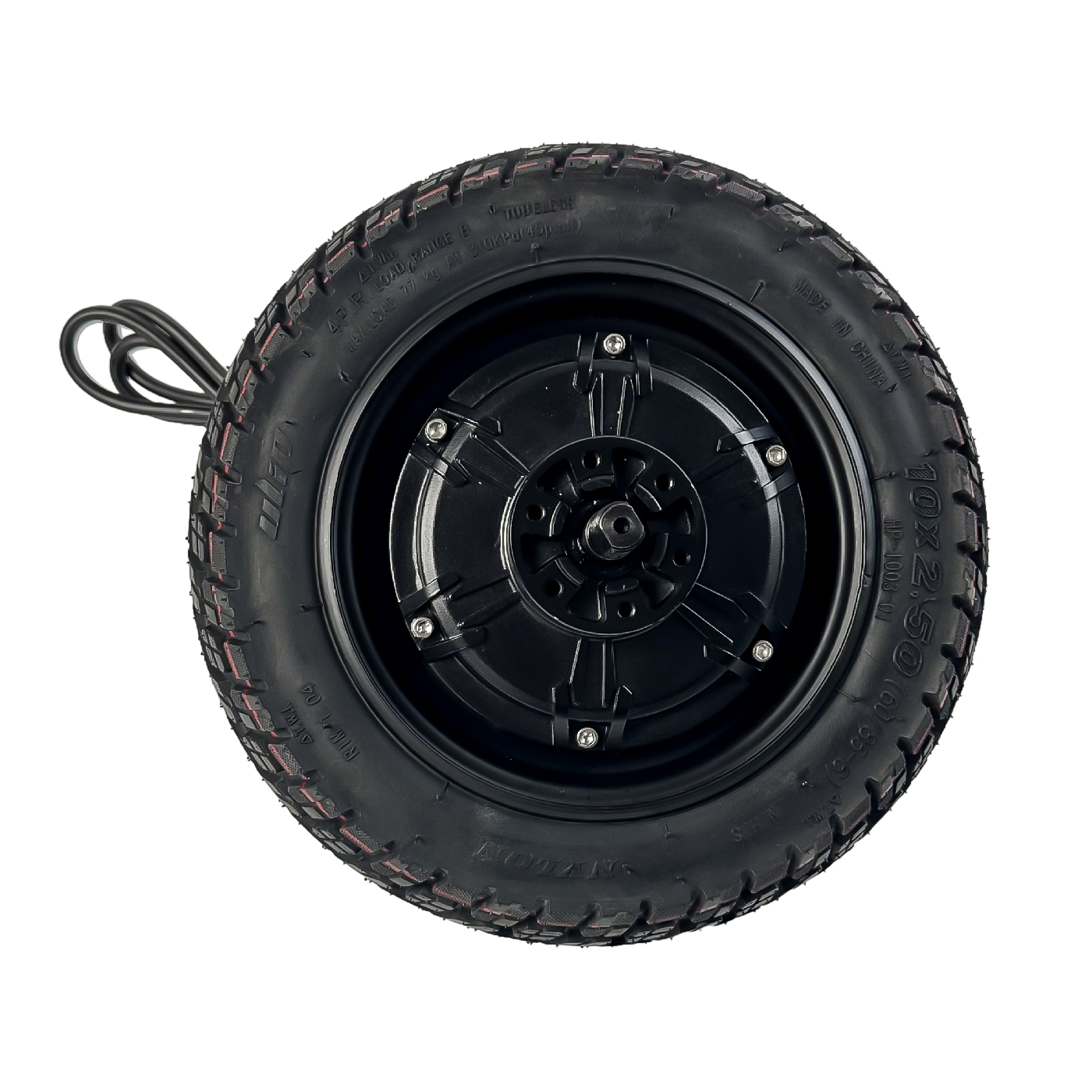

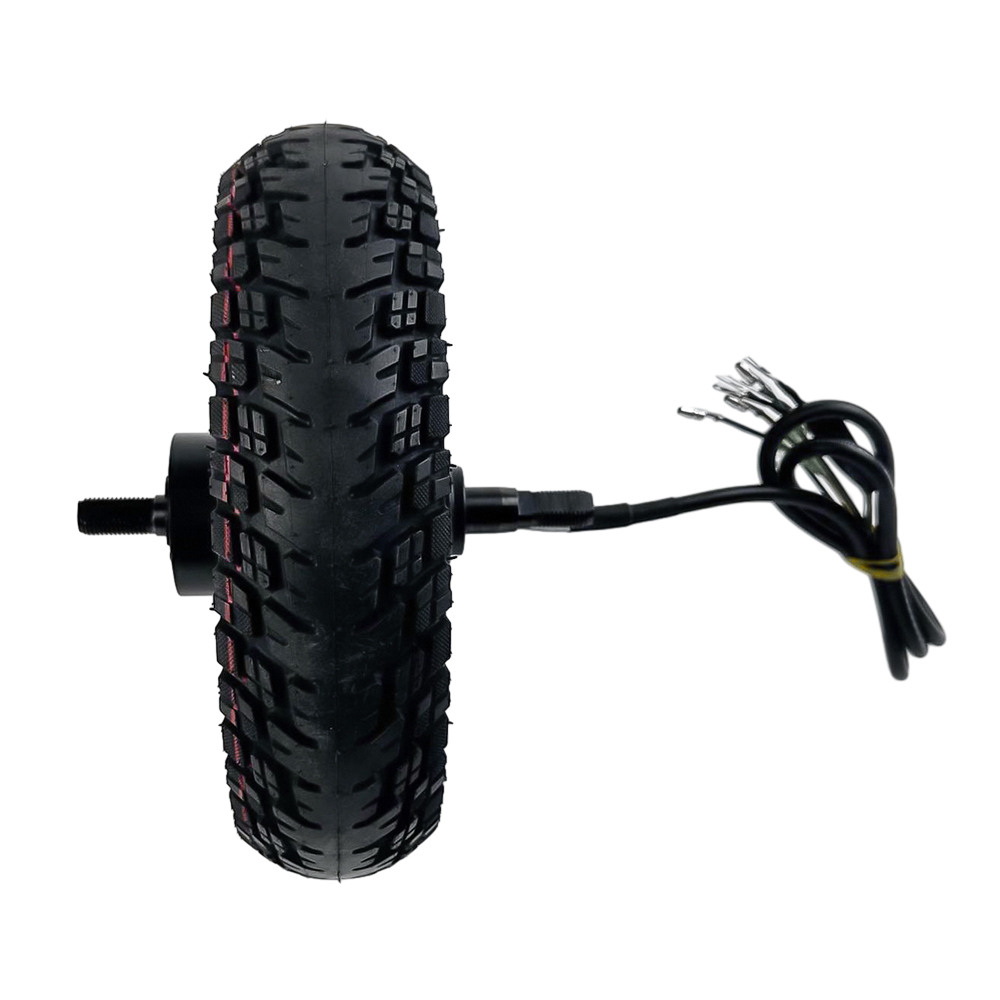

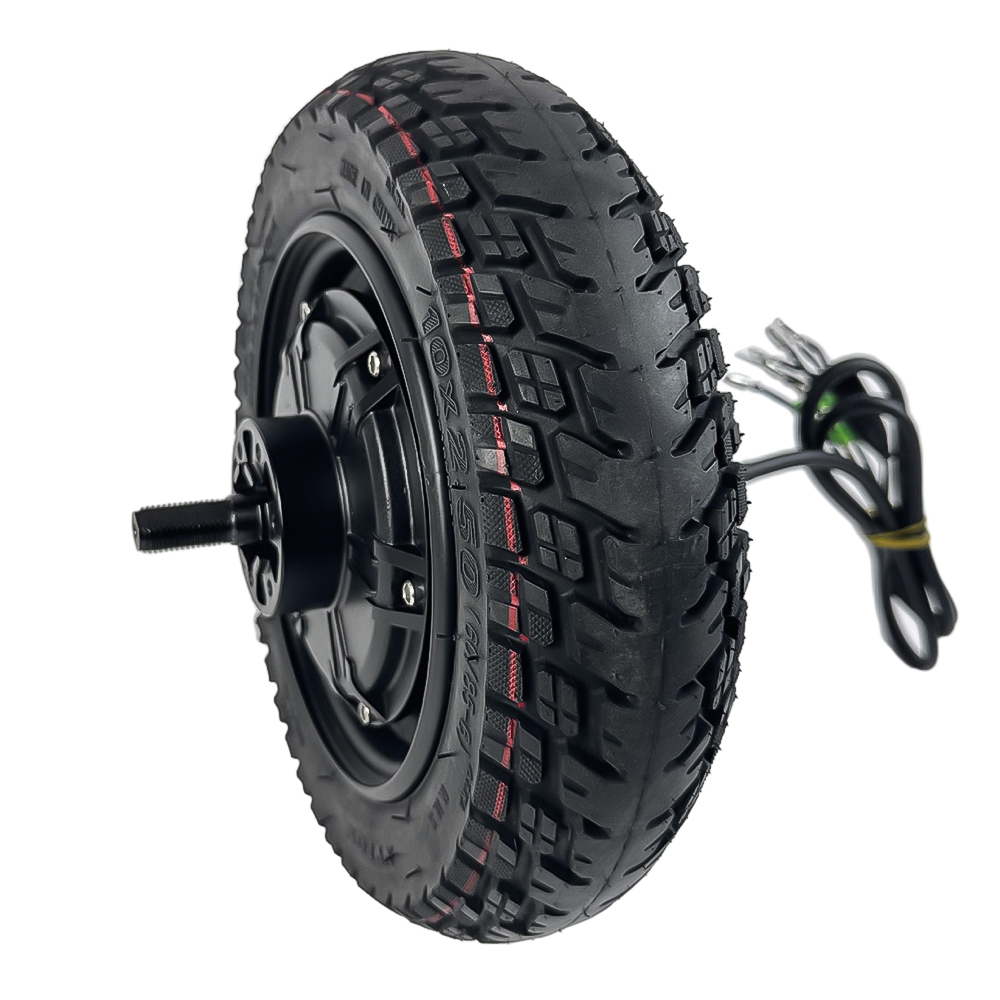

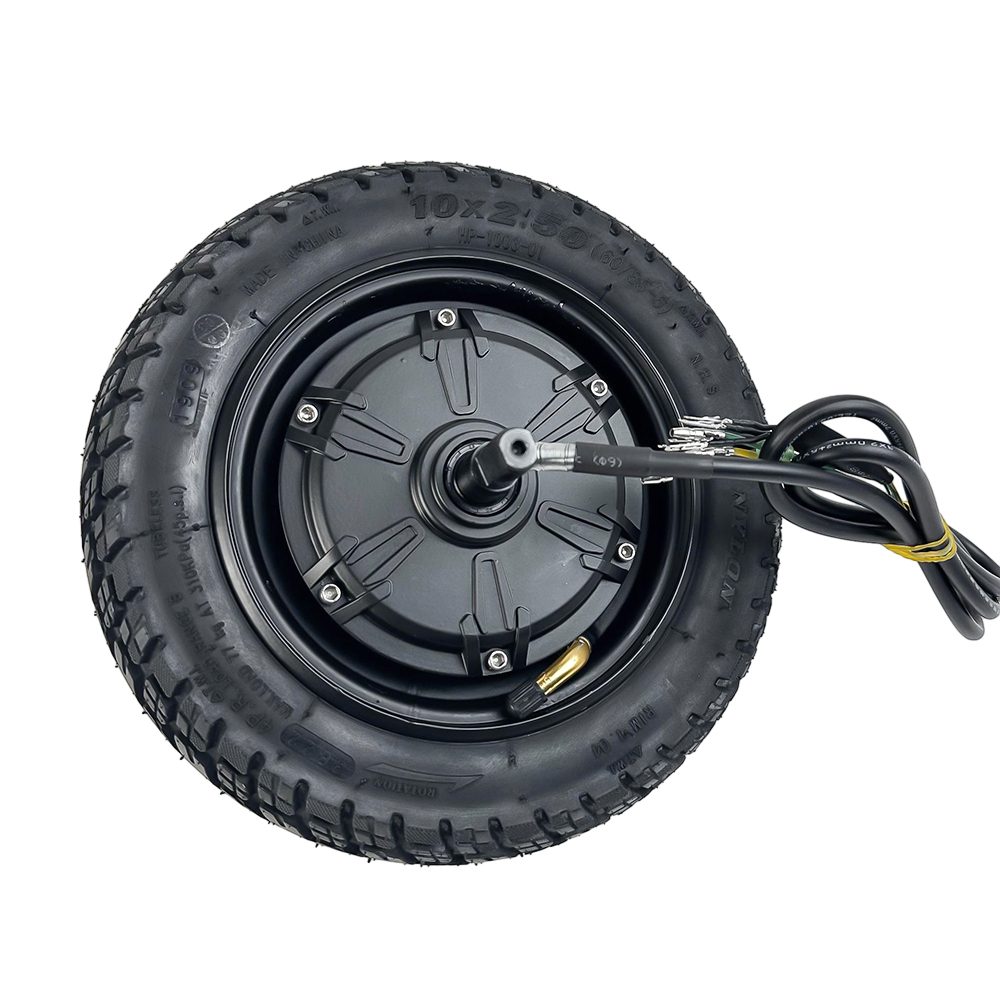

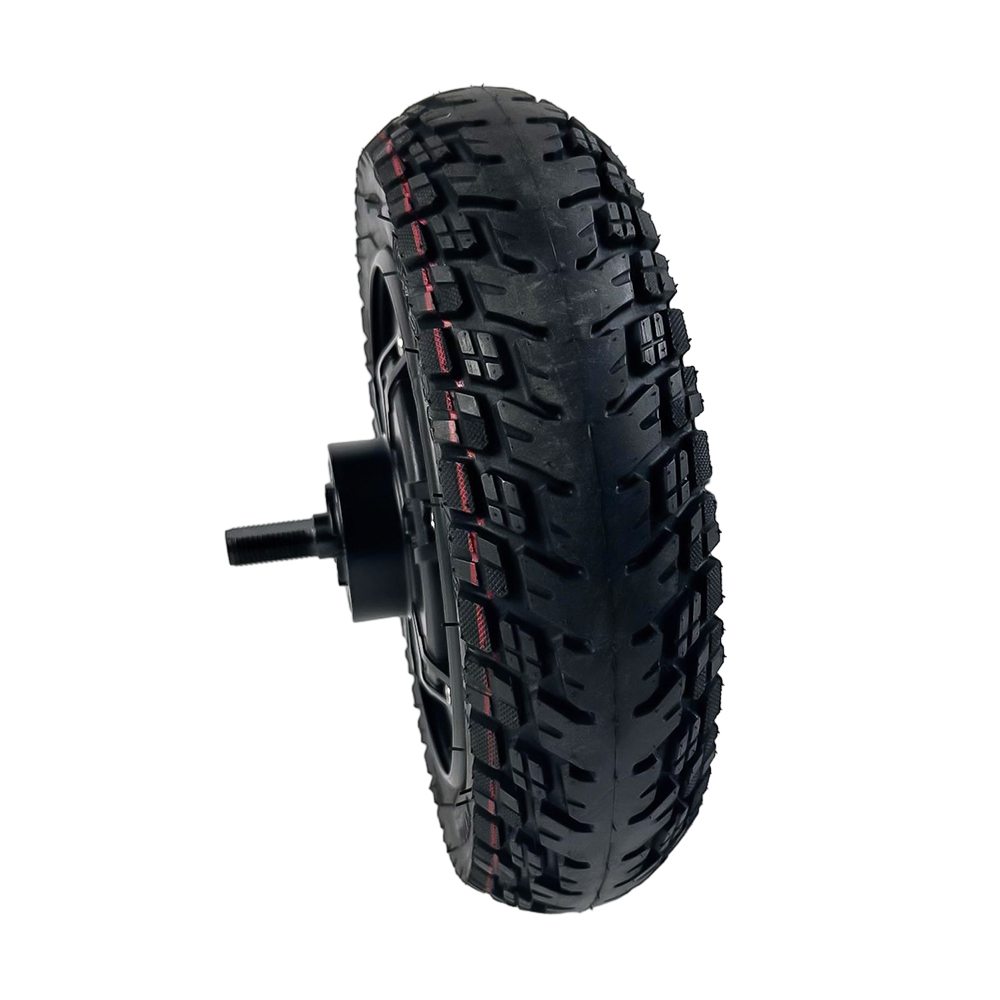

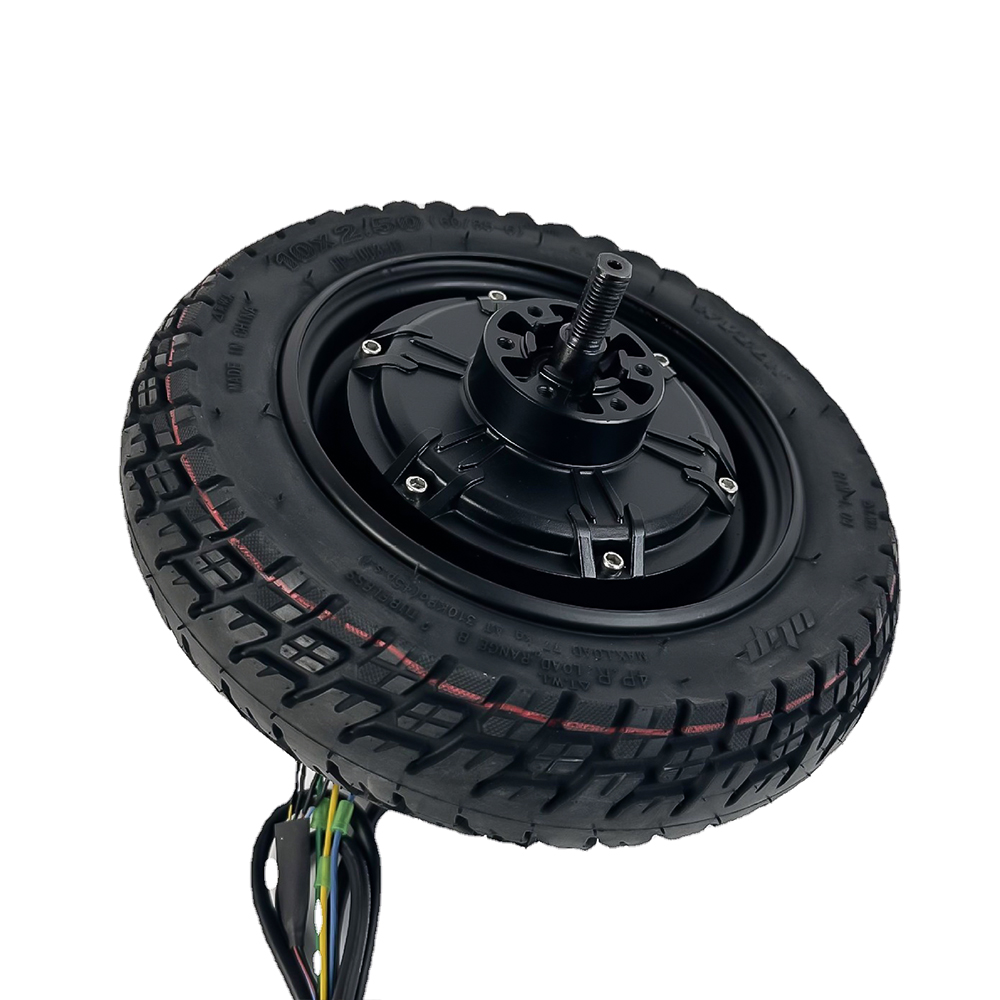

Upgrade your electric scooter with this powerful brushless hub motor wheel. Designed for DIY electric scooter builds, replacements, and custom EV projects.

This motor provides strong torque, smooth acceleration, and reliable performance for high-power applications.

Voltage：48V/60V
rated speed：48V：1250 RPM  60V：1500 RPM
Maximum Torque：30NM
Maximum speed ：50KM/H

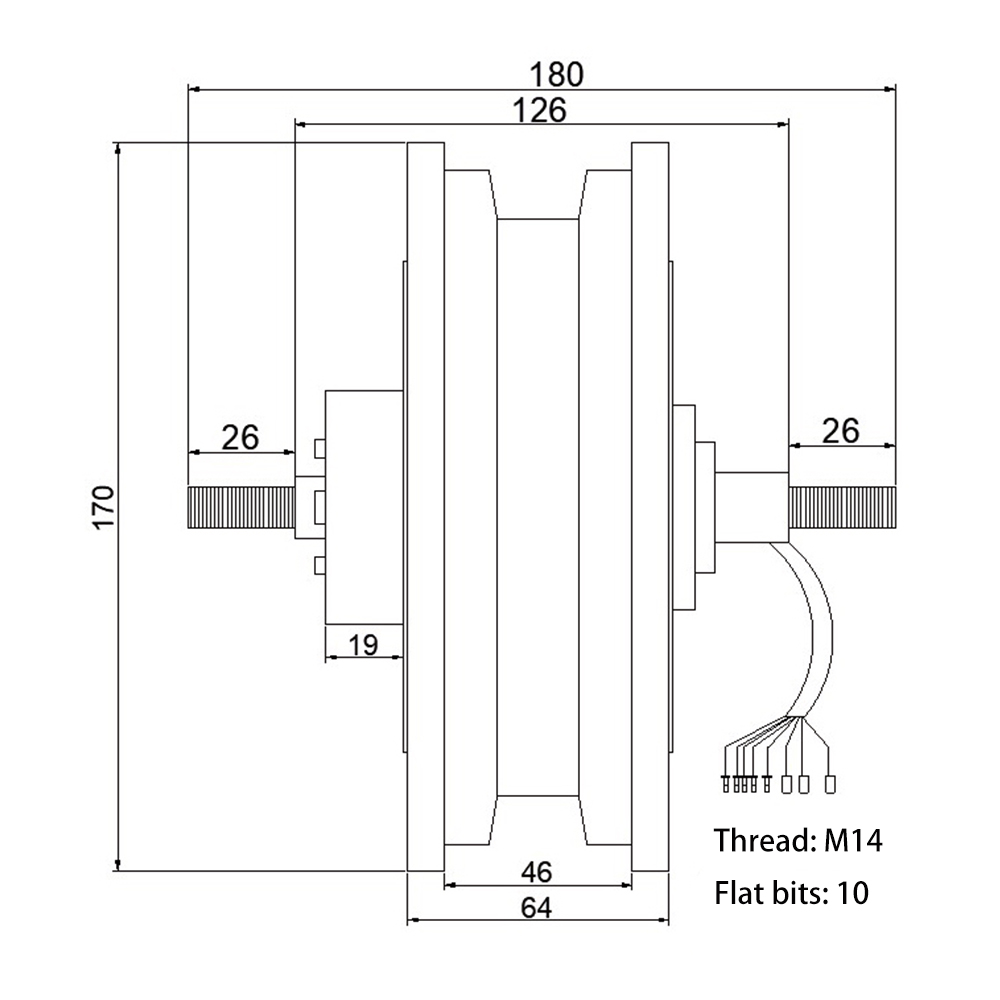

Open Size ：126mm
axial length：180mm
Number of pole pairs: 15 pairs
Number of magnets：30PC
Magnet height:35mm
Package Contents: 1 x Motor （with vacuum tire）

CHECK FITMENT BEFORE ORDERING

Open Size / Installation Width: 126 mm
Axial Length: 180 mm

CONTROLLER COMPATIBILITY IS IMPORTANT

Controller is not included.
The motor must be connected to a compatible controller with the correct:
Voltage
Power/current capability
Phase wiring
Hall sensor wiring
Connector configuration
Wire sequence may vary between different controllers.
If your controller has a self-learning function, complete the controller learning procedure before normal operation.
If you are using your own controller, verify the wiring configuration before operating the motor.
Using an incompatible controller or incorrect wiring may prevent normal operation or damage electrical components.

Controller and other electrical components are not included unless specifically stated in the selected option.

BEFORE YOU BUY

Please confirm these four points:

1. Voltage
Make sure the motor voltage matches your battery and controller system.
2. Power
Choose the correct motor power for your controller and intended application.
3. Installation Size
Check the required mounting width, axle dimensions and surrounding clearance.
4. Controller & Wiring
Confirm controller compatibility and wiring before connecting the motor.
Checking these details before ordering will greatly reduce compatibility problems during installation.
