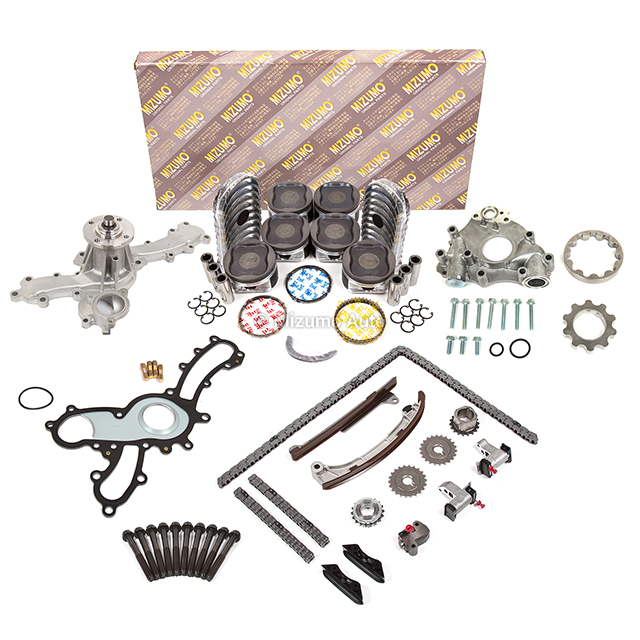

Overhaul Engine Rebuild Kit Fit Toyota 4Runner FJ Cruiser Tacoma Tundra 1GRFE. Designed using state-of-the-art technology and with customers in mind. This product is made of high-quality materials to serve you for years to come. It will meet your needs and deliver great quality at an affordable cost. Replace Part #: 13101-0P020, 13101-31030, 13101-31120-A0

Fits Following Models:
2003-2009 TOYOTA 4RUNNER 4.0L 3956CC 241CID V6 DOHC, (24 VALVE), ENG CODE "1GRFE"
2007-2009 TOYOTA FJ CRUISER 4.0L 3956CC 241CID V6 DOHC, (24 VALVE), ENG CODE "1GRFE"
2005-2012 TOYOTA TACOMA 4.0L 3956CC 241CID V6 DOHC, (24 VALVE), ENG CODE "1GRFE"
2005-2006 TOYOTA TUNDRA 4.0L 3956CC 241CID V6 DOHC, (24 VALVE), ENG CODE "1GRFE"

This item includes:

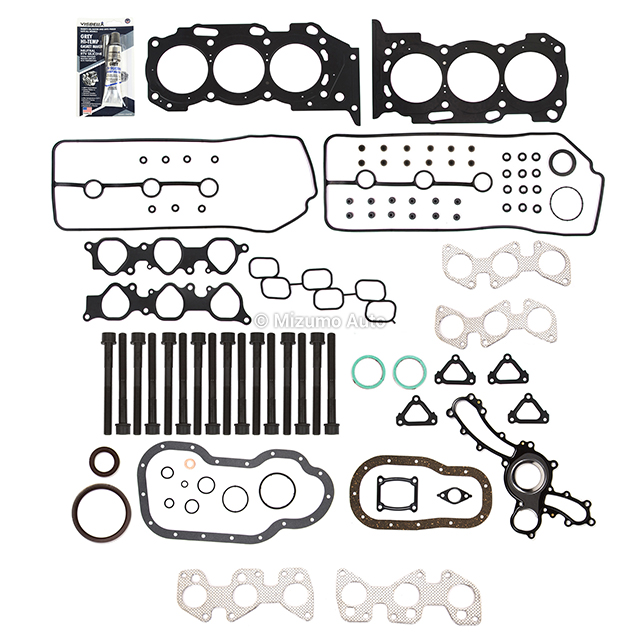

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)

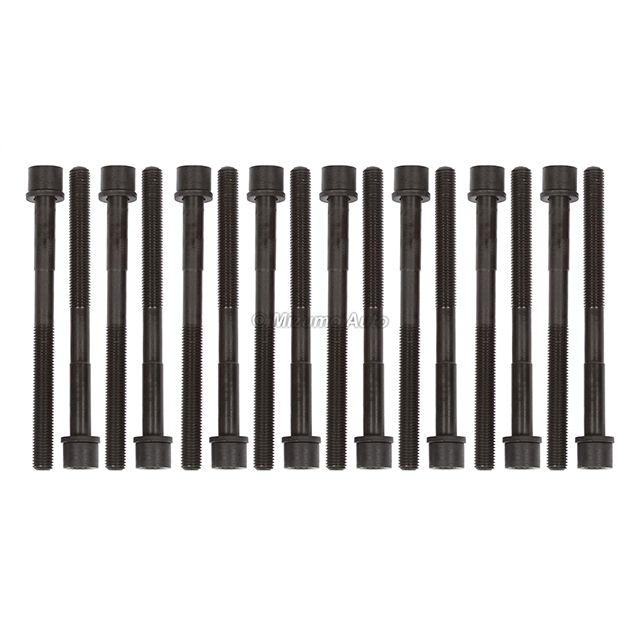

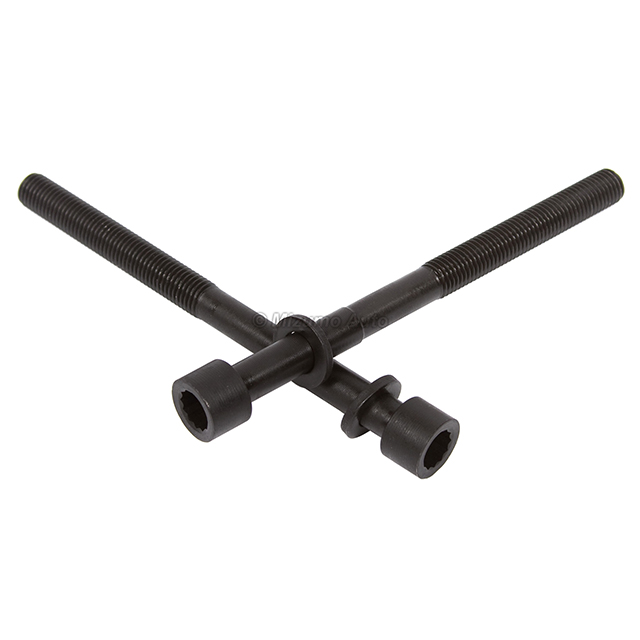

16 Cylinder Head Bolts

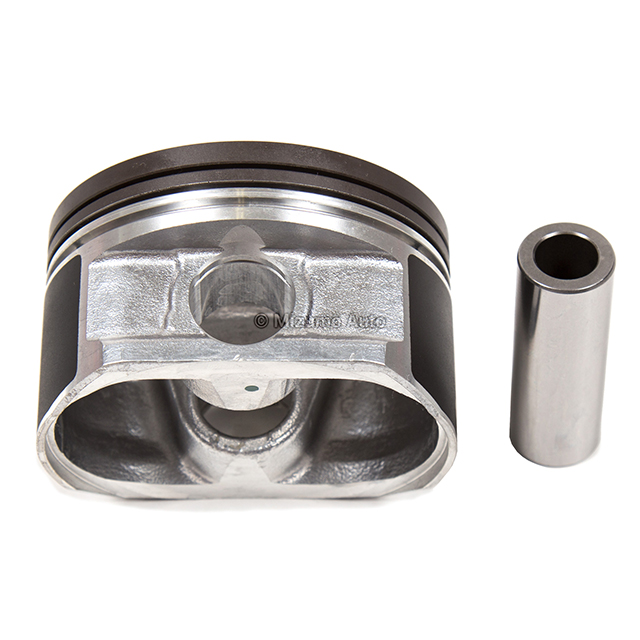

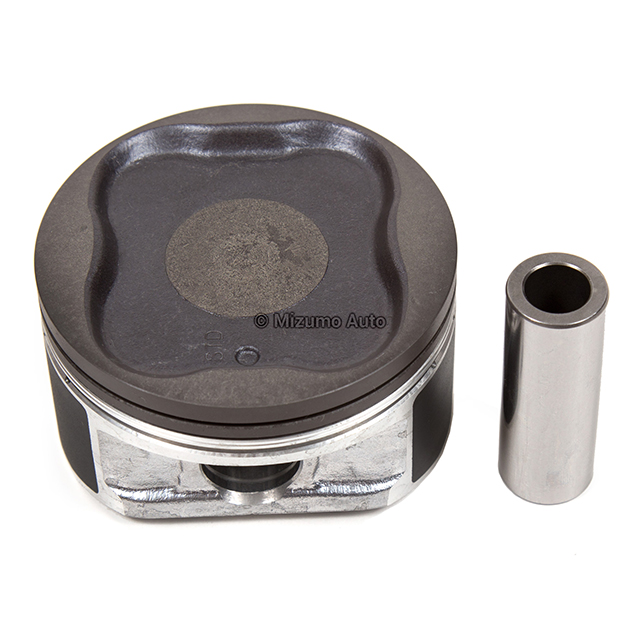

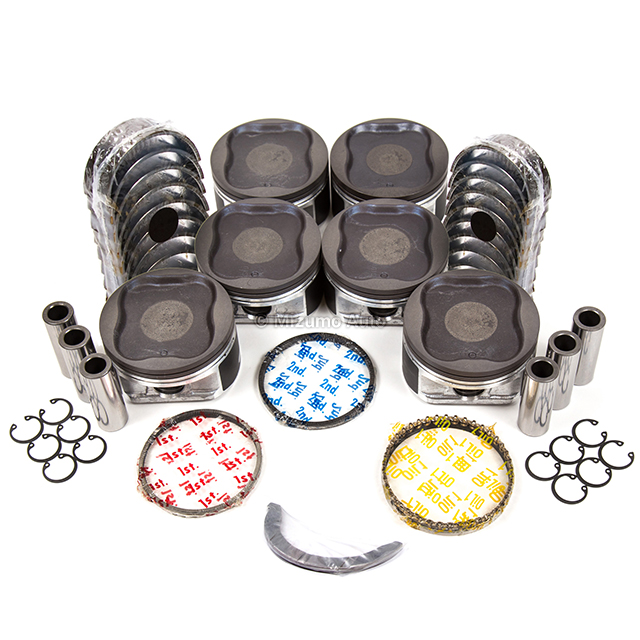

6 Pistons with Complete Ring Set (Sizes available: see option above)

Standard Bore Diameter: 94.00mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 2.00mm

6 Piston Wrist Pins
12 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer

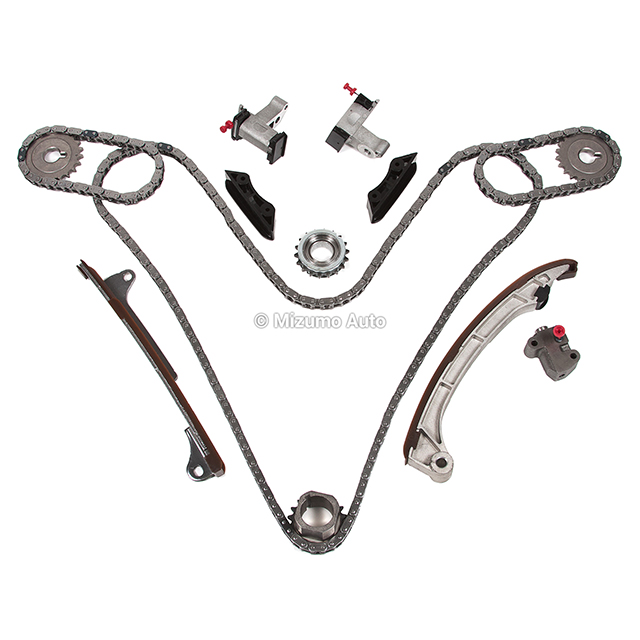

1 Timing Chain lower (primary, 178 links)
2 Timing Chain upper (cam to cam)
1 Tensioner primary (lower)
1 Tensioner right (upper, secondary)
1 Tensioner left (upper, secondary)
2 Guide Rail (upper left & right)
1 Guide Rail left (fixed rail)
1 Guide Rail right (tensioner rail)
2 Cam Sprocket (secondary - exhaust)
1 Idler Sprocket (18 teeth)
1 Crank Sprocket (18 teeth)
Cam Sprockets (intake) - are not included

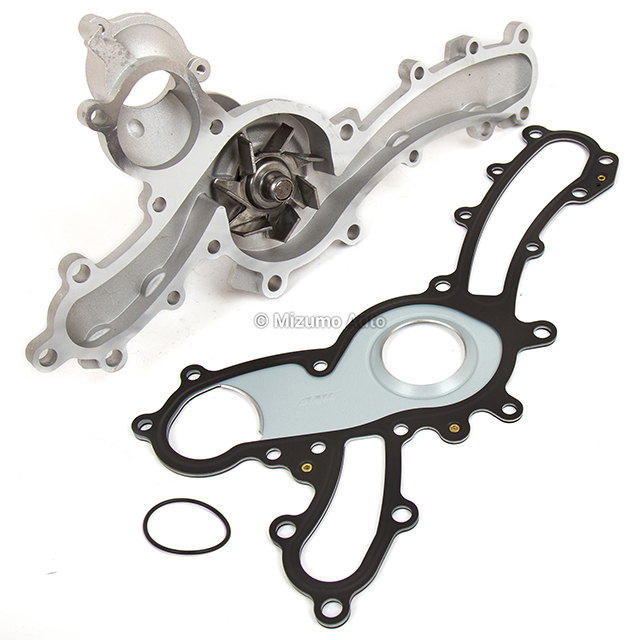

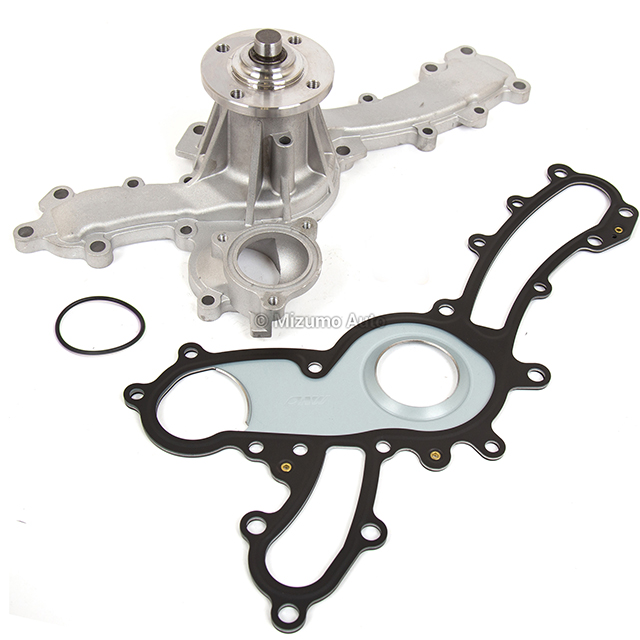

1 Water Pump w/ Gasket

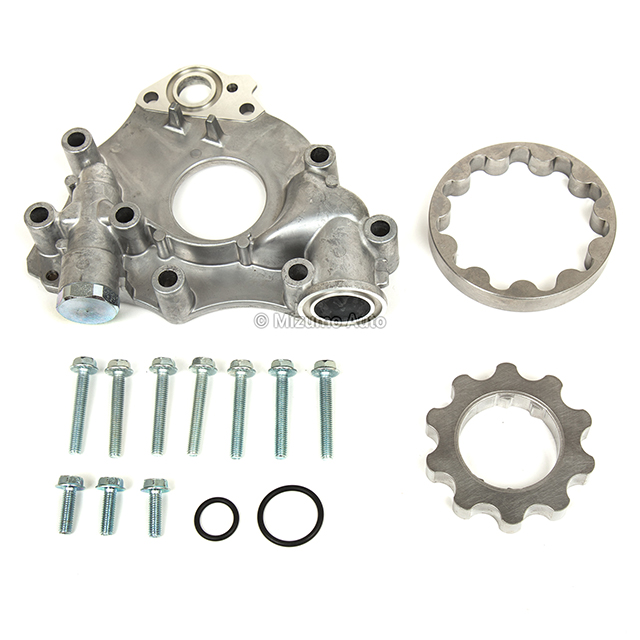

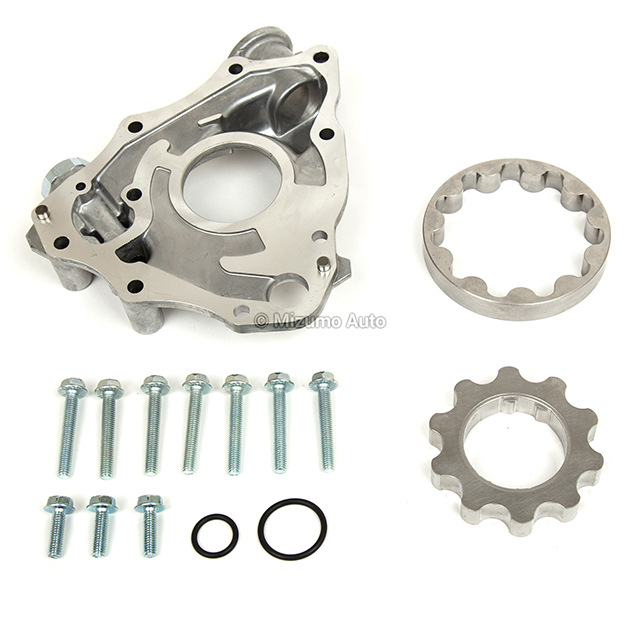

1 Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add Message to Seller" box that eBay provided when you go to check out. Click the SAVE button in order for your note to be saved, and double check to make sure your note is lodged with your payment. For other oversizes please contact us for special order.

Piston Measurements

Piston Part #

UOM

STD

0.25

0.50

0.75

1.00

PS2050

94.000

94.250

94.500

94.750

95.000

3.701

3.711

3.720

3.730

3.740

Piston Ring Part#

Piston Information

RS2050

Specifications

Cylinder

Bore

94.000

3.701

Comp

32.700

1.287

Dist.	1	+
	2
	3

2.800

0.110

Length

56.500

2.224

Surface Treatment		Cir Clip
Head	Skirt
Anodized Head	Moly Skirt
Remarks
Measure for CYL clearance	MM	IN	From Bottom of the Skirt
Measure for CYL clearance	8.000	0.315	From Bottom of the Skirt

Pin Length

62.000

2.441

Pin Diameter

22.000

0.866

1st

1.200

0.047

2nd

1.200

0.047

Oil Ring

2.000

0.079

CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to maximum Bore Size.

Warranty

Warranty & Exchange

Mizumo Auto offers a Limited Warranty to entire products to be free from defects in workmanship and material under a normal service conditions for a period of 90 days whichever occurs form the original date of purchase.

The warranty is not transferable, is valid to original purchaser, and limited to the replacement of defective product only.

This Limited Warranty does not cover labor, damaged from accidents, alterations, misuse or modifications not intended by the manufacture, and other expenses such as towing loading fluids, oils or car rentals.

All warranty clams must be pre-authorized and returned prepaid to Mizumo Auto for inspection and approval.

No exchanges will be made for any product that has been damaged, misused or improper installed. We always recommend professional installation of our products.

The buyer assumes risk of damage caused by improper installation.
