Engine Rebuild Kit Fit 95-04 Toyota 4Runner Tacoma Tundra 3.4L 5VZFE
reviews SKU #: MA-4216980044
Ships within 1 business day
- Guaranteed to fit and meet the specifications of the OE parts being replaced
- Utilizes the latest in design and material technology, ensuring quiet and maintenance-free experience
- Produced under strictly observed quality under highest ISO 9001:2000 international standards
- Advanced manufacturing technology ensures durability and optimum operation
- Specialized designs yield significant and noticeable improvements to your car engine
Product Details
Engine Rebuild Kit Fit 95-04 Toyota 4Runner Tacoma Tundra 3.4L 5VZFE. Designed using state-of-the-art technology and with customers in mind. This product is made of high-quality materials to serve you for years to come. It will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
1996-2002 TOYOTA 4RUNNER 3.4L 3378CC V6 DOHC, (24 VALVE), ENGCODE "5VZFE"
1995-2004 TOYOTA TACOMA 3.4L 3378CC V6 DOHC, (24 VALVE), ENGCODE "5VZFE"
2000-2004 TOYOTA TUNDRA 3.4L 3378CC V6 DOHC, (24 VALVE), ENGCODE "5VZFE"

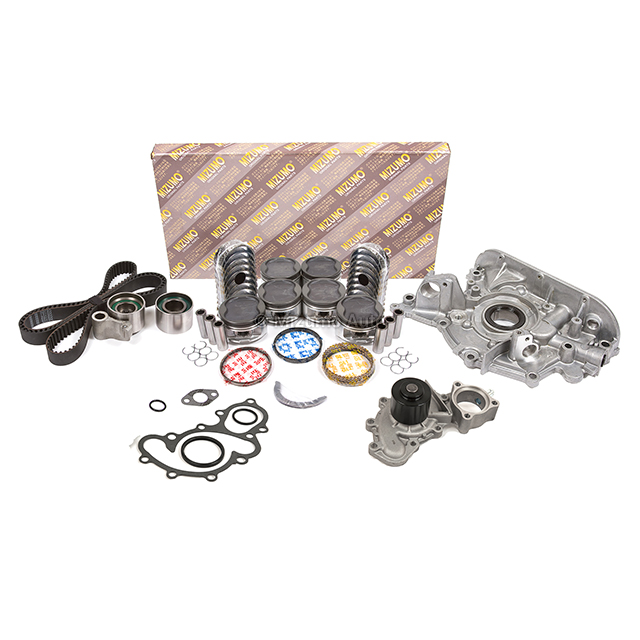

This item includes:
- Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)

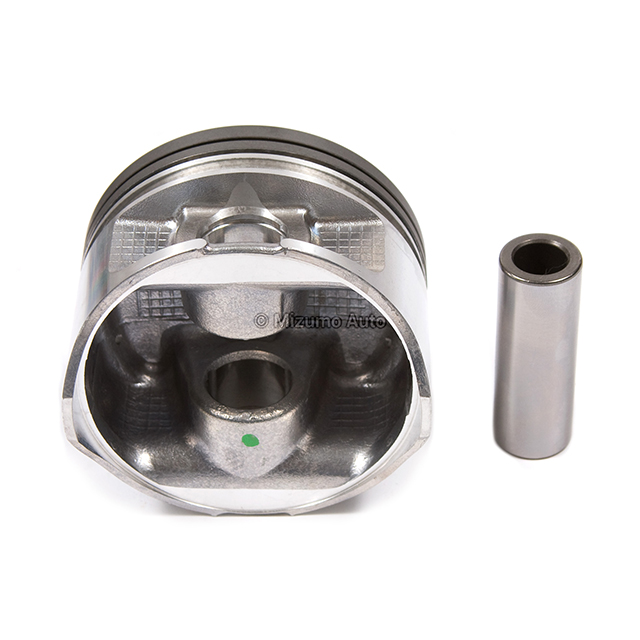

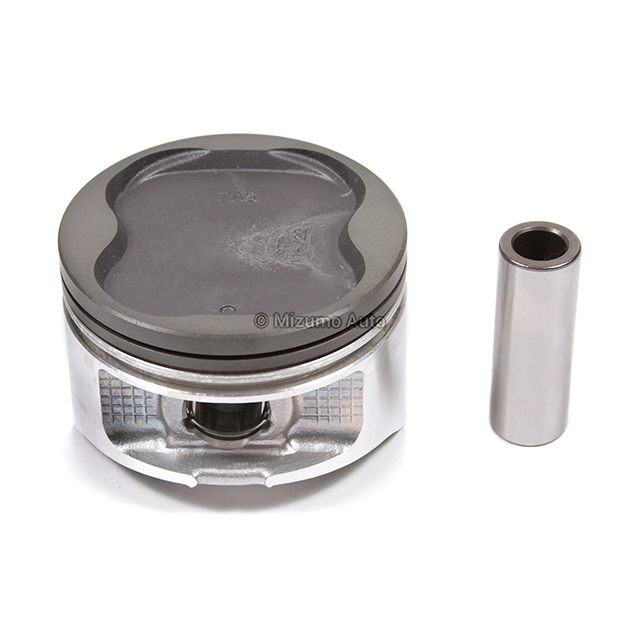

- 6 Pistons with Complete Ring Set (Sizes available: see option above)
- Standard Bore Diameter: 93.50mm
- 1st Group: 1.50mm
- 2nd Group: 1.50mm
- Oil Ring: 4.00mm
- 6 Piston Wrist Pins
- 12 Cir Clips
- Main Bearing Set (Sizes available: see option above)
- Rod Bearing Set (Sizes available: see option above)
- Thrust Washer
- 1 Timing Belt (191 teeth)
- 1 GMB Roller Tensioner Bearing (bearing assembly)
- 1 GMB Idler Bearing

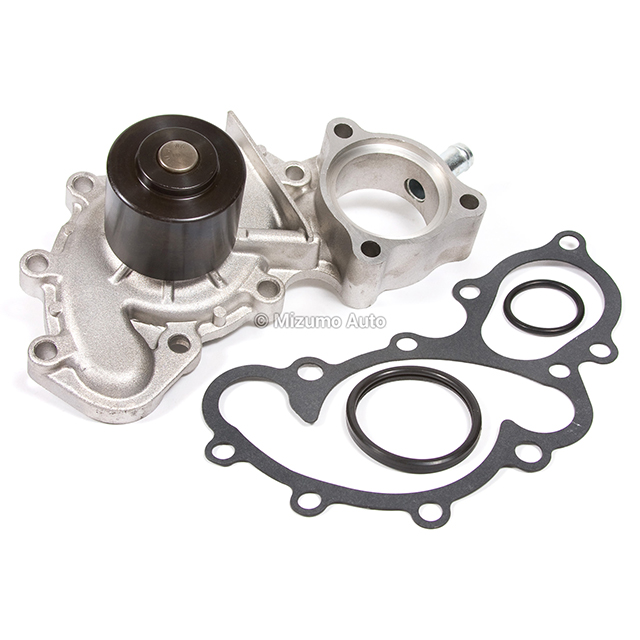

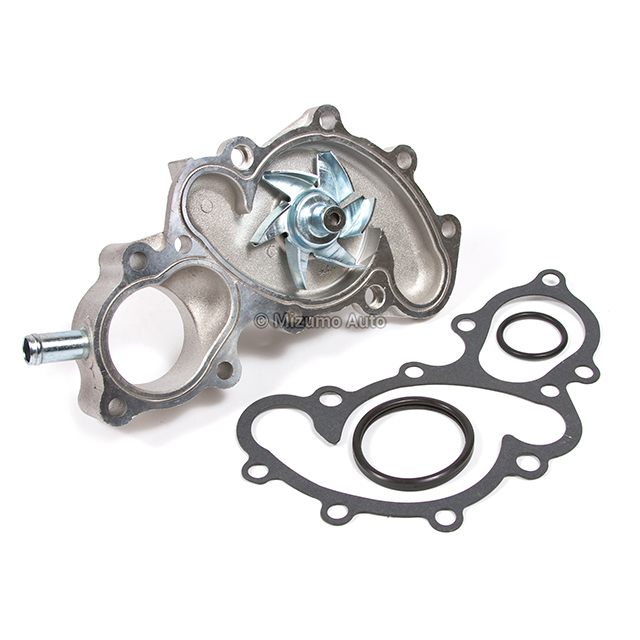

- Water Pump w/ Gasket

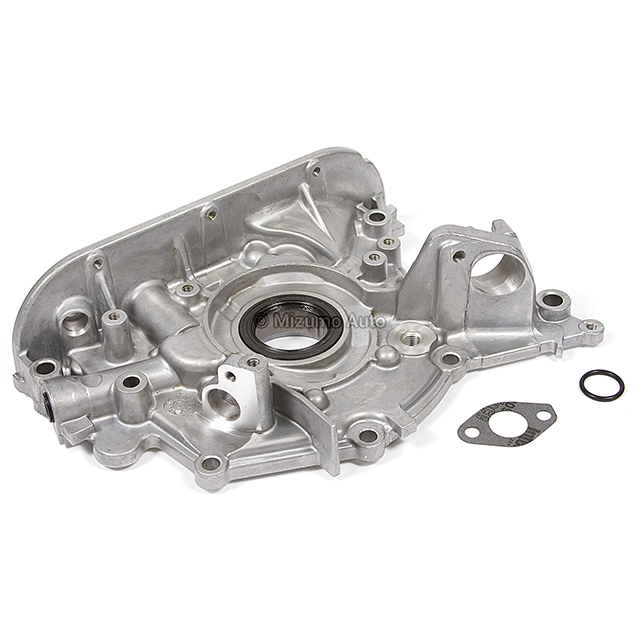

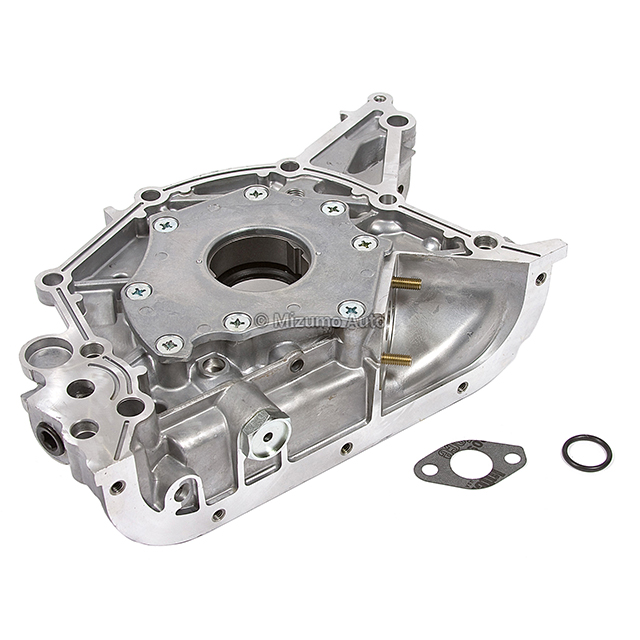

- Oil Pump
| Piston Measurements | |||||||||||||||||||||||||
| Piston Part # | UOM | STD | 0.25 | 0.50 | 0.75 | 1.00 | |||||||||||||||||||
| PS2034 | MM | 93.500 | 93.750 | 94.000 | 94.250 | 94.500 | |||||||||||||||||||
| IN | 3.681 | 3.691 | 3.701 | 3.711 | 3.720 | ||||||||||||||||||||
| Piston Ring Part# | Piston Information | ||||||||||||||||||||||||
| RS2034 | |||||||||||||||||||||||||
  | |||||||||||||||||||||||||
| Specifications | MM | IN | |||||||||||||||||||||||
| Cylinder | 6 | ||||||||||||||||||||||||
| Bore | 93.500 | 3.681 | |||||||||||||||||||||||
| Comp | 34.000 | 1.339 | |||||||||||||||||||||||
|
|
| |||||||||||||||||||||||
| Length | 63.000 | 2.480 | |||||||||||||||||||||||
| Pin Length | 62.000 | 2.441 | ||||||||||||||||||||||
| Pin Diameter | 22.000 | 0.866 | |||||||||||||||||||||||
| 1st | 1.500 | 0.059 | |||||||||||||||||||||||
| 2nd | 1.500 | 0.059 | |||||||||||||||||||||||
| Oil Ring | 4.000 | 0.157 | |||||||||||||||||||||||
