Engine Rebuild Kit Fit 94-00 Toyota 4Runner Tacoma T100 2.7L DOHC 3RZFE 16V
reviews SKU #: MA-4216979710
Ships within 1 business day
- Guaranteed to fit and meet the specifications of the OE parts being replaced
- Utilizes the latest in design and material technology, ensuring quiet and maintenance-free experience
- Produced under strictly observed quality under highest ISO 9001:2000 international standards
- Advanced manufacturing technology ensures durability and optimum operation
- Specialized designs yield significant and noticeable improvements to your car engine
Product Details
Engine Rebuild Kit Fit 94-00 Toyota 4Runner Tacoma T100 2.7L DOHC 3RZFE 16V. Designed using state-of-the-art technology and with customers in mind. This product is made of high-quality materials to serve you for years to come. It will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
1996-2000 TOYOTA 4RUNNER 2.7L 2694CC L4 DOHC, (16 VALVE), ENG CODE "3RZFE"
1994-1998 TOYOTA T100 2.7L 2694CC L4 DOHC, (16 VALVE), ENG CODE "3RZFE"
1995-2004 TOYOTA TACOMA 2.7L 2694CC L4 DOHC, (16 VALVE), ENG CODE "3RZFE"

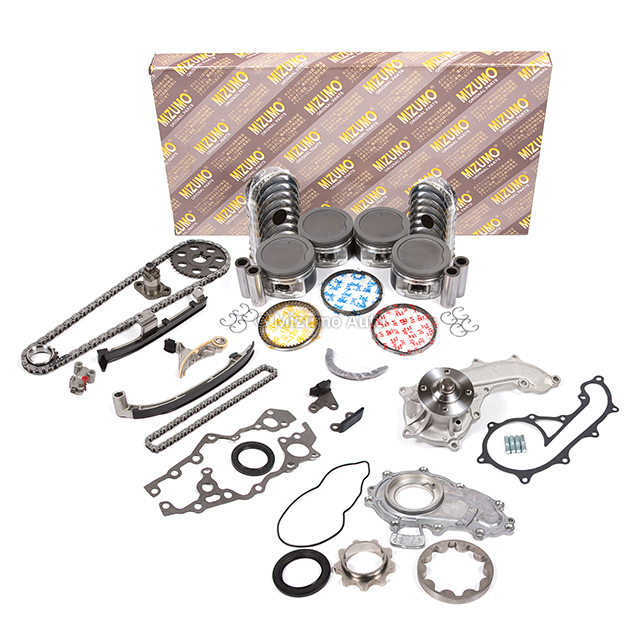

This item includes:

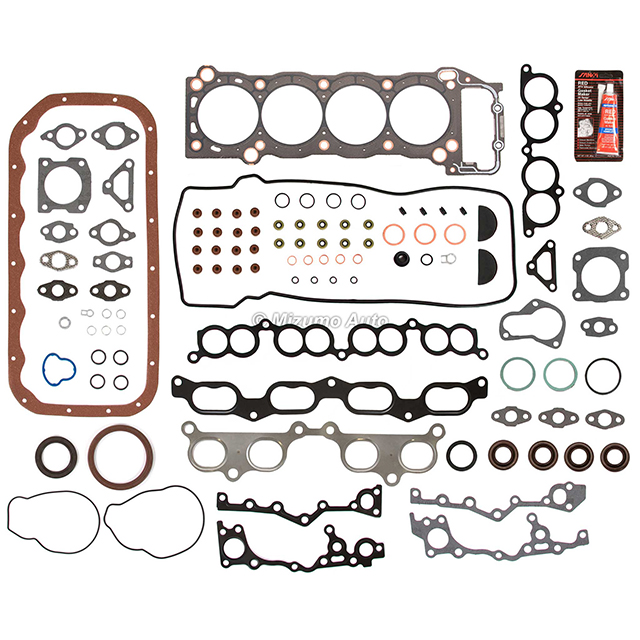

- Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)

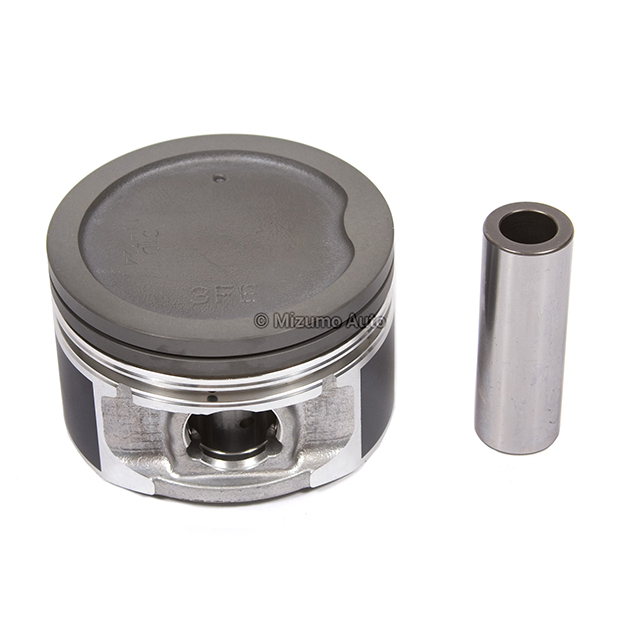

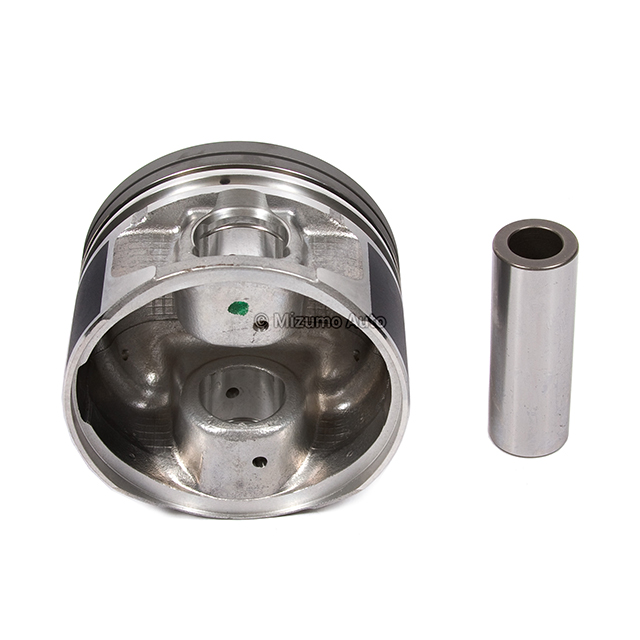

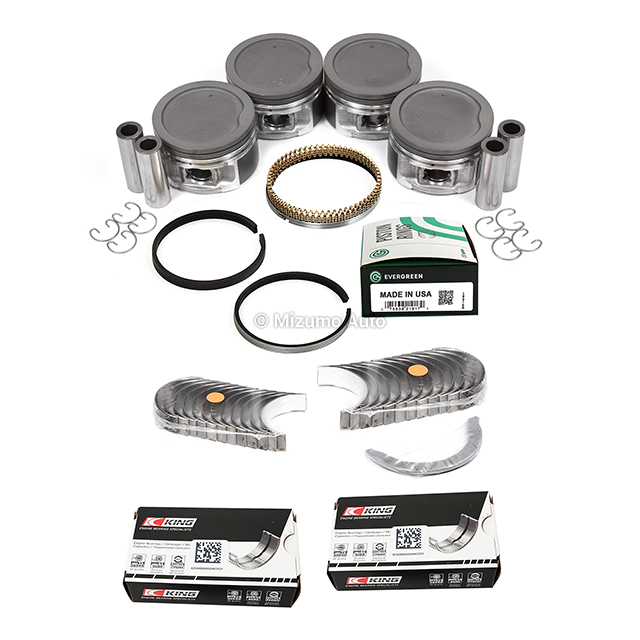

- 4 Pistons with Complete Ring Set (Sizes available: see option above)
- Standard Bore Diameter: 95.00mm
- 1st Group: 1.50mm
- 2nd Group: 1.50mm
- Oil Ring: 4.00mm
- 4 Piston Wrist Pins
- 8 Cir Clips
- Main Bearing Set (Sizes available: see option above)
- Rod Bearing Set (Sizes available: see option above)
- Thrust Washer

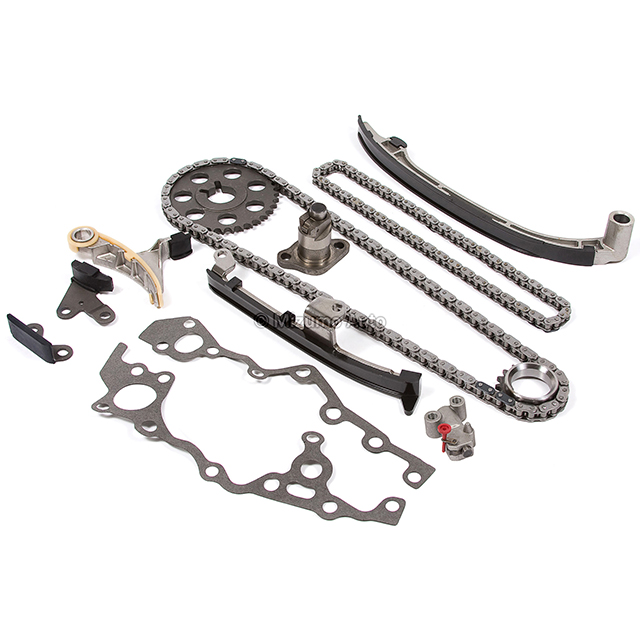

- 1 Timing Chain (outer, crank to cam, 106 links)
- 1 Tensioner (outer, cam chain tensioner)
- 1 Guide Rail (right, tensioner rail)
- 1 Guide Rail (left, fixed rail)
- 1 Timing Chain (inner, crank to balance shafts, 82 links)
- 1 Banlance Shaft Tensioner (balance shaft chain tensioner)
- 1 Guide Rail (balance shaft upper rail)
- 1 Guide Rail (balance shaft, left center rail)
- 1 Guide Rail (balance shaft, lower rail)

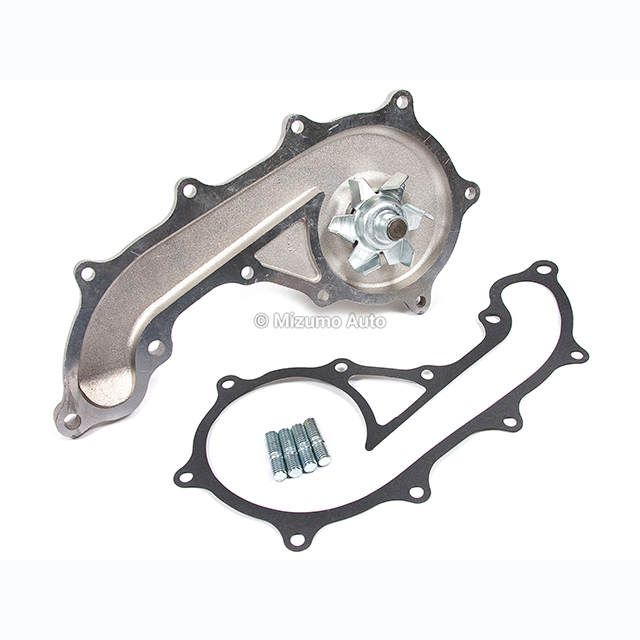

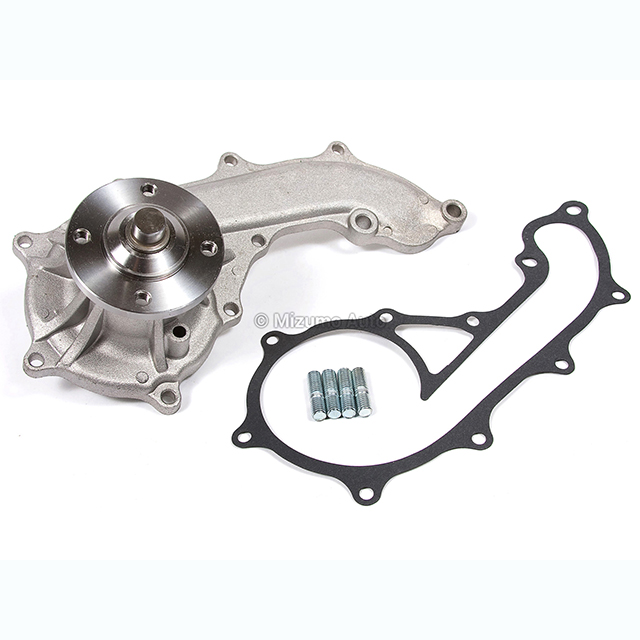

- Water Pump w/ Gasket

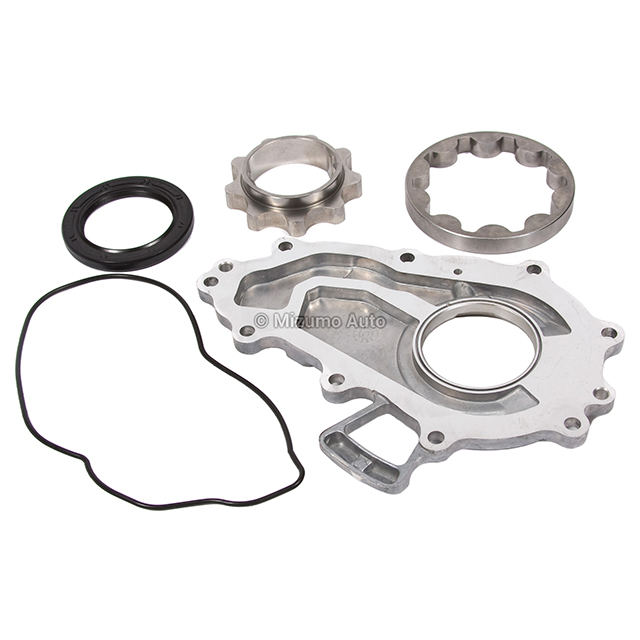

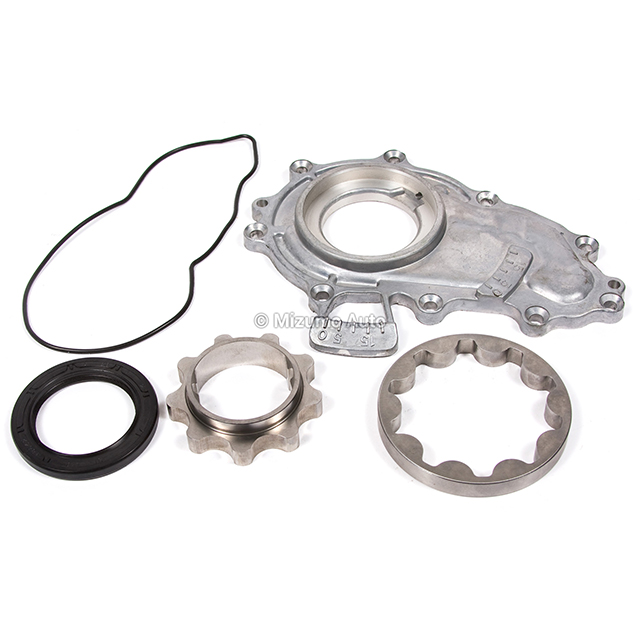

- Oil Pump
| Piston Measurements | |||||||||||||||||||||||||
| Piston Part # | UOM | STD | 0.25 | 0.50 | 0.75 | 1.00 | |||||||||||||||||||
| PS2020 | MM | 95.000 | 95.250 | 95.500 | 95.750 | 96.000 | |||||||||||||||||||
| IN | 3.740 | 3.750 | 3.760 | 3.770 | 3.780 | ||||||||||||||||||||
| Piston Ring Part# | Piston Information | ||||||||||||||||||||||||
| RS2019A | |||||||||||||||||||||||||
  | |||||||||||||||||||||||||
| Specifications | MM | IN | |||||||||||||||||||||||
| Cylinder | 4 | ||||||||||||||||||||||||
| Bore | 95.000 | 3.740 | |||||||||||||||||||||||
| Comp | 37.200 | 1.465 | |||||||||||||||||||||||
|
|
| |||||||||||||||||||||||
| Length | 61.000 | 2.402 | |||||||||||||||||||||||
| Pin Length | 70.000 | 2.756 | ||||||||||||||||||||||
| Pin Diameter | 24.000 | 0.945 | |||||||||||||||||||||||
| 1st | 1.500 | 0.059 | |||||||||||||||||||||||
| 2nd | 1.500 | 0.059 | |||||||||||||||||||||||
| Oil Ring | 4.000 | 0.157 | |||||||||||||||||||||||
| CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to maximum Bore Size. | |||||||||||||||||||||||||
Warranty & Exchange
Mizumo Auto offers a Limited Warranty to entire products to be free from defects in workmanship and material under a normal service conditions for a period of 90 days whichever occurs form the original date of purchase.
The warranty is not transferable, is valid to original purchaser, and limited to the replacement of defective product only.
This Limited Warranty does not cover labor, damaged from accidents, alterations, misuse or modifications not intended by the manufacture, and other expenses such as towing loading fluids, oils or car rentals.
All warranty clams must be pre-authorized and returned prepaid to Mizumo Auto for inspection and approval.
No exchanges will be made for any product that has been damaged, misused or improper installed. We always recommend professional installation of our products.
The buyer assumes risk of damage caused by improper installation.
