Product Details
Product features:

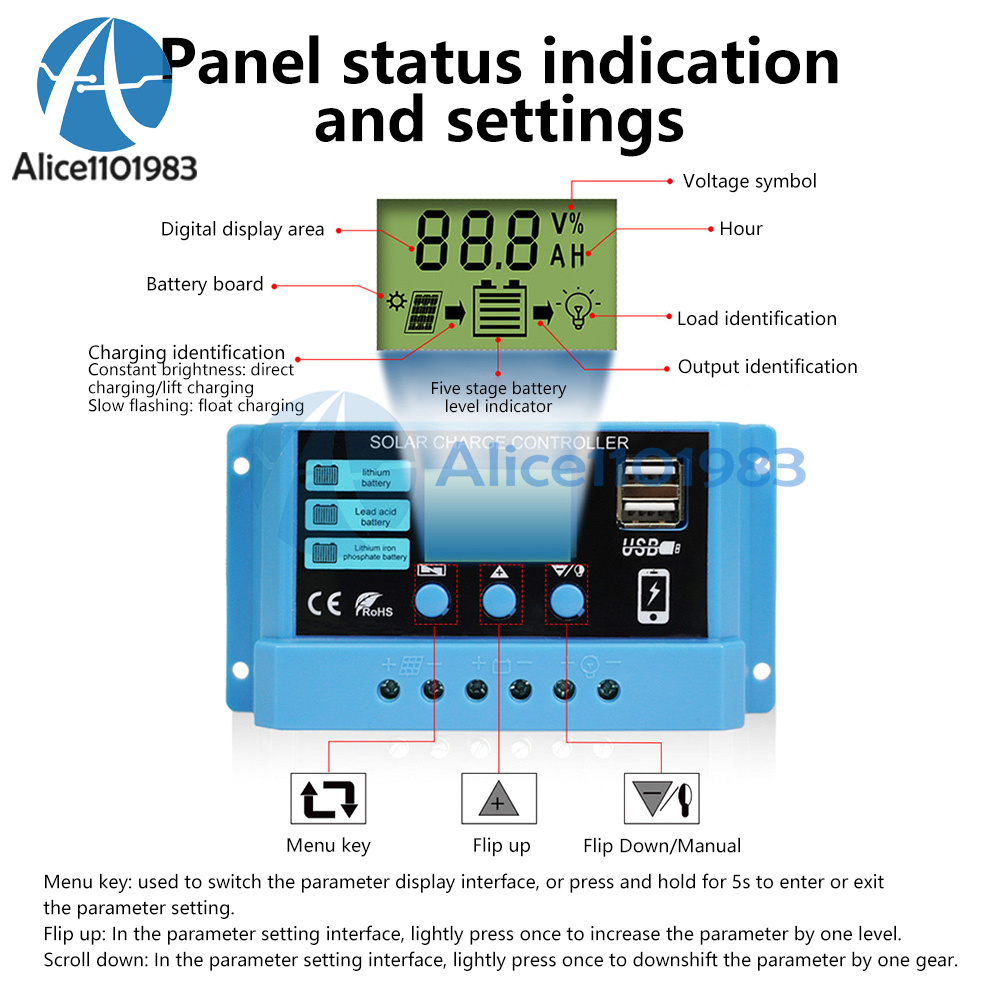

1. The control system adopts a large-sized LCD display screen, with adjustable charging and discharging parameters.
2. Wide application range: suitable for solar power generation systems, smart homes, solar chargers, solar ventilation systems, solar light boxes, solar billboards, solar warning lights, etc.

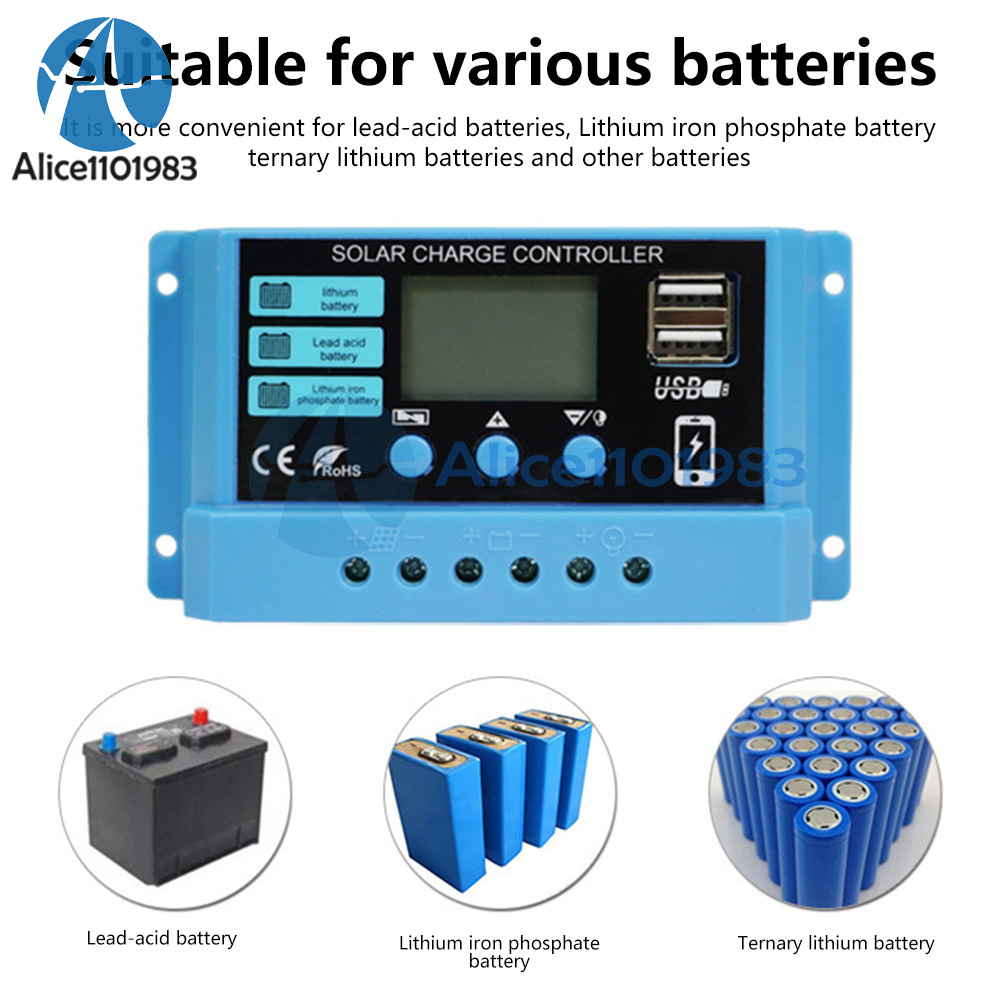

3. Suitable for various batteries: It is more convenient for lead-acid batteries, Lithium iron phosphate battery, ternary lithium batteries and other batteries.
4. Multiple protection: built-in overcurrent protection, short circuit protection, reverse connection protection, and circuit breaker protection, all of which can be automatically restored without damaging the control.
5. Lighting control time: This controller has lighting control time, which can control the discharge of sunlight and time.
6. Three level adjustable PWM charging: Adopting direct charging, incremental charging, and floating charging, the controller is used to achieve efficient and fast intelligent charging, effectively extending battery life.

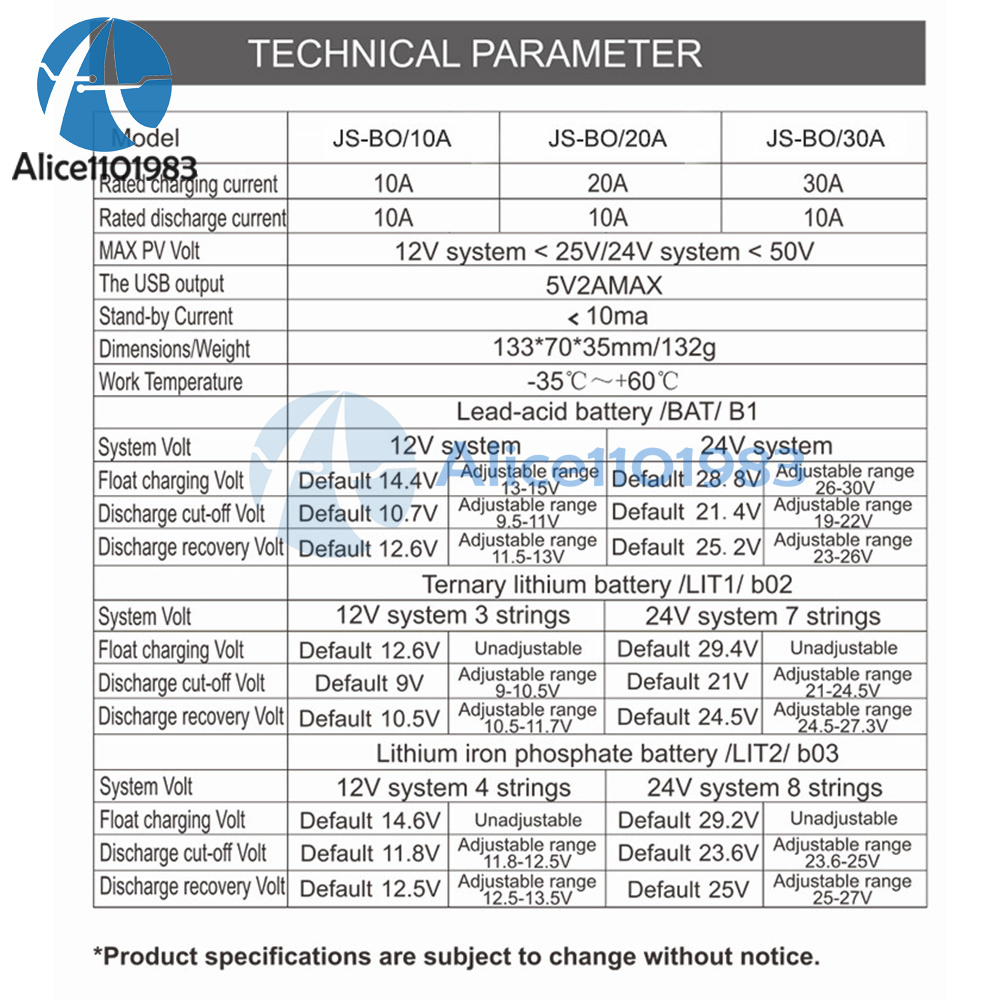

technical parameter
Models: 10A, 20A, 30A
Rated charging current: 10A, 20A, 30A
Rated discharge current: 10A
Maximum photovoltaic voltage: 12V system<25V/24V system<50V
USB output: 5V 2AMAX
Standby current: 10ma

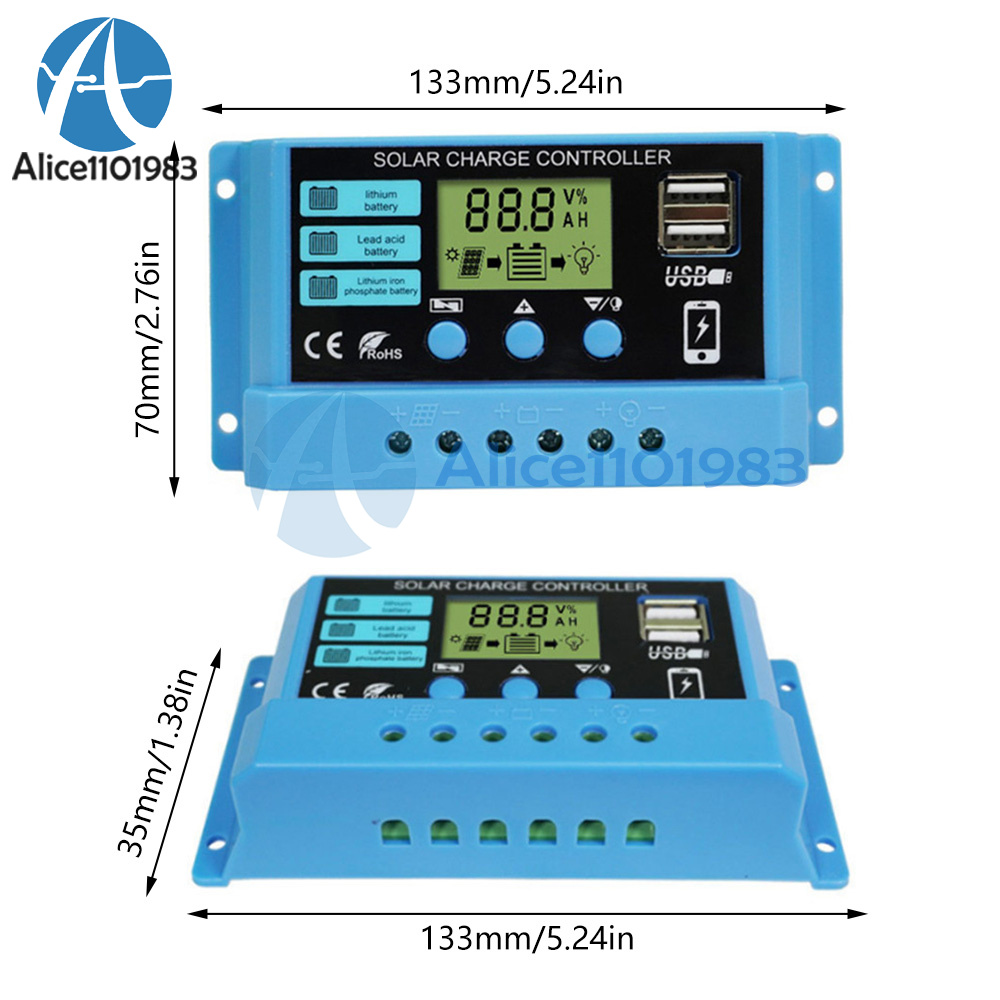

Size: approximately 133 * 70 * 35mm
Working environment temperature: -35 ℃~+60 ℃
Lead acid batteries/BAT/b01:
System voltage: 12V system, 24V system
Float charging voltage:
12V: default value 14.4V, adjustable value 13-15V;
24V: default value 28.8V, adjustable value 26-30V
Discharge cut-off voltage:
12V: default value of 10.7V, adjustable value of 9.5-11V;
24V: default value 21.4V, adjustable value 19-22V
Discharge recovery voltage:
12V: default value 12.6V, adjustable value 11.5-13V;
24V: default value 25.2V, adjustable value 23-26V
Ternary lithium battery/LIT/b02:
System voltage: 3 strings for 12V system, 7 strings for 24V system
Float charging voltage:
12V: default value 12.6V, non adjustable;
24V: default value 29.4v, not adjustable
Discharge cut-off voltage:
12V: default value 9V, adjustable value 9-10.5V;
24V: default value 21V, adjustable value 21-24.5V
Discharge recovery voltage: default value 10.5V, adjustable value 10.5-11.7V, default value 24.5V, adjustable value 24.5-27.3V
Lithium iron phosphate battery/LIT/b03:
System voltage: 4 strings for 12V system and 8 strings for 24V system
Float charging voltage:
12V: default value 14.6V, not adjustable
24V: default value 29.2V, not adjustable
Discharge cut-off voltage:
12V: default value 11.8V, adjustable value 11.8-12.5V
24V: default value 23.6V, adjustable value 23.6-25V
Discharge recovery voltage:
12V: default value 12.5V, adjustable value 12.5-13.5V
24V: default value 25V, adjustable value 25-27V
Product List:
1X solar controller
