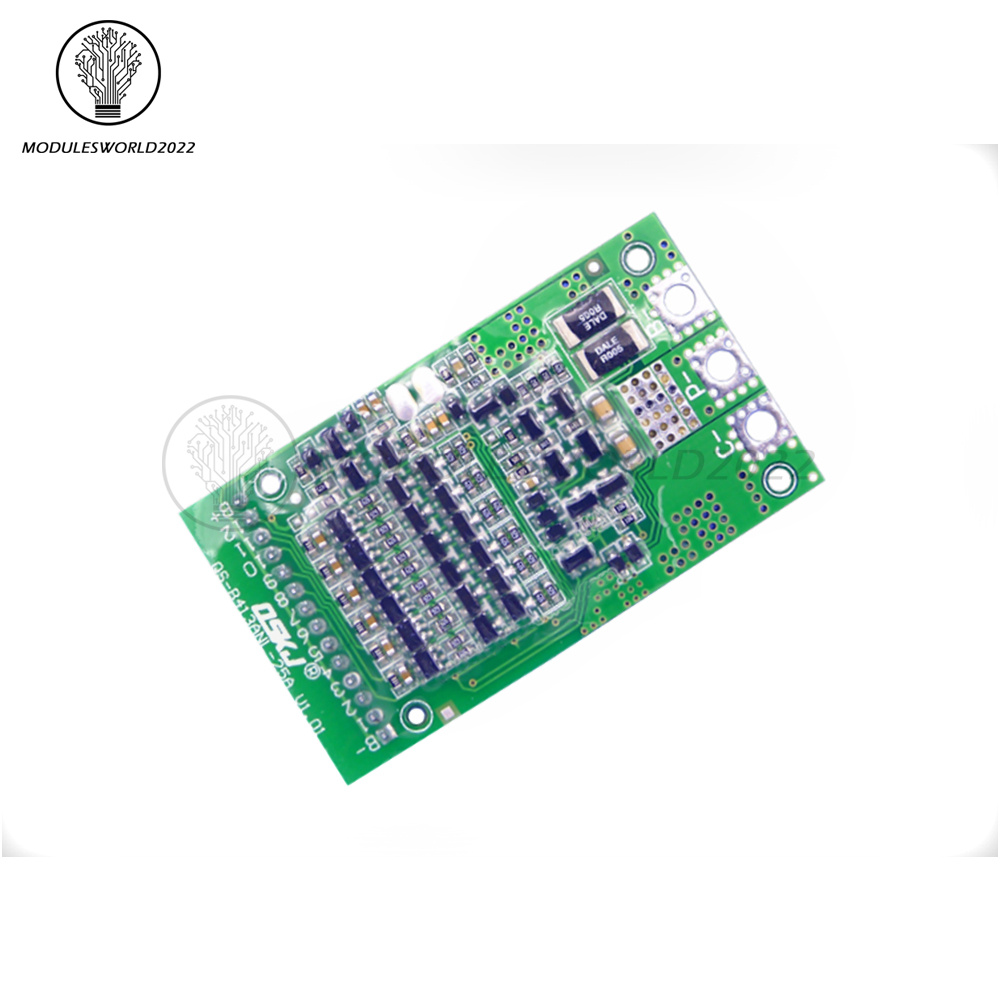

100% brand new and high quality 18650 Lipo Li-Ion battery protection charging card
25A adjustable BMS
MIN = minimum TYPE = typically MAX = maximum
Overload detection voltage: MIN: 3.725V TYPE: 3.75V MAX: 3.775V
Overcharge recovery voltage: MIN: 3.55V TYPE: 3.6V MAX: 3.65V
Over-discharge detection voltage: MIN: 2.05 V TYPE: 2.1 V MAX: 2.15 V
Recovery voltage in case of over-discharge: MIN: 2.25 V TYPE: 2.3 V MAX: 2.35 V
Overload detection current: MIN: 110A TYPE: 130A MAX: 150A
Overload detection delay time: MIN: 1000 ms TYPE: 1300 ms MAX: 1600 ms
Overload current protection delay time: MIN: 6 ms TYPE: 8 ms MAX: 8 ms
Over-discharge current detection current: MIN: 56A TYPE: 66A MAX: 76A
Overload current protection delay time: MIN: 115 ms TYPE: 145 ms MAX: 175 ms
Idle current: 25uA
Temperature protection: yes
Overcurrent protection: Cut off the load
Discharge current: 18A
Charging current: 18A
1 X 25A BMS 6S 7S 8S 9S 10S 11S 12S 13S 3.6V adjustable BMS module BMS PWB PCM Li-Ion LiFePO4 LiFe LMO lithium battery 18650 charger-battery protection circuit board
