Product Details
This product is developed and designed for the wireless charging and power supply of various series of small electronic products.
It has the characteristics of small size, extremely easy to use, high efficiency and low price.
Mainly suitable for mobile electronic products such as: mobile phones, game consoles, MP3, MP4, digital cameras, electric shavers, and other product applications
Due to the contactless charging power supply, the product can be completely sealed, waterproof and dustproof
Increase the service life of the product and make it more convenient to use

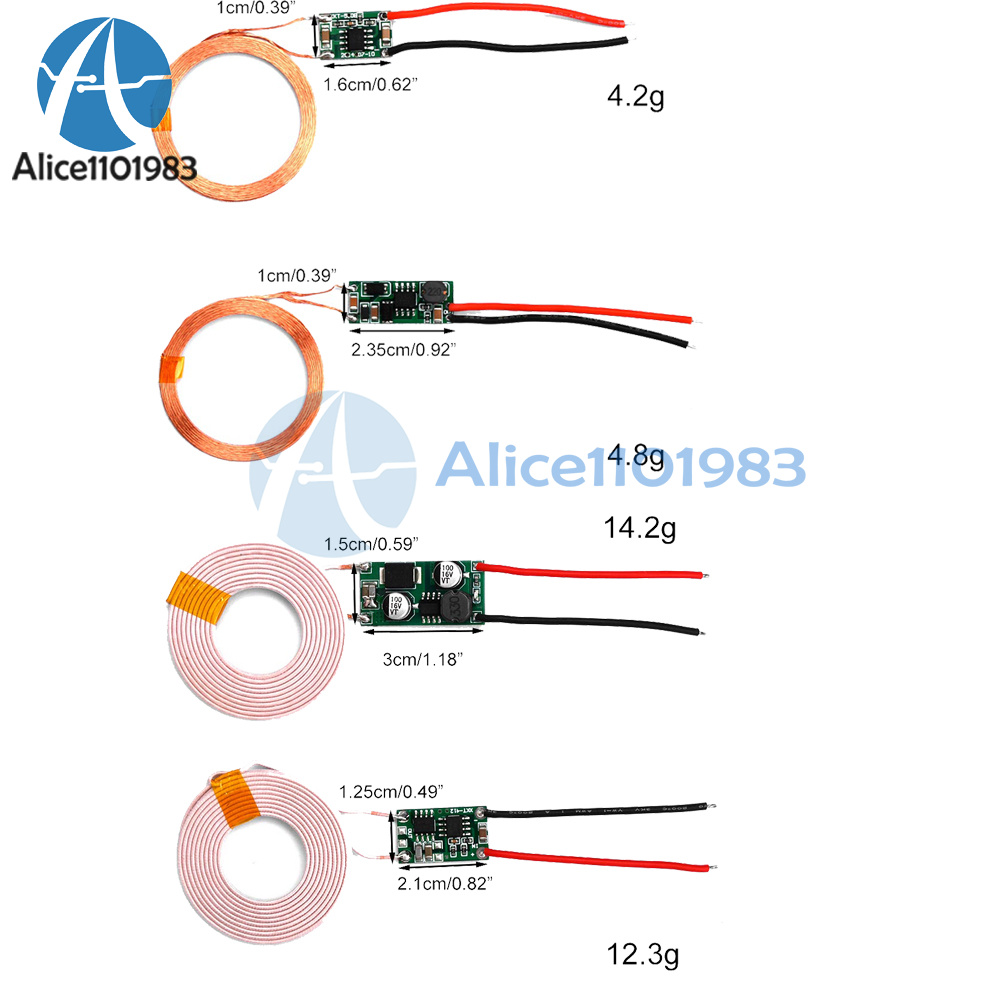

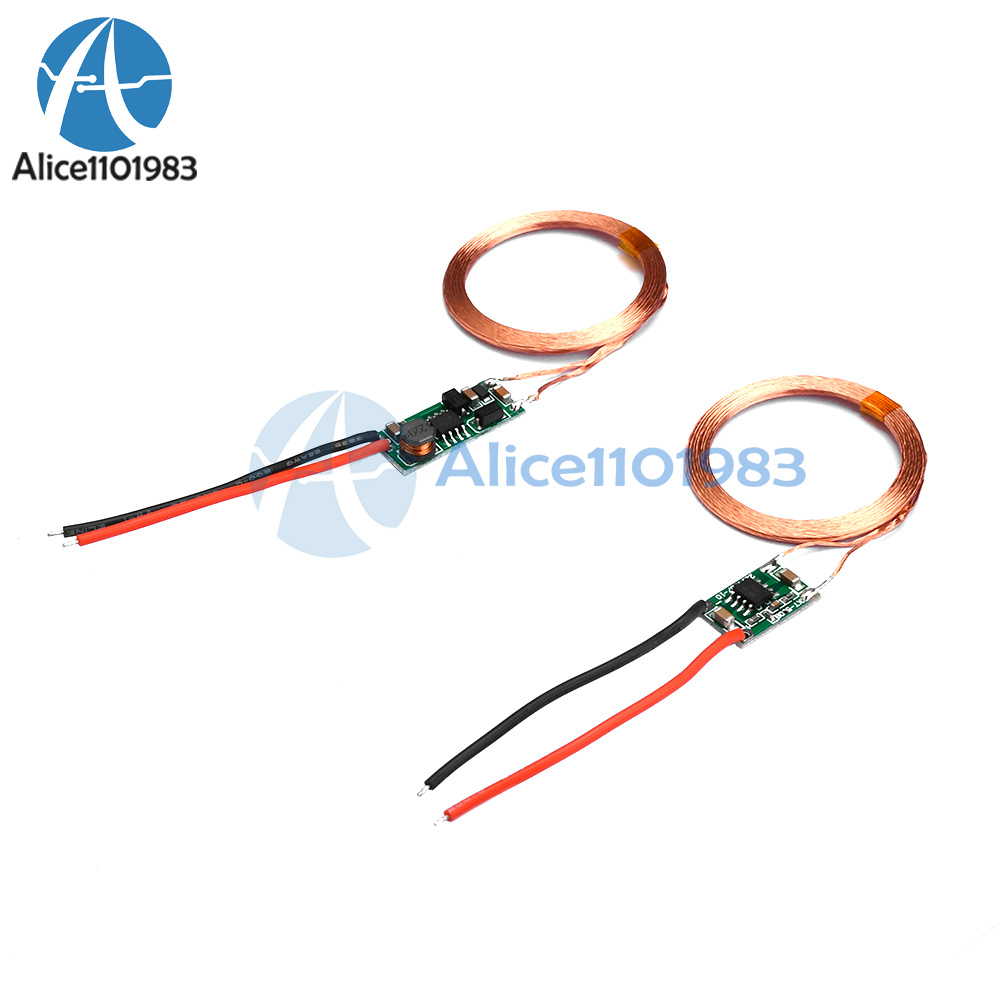

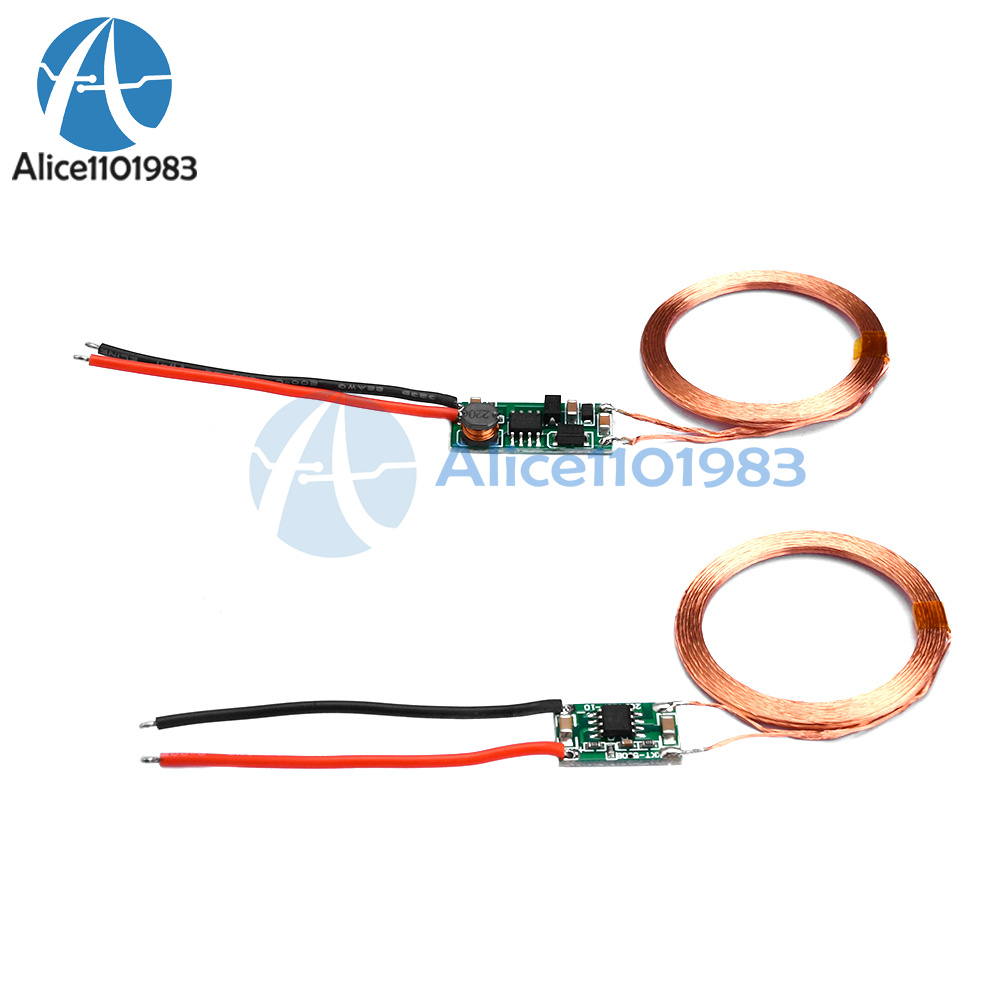

Launch module size: length 17mm width 11mm height 2.5mm
Receiver module size: length 24mm width 10mm height 5.5mm

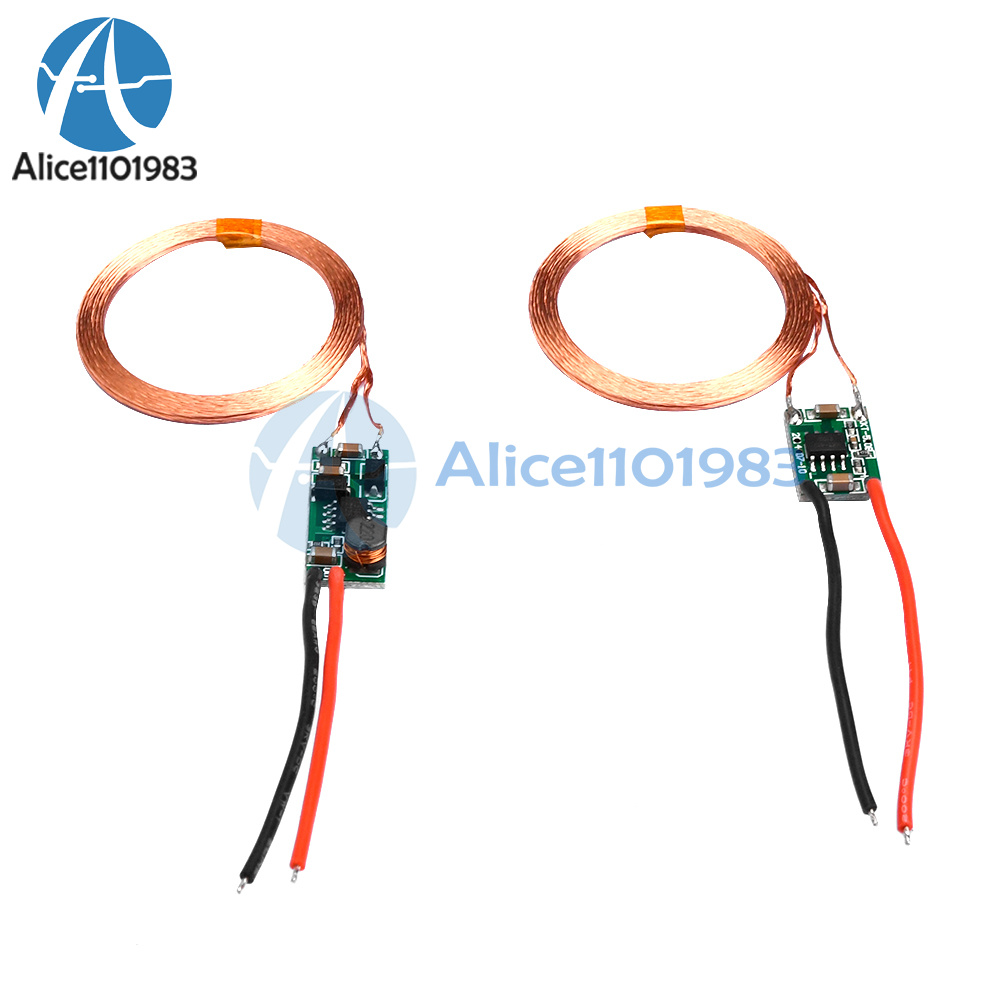

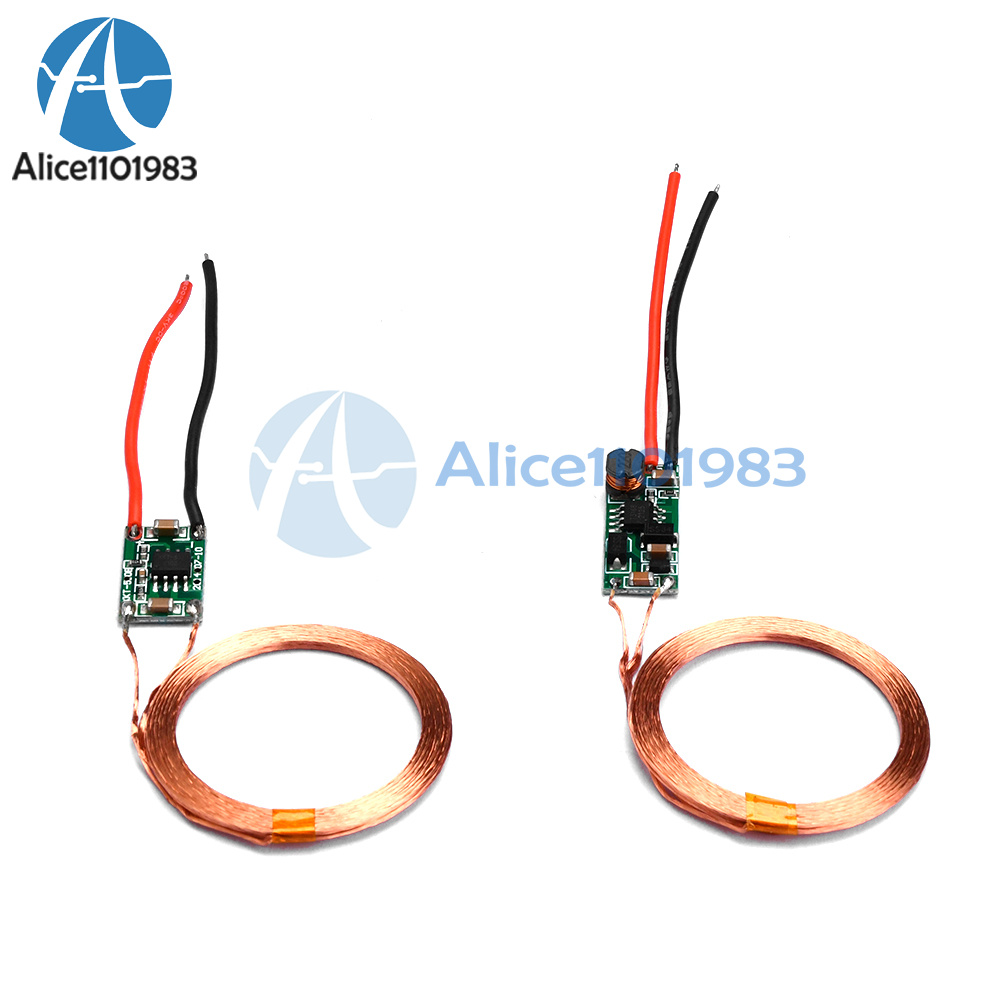

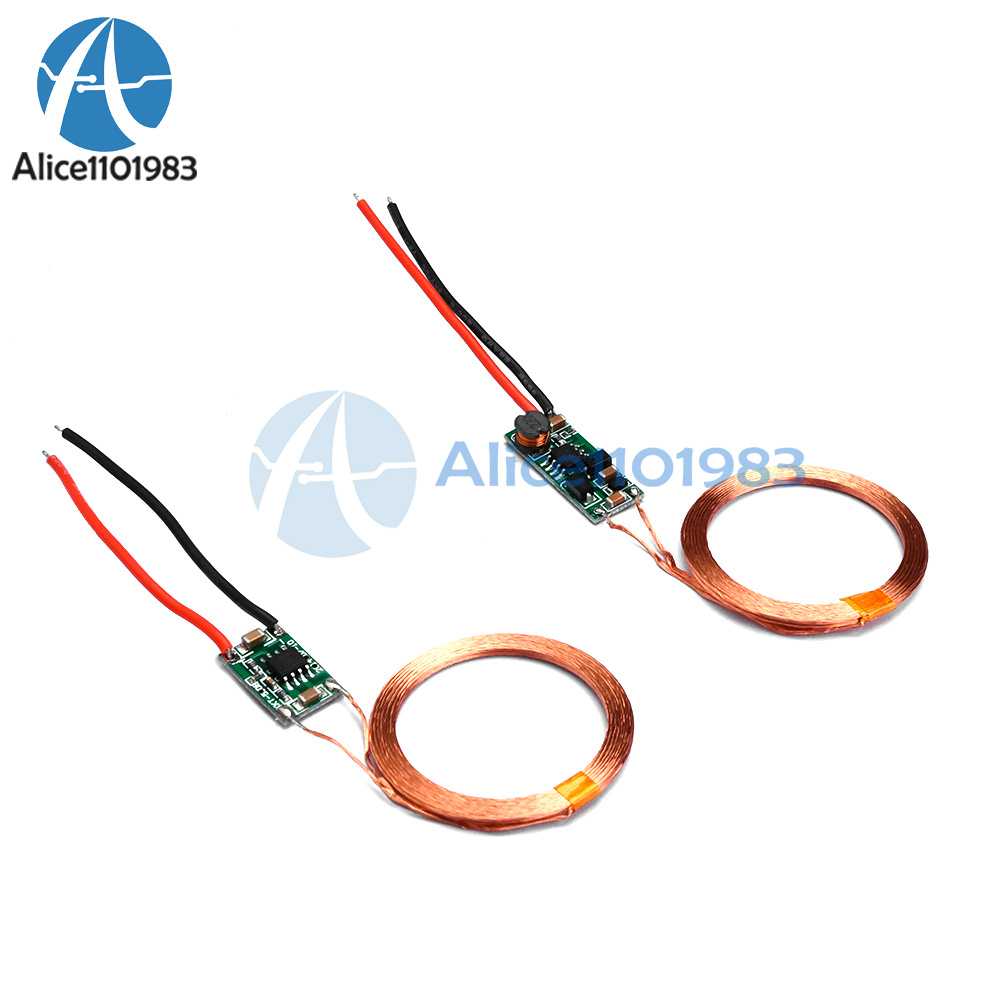

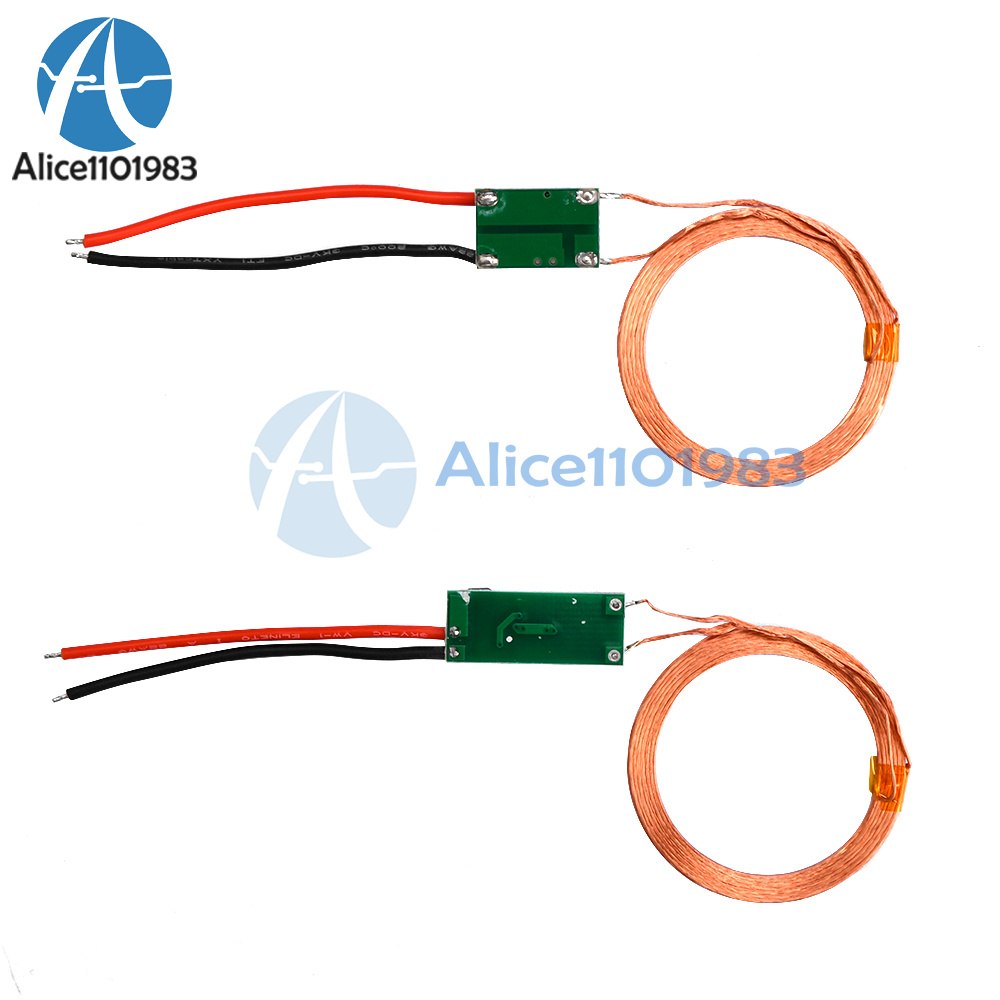

Transmitting and receiving coil size: outer diameter 38mm, inner diameter 28mm, thickness 1.3mm
Connection method: 1 pin is connected to the negative pole of the power supply; 2 pin is connected to the positive pole of the power supply; 3 and 4 pins are connected to the external sending coil
Transmitter module working voltage: 5V~12V
The working current of the transmitter module: automatically increase or decrease with the size of the receiving load current
Output current value of receiving module: 1A
Transceiver distance: 1~20mm
If a small current is used, the number of turns of the receiving coil can be appropriately increased to increase the transmission distance
Input voltage: 9~12V
Load current: 1.3A
Receiving output voltage and current: 5V/2A, 12V/700mA

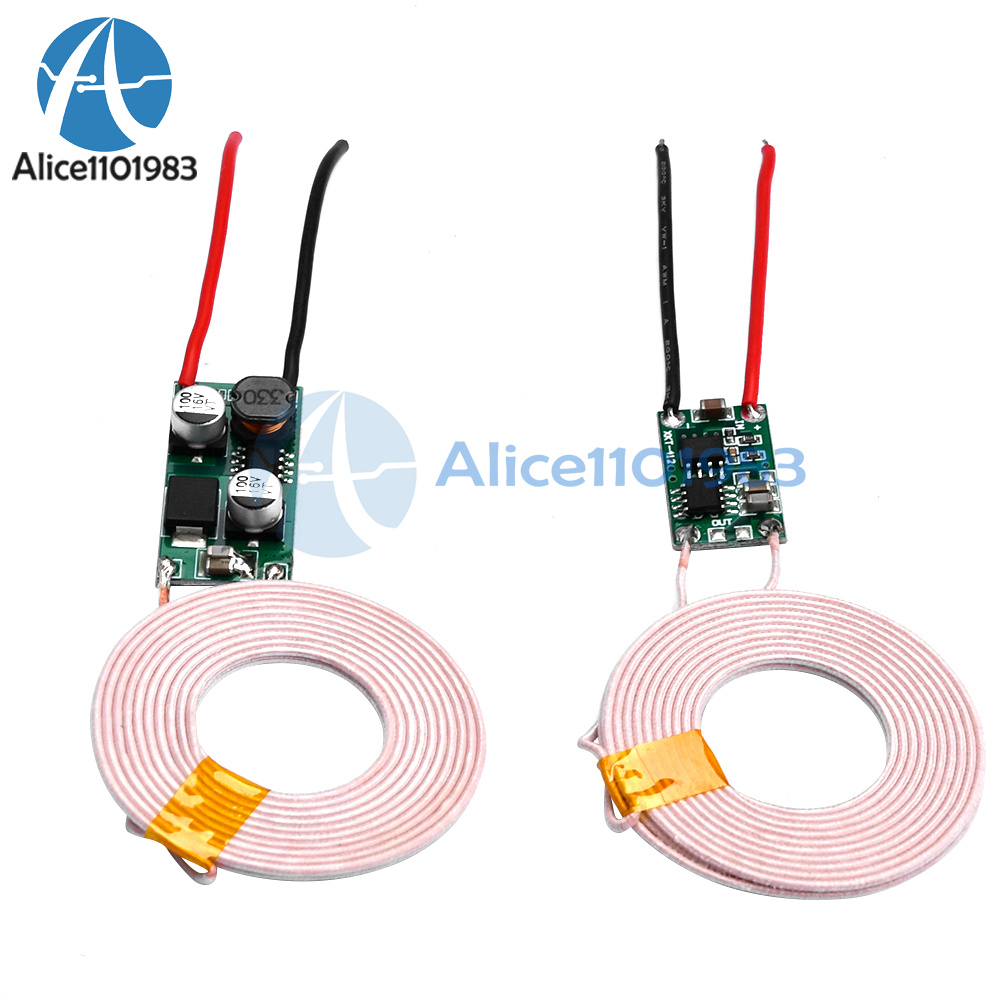

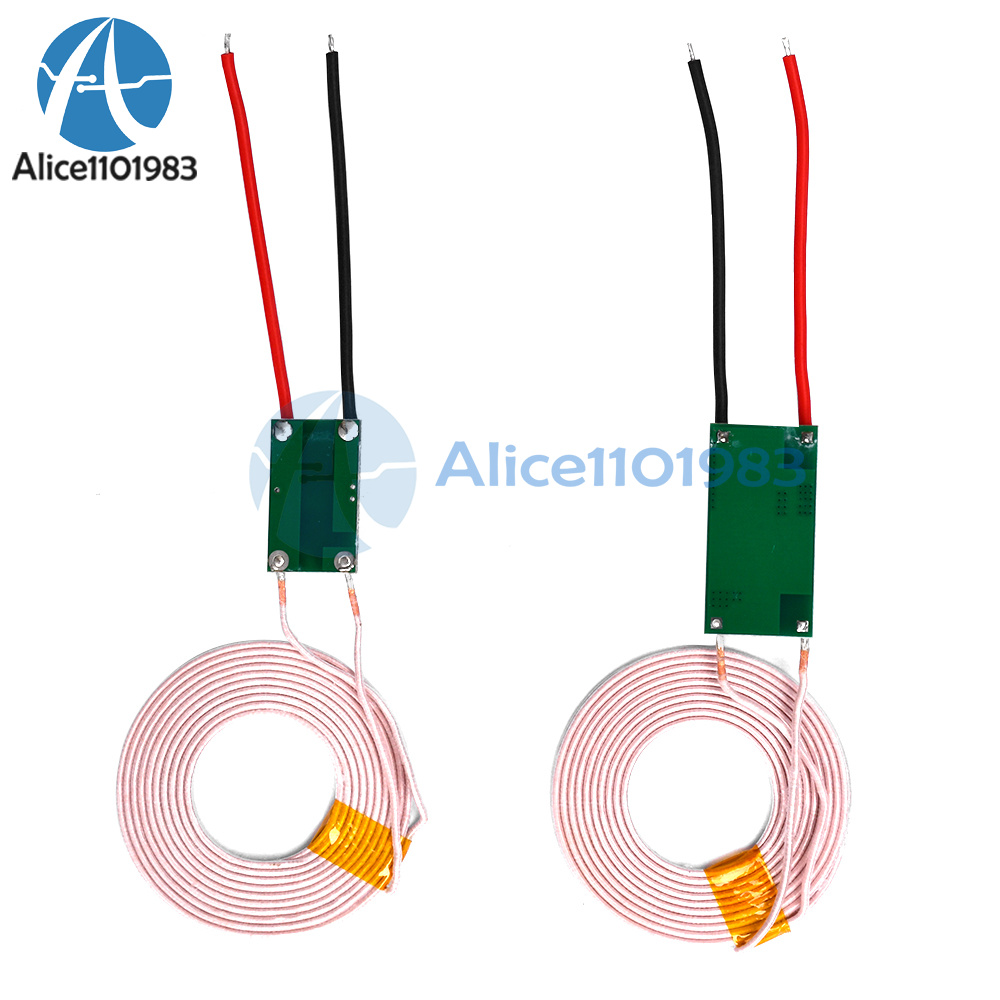

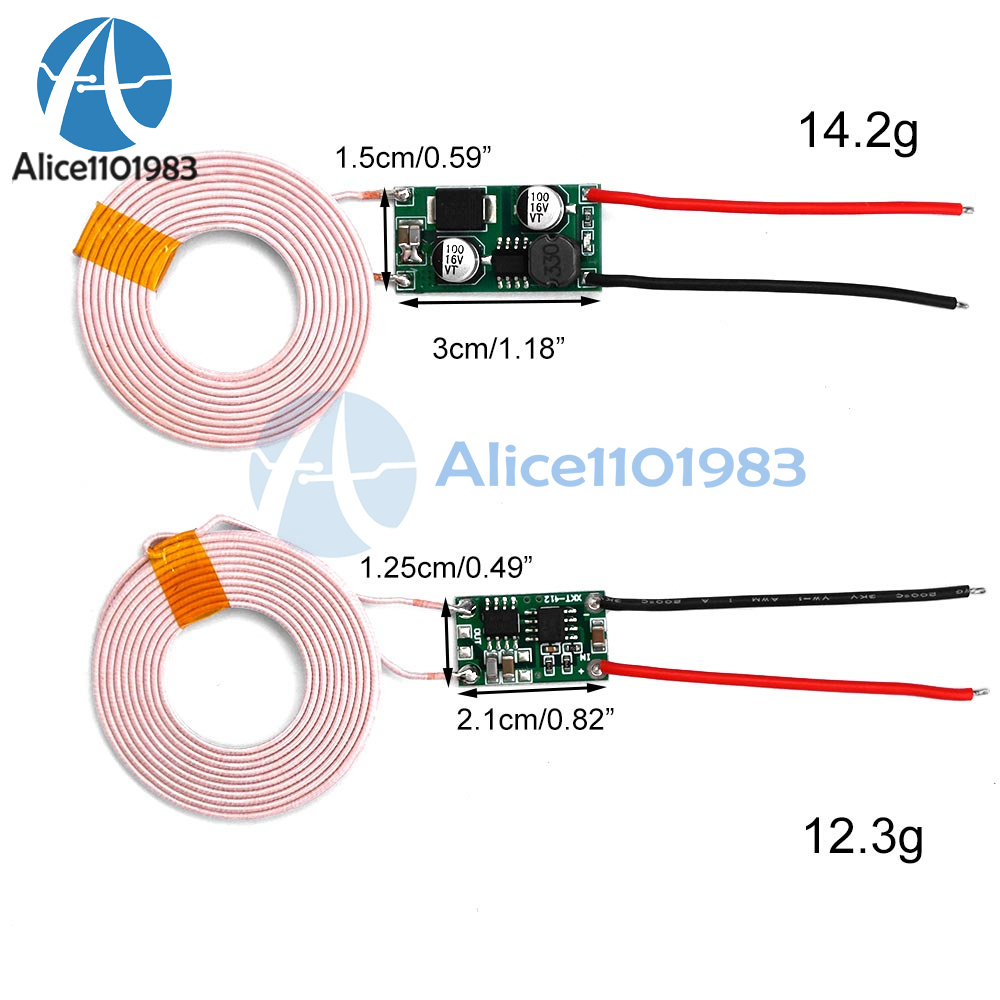

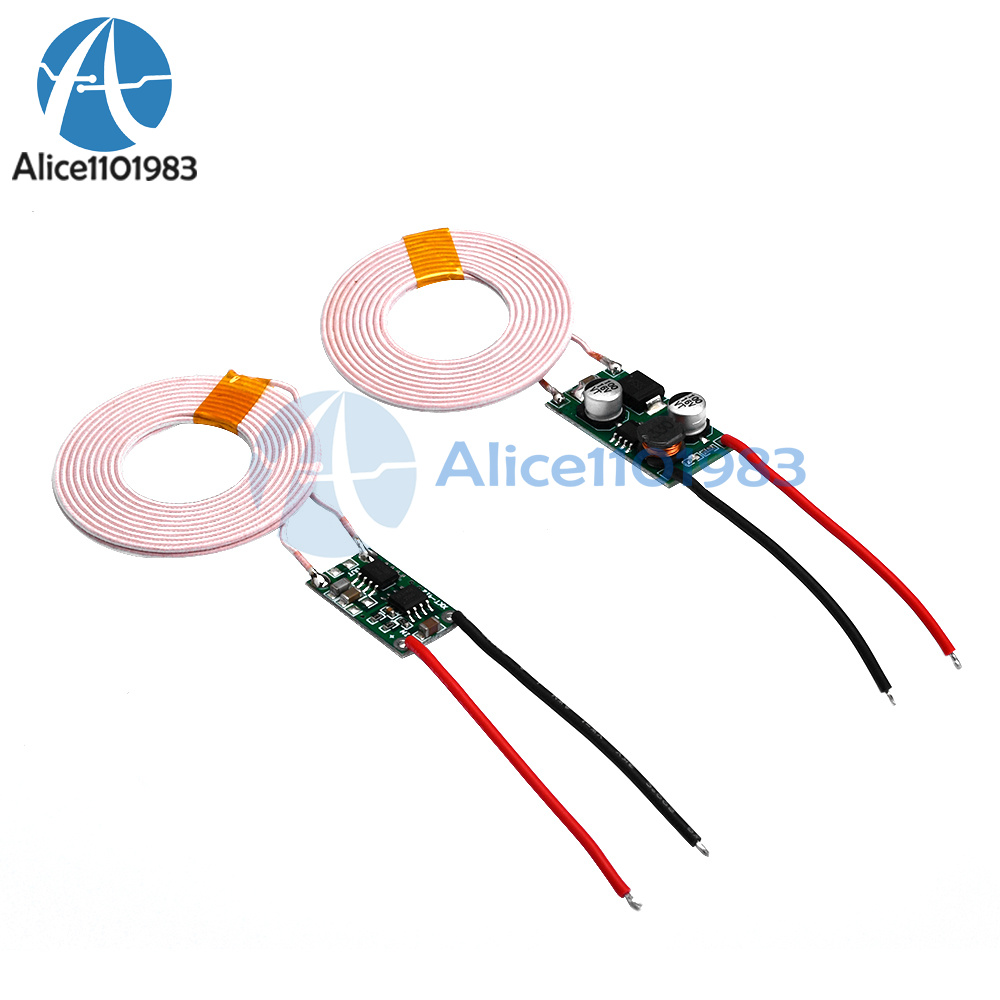

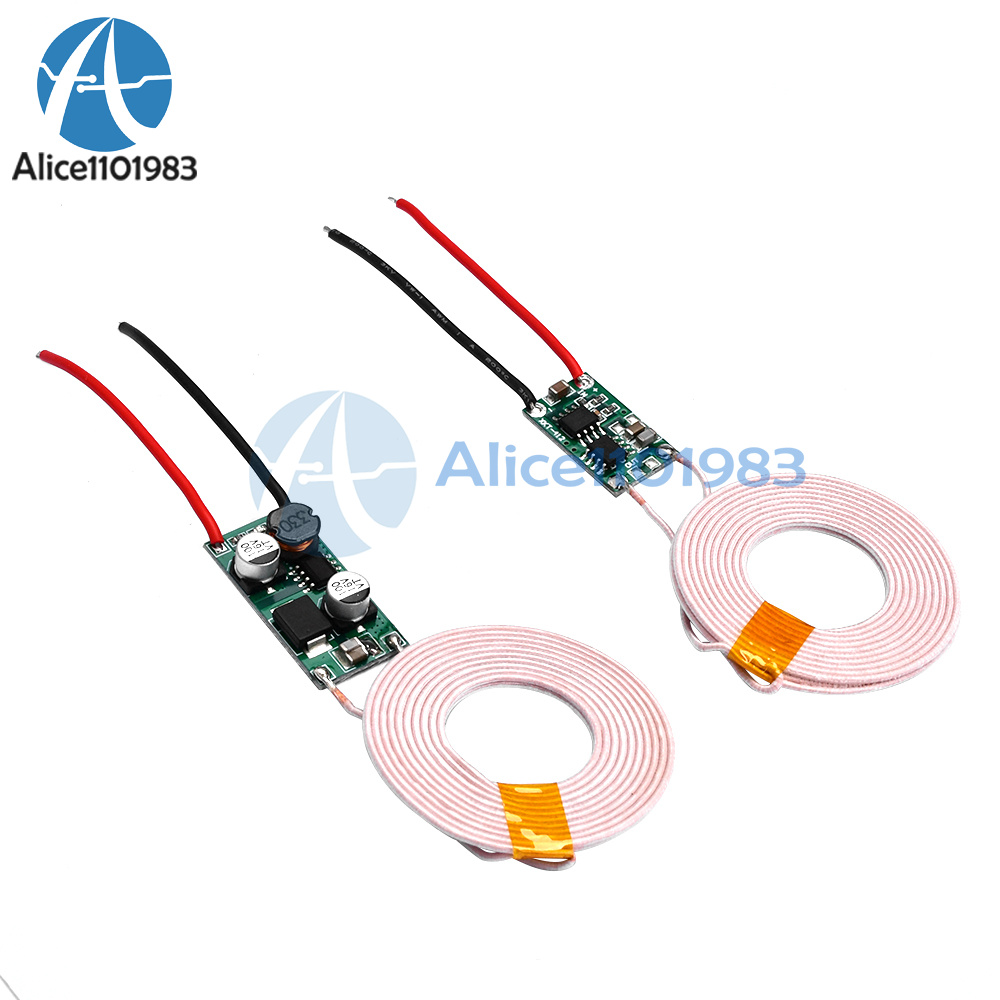

Transmitting coil size: outer diameter 43mm, thickness 2.3mm
Receiving coil size: outer diameter 43mm, thickness 1.2mm
Best receiving distance: 3~6mm
1. Do not reverse the positive and negative input power supply of the transmitter module
2. Do not short-circuit the positive and negative of the output load line of the receiving module
3. Do not place a large area of metal close to the periphery of the coil
