Product Details

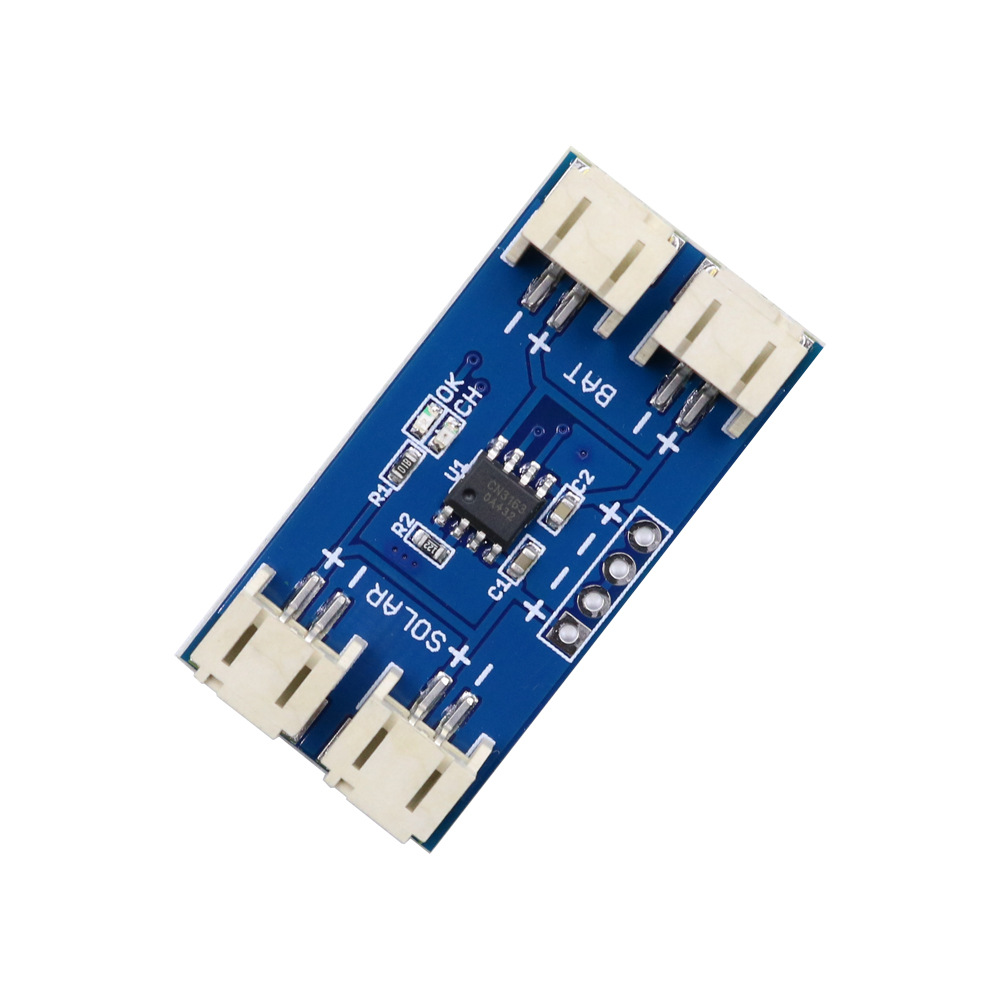

This is a super mini Solar Lipo charger based on the CN3163 - a single lithium battery charge management chip.



This Solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!

The output of the Solar Charger is intended to charge a single polymer lithium ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 0.99A with a maximum recommended input of 6V (minimum 4.4V). It’s recommended that batteries not be charged at greater than their capacity rating.

Features:

Solar panel input: 4.4-6V

Constant voltage charging voltage: 4.2V

Continuous constant current charging current up to 0.99A (1A)

Can be used as a voltage source

C/10 charge end detection

Automatic recharge

Short circuit protection

Internal soft start circuit

Battery status indication ( Red : Charging , Blue: Charged )

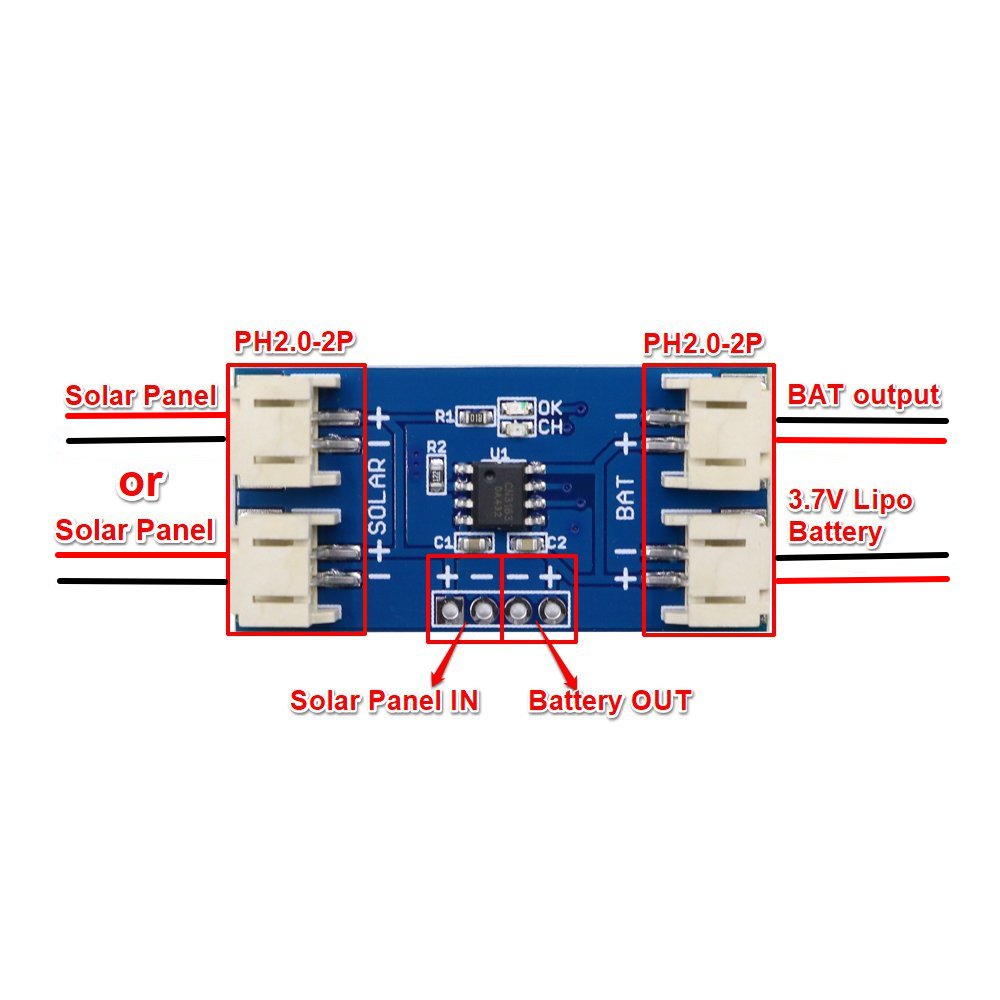

Interface:  2-pin JST connectors (or PH2.0)

Dimension: 2cm x 4cm

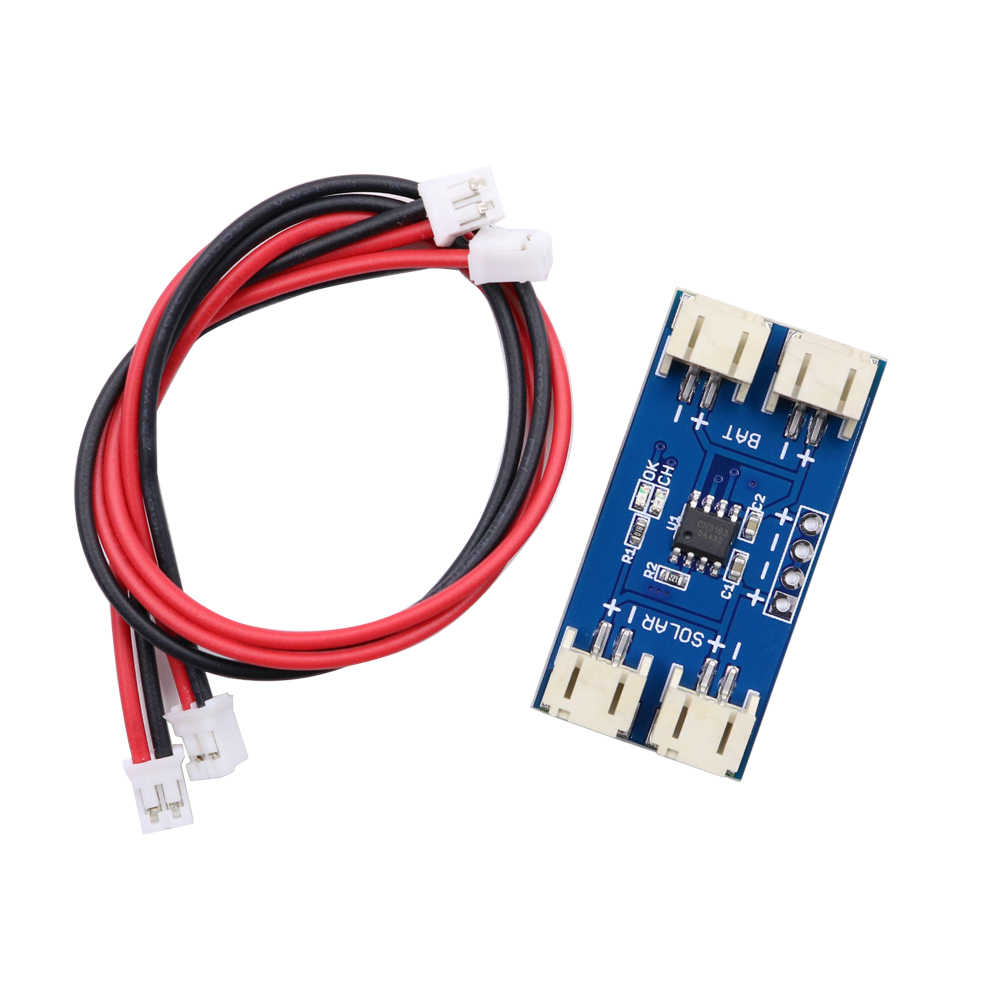

Package include:

1x CN3163 Solar Charger Panel Regulator Controller Input Voltage 4.4-6V
