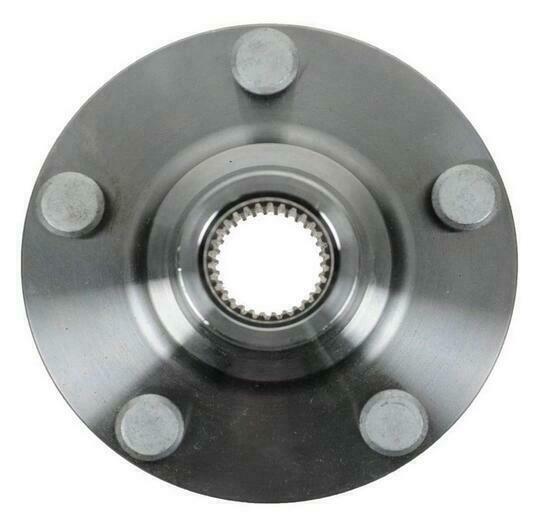

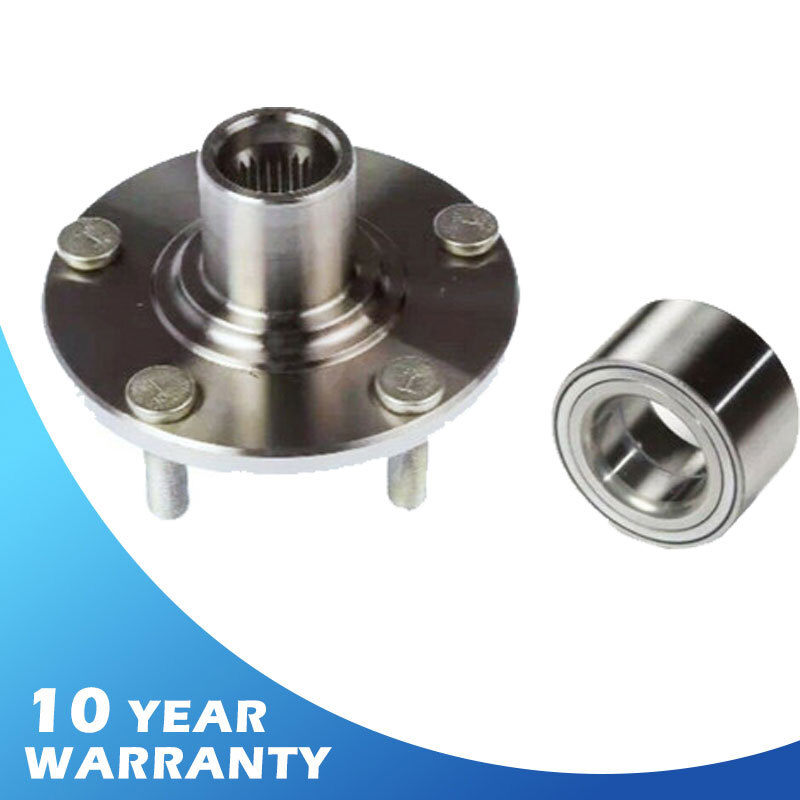

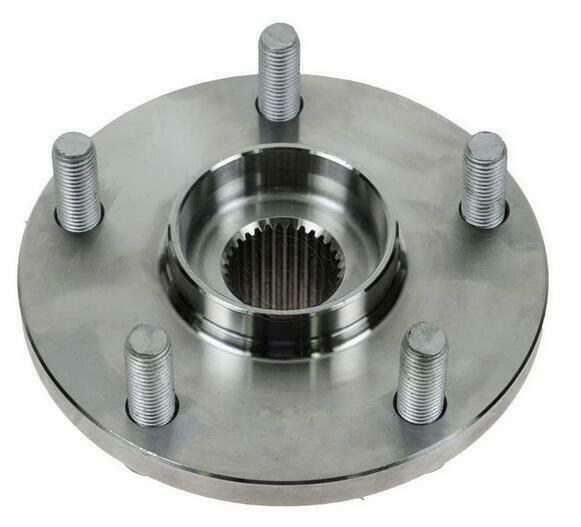

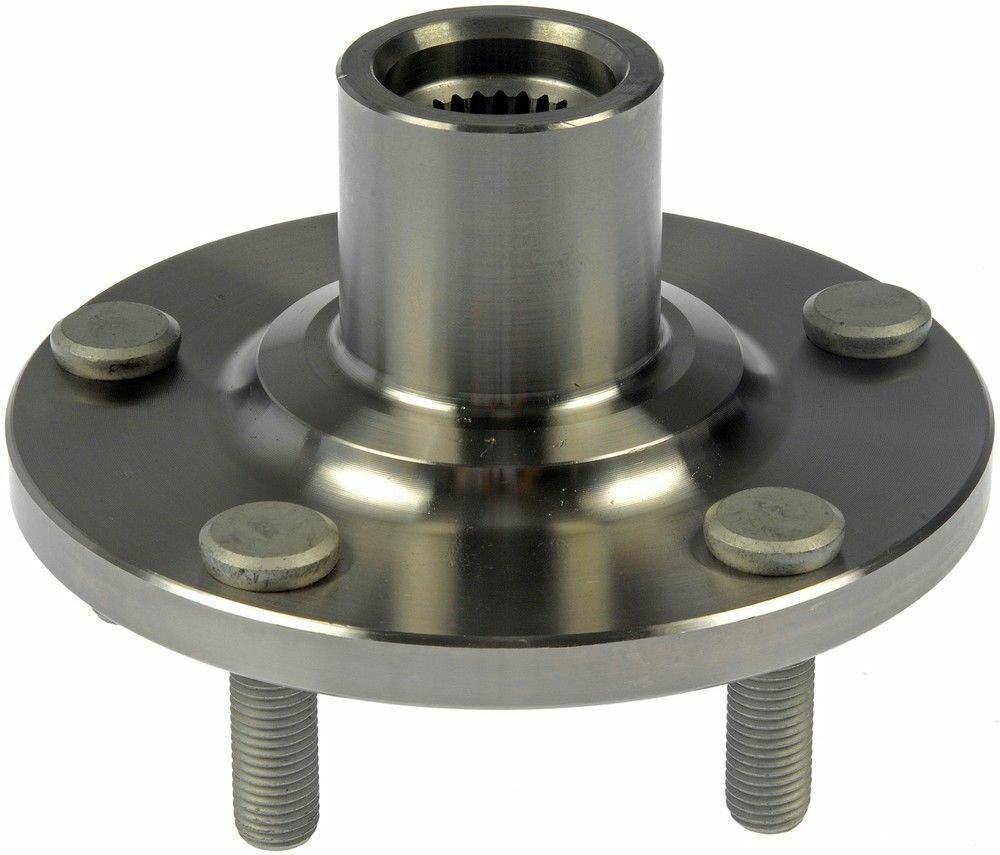

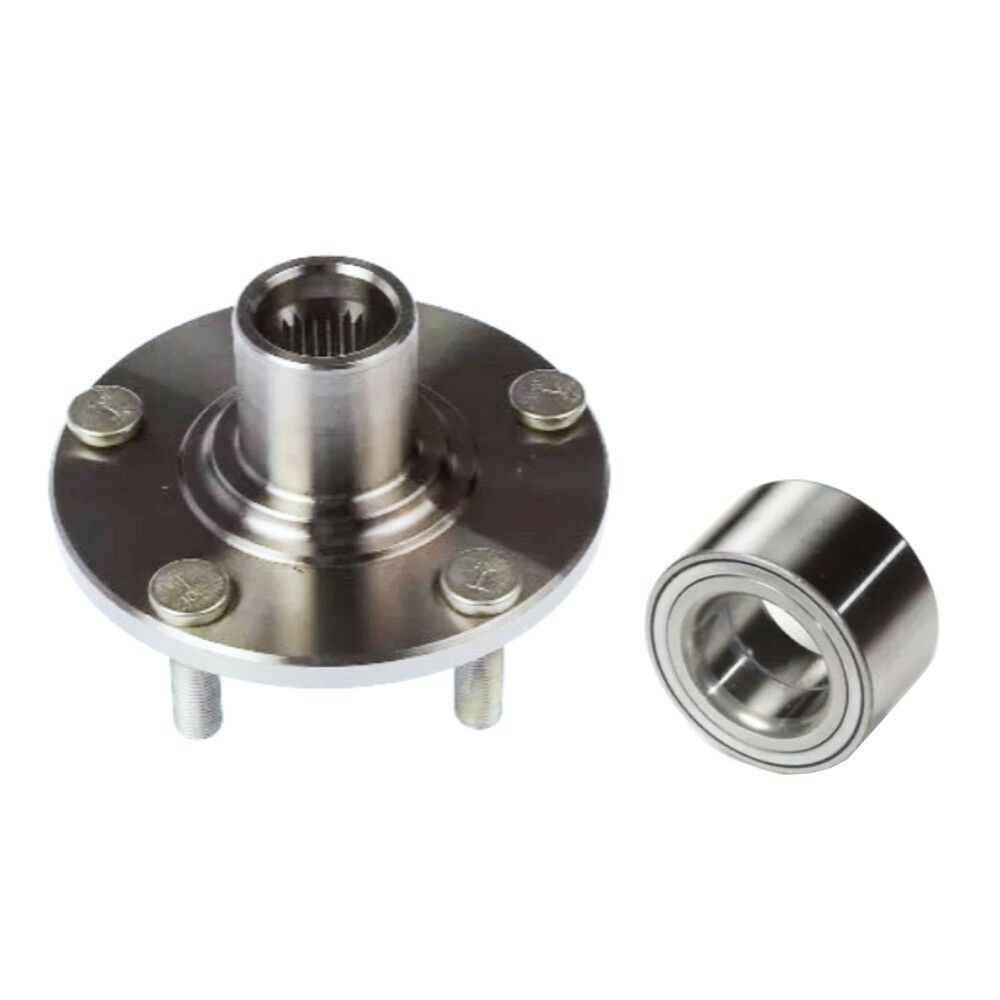

For 2004-2017 Toyota Camry 01-07 Highlander Front Wheel Hub Bearing Assembly - 5-Lug Non-ABS | 2004-2017 Toyota Sedans/SUVs
Precision Fit for 2.4L/2.5L/3.0L/3.3L Gasoline Engines
🛠️ ENGINEERING SPECS
CORE PARAMETERS
- • Position: Front Axle (L/R)
- • Bolt Pattern: 5×114.3mm

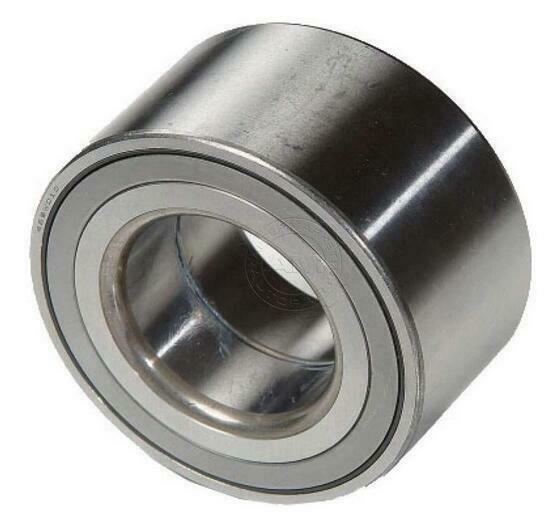

- • Bearing Type: Ball Bearing
- • ABS System: Not Equipped
PERFORMANCE
- • Dynamic Load: 145kN
- • Material: SAE 52100 Steel
- • OEM Ref: Direct Replacement

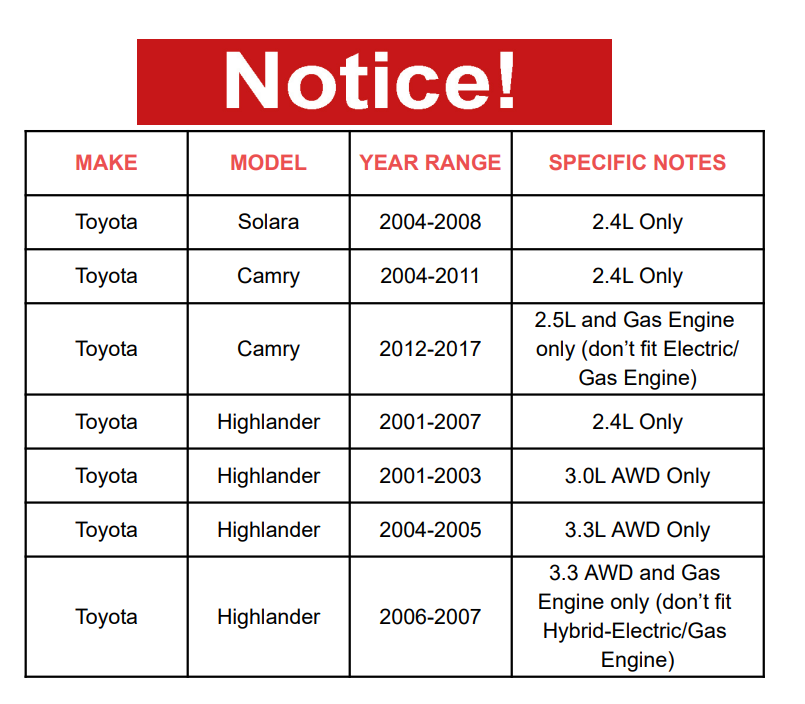

| Make | Model | Years | Configuration |
|---|---|---|---|
| TOYOTA | Solara | 2004-2008 | 2.4L Only |
| TOYOTA | Camry | 2004-2011 | 2.4L Only |
| TOYOTA | Camry | 2012-2017 | 2.5L Only |
| TOYOTA | Highlander | 2001-2007 | 2.4L Only |
| TOYOTA | Highlander | 2001-2003 | 3.0L AWD Only |
| TOYOTA | Highlander | 2004-2005 | 3.3L AWD Only |
| TOYOTA | Highlander | 2006-2007 | 3.3L AWD Only |
* Not compatible with hybrid/electric powertrains
🔧 CRITICAL INSTALLATION
Maintain 0.05-0.10mm axial play during assembly
- 1. Torque Specifications:
- - Hub Bolts: 220-240 N·m (Angle Torque +90°)
- - Axle Nut: 320 N·m ±5% (Single-use)
- 2. Required Components:
- - Replace TTY bolts (Toyota P/N 90105-10021)
- - Apply Molykote P40 Grease
⭐ TECHNICAL ADVANTAGES
SEALING SYSTEM
- • Triple-Lip Seal (IP67 Rated)
- • Zinc-Nickel Anti-Corrosion
DURABILITY
- • 10,000hr Salt Spray Tested
- • ISO/TS 16949 Certified
