Product Details
1. CC1101 RF chip, ultra-low power consumption of only 0.5uA
2. Long range, the measured distance is greater than 380 meters (depending on the environment with or without obstacles)
3. Standard SPI interface, mode 0, communication rate up to 10Mbps
4. High reception sensitivity -117dpm@250kbps

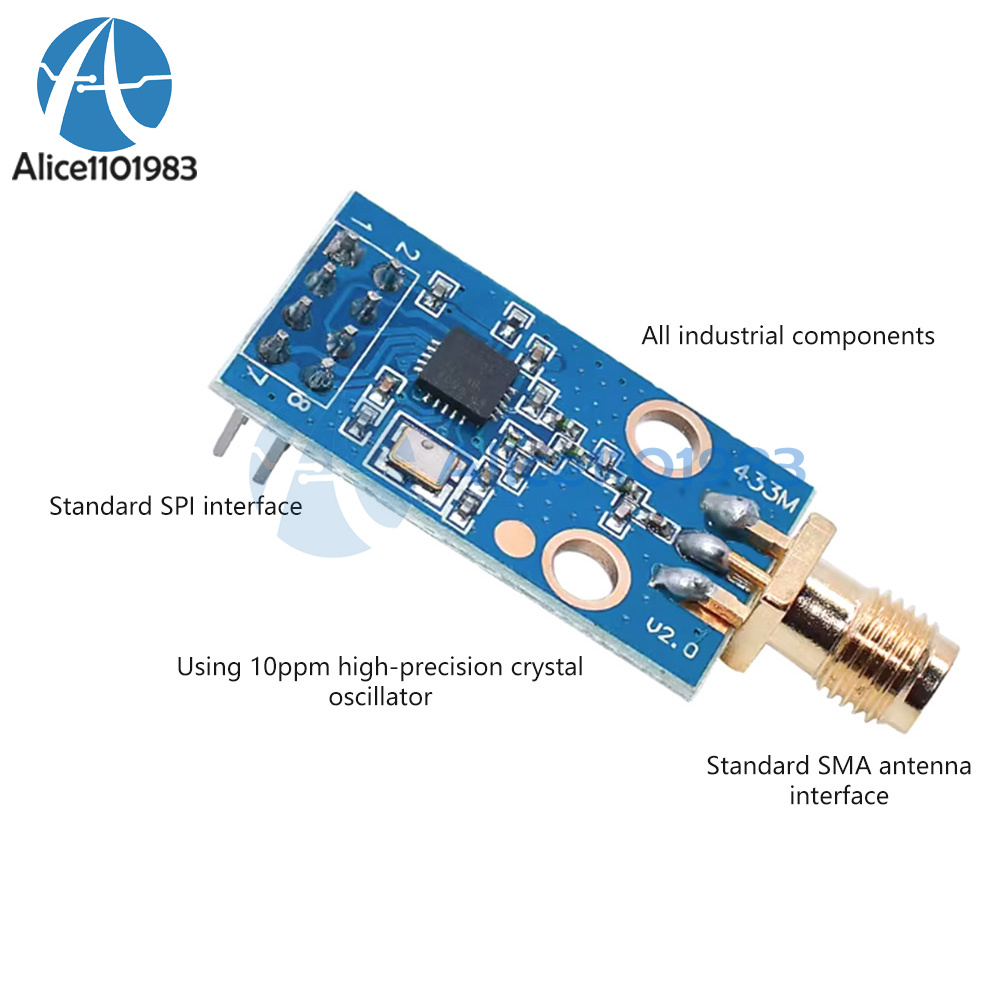

5. All industrial grade components, standard SMA antenna interface, support the development of low power consumption
Product parameters:

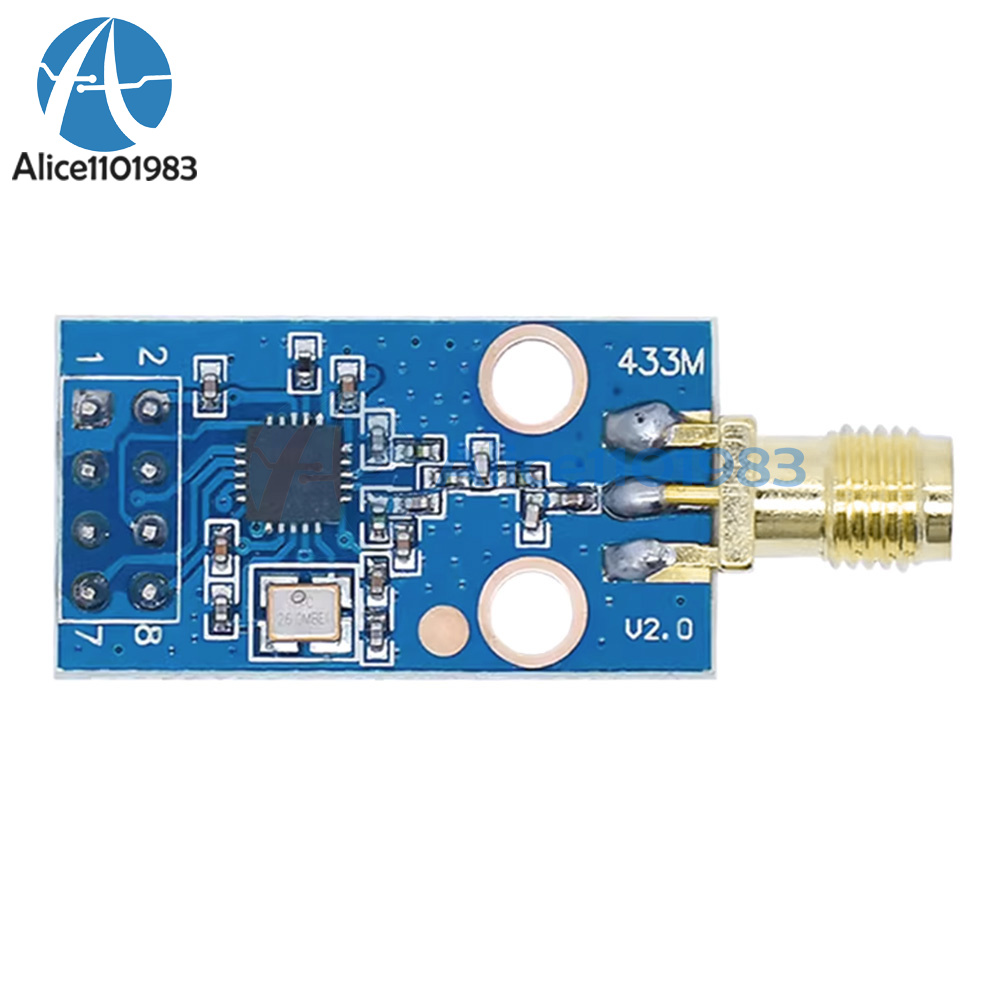

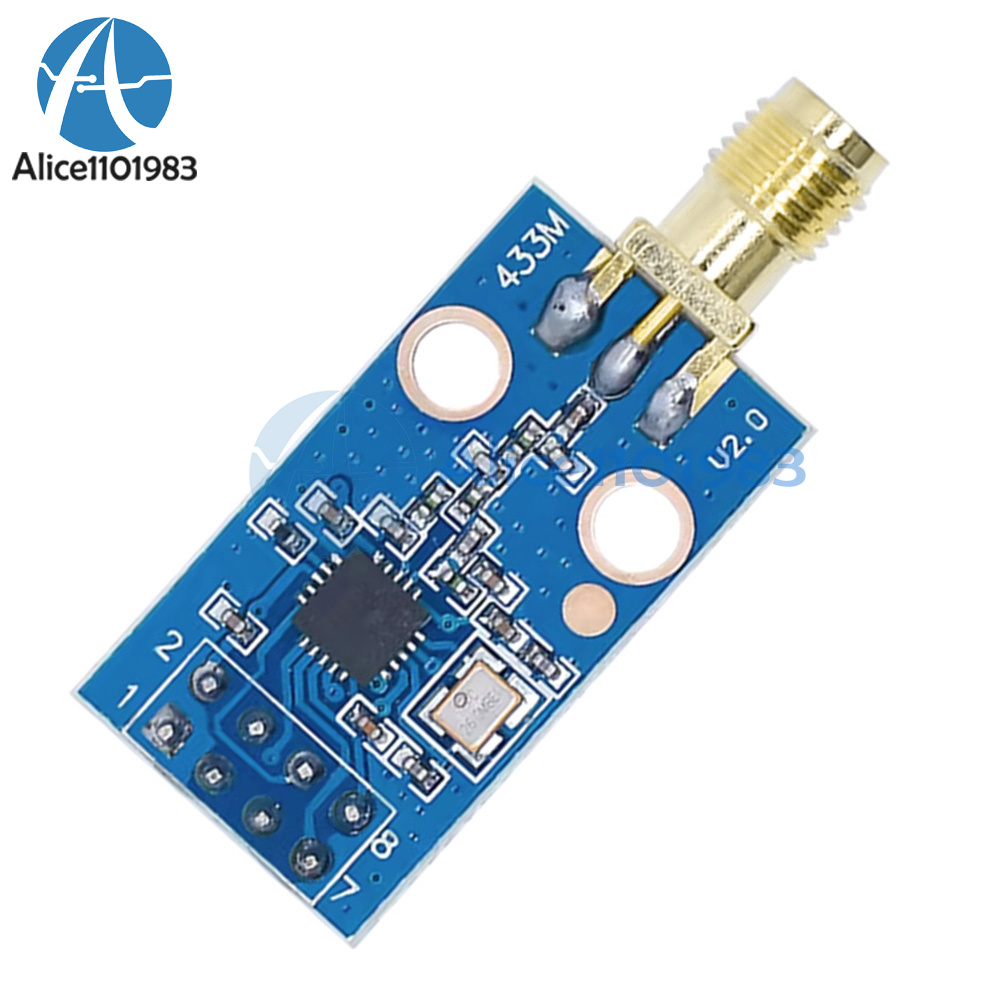

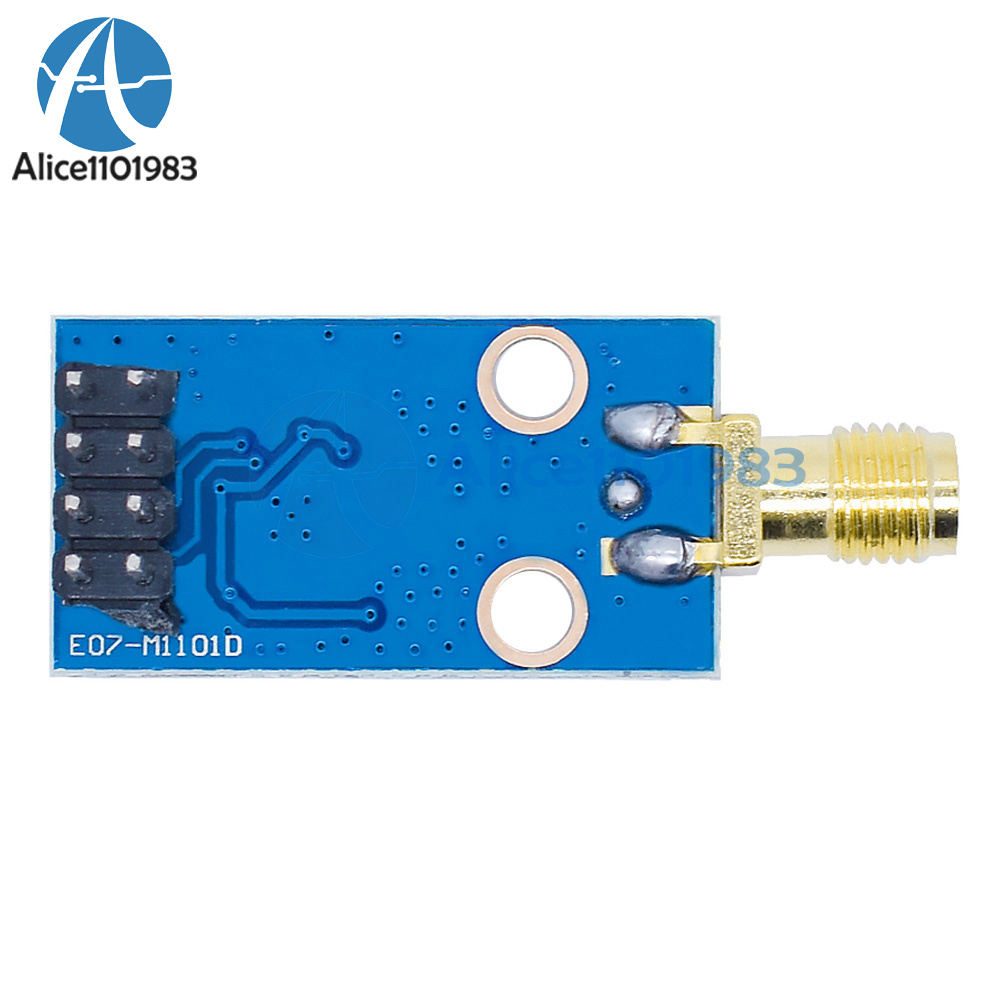

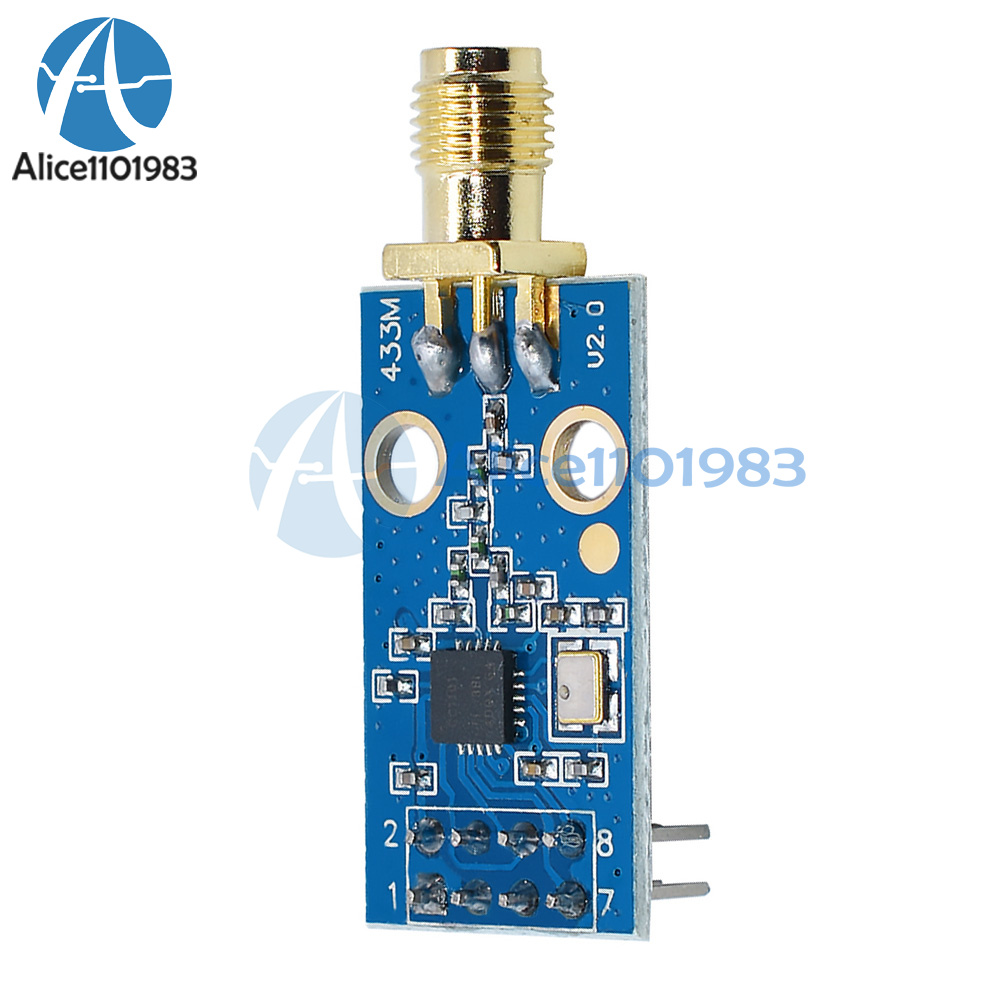

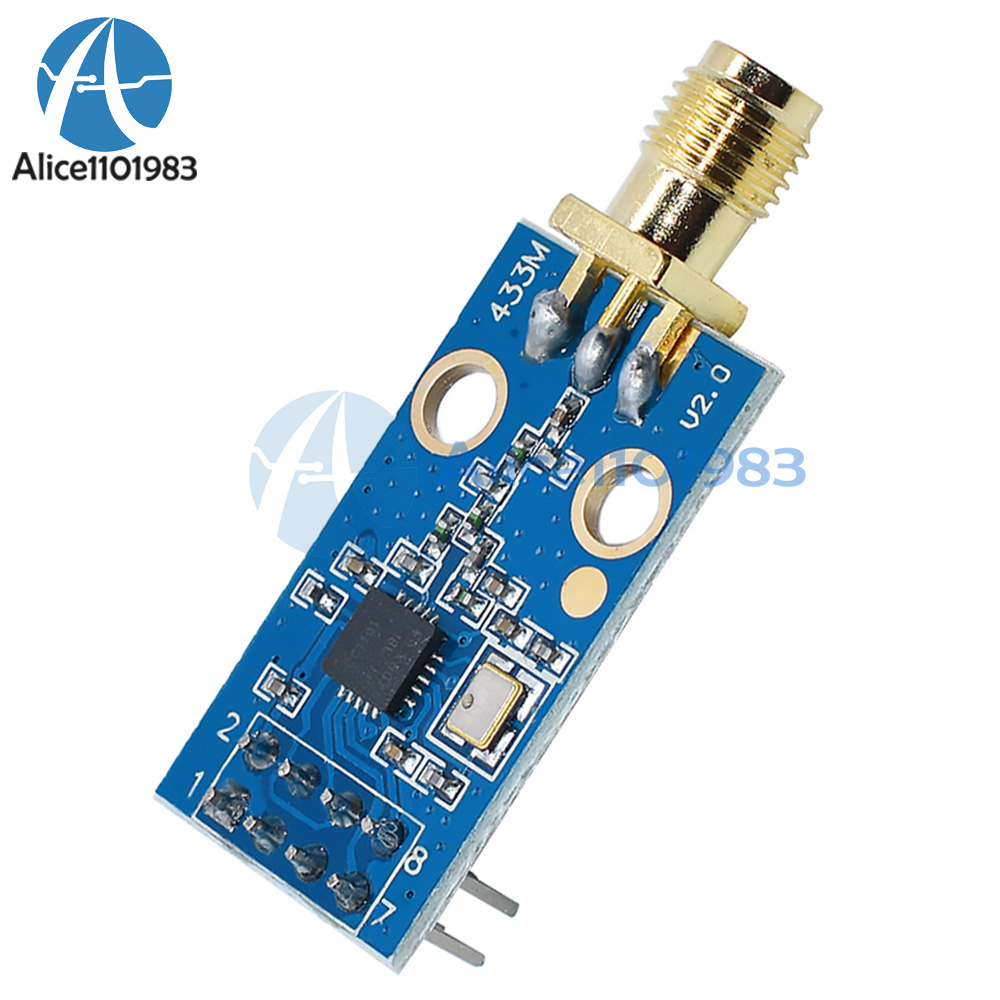

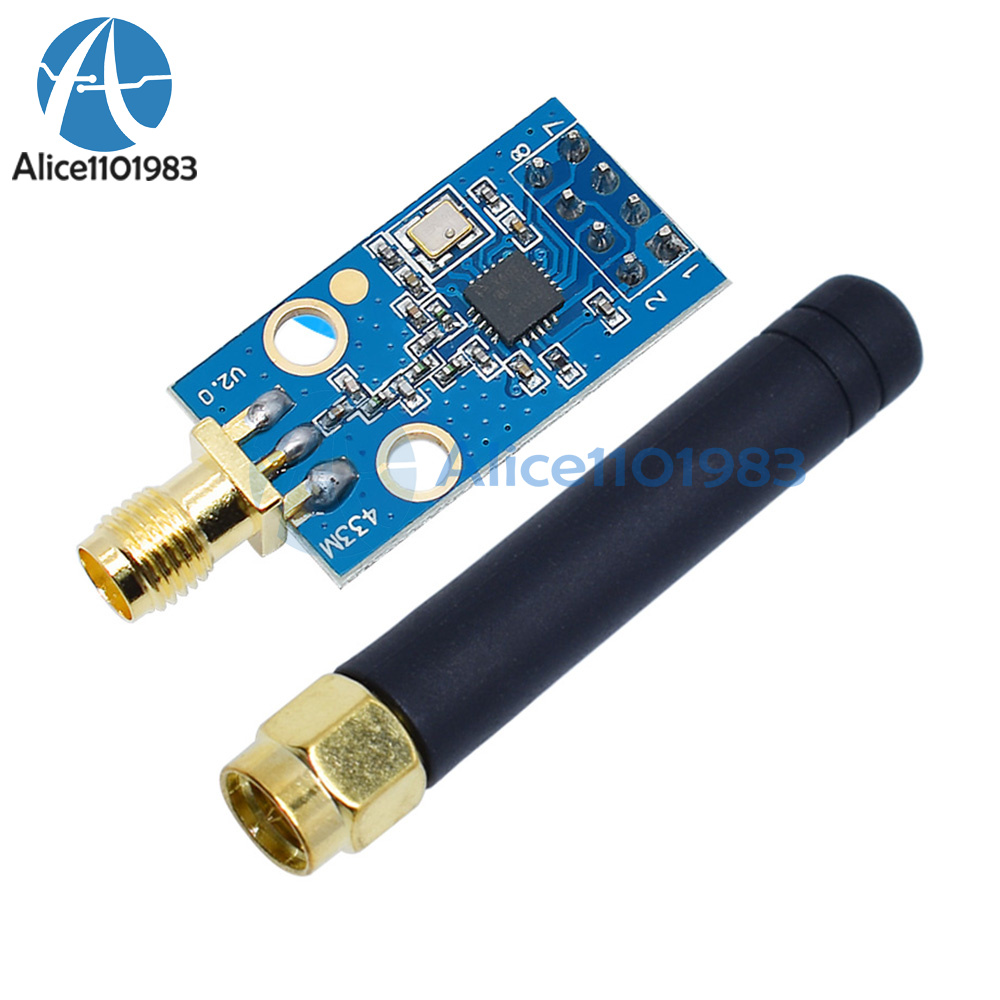

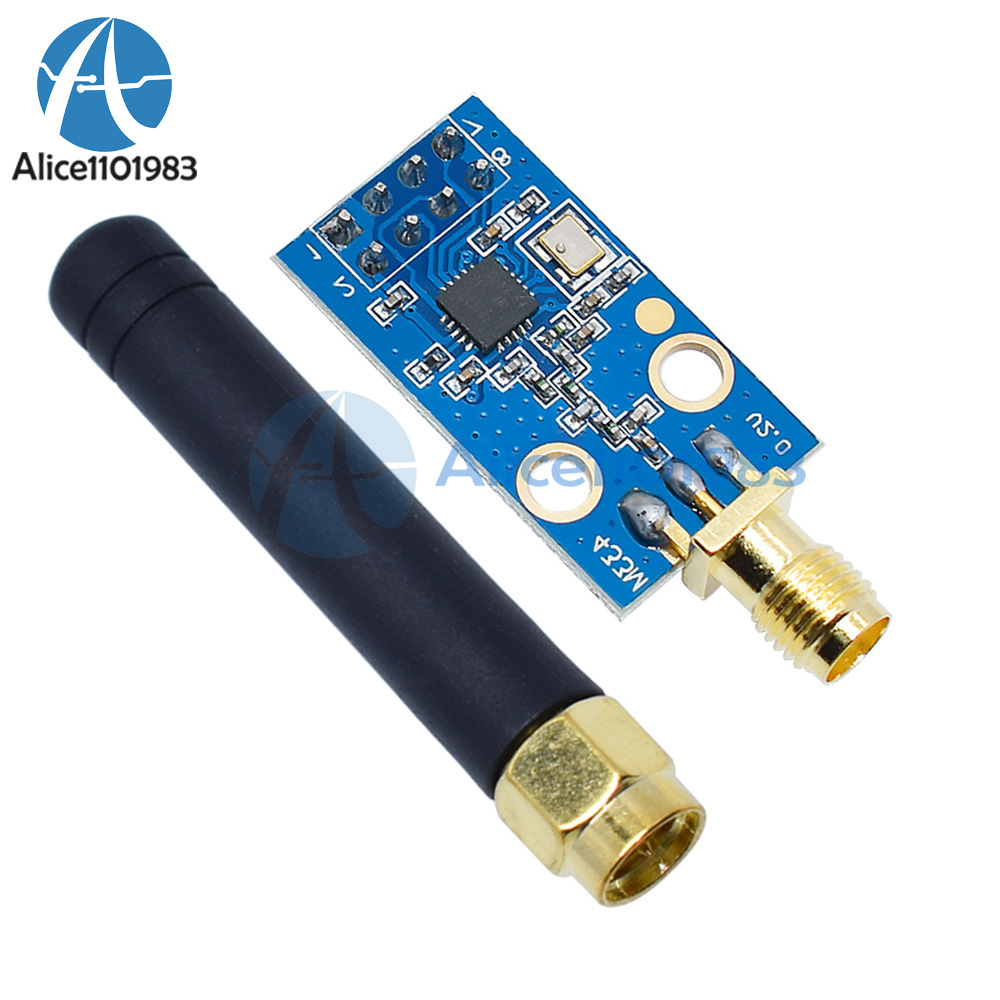

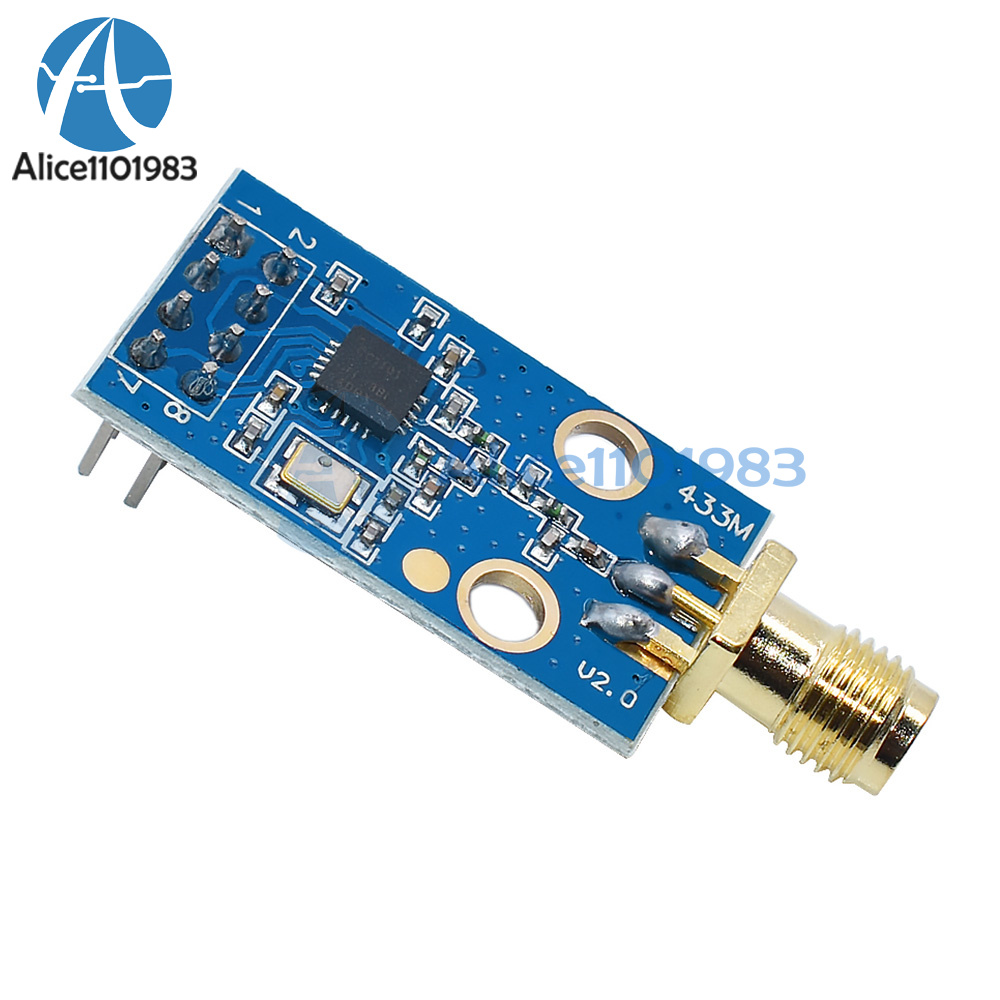

Product name: CC1101 wireless module
RF chip: CC1101
Center frequency:433MHz
Center frequency: 10mW
Communication distance: 380m
Operating voltage: 1.9-3.6VDC, to meet the demand for battery power
Interface mode: 2*4*2.54 (available universal board Dupont wire)
Communication level: 07VDD-3.6VDC
Measured distance greater than: 380m (depending on the environment with or without obstacles)
Maximum power: 10dpm (about 10mw)
Air rate: 1.2kbps-500kbps (due to 433 physical characteristics, it is recommended not to exceed 20kbps)
Transmit current: 29.2mA (peak)
Receiving current: 14.7mA
Communication interface: standard SPI interface, mode 0, communication rate up to 10Mbps
Receive and transmit length: single packet 1-32 bytes, 3-stage FIFO buffer
RSSI support: support RSSI
Operating temperature: -30℃-+85℃
Operating humidity: 10%-90% relative humidity
Storage temperature: -40℃-125℃
Operating band: 387MHz-464MHz (adjustable by software, 433 recommended (plus or minus 10%)
Receiving sensitivity: -117dpm@250kbps

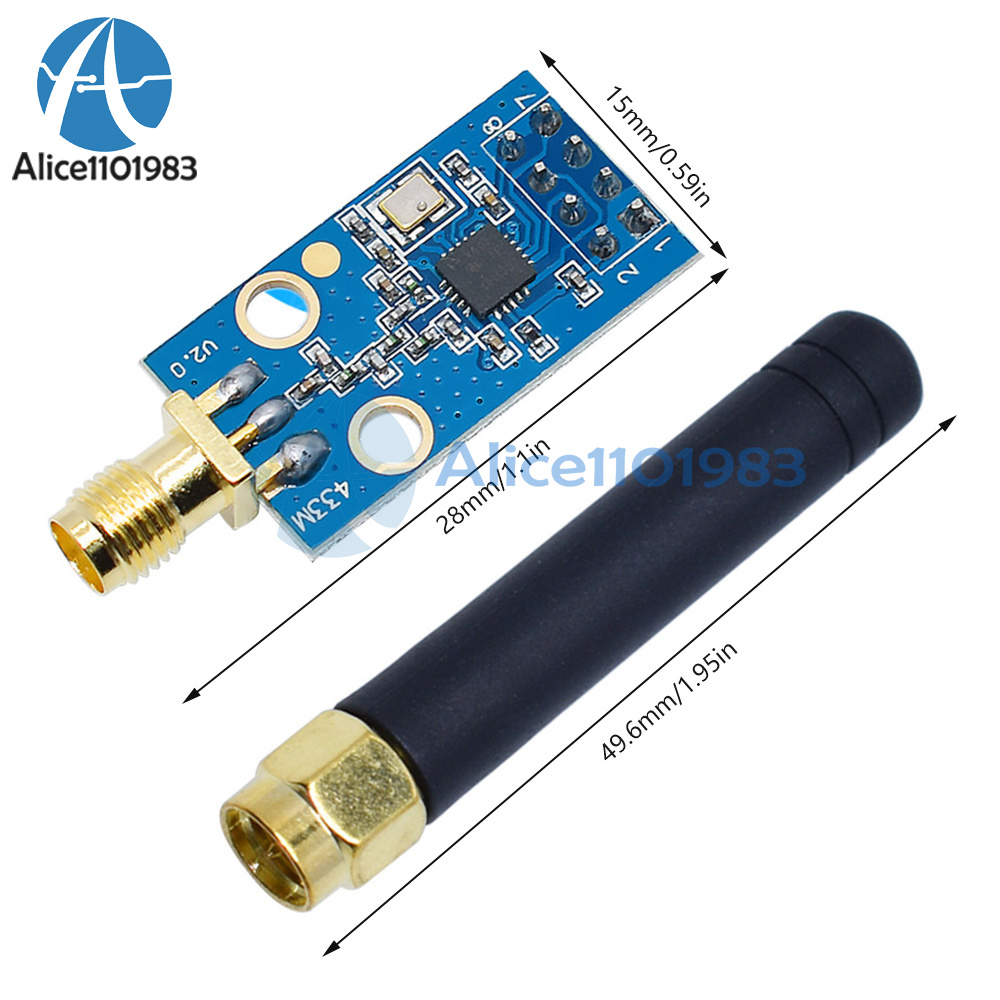

Module size:about 28mm*15mm
Length of glue stick:about 49.6mm

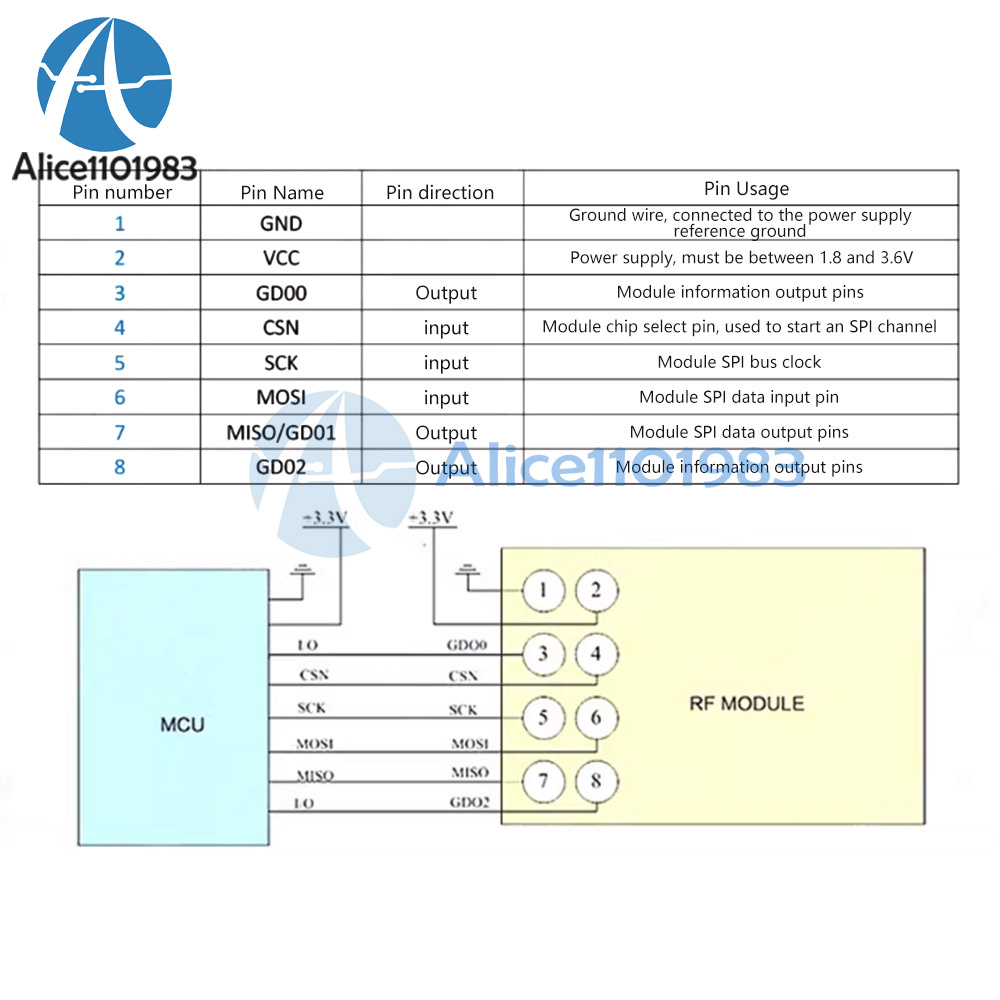

GND - ground connection to power supply reference ground
VCC Power supply must be between 1.8 and 3.6V
GDD0 - Output - Module information output pin
CSN - Input - Module chip select pin for starting an SPI communication
SCK-Input - Module SPI bus clock
MOSI-Input-Module SPI data input pin
MISO/GD01-Output-Module SPI data output pin
GD02-Output-Module information output pin

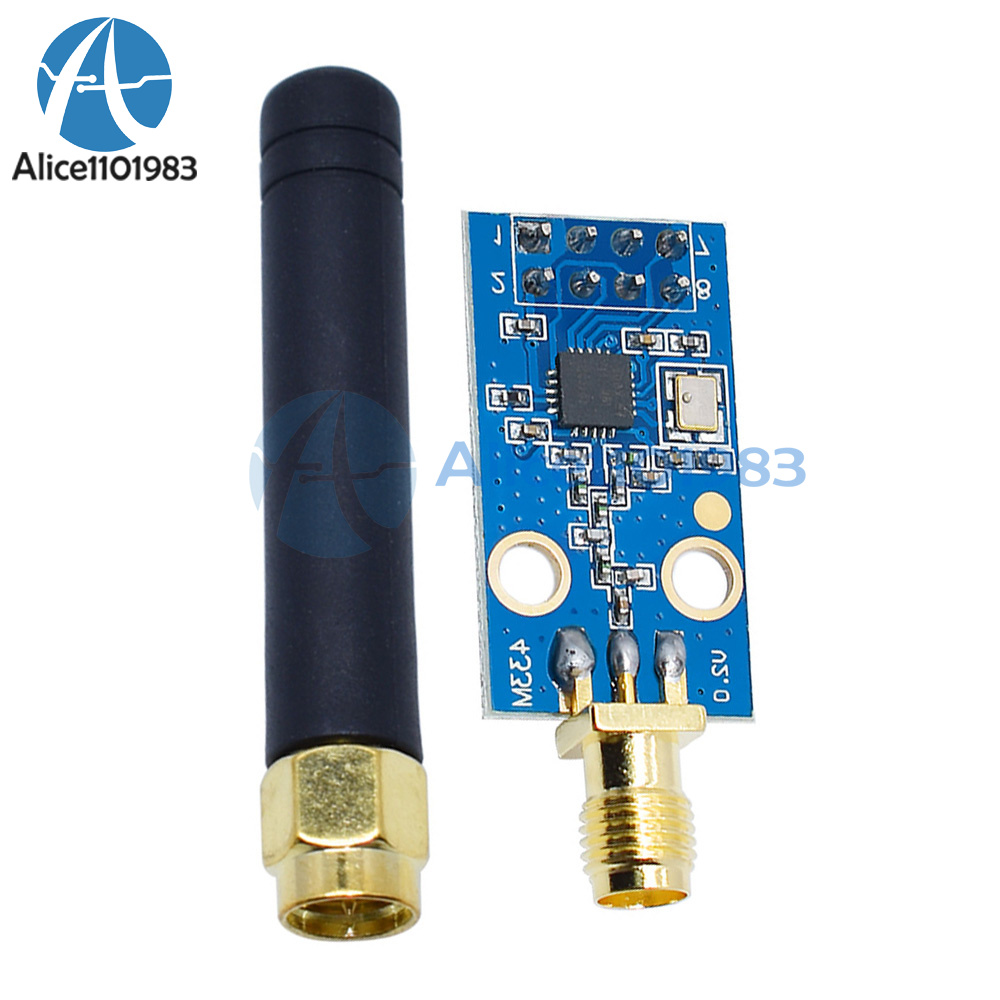

Product List:
1X Module
1X Antenna
