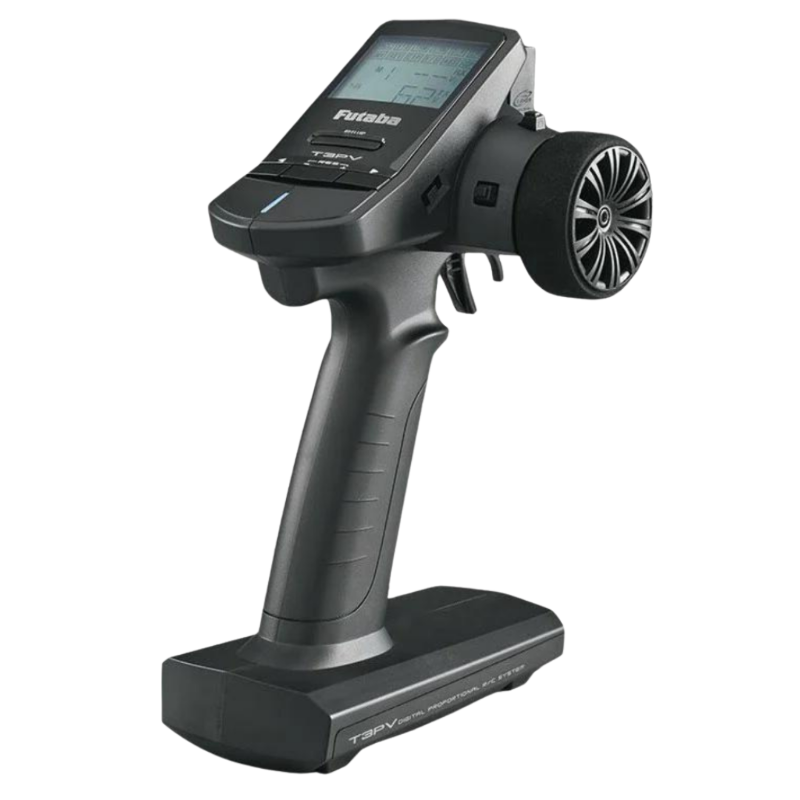

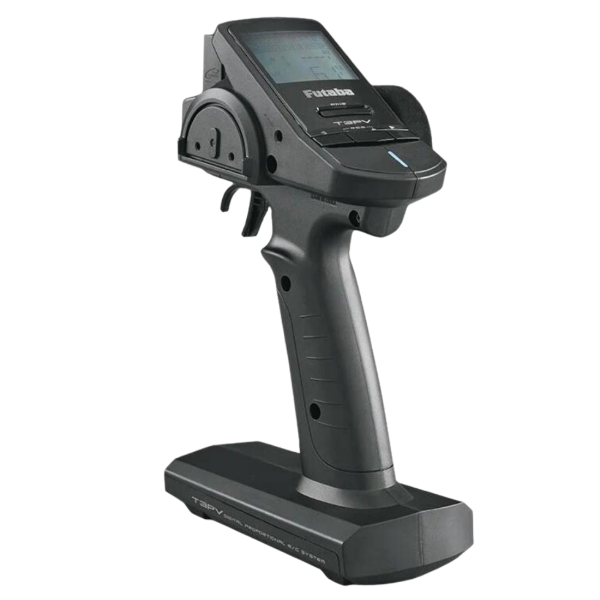

Futaba 3PV 2.4GHz 3CH Surface Radio RC Transmitter & Receiver R314SB FUT3PVR314SB

The Futaba 3PV 2.4GHz surface radio system with R314SB receiver is designed for RC cars and trucks needing reliable steering, throttle and tuning control with T-FHSS telemetry support.

This transmitter and receiver set suits drivers wanting a sport-level Futaba radio with model memory, trim adjustment, end point adjustment, ABS braking support and surface mixing functions. The included R314SB receiver adds T-FHSS telemetry capability and S.BUS2 support for compatible electric and surface RC installations.

Features

  • 2.4GHz Surface Radio System: Designed for RC cars, trucks and compatible surface models
  • R314SB Receiver Included: Supplied with a compact Futaba T-FHSS S.BUS2 telemetry receiver
  • 10-Model Memory: Stores setup data for multiple vehicles
  • T-FHSS Telemetry Support: Displays compatible telemetry data when uséd with suitable receiver setup and optional sensors
  • Multiple System Support: Supports T-FHSS, S-FHSS and FHSS receiver system modes
  • Steering And Throttle Adjustment: Provides trim, sub trim, dual rate and end point adjustment for precise setup
  • ABS Function: Simulates anti-lock braking by pulsing brake output for surface model tuning
  • 4WS And Brake Mixing: Supports crawler rear-steer and independent brake mixing applications
  • Throttle Fail Safe: Helps move throttle to a preset position if signal is lost when correctly configured
  • Low Battery Alarm: Alerts the driver when transmitter battery voltage is low

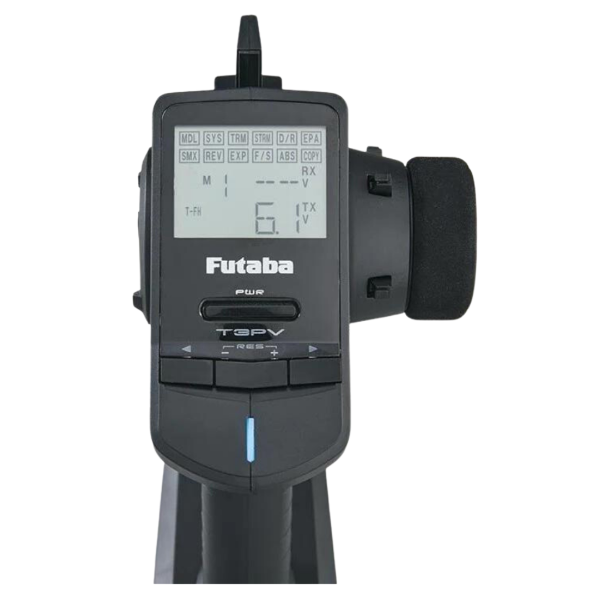

  • Lightweight Wheel Radio Design: Ergonomic pistol-grip layout with a clear programming display

Specifications

  • Brand: Futaba
  • Model: 3PV
  • SKU: FUT3PVR314SB
  • Product Type: 2.4GHz surface radio transmitter and receiver set
  • Application: Surface RC cars and trucks
  • Frequency: 2.4GHz
  • Channels: 3 + 1 channel system
  • Fourth Channel Use: Mixing functions only
  • Compatible Systems: T-FHSS, S-FHSS and FHSS
  • Communication Method: Two-way T-FHSS and one-way S-FHSS or FHSS
  • Model Memory: 10 models

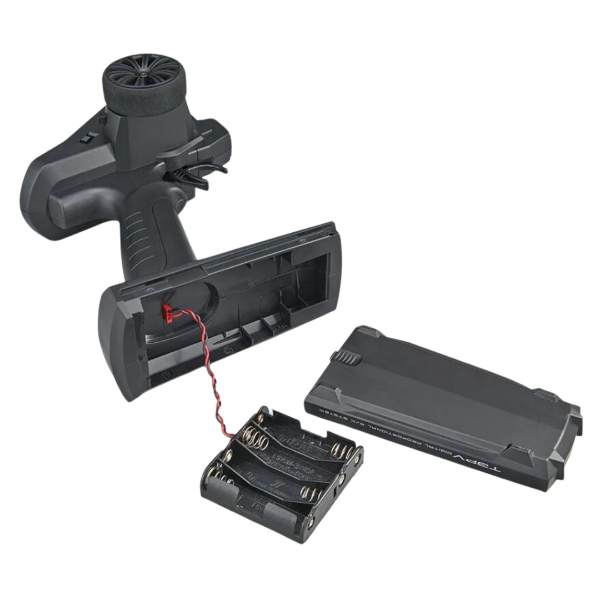

  • Transmitter Power Requirement: 4 x AA dry cell batteries, 6V
  • Optional Transmitter Battery Support: Compatible Futaba NiMH or LiFe transmitter packs where uséd according to the manual
  • Transmitter Current Drain: 100mA or less
  • Included Receiver: Futaba R314SB
  • Receiver System: T-FHSS 2.4GHz
  • Receiver Type: S.BUS2 4-channel receiver for model cars
  • Receiver Rated Voltage: 4.8V to 7.4V
  • Receiver Usable Voltage: 3.5V to 8.4V
  • Receiver Dimensions: 35.1 x 23.2 x 8.5mm
  • Receiver Weight: 6.6g
  • Intended Use: RC racing, bashing, crawling, drifting and general surface model control

Includes

  • 1 x Futaba 3PV 2.4GHz surface transmitter
  • 1 x Futaba R314SB T-FHSS telemetry receiver
  • 1 x Instruction manual

FAQ

Does the Futaba 3PV include a receiver? Yes. This version includes the Futaba R314SB T-FHSS S.BUS2 telemetry receiver.

How many models can the Futaba 3PV store? The Futaba 3PV stores setup data for 10 models, allowing one transmitter to manage multiple RC vehicles.

What batteries does the transmitter need? The Futaba 3PV transmitter requires 4 x AA dry cell batteries, or a compatible Futaba rechargeable transmitter pack uséd according to the manual.

Can analogue servos be uséd with the R314SB in high-speed mode? No. High-speed mode on the R314SB requires Futaba digital servos, including compatible brushless servos. Analogue servos should not be uséd in high-speed mode.

Important Notes

  • Transmitter battery is not included.
  • Requires 4 x AA dry cell batteries for standard transmitter use.
  • Use only compatible Futaba rechargeable transmitter packs if upgrading from AA dry cells.
  • Do not use dry batteries as the receiver power supply.
  • The R314SB receiver must be uséd with Futaba T-FHSS compatible transmitters.
  • Futaba T-FHSS, S-FHSS and FHSS systems are not compatible with Futaba FASST systems.
  • High-speed receiver mode requires compatible digital servos.
  • Optional telemetry sensors are sold separately.
×
×
×
×
×
