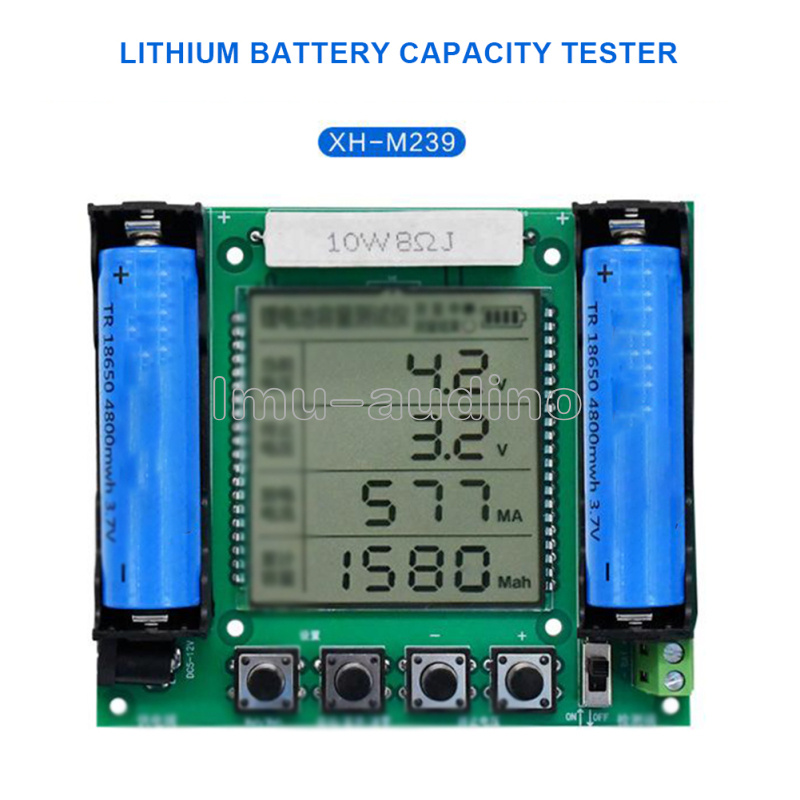

Product name: 18650 lithium battery capacity tester
Product model: XH- M239
Display accuracy: 0.1
Measurement accuracy: 1mAH

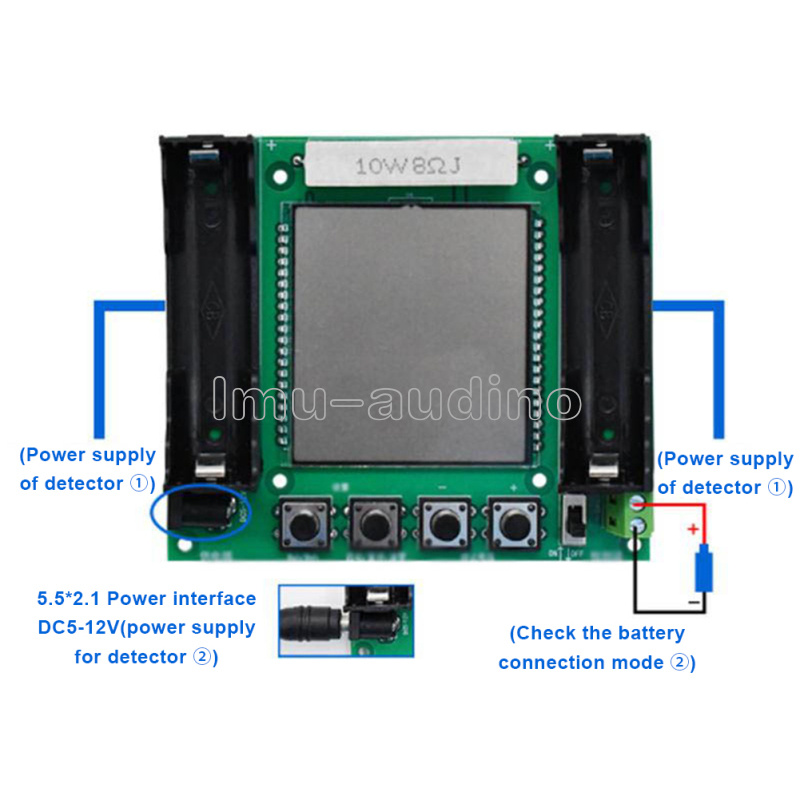

Power supply voltage: DC5- 12V/18650 battery standby current: 5mA
Discharge current: about 500mA
Load power: 10W 8Q
Middle

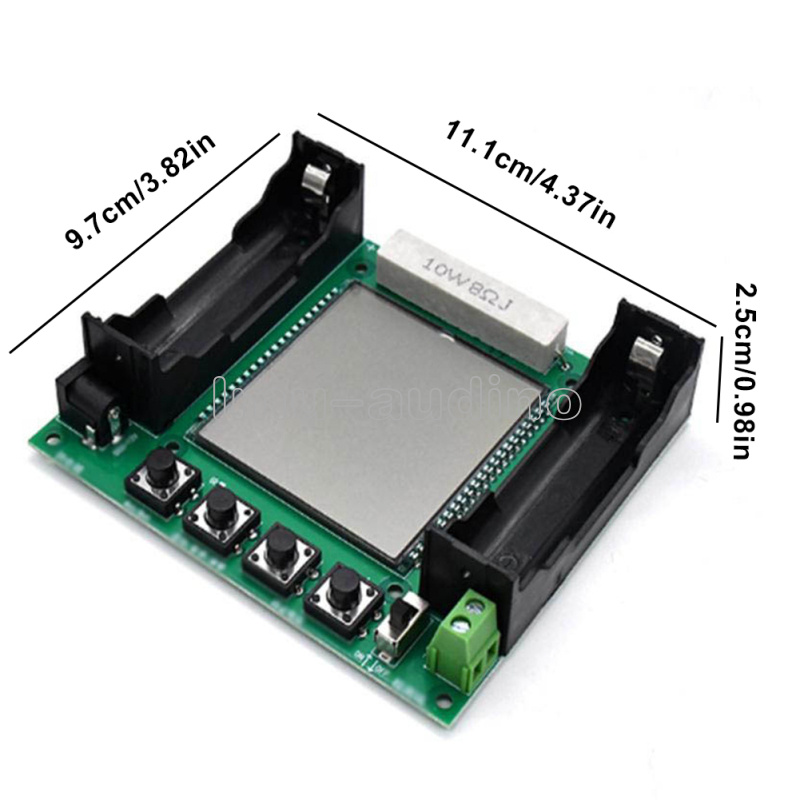

Appearance size: 111*97*25mm
T104mm-60mm
Installation size: 3mm in the figure on the right
Product weight: 93g
Set the discharge stop voltage and press the display 888 to restore the factory setting at the same time.
Short press: start / pause switching
Short press: mAh/mWh toggles display\
Long press: data zero
* * automatic save without operation 5 seconds after the value setting is complete
The minimum discharge stop voltage of 18650 battery is 2.75V. In general, when the voltage is reduced to 0.875 times of the rated voltage (3.24V), it should be charged, and if it continues to be used, the voltage will drop rapidly, and it may be damaged by overdischarge, which will affect the life span. (recommended discharge termination voltage set to 3.5V)
The charging voltage is generally 4.20V-4.3V/4.35V.
Measurement time calculation
Assuming that the battery capacity is 2000mAH, the discharge current of this detector is about 500mAH. the measuring time is about 4 hours.
