This Wireless Battery Monitor is designed to monitor  performance most kind of battery systems with capacities of up to 65000 Amp hours. It is based on 2.4G wireless technologies. The unit continuously monitors voltage, charge or discharge current, number of  power, prevent over charge or over discharge, these information  leads to more efficient use of the battery, which can enhance battery life and  reduce the risk of failure.

• Read your battery bank like a fuel gauge.
• Battery Status at a glance.
• Charging status indicator, looks like a smartphone.
• Combines many functions in one.

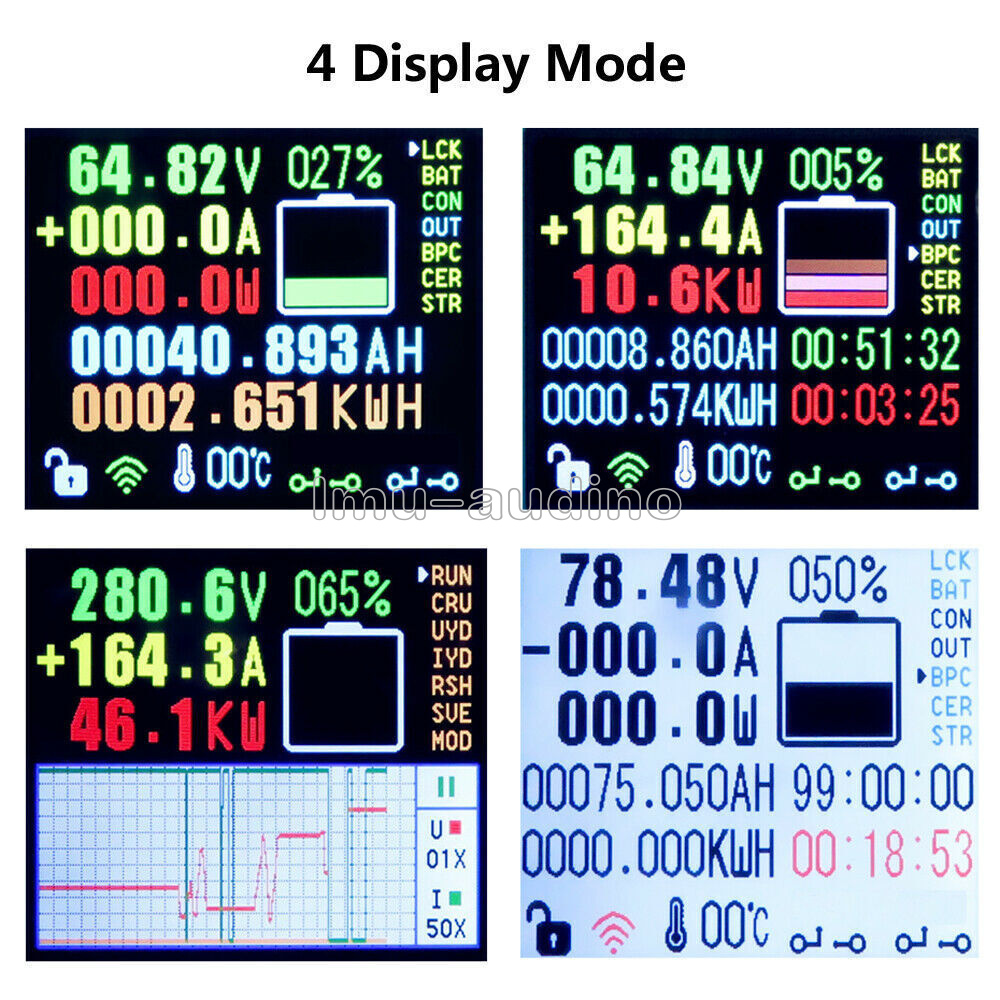

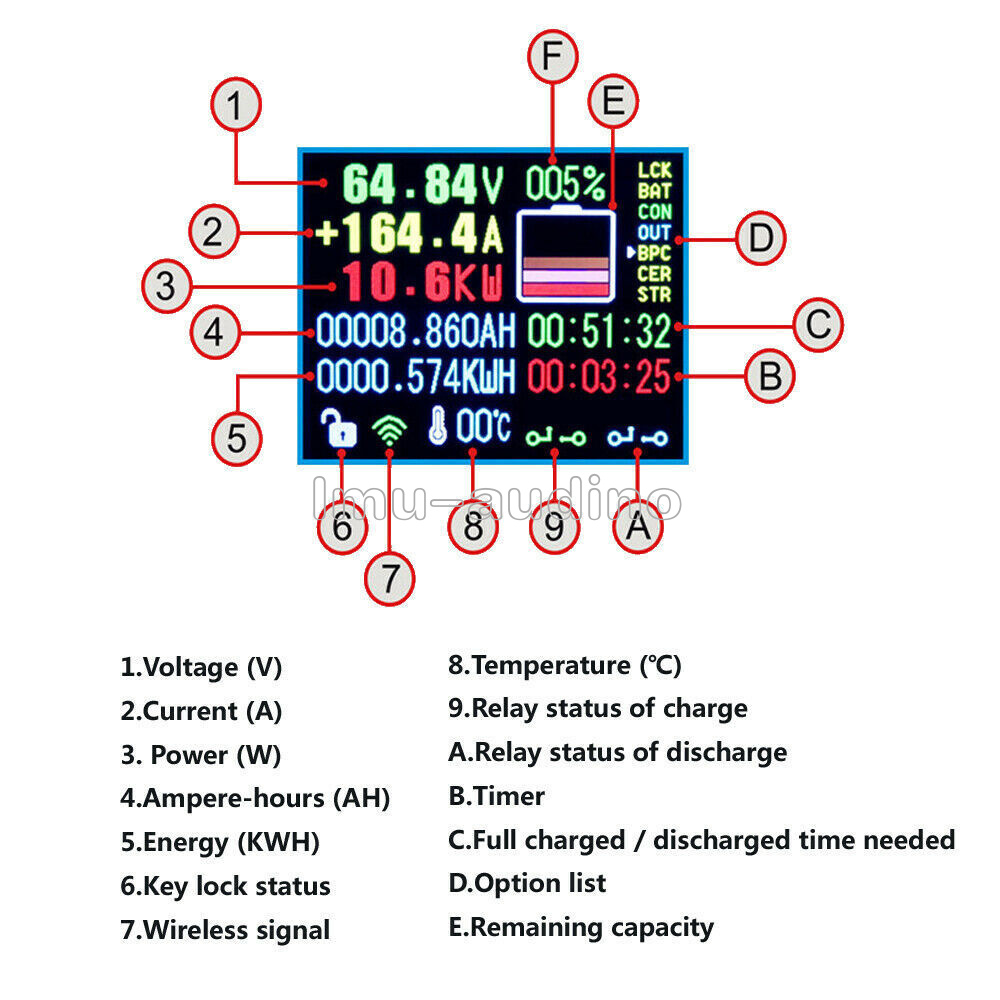

  Voltage (V), Current (A), Capacity (AH)
  Power (W/KW), Energy (KWH)
  Temperature (C), Working Hours (H)

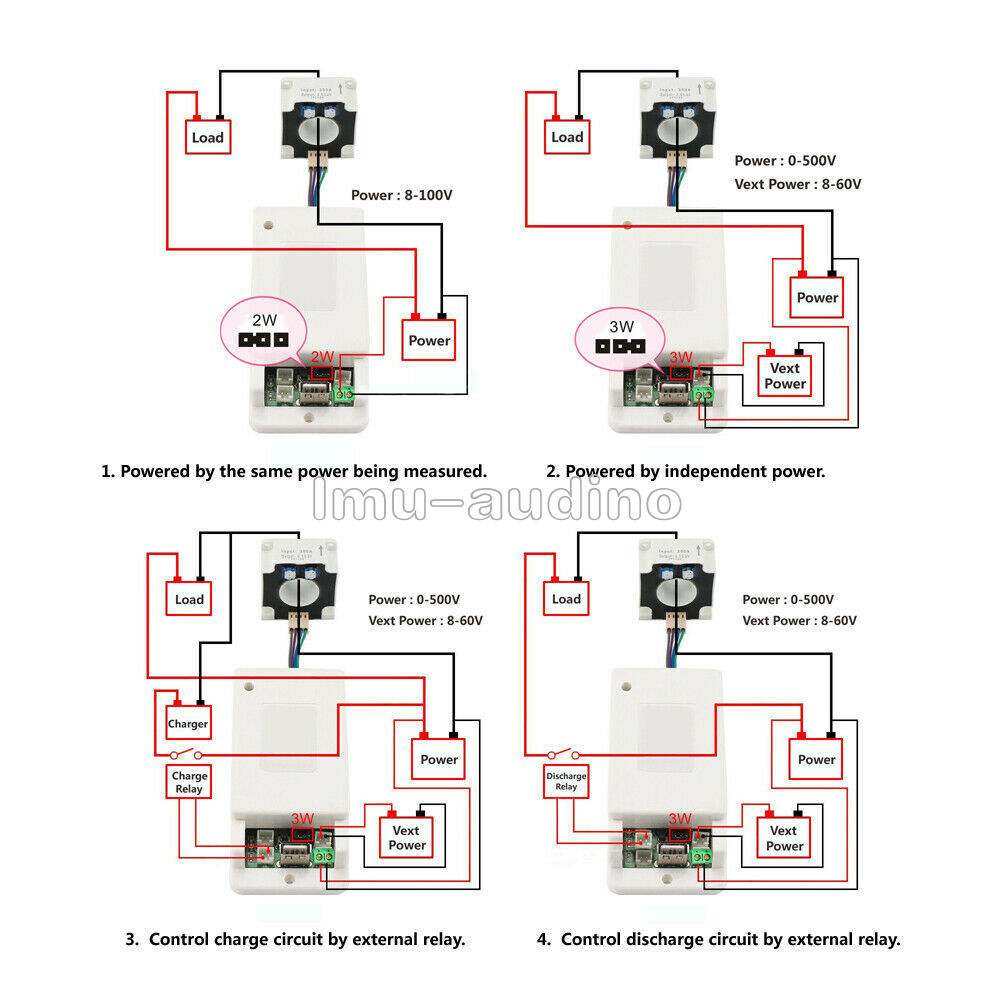

• By turning external device/relay on and off, it can control external devices,  such cut off power input.
• Trigger external relay (Not included) when the reading reach preset value.
  • [OVP] Over Charge Voltage protection
  • [LVP] Over Discharge Voltage protection
  • [OCP] Over Discharge Current protection
  • [NCP] Over Charge Current protection

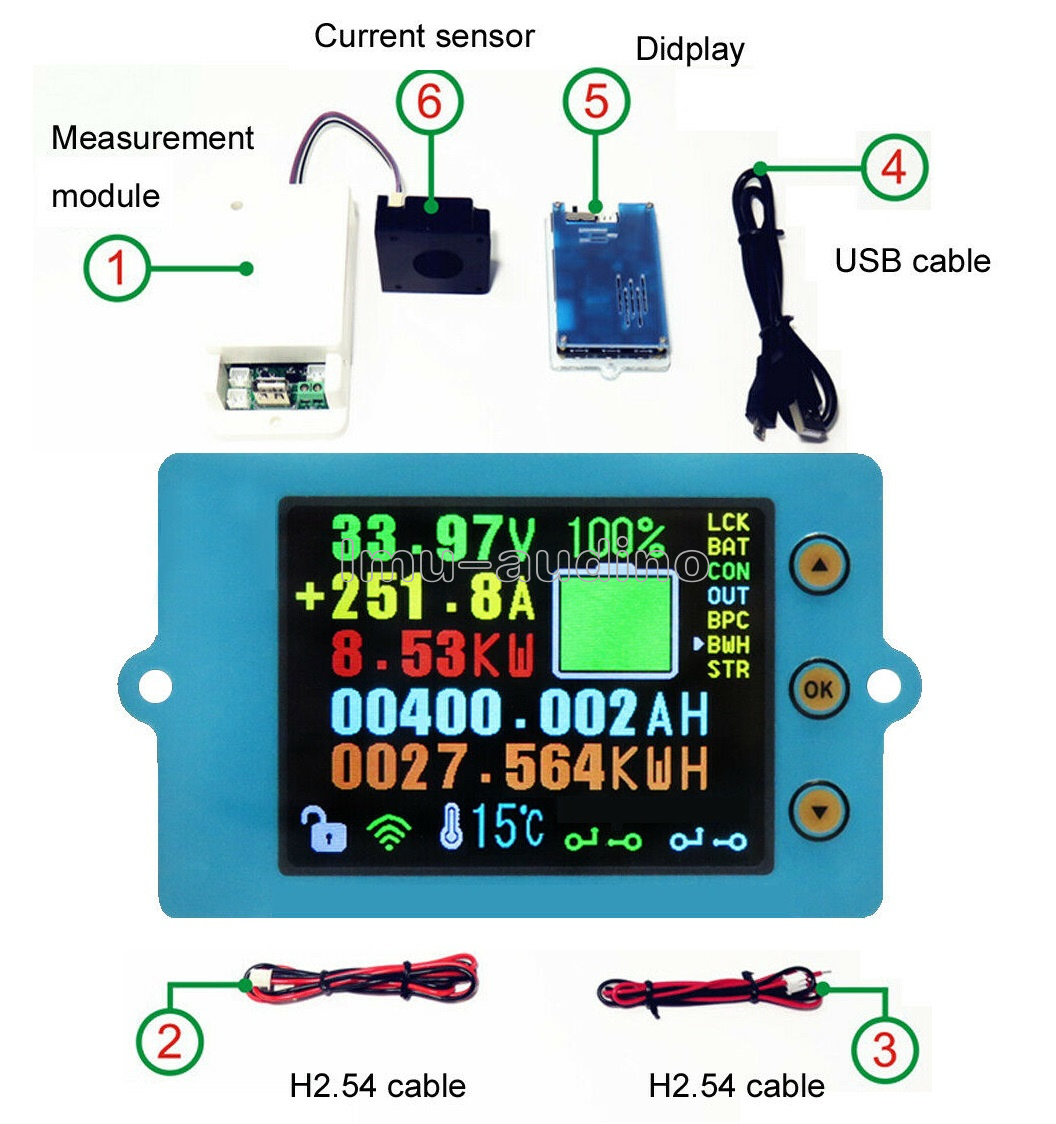

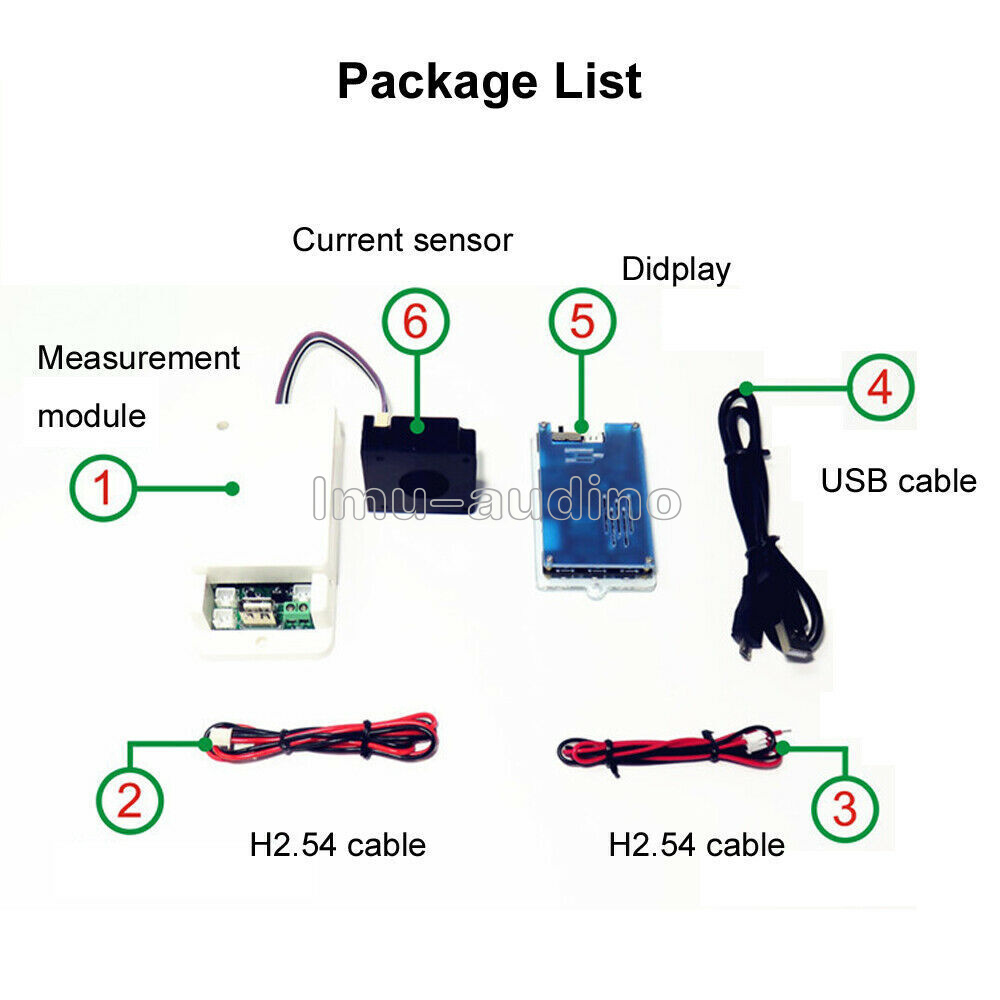

• Come with a through-hole current transformer, it doesn't require shunt.
• The current sensor can be placed on the positive or negative side of power.
• Reverse polarity protection.
• Doesn't require isolated power, self-powered 8-100V.
• Nondestructive installation, it is very easy to install.



Resolution	0.01V/0.1A/0.1KW/0.001AH/0.001KWH
Voltage Range	0~120V (external power), 8~100V (internal power)
Current Range	-100A ~ +100A
Capacity Range	0.001~65000.00 AH
Energy Range	0.000~9999 KWH
Time Range	0~100 Hours
Power Range	0~999 KW
Temperature	1~100 degree centigrade

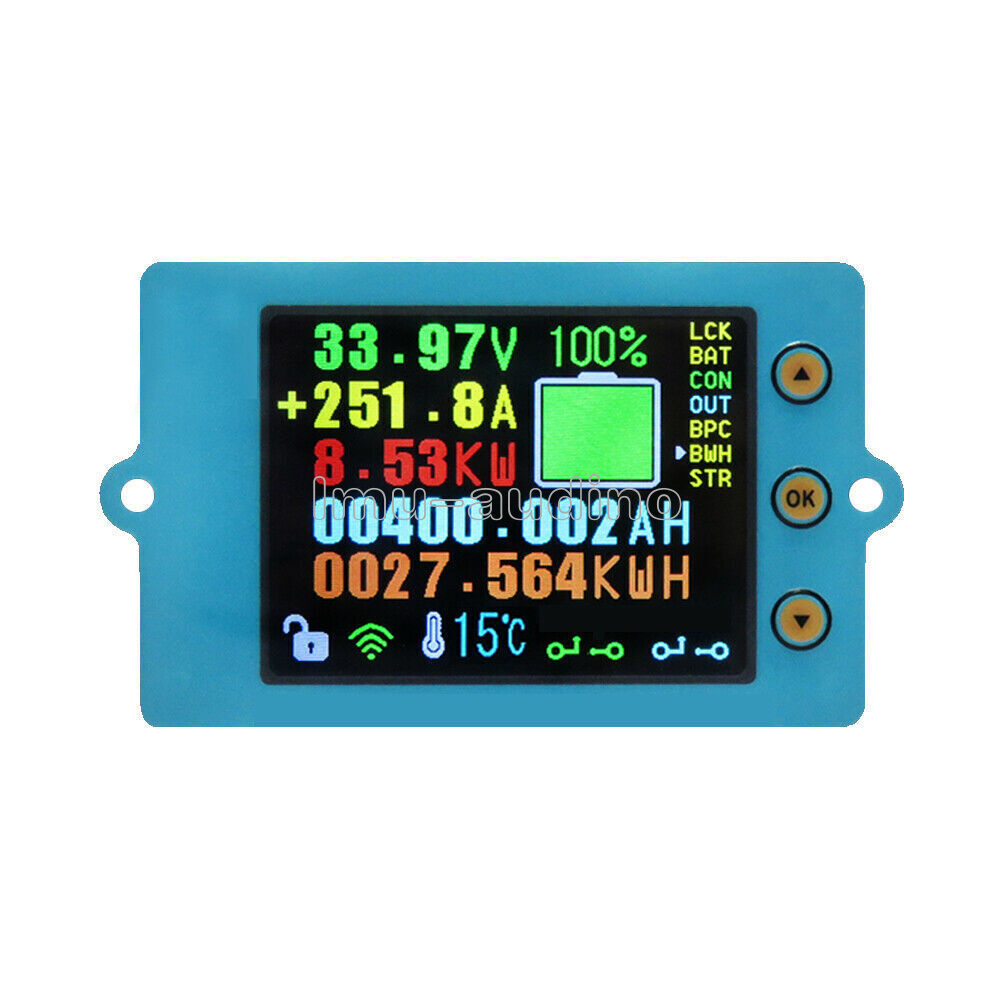

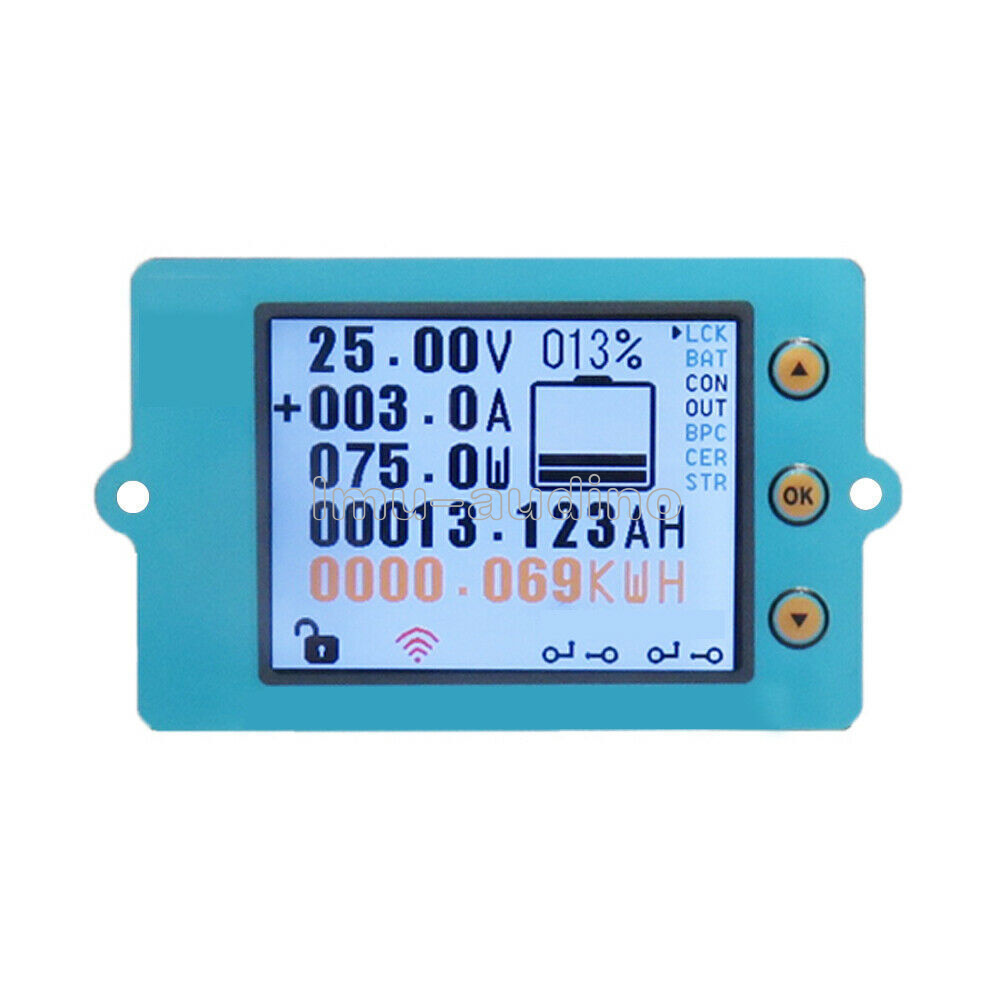

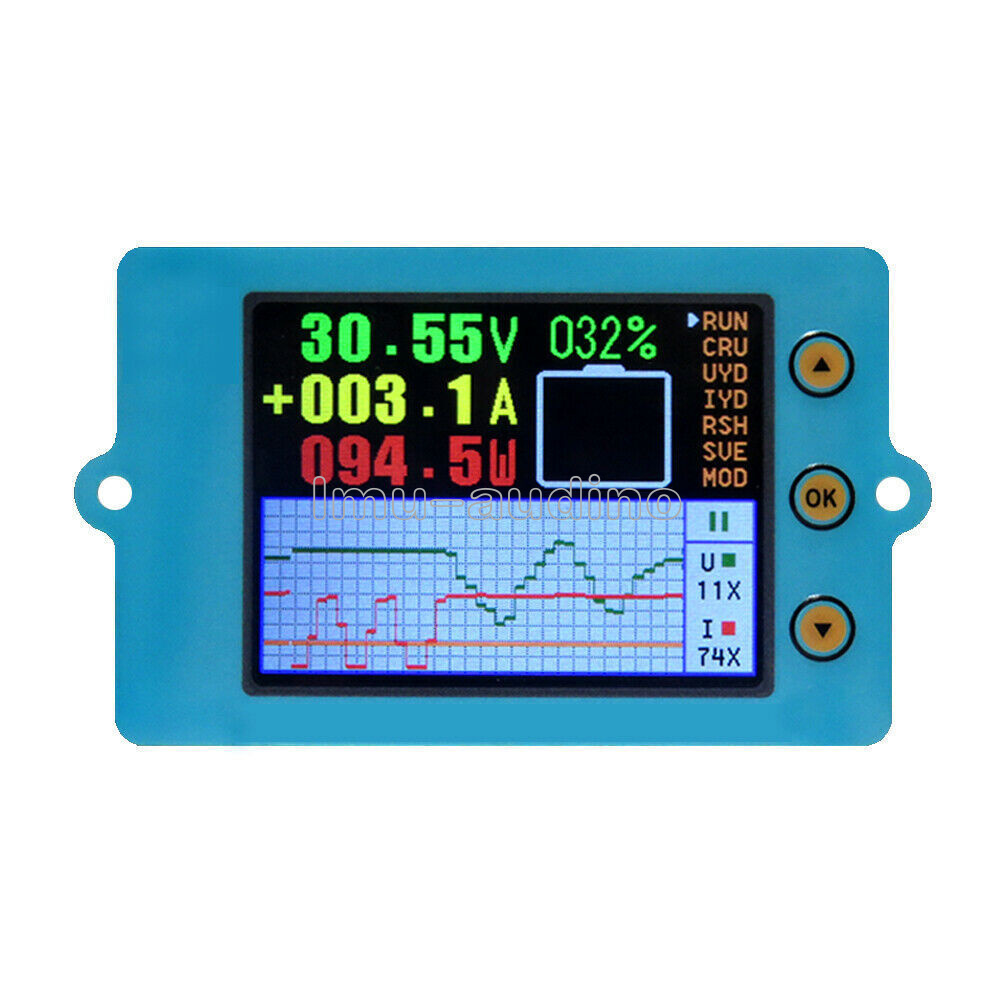

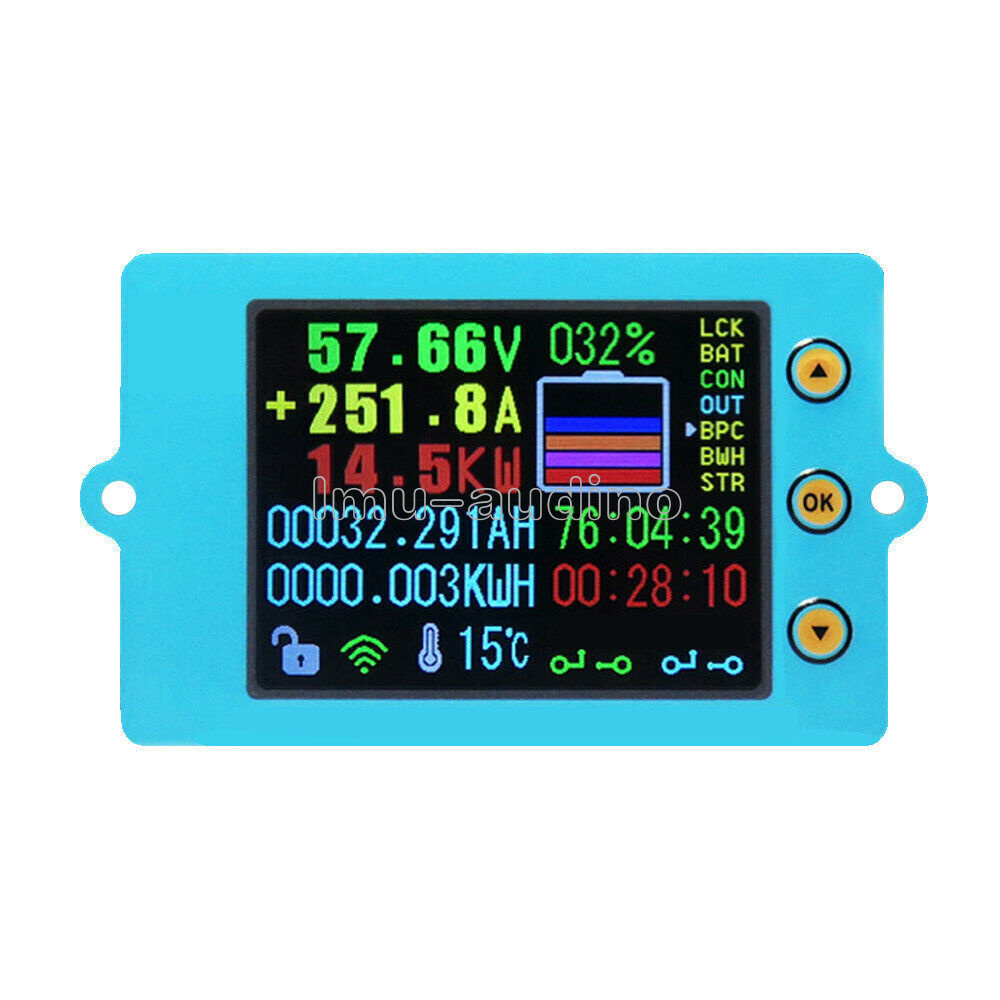

Display Type	2.4 inch LCD
Sampling rate	20 readings per second
Accuracy	Volt ±1%+2 byte / Amp±2%+5 byte
Dimensions of Display	87mm×49mm×14mm
Size of measuring module	114mm×54mmx28mm
