when the voltage up to 15V or higher. For 12V electrical work hard at work,
this automatic buck module solves this problem ,
regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V.
Wide input voltage 5V ~ 32V;
Wide Output Voltage 1.25V ~ 35V ( with automatic buck , scope of work,
any voltage inputs can be arbitrarily regulated voltage output ) ;
Built- 4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)
high switching frequency of 400KHz, the ripple is smaller and smaller . (LM2577 frequency only 50KHz)
Application:
Car regulator , solar photovoltaic, wind power and other applications of voltage instability .
Technical parameters:
Model Specification：DSN6000AUD Automatic Buck module
Module Properties：Non- isolated boost (BOOST)
Rectification：Non- Synchronous Rectification
Input Range：3.8V ~ 32V
Output Range：1.25V ~ 35V
Input Current：3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA.
Higher the voltage , the greater the load current . )
Conversion efficiency：< 94% ( greater the pressure , the lower the efficiency )
Switching frequency：400KHz
Output Ripple：50mV ( the higher the voltage , the greater the current , the greater the ripple )
Load Regulation：± 0.5%
Voltage Regulation：± 0.5%
Operating Temperature：-40 ℃ ~ +85 ℃
Package Included:

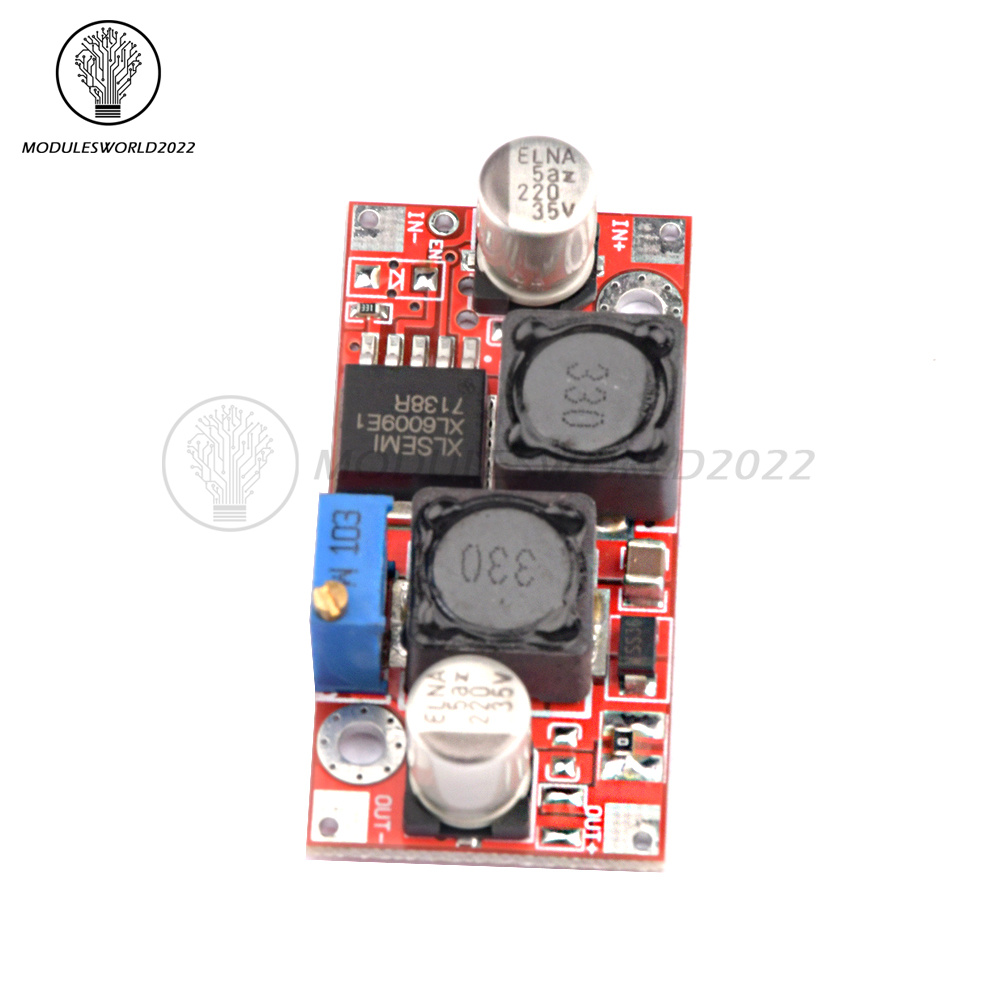

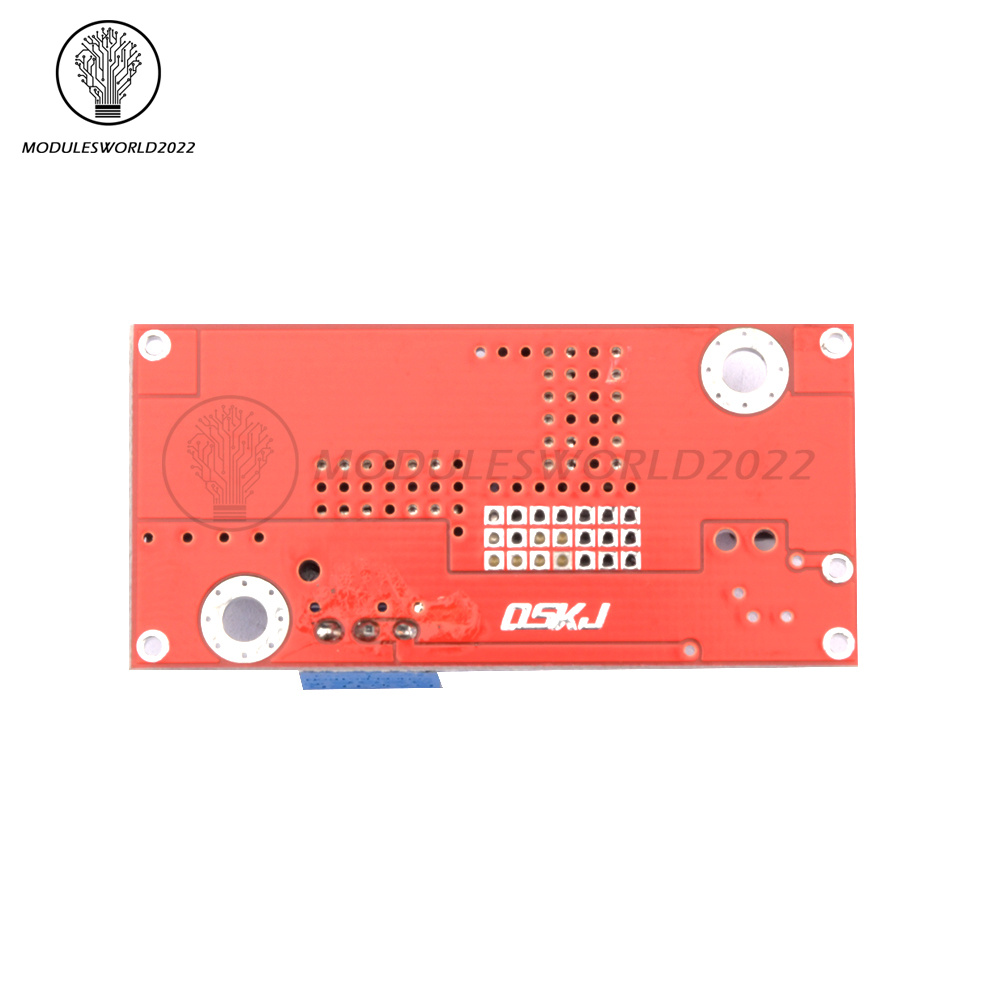

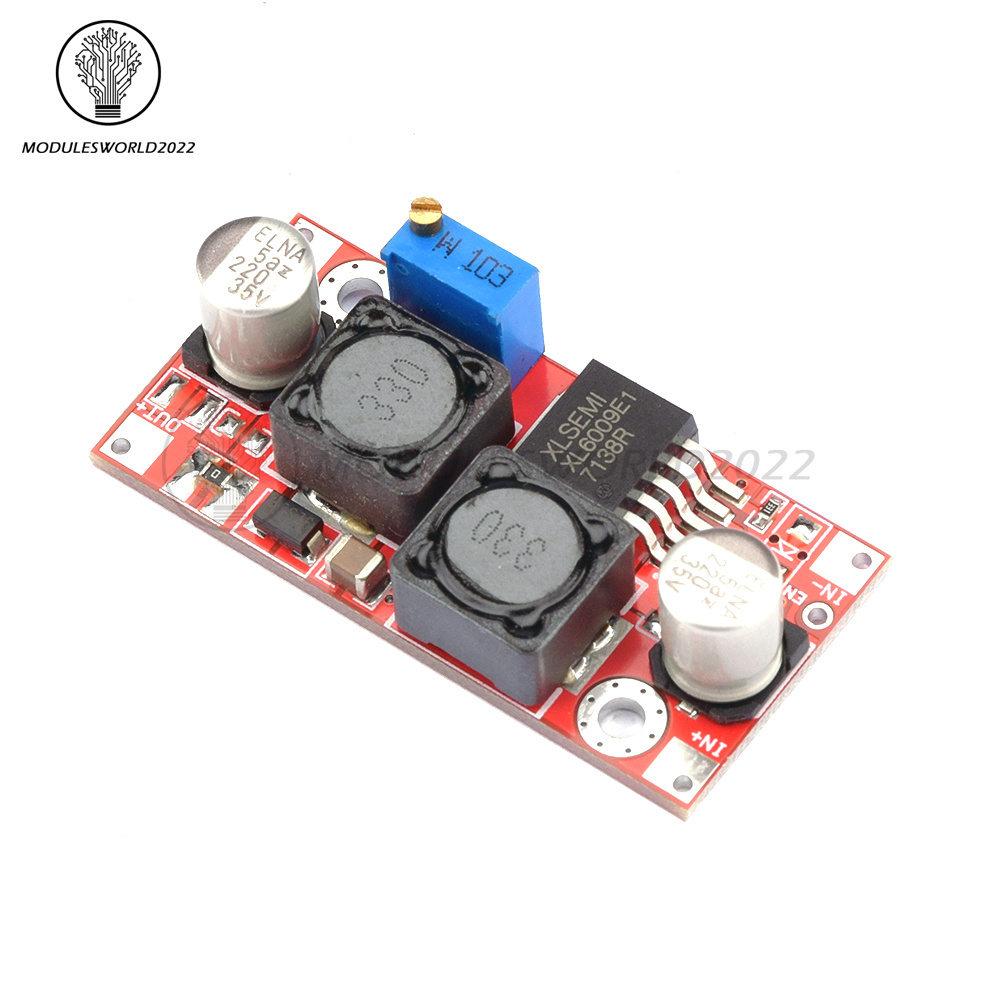

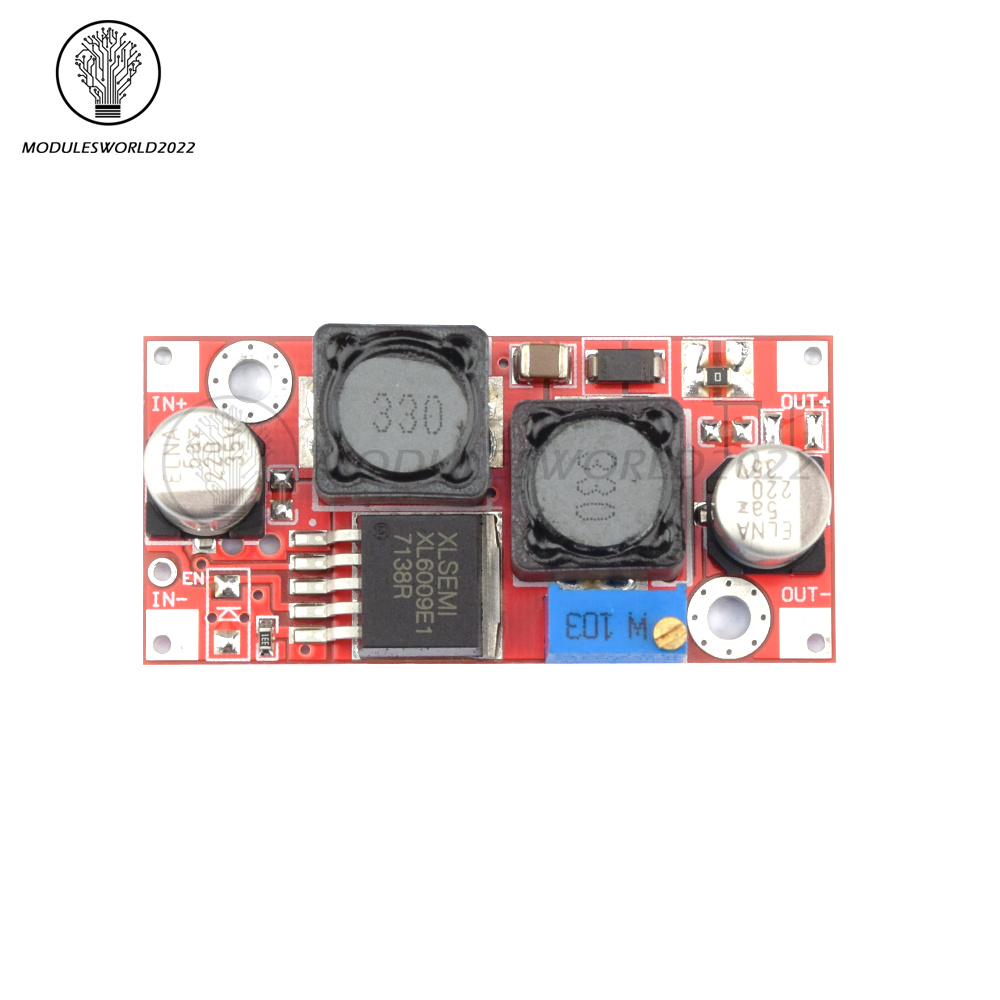

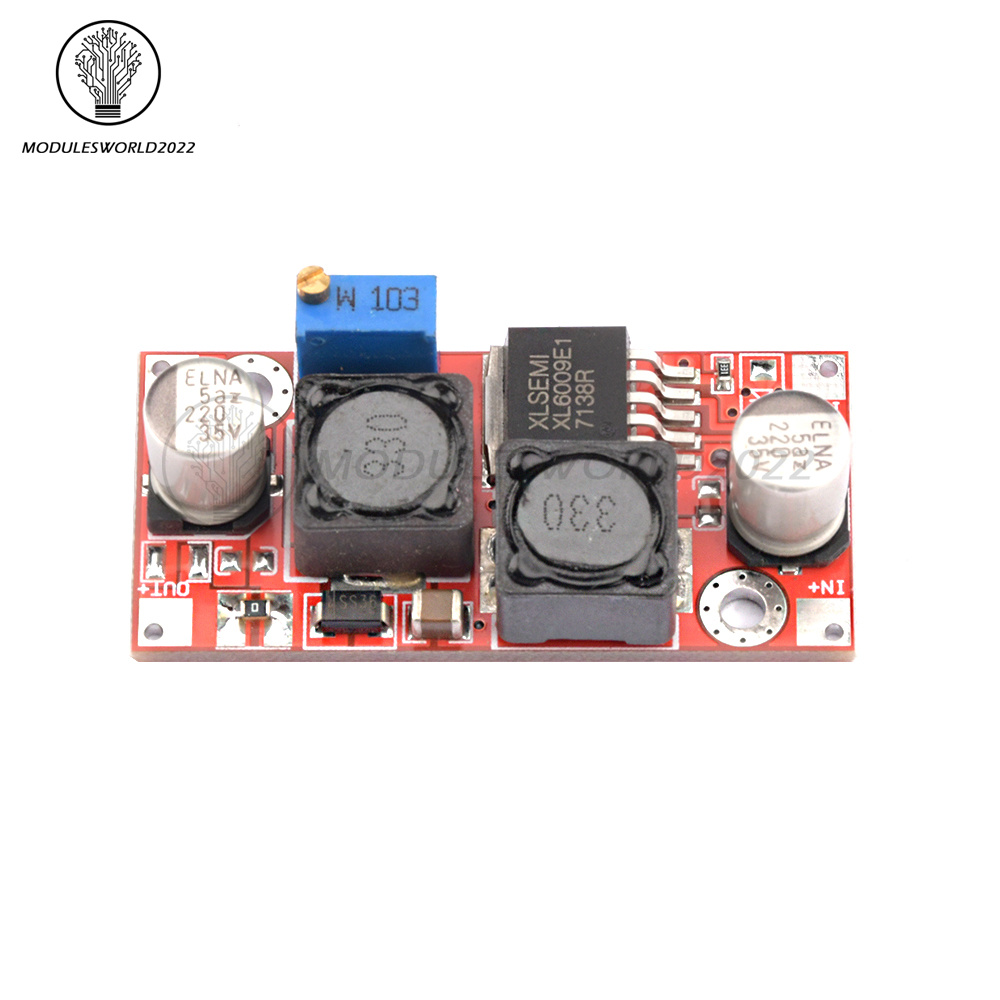

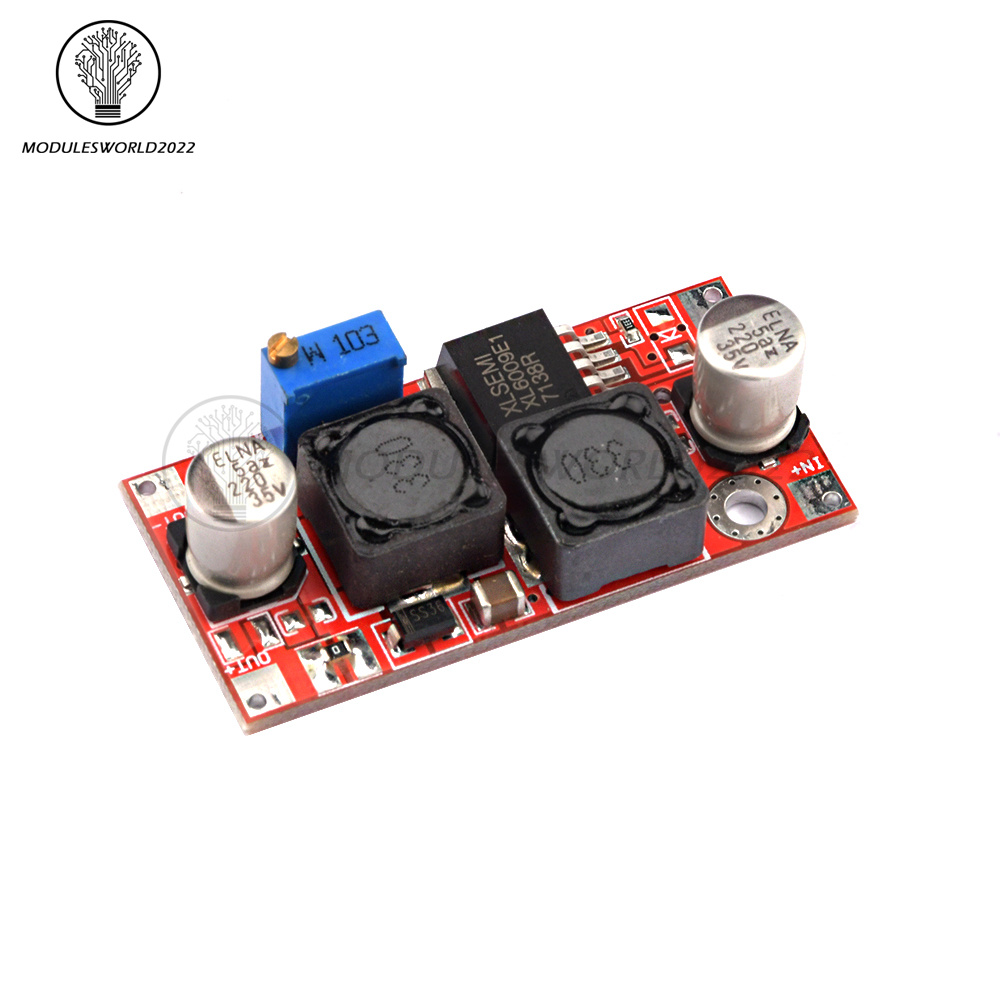

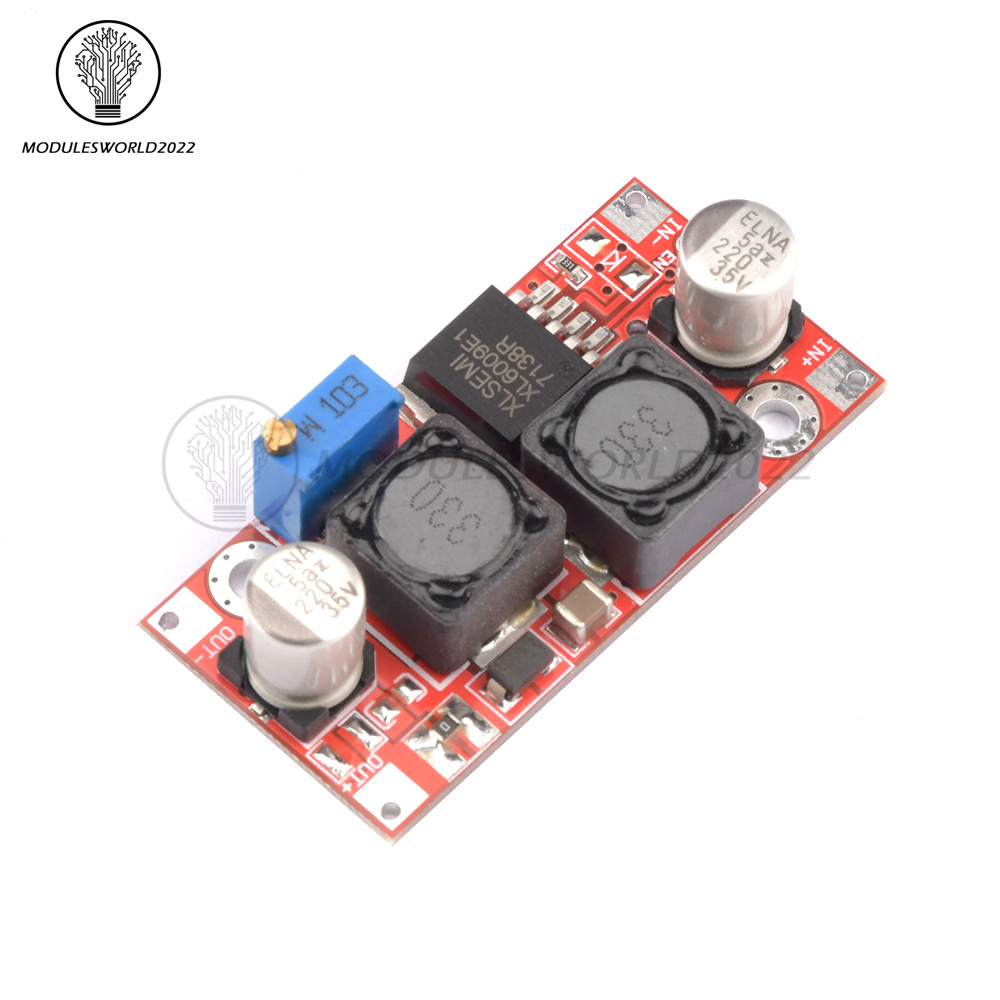

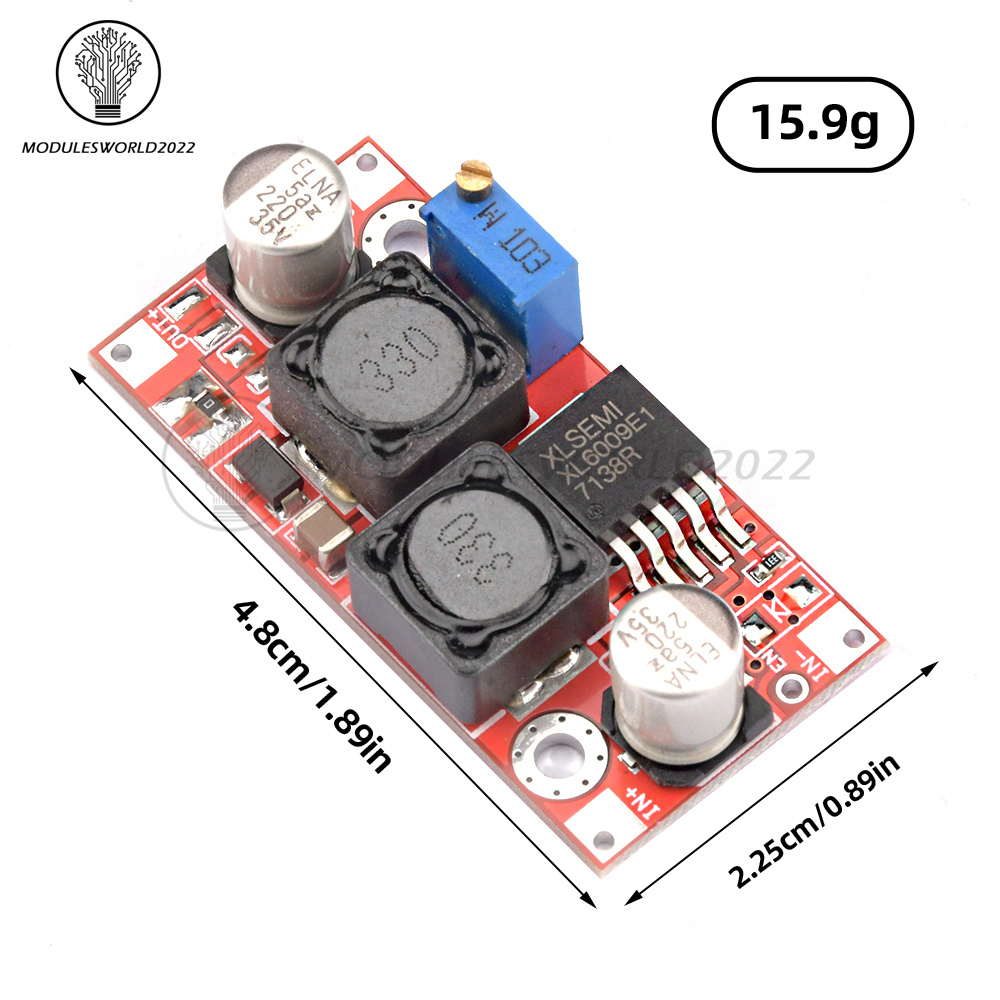

1 x Boost Buck DC-DC adjustable step up down Converter XL6009 Module Solar Voltage
