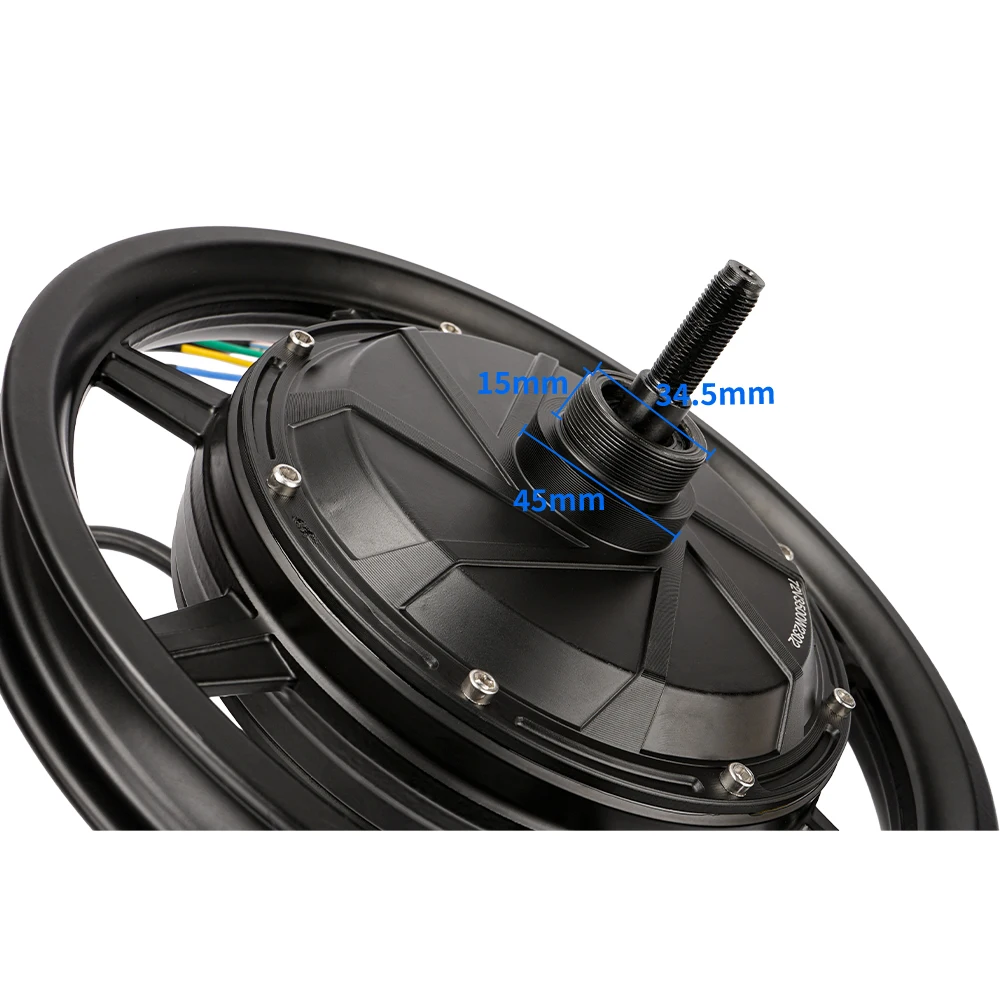

Description :

Model: 14 inches

Rated Voltage: 36 (V)/48(V)60(V)72(V)

Rated Power: 1500W/2000W/2500W/3000W/3800W

Open Size：135mm

Shaft design:Double

Shaft length:200mm

Shaft diameter:M12

Magnet steel height：30H

Pole pairs：20/ magnet pcs 40

Rated Speed: 1200 (rpm)

Speed:55-70km/h for 48v 1500w 85-120km/h for 60v 72v 2500w

3500w

Max Moment Torque:35N.m

Main Scope of Application: Electric scooter

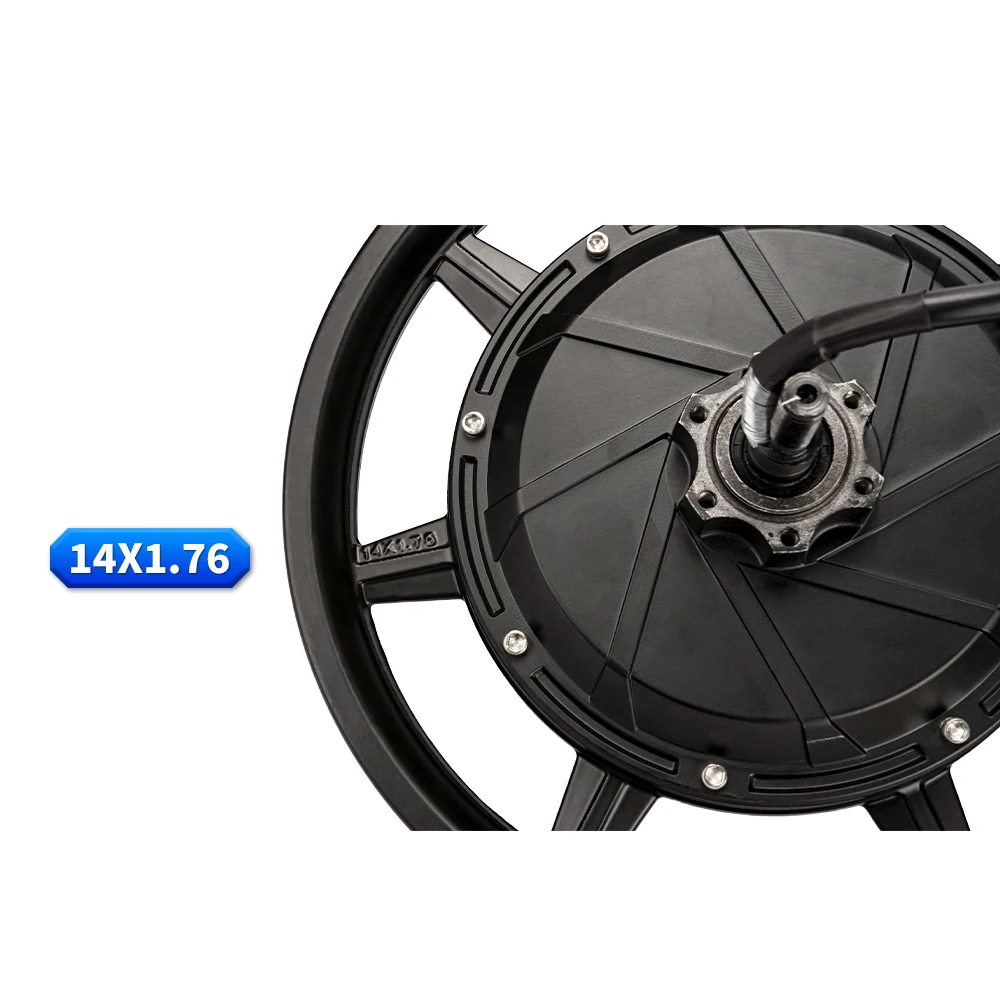

Tyre model:inflatable inner/out tyre 14*2.125 14*2.25

Product Type: BLDC with 3 phase wire and 5 hall sensor wire

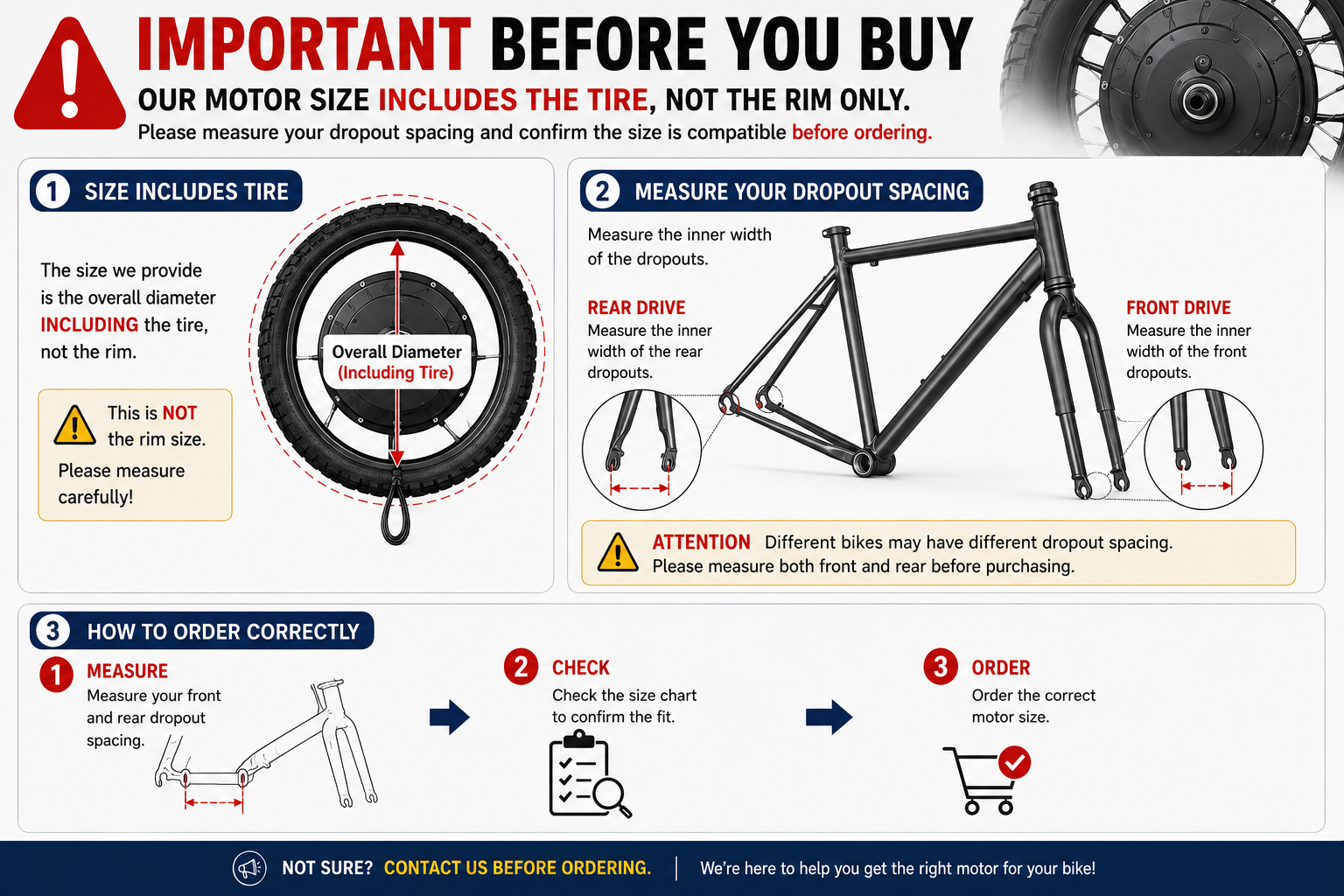

Notice : The size of the motor plus the tire is 14 inches








PACKING LIST：


1* 14 inch Hub Motor(without tire)

1* matched Controller

1* LCD display(with throttle)

A pair of Brake Lever (all black color)

1 set Disc Brake









How to setting LCD display:

P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest;

P02: mileage unit, 0: KM;

P03: Voltage level: 24V, 36V, 48V, default 36V;

P04: sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minute;

P05: Power assist gear: 0: 3rd gear mode;

P06: wheel diameter: unit, inch; accuracy: 0.1;

P07: Speed measuring magnetic steel number: range: 1-100;

P08: Speed limit: range 0-100km/h, 100 means no speed limit;

     1. Communication state (controller control): the driving speed is maintained at the set value,

6

     Error: ±1km/h; (both assist and handle speed limit)

Note: The value here is based on kilometers. When the unit setting is converted from kilometers to miles, the speed value on the display interface will automatically convert to the correct mile value, but the speed limit value data set in this menu under the mile interface No conversion, inconsistent with the actual displayed mile speed limit value; P09: zero start, non-zero start setting, 0: zero start; 1: non-zero start;

P10: Driving mode setting

    0: Power-assisted drive (the amount of power output is determined by the power-assisted gear, and the handle is invalid at this time).

    1 : Electric drive (driven by turning the handle, at this time the power assist gear is invalid).

    2: Power assist drive and electric drive coexist at the same time (the electric drive is invalid in zero-start state).

P11: Assist sensitivity setting 1-24

P12: Starting strength setting 0-5

P13: Power-assisted magnetic steel plate type setting 5, 8, 12 grains of magnetic steel three types

P14: Controller current limit setting Default 12A Range: 1-20A

P15: controller undervoltage value

P17: Automatic cruise selection,

   0 without automatic cruise,

   1 with automatic cruise.

P18: ABS brake strength selection, generally adjustable from 0 to 3 levels



Fault code: Fault status Remarks

0. Normal state

1. Reserved

2. brake

3. Power sensor failure (riding sign)

4.6KM/H cruise

5. Real-time cruise is not realized here

6. Battery undervoltage

7. Motor failure

8. Handlebar failure

9. Controller failure

10. Communication reception failure

11. Communication sending failure

12. BMS communication failure

13. Headlight failure



The LCD display shows

ODO: Total mileage

TRIP: Single mileage

VOL: Digital voltage

CUR: Digital current

RM (requires battery protection board software support): Remaining mileage

TIME: Running time

ERRO: Fault code
