Details

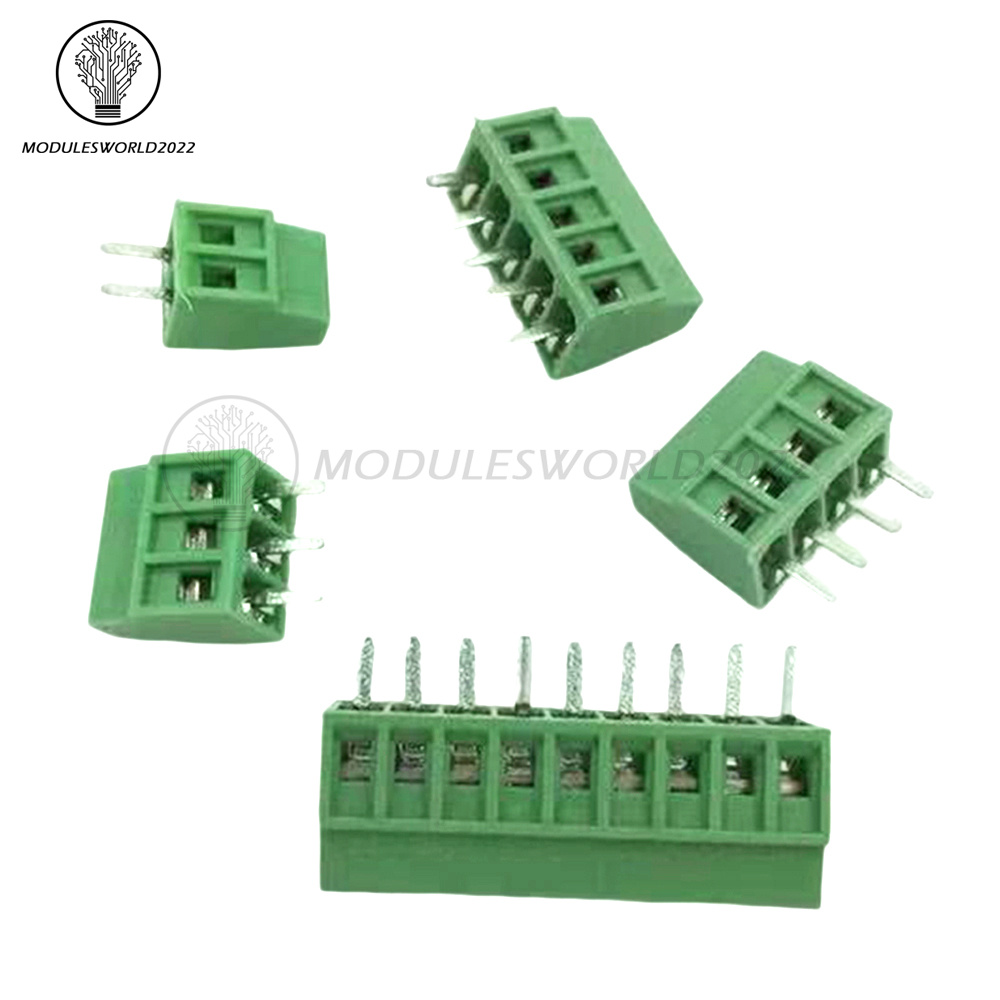

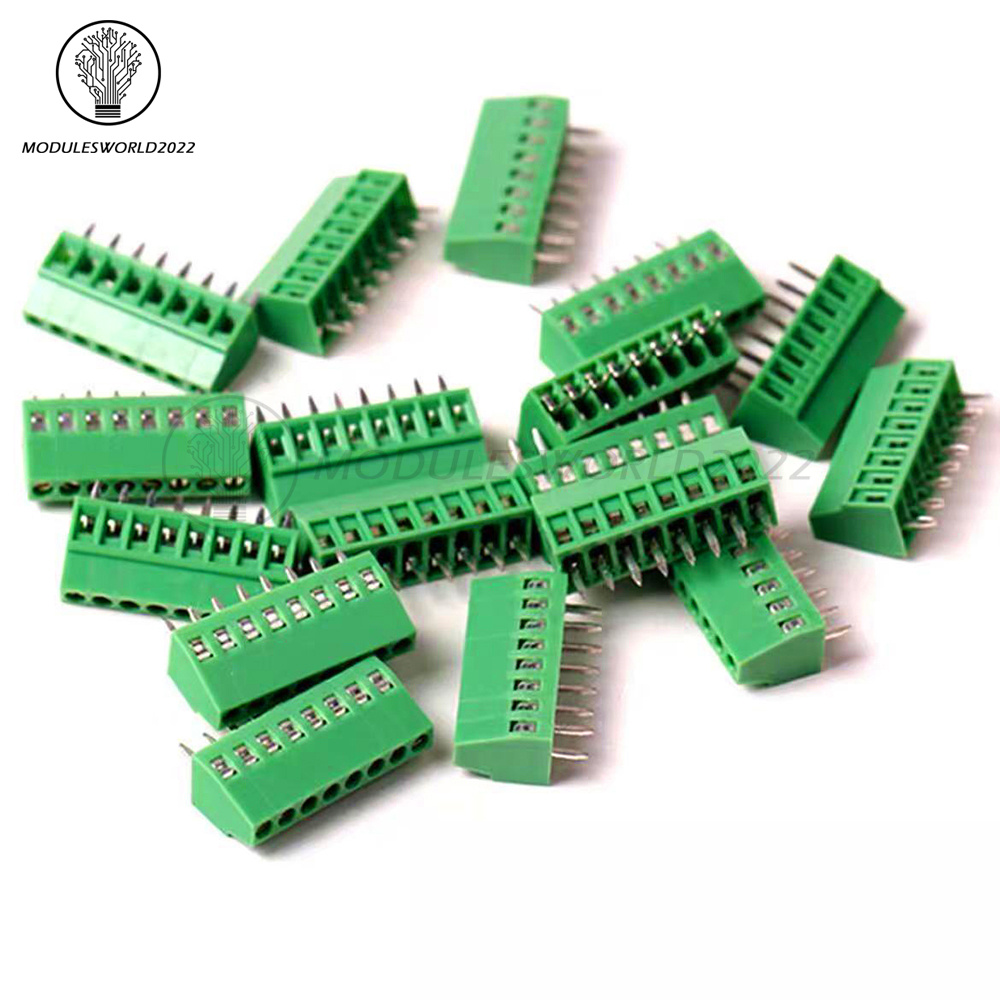

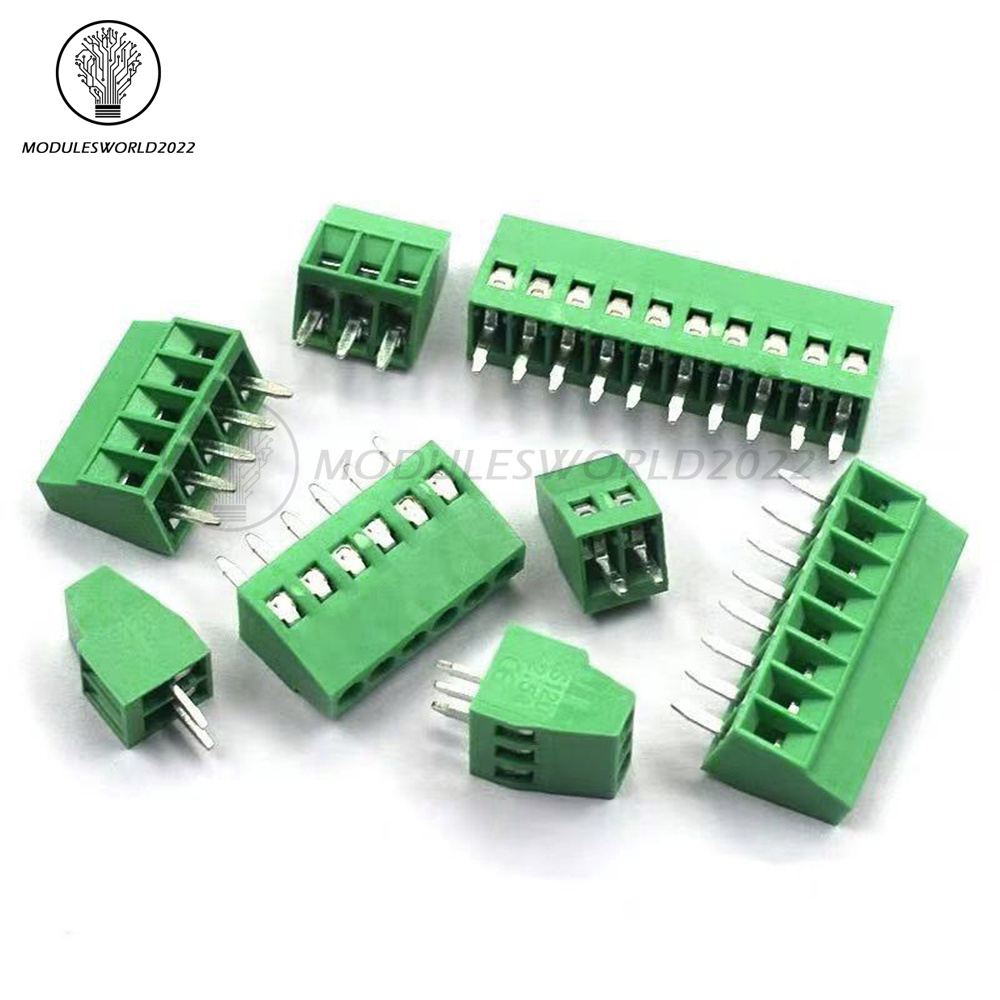

Multiple sizes available
Can be spliced and used
High quality and durable

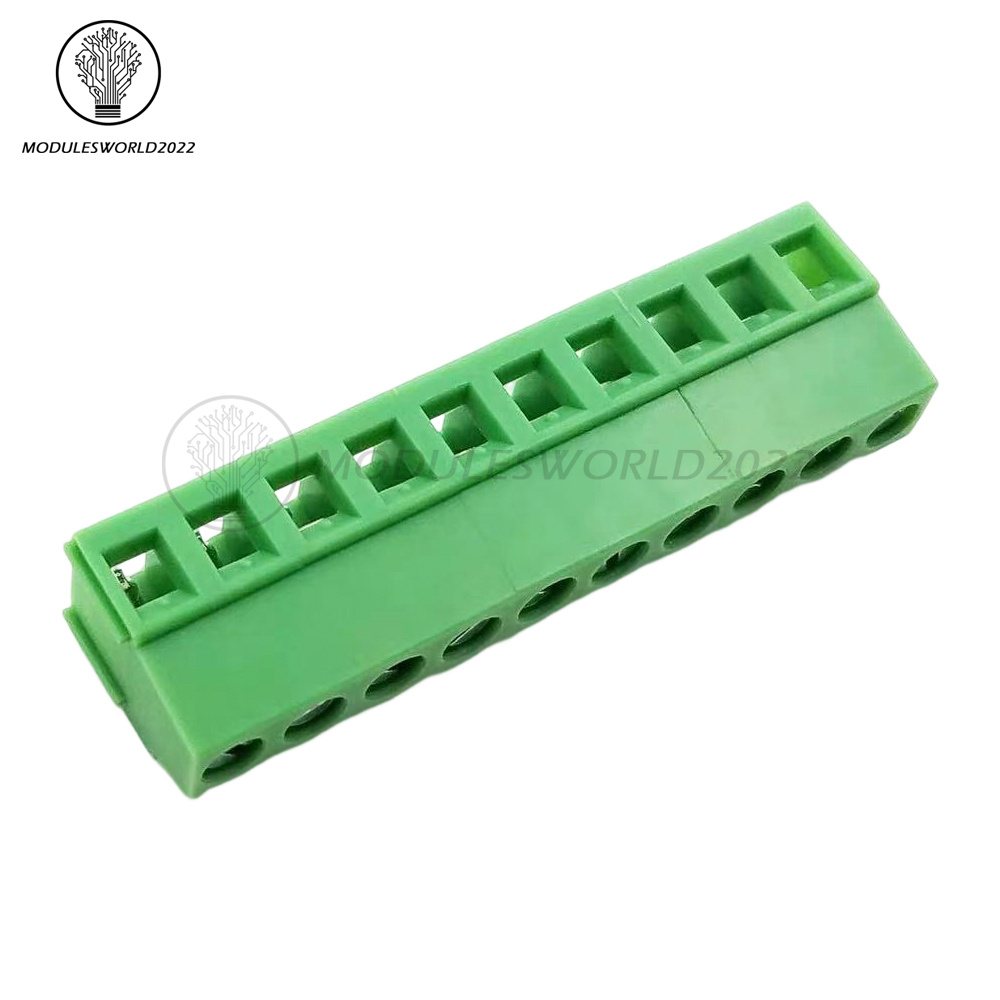

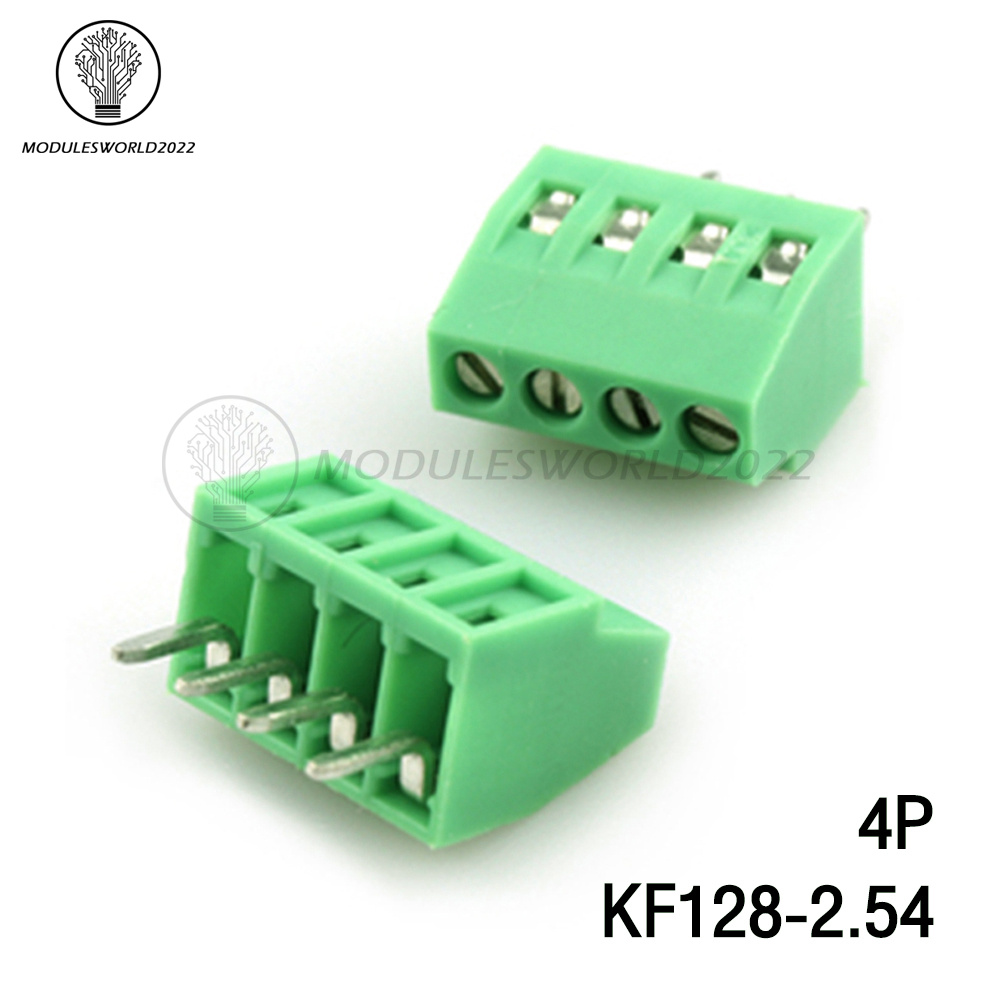

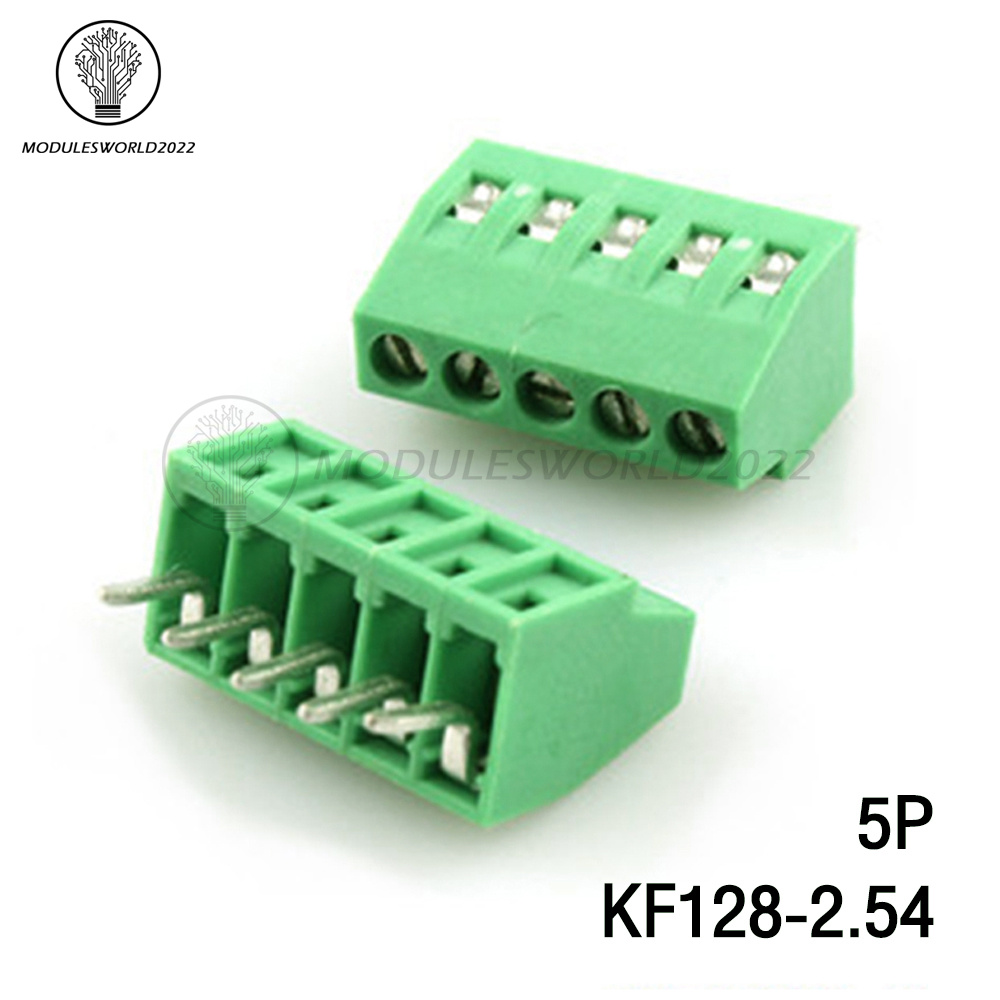

Both sides have concave and convex groove, can be used for more than 2P with 3P combination into 4P, 5P, 6P, 7P, etc., can be free to splice assembly is very simple
Suitable for a wide range

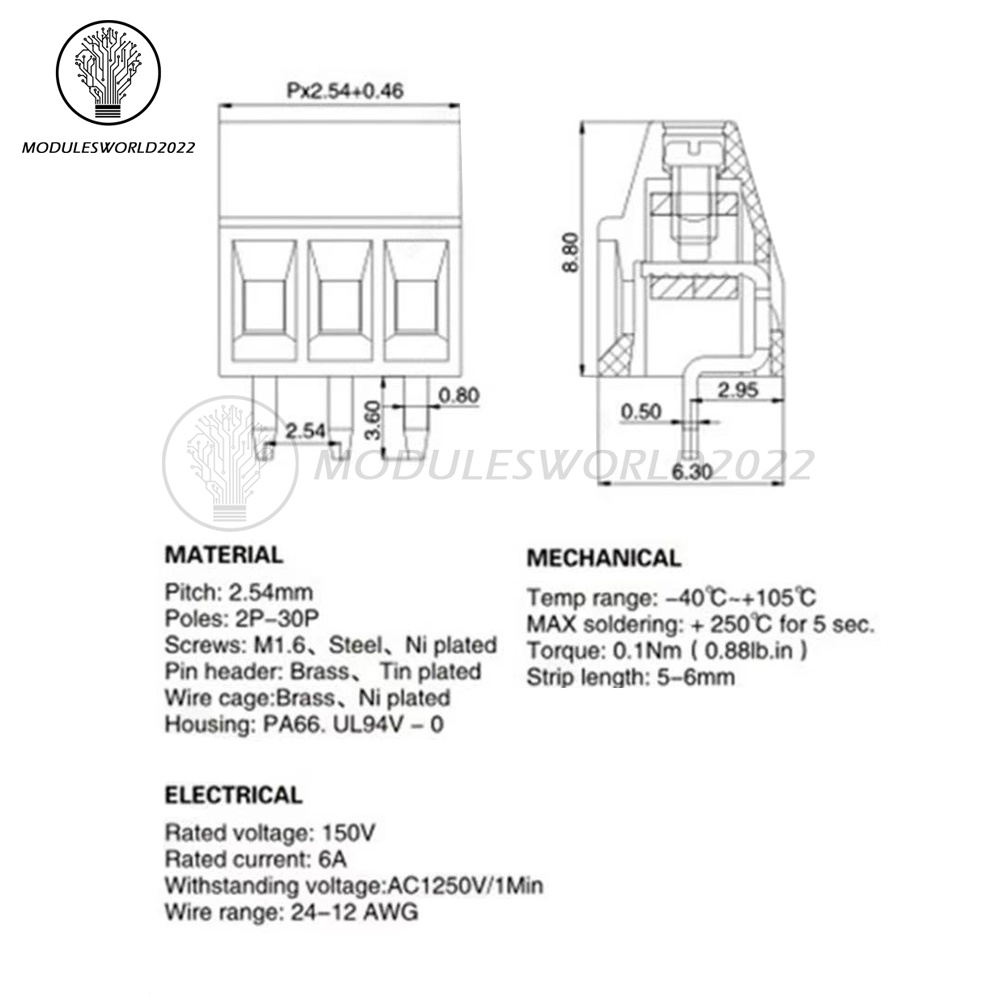

Product parameters:
Material and plating

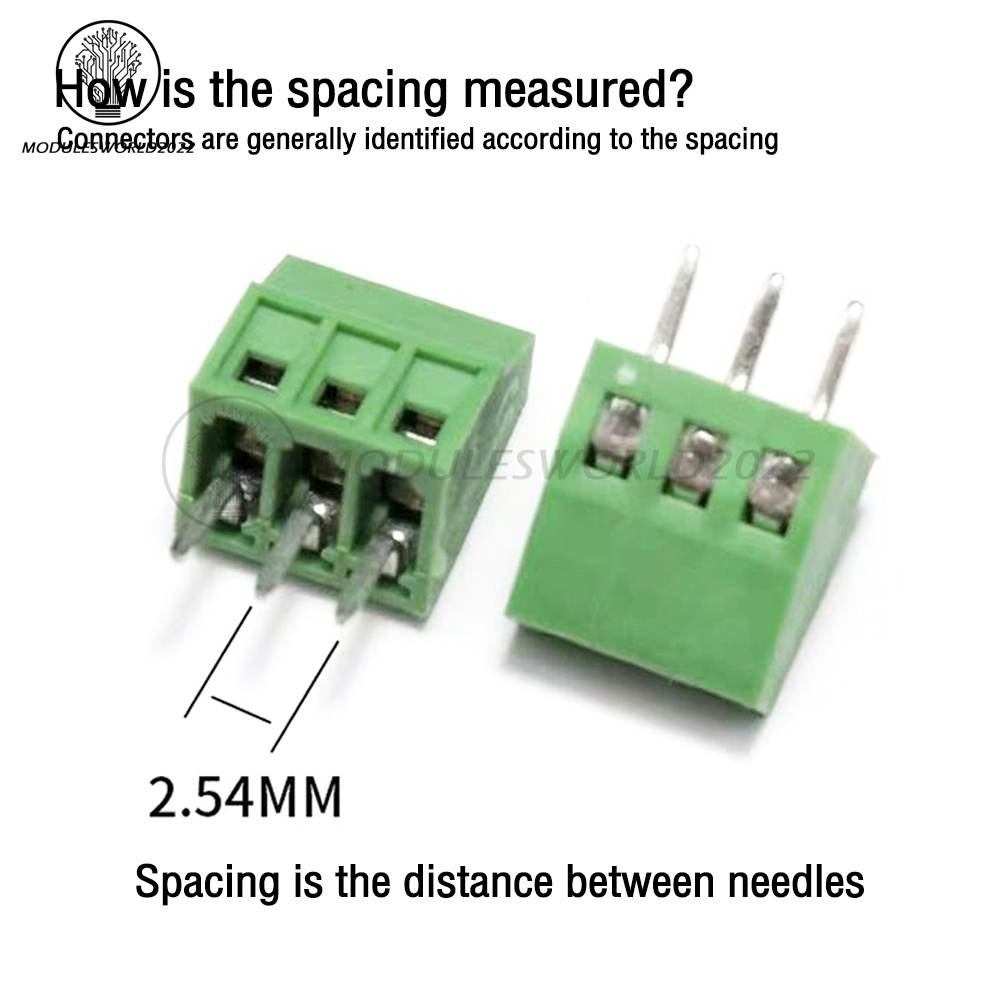

Spacing: 2.54mm
Number of poles: 2P-8P
Screw: M1.6, steel, nickel plated
Solder pin: brass, tin-plated
Square buckle: brass, nickel plated
Plastic parts:PA66.UL94V-0
Electrical performance
Rated voltage:150V
Rated current:6A
Withstand voltage:AC1250V/1Min
Wire diameter:24-12AWG
Mechanical performance
Temperature range:-40℃~+105℃
Instantaneous temperature:+250℃5sec
Torque:0.1Nm ( 0.88lb.in )
Strip wire length:5-6m
Product List:
10x Terminal
