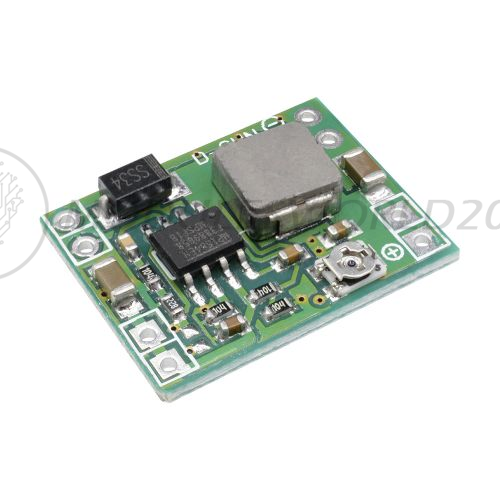

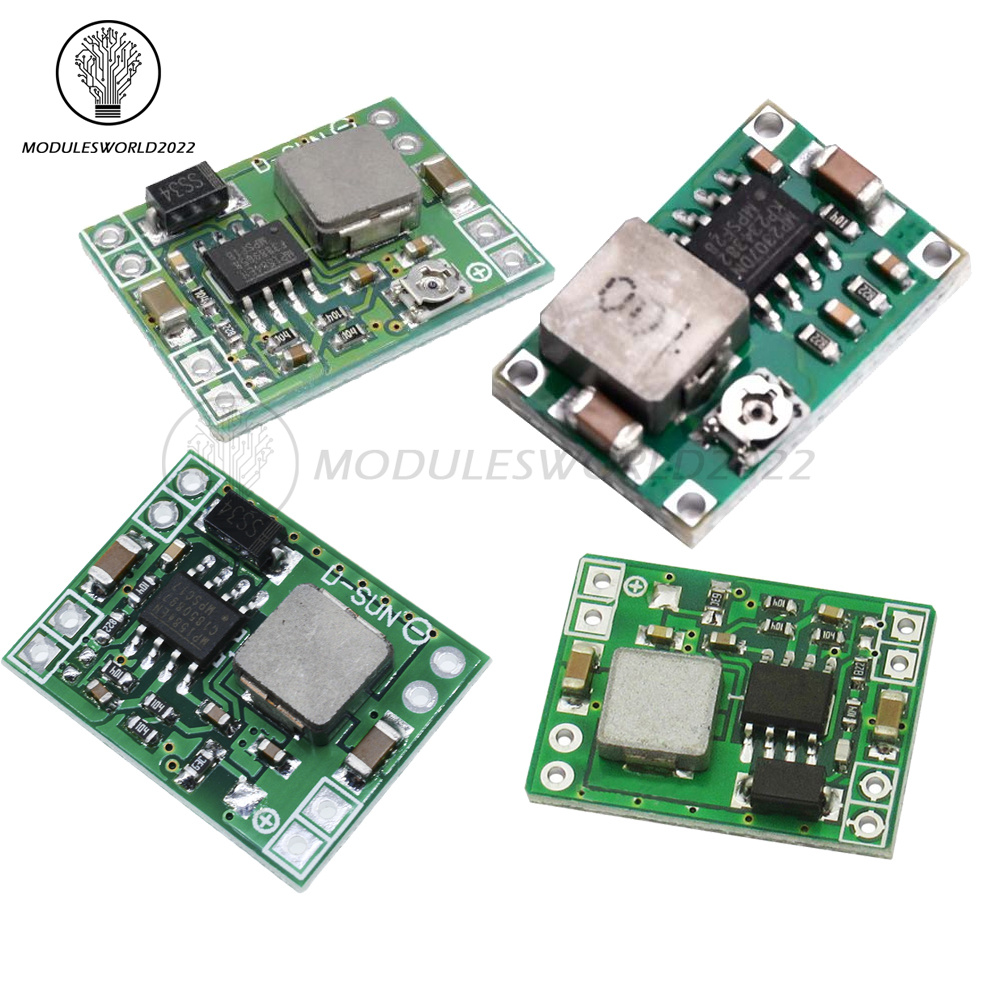

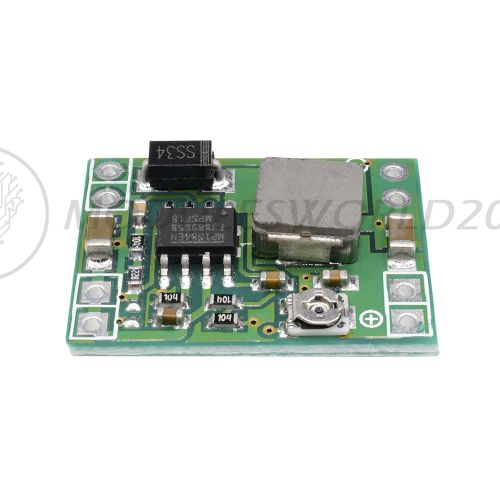

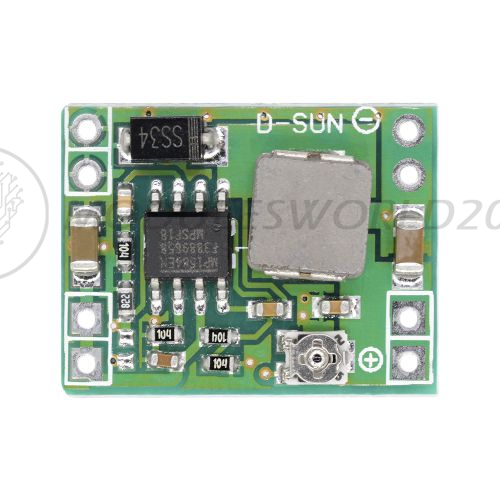

DC-DC Mini 3/3.3/5V 3A Step down Adjustable Power Supply Module replace LM2596S
Description:
3.3V-5V
100% BRAND NEW!
Whole network smallest maximum 3A output.
Input voltage: 4.5-28V
Output Voltage: 0.8-20V (adjustable)
Output current: rated current 3A(MAX).
Switching Frequency: 1MHz
Output Ripple:less than 30mV
Efficiency:96%(max)
Operating temperature: Industrial grade (-40 C to +85 C)
Module Properties: Non-isolated step-down module (buck)
Size:22*17*4mm
3.3V-5V
100% BRAND NEW!
Whole network smallest maximum 3A output.
Input voltage: 4.5-28V
Output Voltage: 0.8-20V (adjustable)
Output current: rated current 3A(MAX).
Switching Frequency: 1MHz
Output Ripple:less than 30mV
Efficiency:96%(max)
Operating temperature: Industrial grade (-40 C to +85 C)
Module Properties: Non-isolated step-down module (buck)
Size:22*17*4mm
Package Included:
1PC*Mini DC-DC Converter Adjustable Step down Power Supply Module replace 3A LM2596s

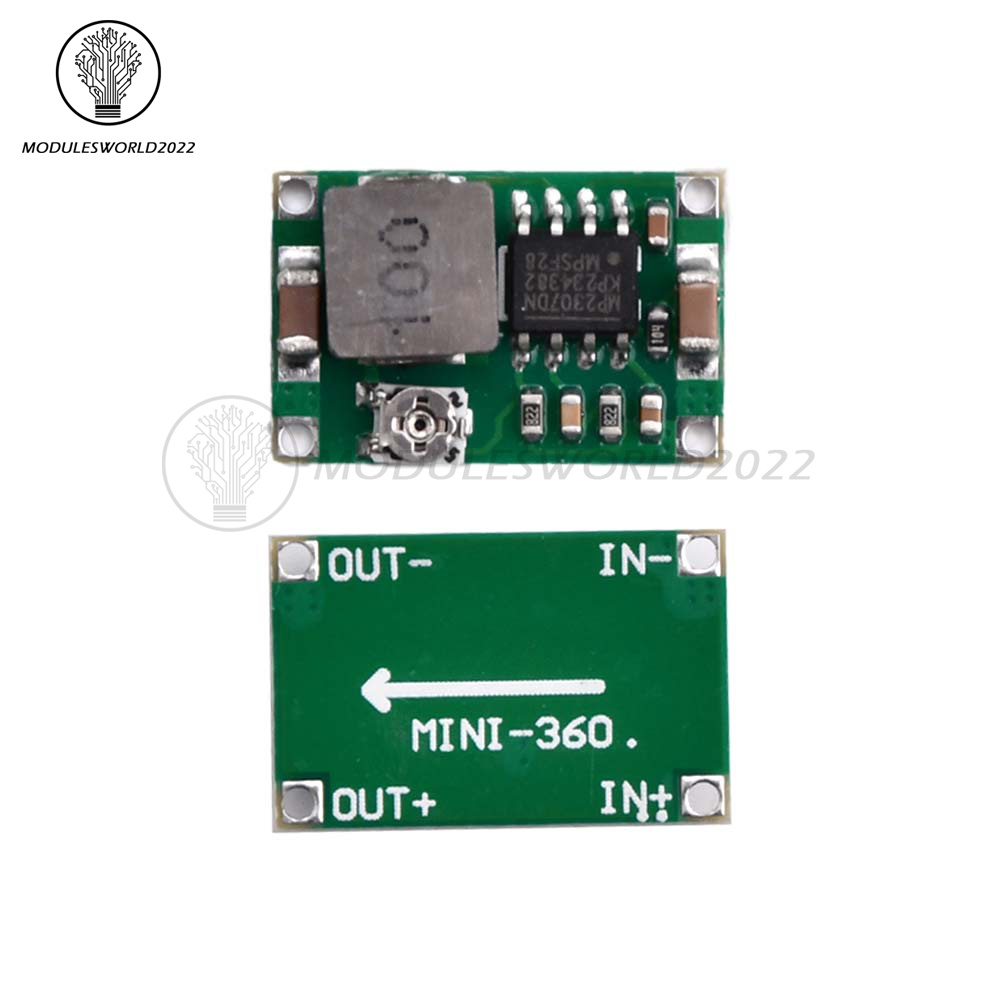

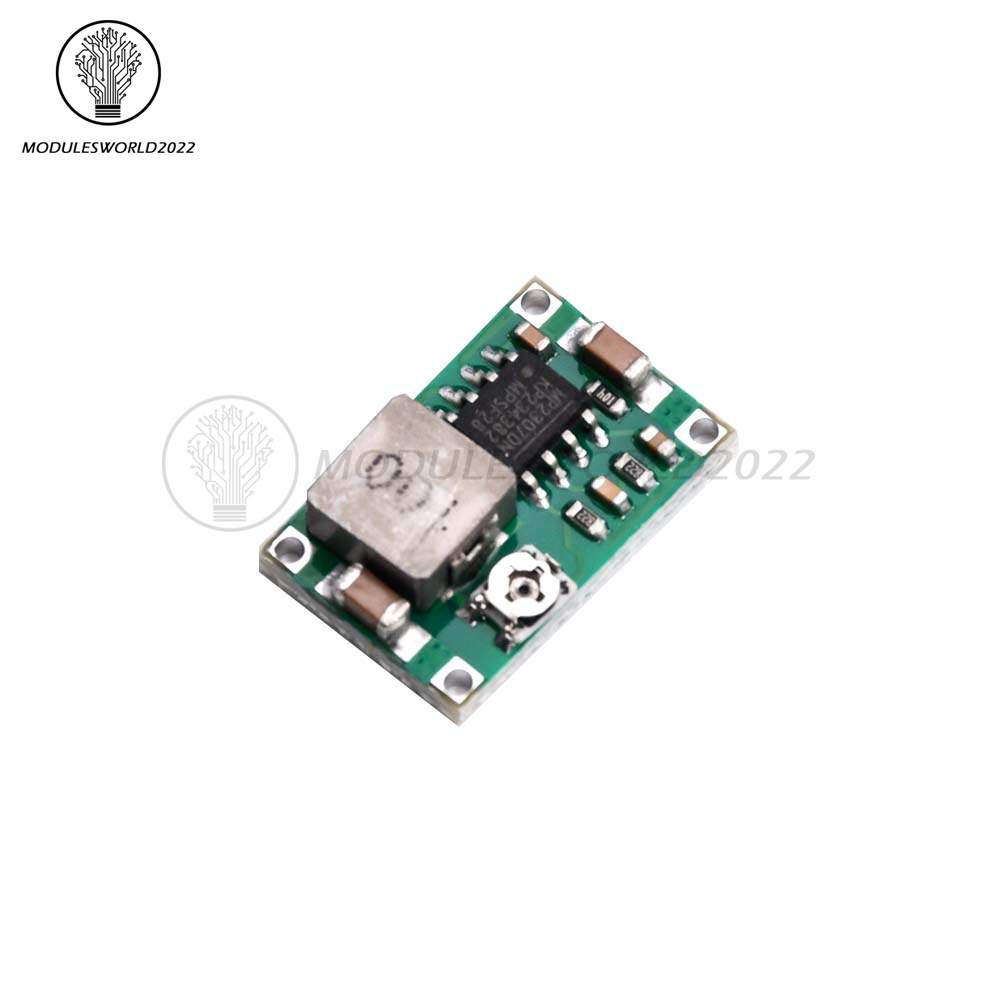

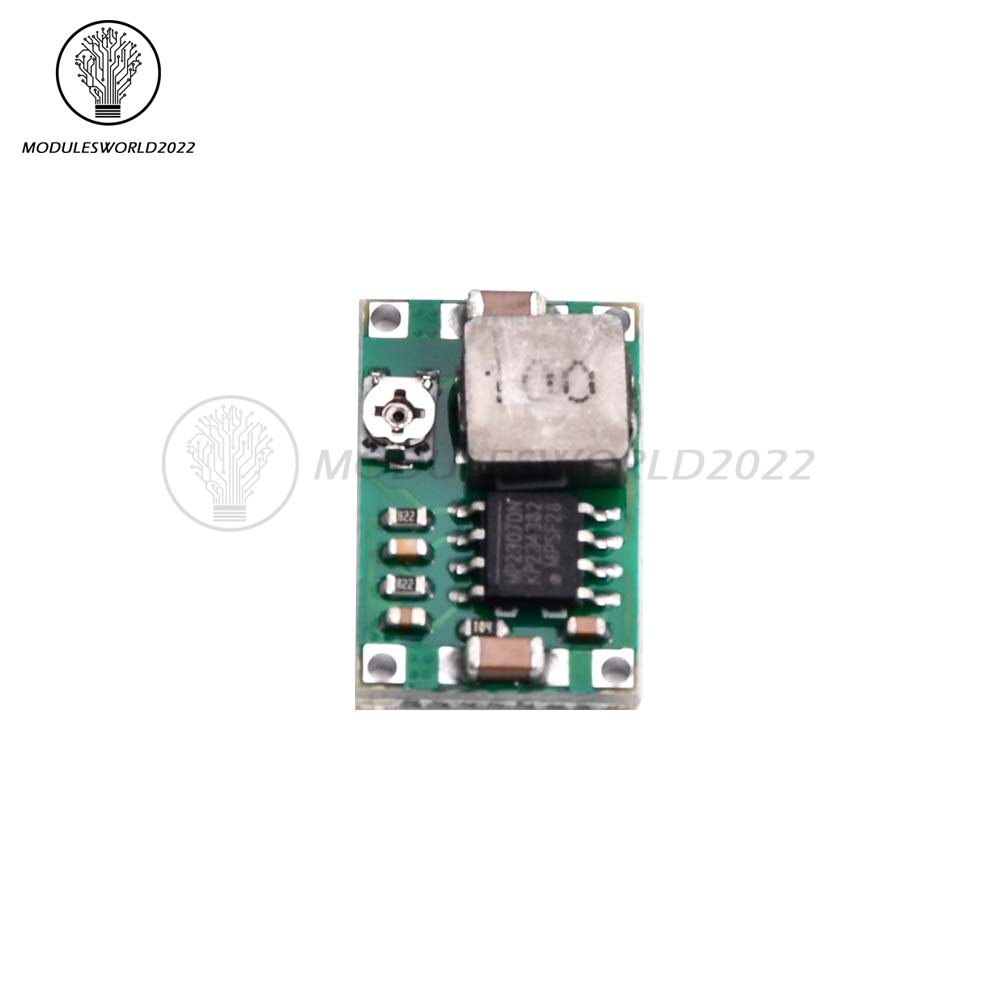

Mini 360 3.3V-5V
100% brand new and high quality.
Module Properties: Non-isolated step-down module (BUCK)
Rectification: Synchronous rectification
Input voltage: DC 4.75V-23V
Output voltage: DC 1.0V-17V (Adjustable, Output < Input)
Output current: Rated current 1.8A (3A MAX, can not be prolonged)
Output ripple:30mV(no-load)
Load regulation:±0.5%
Voltage regulation:±2.5%
Operating Temperature: Industrial (-40℃ ~ +85℃)
Short circuit protection: No(Please do not short-circuit)
Input Reverse protection: No(Can not be reversed)
Dimension: approx.17mm*11mm*3.8mm(L*W*H)/17*11*3.8
NOTE: This can't be used to step up Voltage. Output voltage is always smaller than input!
Package Included:
1PC*Mini DC-DC Step Down Converter Module Adjustable 3V 5V 16V

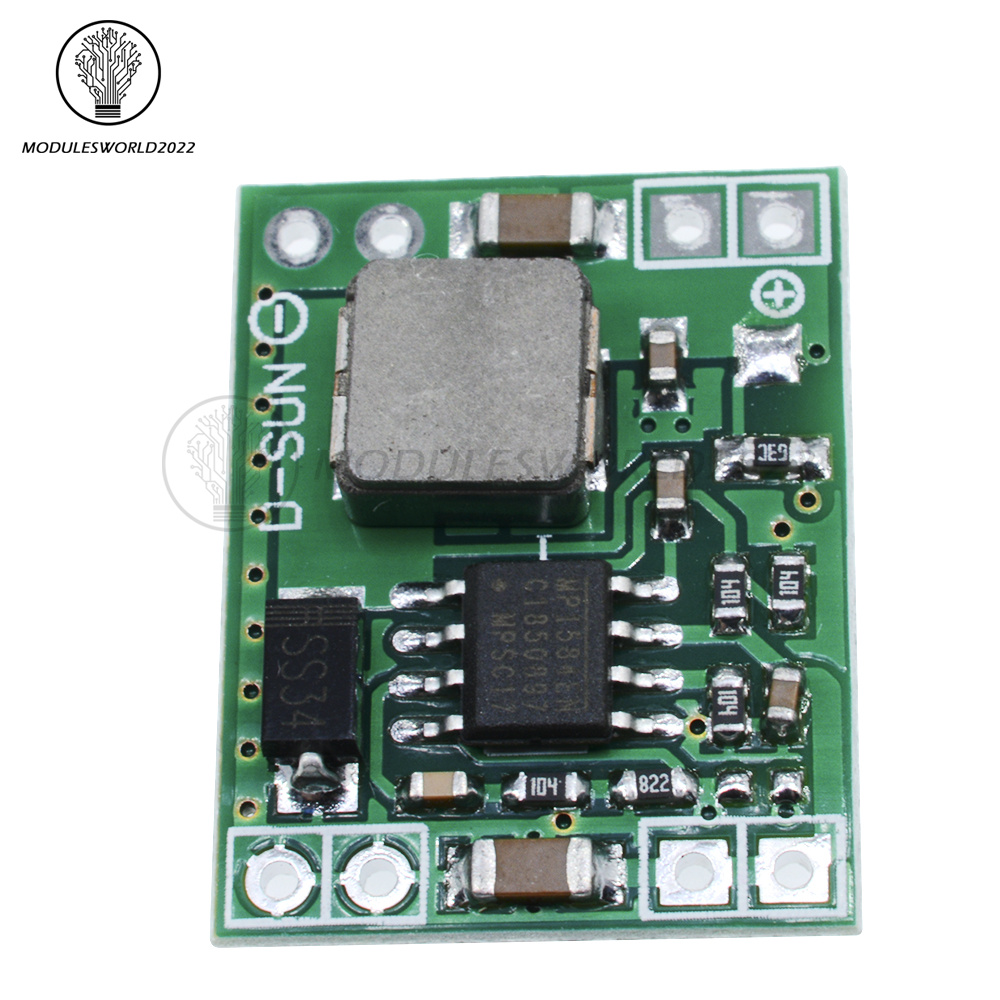

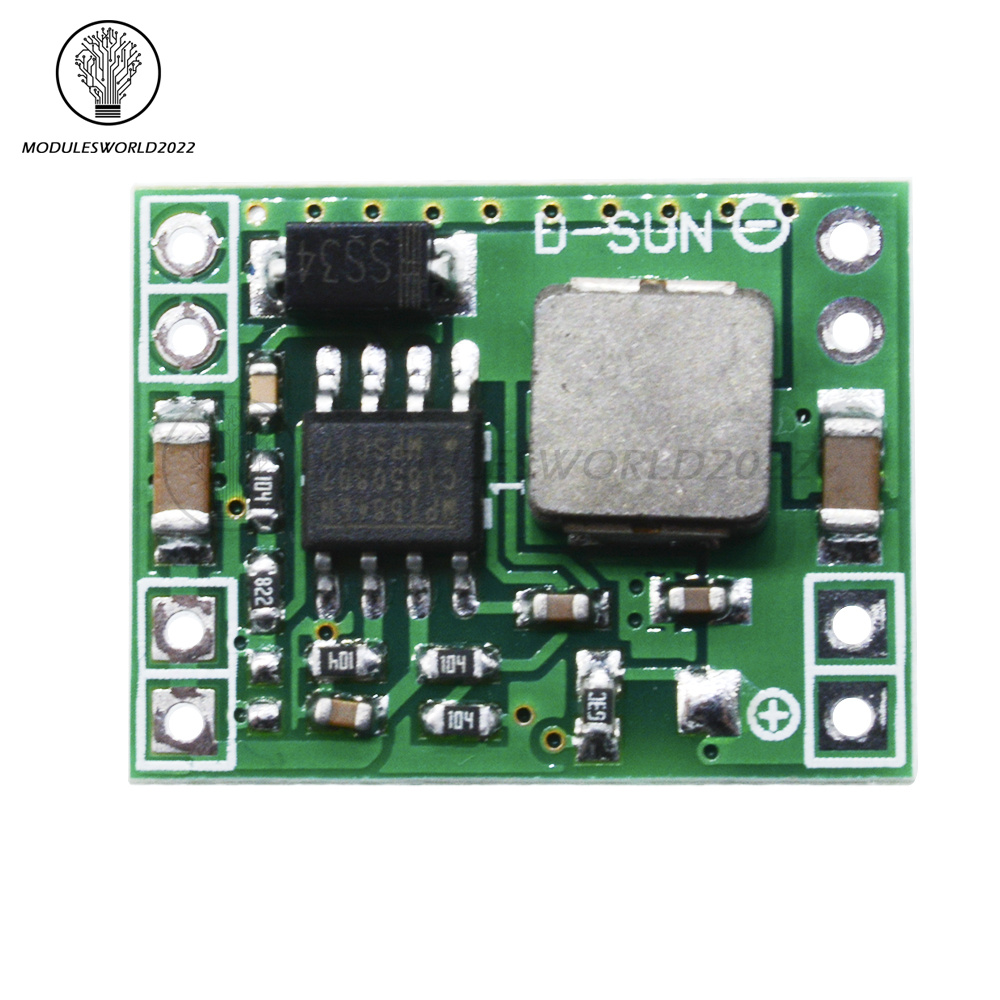

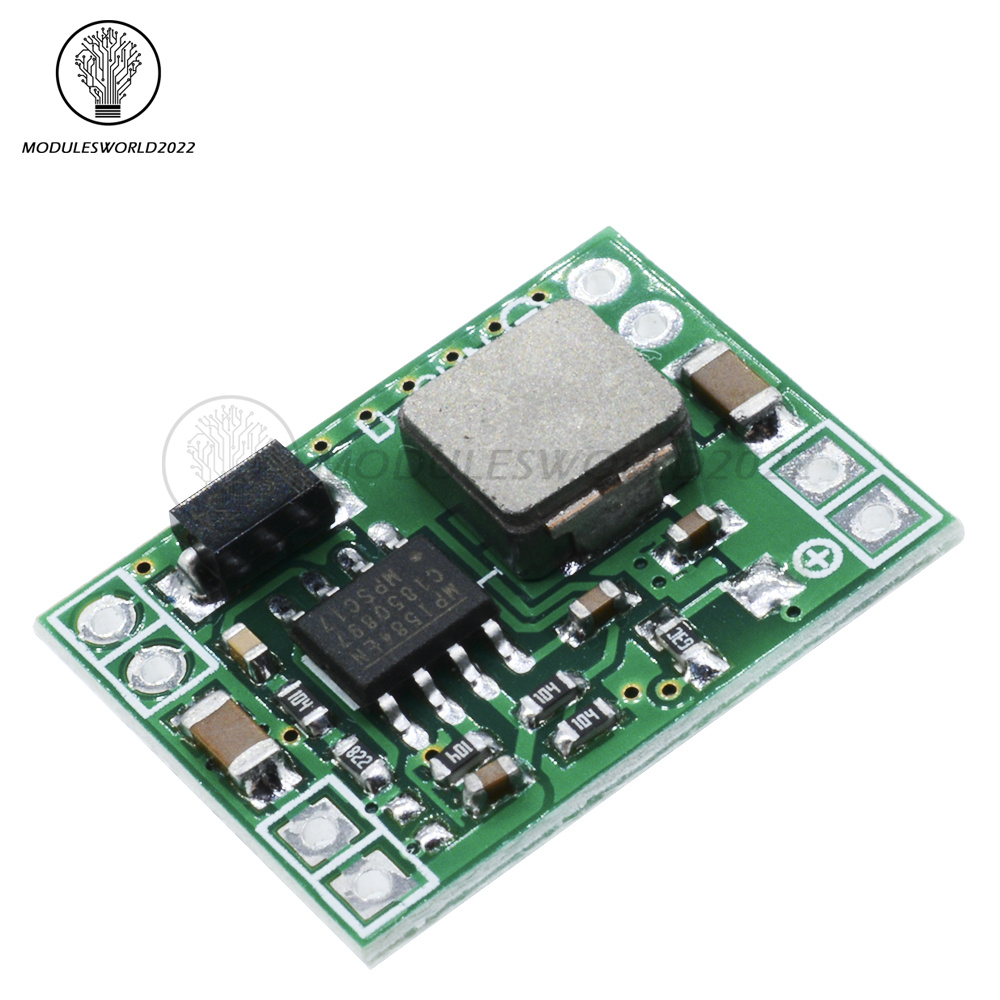

3.3V
1, the whole network volume of the smallest power module
2,1.7x2.2CM, less than a dollar coin
3, the application areas: DIY mobile power, monitoring power, children's car power, camera power, automotive power, communications equipment, power, a variety of weight and weight requirements of the occasion (such as aviation models).
4, the product attributes:
Model / Name：Ultra-small DC-DC buck modulea
Input voltage：7V ~ 28V
The output voltage：5V (accuracy 1%)
Output current：3A (maximum), long working current of about 1.5A
Conversion efficiency：96% (highest)
Output ripple：<30mV
Switching frequency：1.5MHz (highest), typical 1MHz
Operating temperature：-45 ° C to + 85 ° C
Size：22mm * 17mm * 4mm (L * W * H)
2,1.7x2.2CM, less than a dollar coin
3, the application areas: DIY mobile power, monitoring power, children's car power, camera power, automotive power, communications equipment, power, a variety of weight and weight requirements of the occasion (such as aviation models).
4, the product attributes:
Model / Name：Ultra-small DC-DC buck modulea
Input voltage：7V ~ 28V
The output voltage：5V (accuracy 1%)
Output current：3A (maximum), long working current of about 1.5A
Conversion efficiency：96% (highest)
Output ripple：<30mV
Switching frequency：1.5MHz (highest), typical 1MHz
Operating temperature：-45 ° C to + 85 ° C
Size：22mm * 17mm * 4mm (L * W * H)
Package Included:
1PC*Mini Step Down Power Supply Module DC-DC Converter Input 7V~28V Output 3.3V 3A
5V
1, the whole network volume of the smallest power module
2,1.7x2.2CM, less than a dollar coin
3, the application areas: DIY mobile power, monitoring power, children's car power, camera power, automotive power, communications equipment, power, a variety of weight and weight requirements of the occasion (such as aviation models).
4, the product attributes:
Model / Name：Ultra-small DC-DC buck module
Input voltage：7V ~ 28V
The output voltage：5V (accuracy 1%)
Output current：3A (maximum), long working current of about 1.5A
Conversion efficiency：96% (highest)
Output ripple：<30mV
Switching frequency：1.5MHz (highest), typical 1MHz
Operating temperature：-45 ° C to + 85 ° C
Size：22mm * 17mm * 4mm (L * W * H)
2,1.7x2.2CM, less than a dollar coin
3, the application areas: DIY mobile power, monitoring power, children's car power, camera power, automotive power, communications equipment, power, a variety of weight and weight requirements of the occasion (such as aviation models).
4, the product attributes:
Model / Name：Ultra-small DC-DC buck module
Input voltage：7V ~ 28V
The output voltage：5V (accuracy 1%)
Output current：3A (maximum), long working current of about 1.5A
Conversion efficiency：96% (highest)
Output ripple：<30mV
Switching frequency：1.5MHz (highest), typical 1MHz
Operating temperature：-45 ° C to + 85 ° C
Size：22mm * 17mm * 4mm (L * W * H)
Package Included:
1PC*Mini 3A DC-DC Converter Adjustable Step down Power Supply Module replace LM2596
