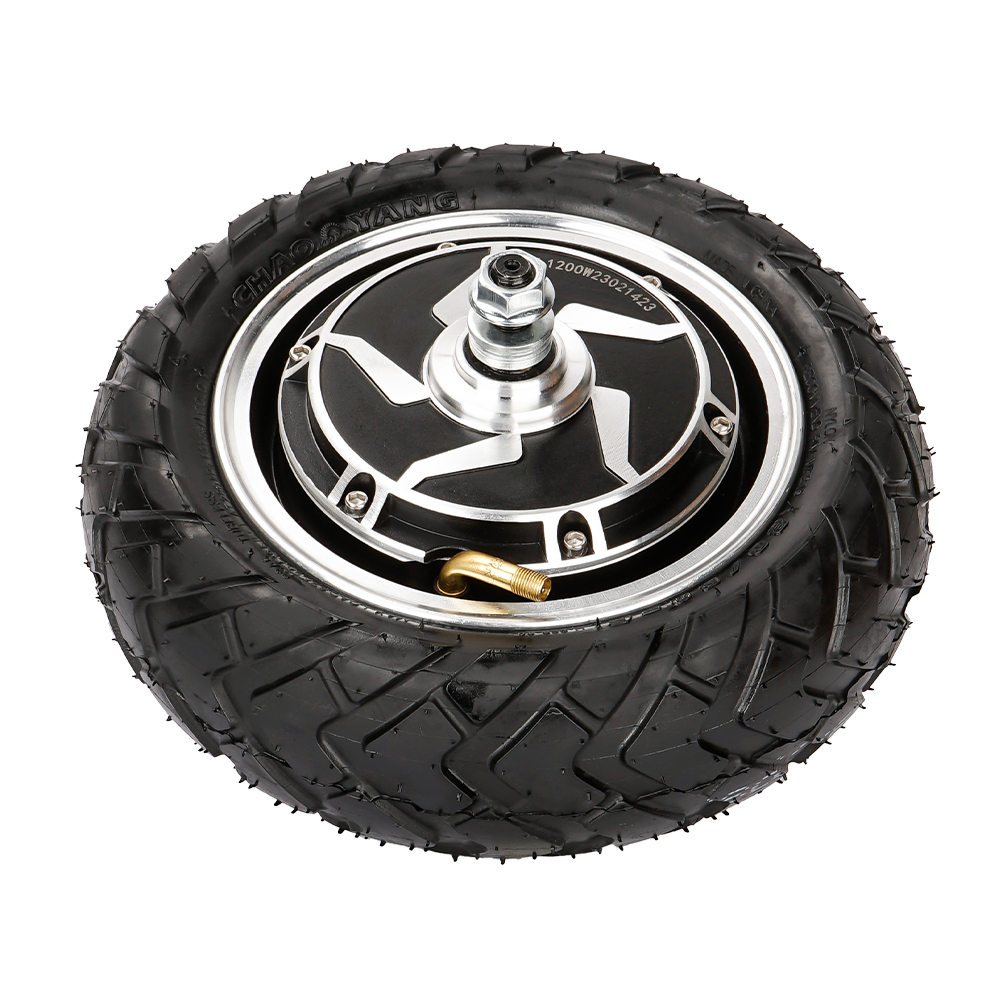

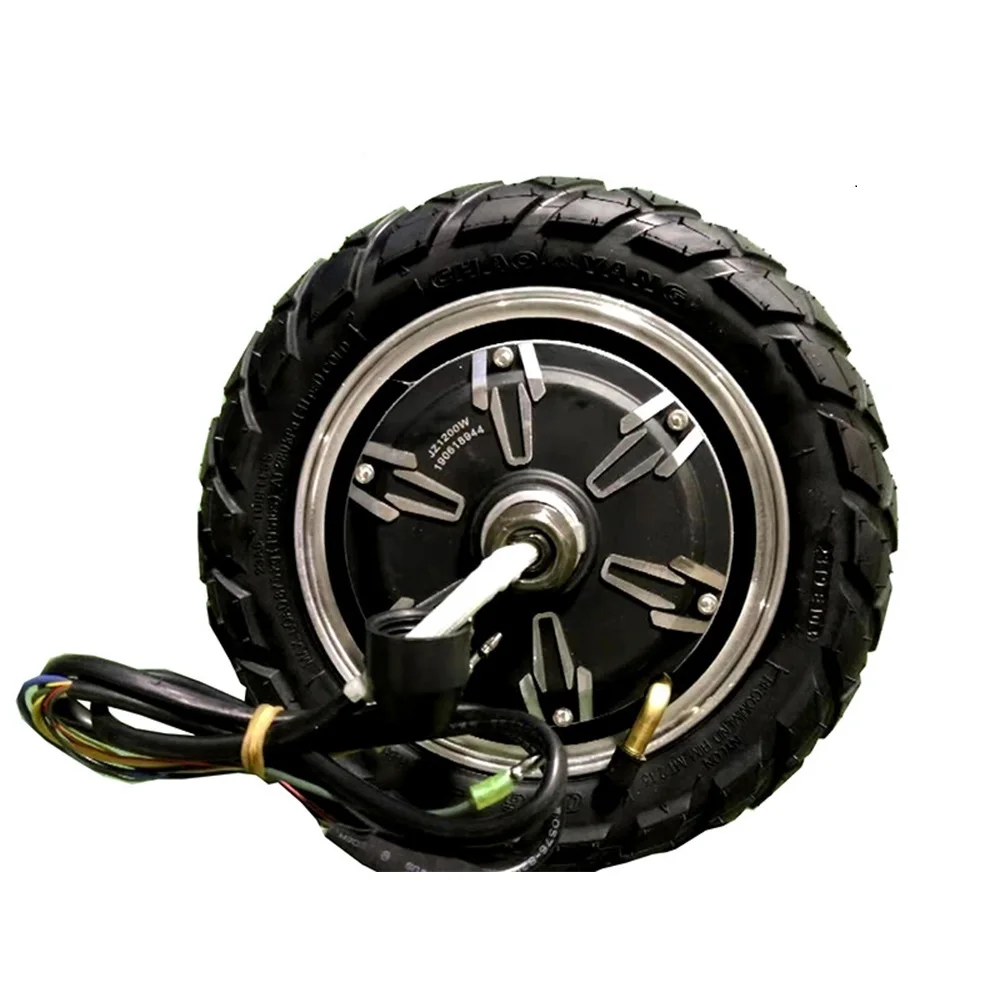

Rated voltage: 48V

Rated power: 1200W

Open size: 115mm

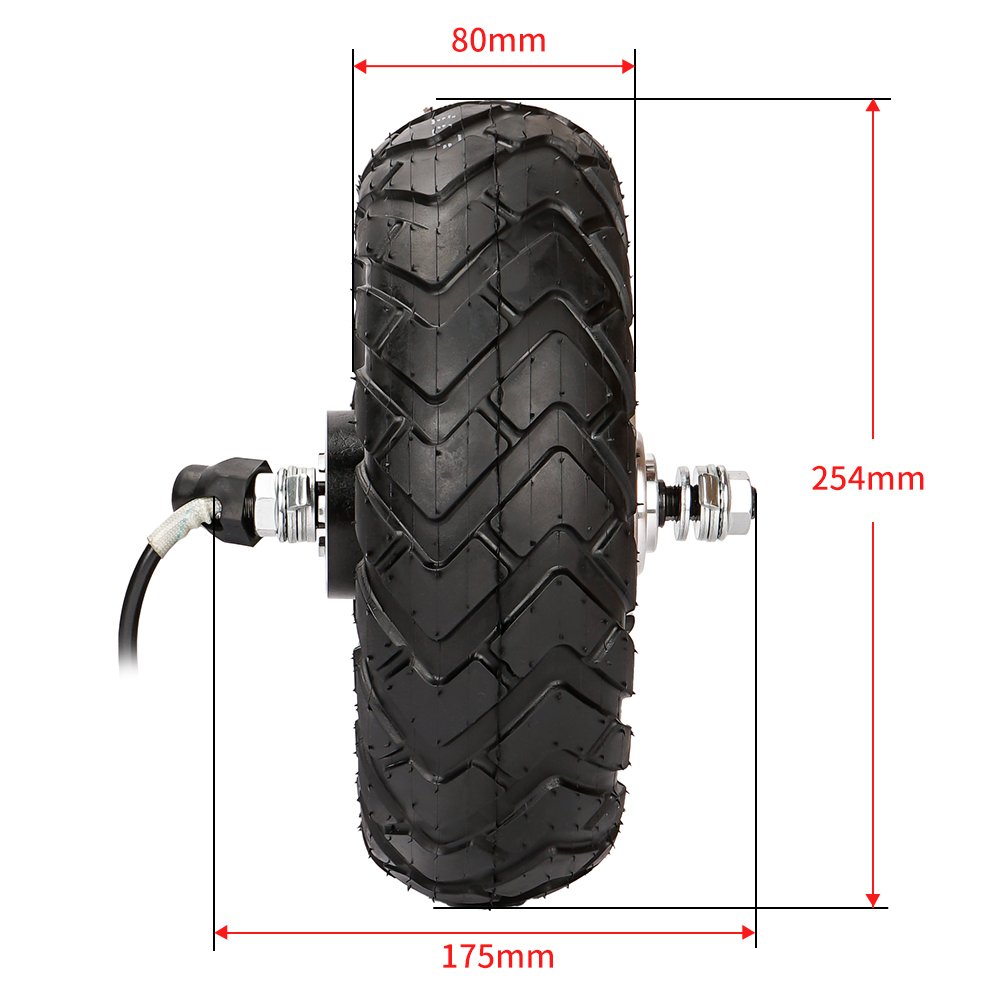

The diameter of motor ( with tyre )：254mm

Tyre width: 65mm

Max speed: 48V1200W: 60km/h

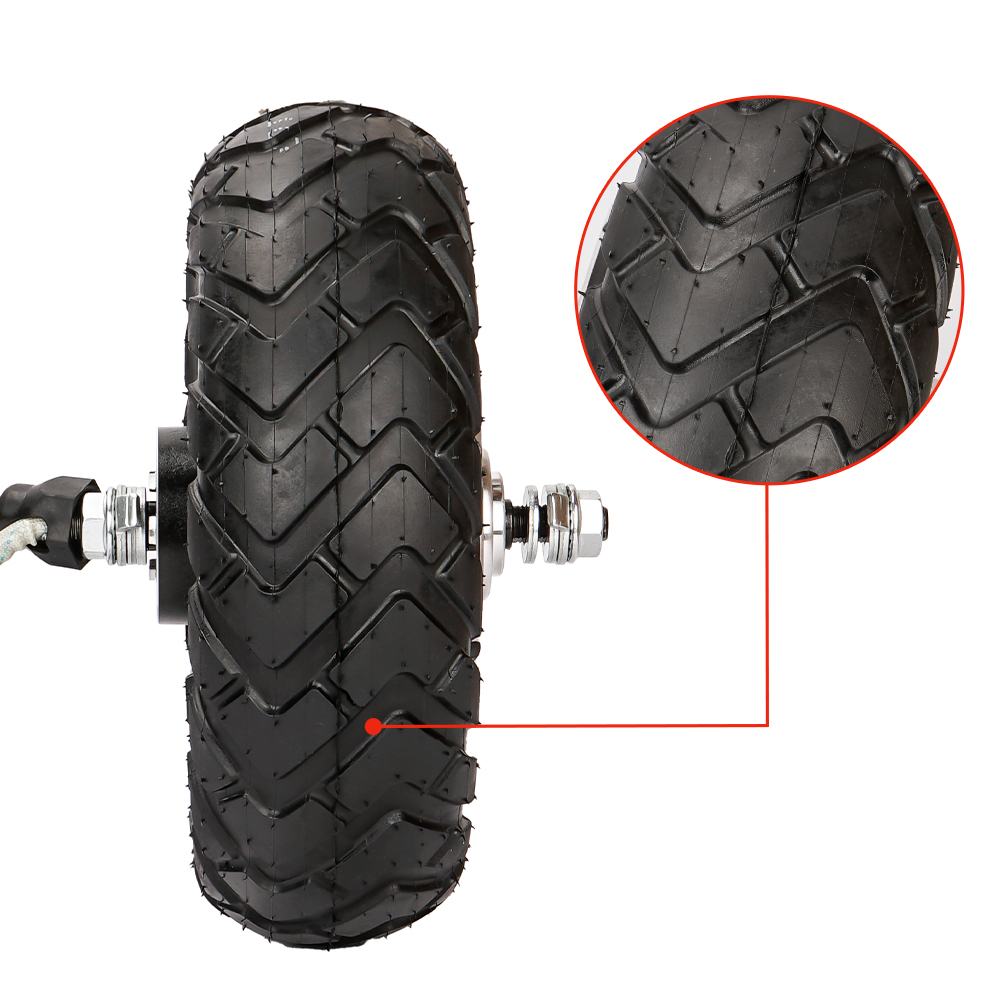

Suitable tyre model: Vacuum tyre 10x3.0-6

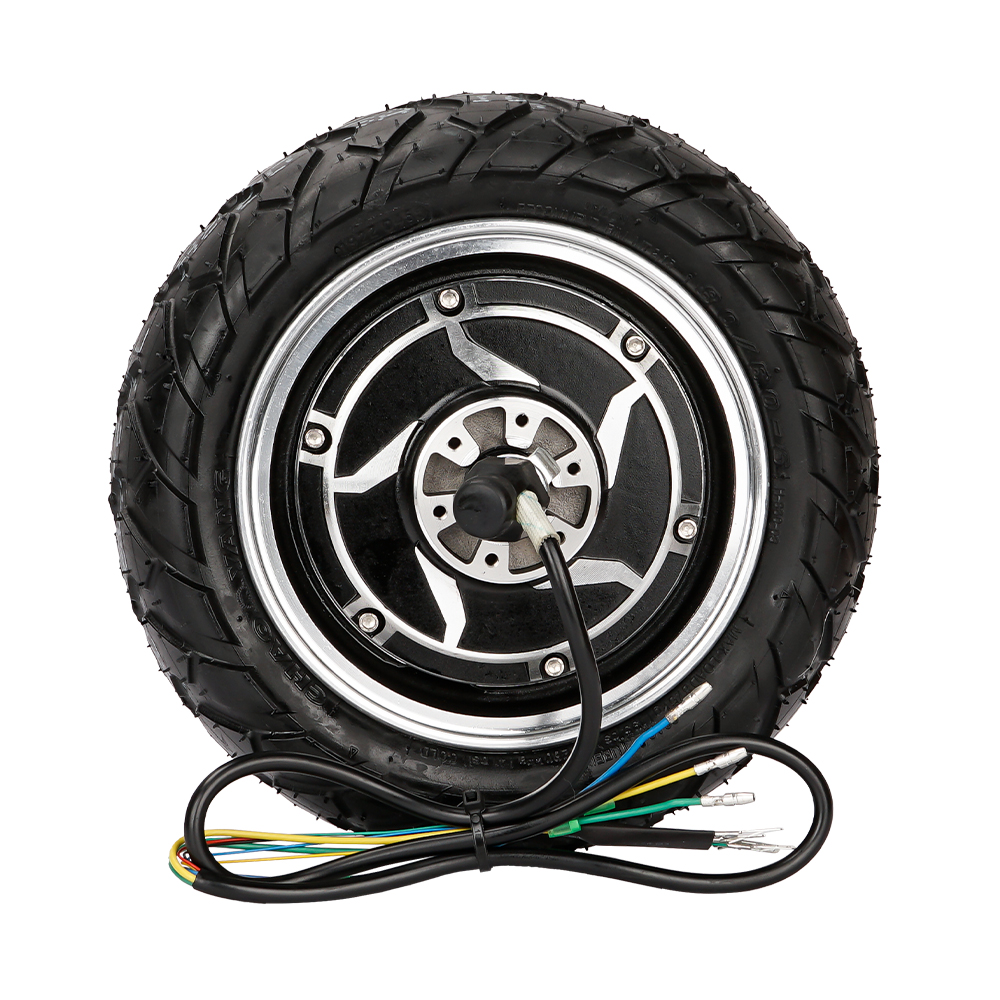

Motor model: Brushless gearless with hall lines motor

Magnet sheet: 30; Magnet height: 30

PACKING LIST：

If you choose：1* 10 inch hub motor+tyre
：1* 10 inch hub motor with vacuum tyre

1* 10 inch hub motor with vacuum tyre

1* matched controller 48V1000W 1500W

1* 48v LCD

1* Disc brake set

2* Brake lever







Controller size: 30*50*90mm

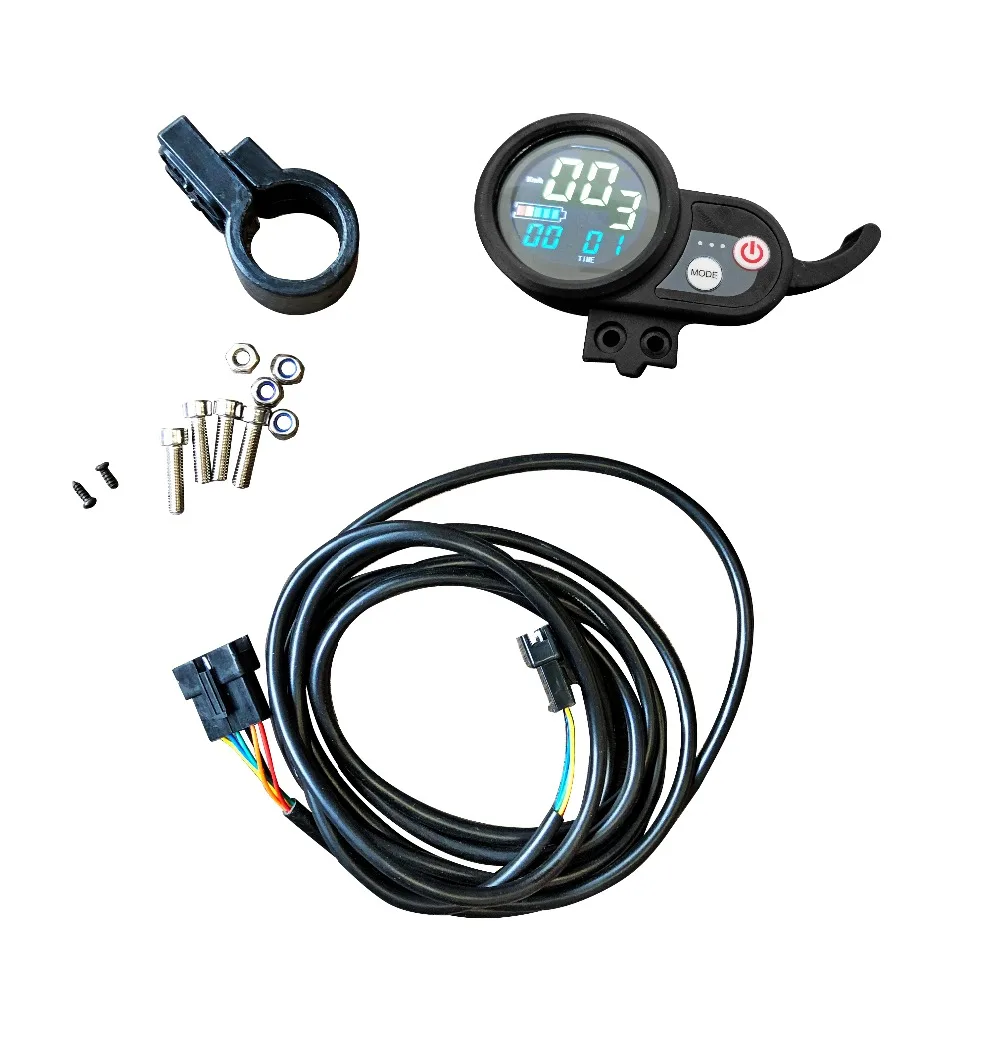

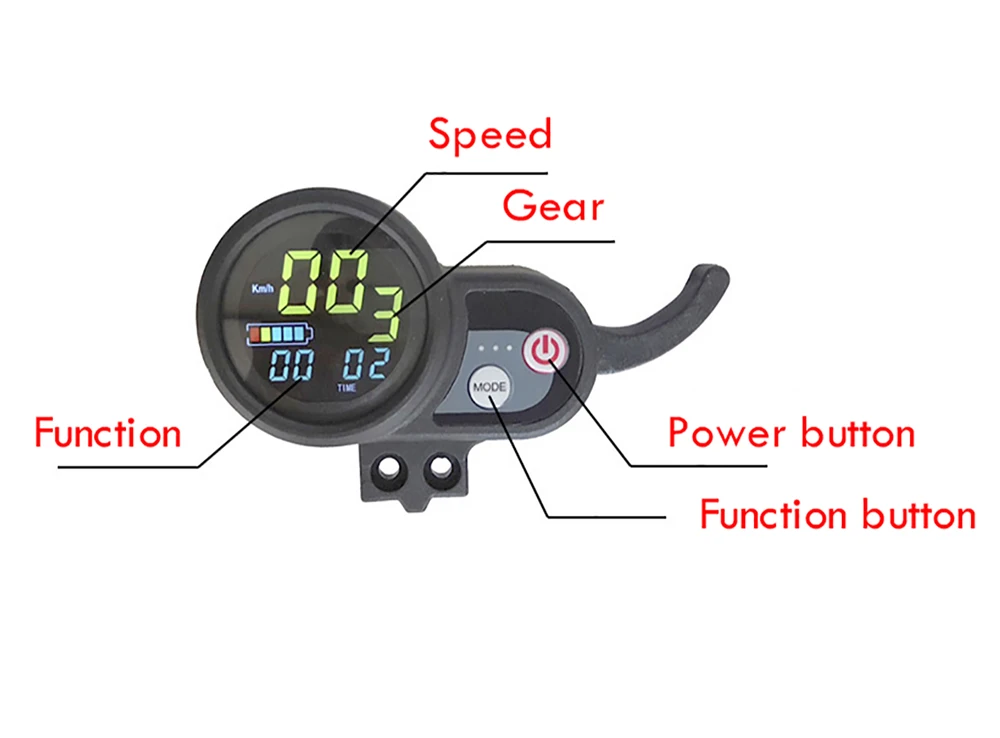

LCD display Features:

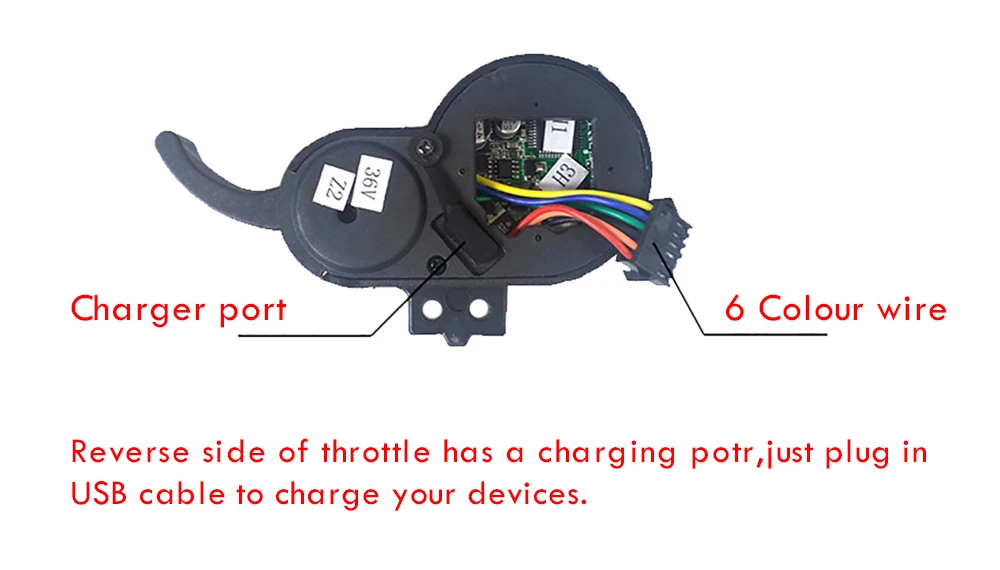

With USB  charger port

Two Bottons: Power botton and Fuction botton

Long press power botton: Open the power

Short press function botton: Shoe the TIME,TRIP,ODO,DST,VOL,CH2:00

In the TRIP, long press function botton: Single trip clear.

Short press Power botton, and press function botton: Change the gear position

How to setting the LCD display:

Press power botton and function botton together:

P0= wheel diameter setting

P1= Undervoltage setting

P2= Number of pole pairs settting

P3= Speed signal selection setting

P4= Kilometer/Mile selection setting

P5= Non-zero start/Zero start selection setting

P6= Cruise/No cruise selection setting

P7= Soft start/Hard start selection settting

The picture about the disc brake:
