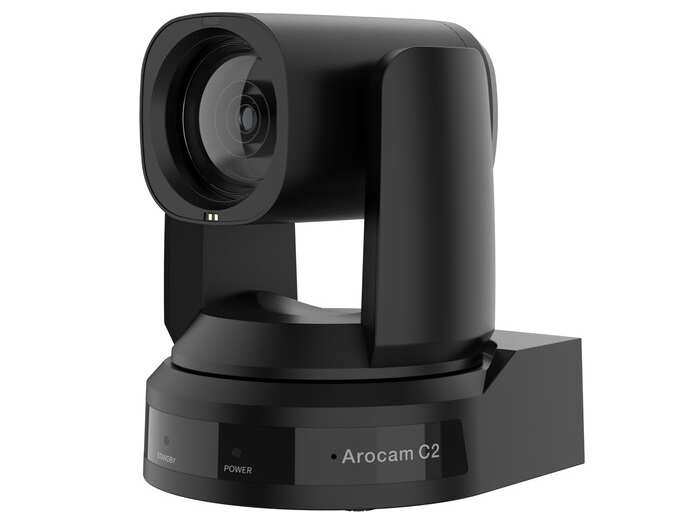

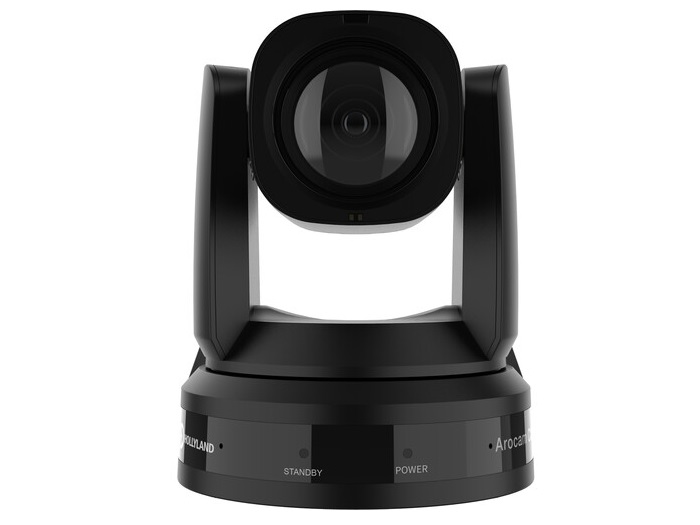

The Hollyland Arocam C2 is a compact and powerful PTZ camera, specially designed for live streaming, live commerce, live shopping, and video meeting. The cutting-edge auto instantaneous focus and its ranging function virtually eliminate distracting image blurring so your audience experiences a near-live view of the product or subject"s details. Featuring wide-angle rotations and fabulous image quality, its interfaces support simple settings and operations that are perfectly applicable to extended live production. Auto Instantaneous Focus Featuring a cutting-edge focusing algorithm and a 3D-ranging ToF module, the camera provides quick, accurate, and stable focusing. 72.5° Wide-Angle Lens and 12x Optical Zoom With its 72.5° wide-angle lens and 12x optical zoom, the camera is perfectly adaptable to panorama and close-up shooting applications. Portrait Mode for Mobile Live Streaming Besides the traditional landscape output, the C2 also offers a portrait mode that innovatively adapts to mainstream live streaming applications. Pro Color Mode & HD Image Quality The camera supports a 10-bit 4:2:2 professional color mode. This superior color sample rate helps realize a more robust original color rendition. A high-quality 1/2.8-inch HD CMOS sensor supports a maximum resolution of 1920x1080, providing a very pleasing visual experience. Noise reduction and backlight compensation enhancements also deliver professional image output. Pro Color Mode & HD Image Quality The camera supports a 10-bit 4:2:2 professional color mode. This superior color sample rate helps realize a more robust original color rendition. A high-quality 1/2.8-inch HD CMOS sensor supports a maximum resolution of 1920x1080, providing a very pleasing visual experience. Noise reduction and backlight compensation enhancements also deliver professional image output. Wide-Angle Rotation by RS232 Remote Control The horizontal panning range is 340° and the vertical tilting range is 120°. Remote control of the camera rotation is possible via its RS232 serial port. Rich Interfaces for Different User Requirements The C2 supports various interfaces, such as the USB interface, HDMI interface, and network interface, for wide compatibility. The USB interface supports the UVC and UAC protocols, the HDMI interface enriches the monitoring forms, and the network interface is used for camera settings. Features: - 2.07MP 1/2.8" CMOS Sensor
- ToF Autofocus Technology

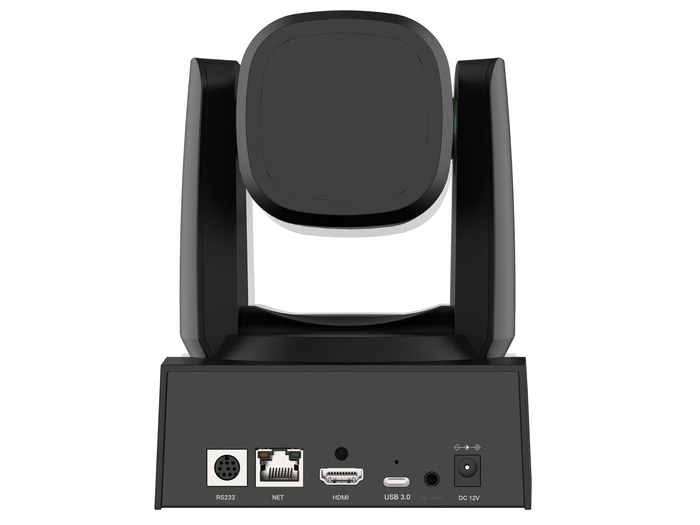

- HDMI Output, USB 3.0 Interface
- Up to 1080p at 60 fps Video
- 72.5° Wide-Angle Lens, 12x Optical Zoom
- 0.5 Minimum Illumination
- RS-232 for Remote Control
- RJ45 Ethernet Port
- 1 x 3.5mm Line Input
- Power via USB or DC Input
Specifications: | Camera | | Output Format | 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50 | | Sensor | 1/2.8 inch, CMOS, Max Effective Pixel: 2.07M | | Scanning Mode | Progressive | | Lens | 12x, f = 3.5mm–42.3mm, F1.8–F2.8 | | Minimum Illumination | 0.5 Lux at (F1.8, AGC ON) | | Shutter | 1/30s–1/10000s | | White Balance Mode | Auto, Indoor, Outdoor, One Push, Manual, VAR | | Backlight Compensation | Supported | | Digital Noise Reduction | 2D & 3D Digital Noise Reduction | | SNR | ≥55dB | | Horizontal Angle of View | 6.9°–72.5° | | Vertical Angle of View | 3.9°–44.8° | | Horizontal Rotation Range | 340° | | Vertical Rotation Range | 120° | | Panning Speed Range | 2.7°–35.7°/s | | Tilting Speed Range | 2.7°–31.5°/s | | H & V Flip | Supported | | Image Freeze | Supported | | Number of Presets | 255 | | Preset Accuracy | 0.1° | | USB Features | | OS | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android | | Color System/Compression | 1/2.8 inch, CMOS, Max Effective Pixel: 2.07M | | Scanning Mode | YUY2/MJPEG | | Output Video Format | ·YUY2: 1080P at 30fps (max.) ·MJPEG: 1080P at 30fps (max.) | | USB Audio Communication Protocol | UAC1.0 | | USB Video Communication Protocol | UVC 1.1 | | UVC PTZ | Supported | | Network Features | | Video Compression | H.264/ MJPEG | | Video Stream | First/Second Stream | | First Stream Resolution | 1920x1080, 1280x720 | | Second Stream Resolution | 1280x720, 640x360 | | Bit Rate for First Stream | 32Kbps–20480Kbps | | Bit Rate for Second Stream | 32Kbps–6144Kbps | | Bit Rate Control | CBR, VBR | | Frame Rate | 50Hz: 1fps–50fps, 60Hz: 1fps–60fps | | Audio Compression | AAC | | AAC | 96Kbps, 128Kbps, 256Kbps | | Network Protocols | TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, DHCP, Multicast, etc. | | Input/Out Interfaces | | Line Input Interface | 1 x Line Input: 3.5mm Line Input Interface | | Communication Interface | 1 x RS232 IN: 8pin Min DIN, Max Distance: 30m,Protocol: VISCA/Pelco-D/Pelco-P | | Network Interface | 1 x NET: 10M/100M Adaptive Ethernet Port | | USB Interface | 1 x USB 3.0: Type C | | HDMI Interface | 1 x HDMI: Version 1.4b | | Power Jack | DC (DC 12V)/USB Type-C (5V) | | Power, Temperature, Measures, and Weight | | Input Voltage | DC 12V/USB 5V | | Input Current | 12V 1.0A (max.)/5V 1.5A (max.) | | Operating Temperature | –10? to 40? | | Storage Temperature | –40? to 60? | | Power Consumption | 12W (max.) | | Dimension | 142.2x151.9x175.8mm (5.6"x6"x6.9") | | Net Weight | 1.5kg (52.9oz) | |
