Overview

ProGear Product Line

Demand perfection. Command with precision.

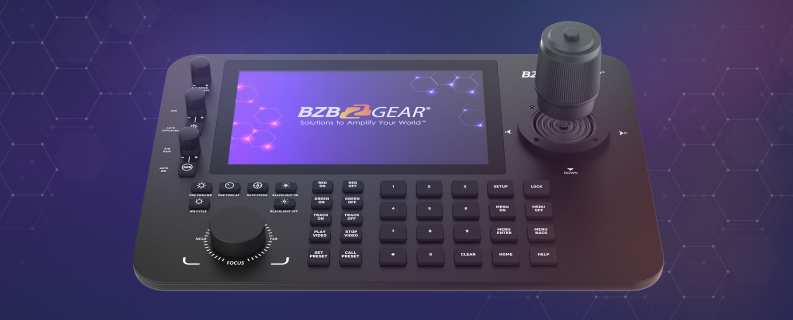

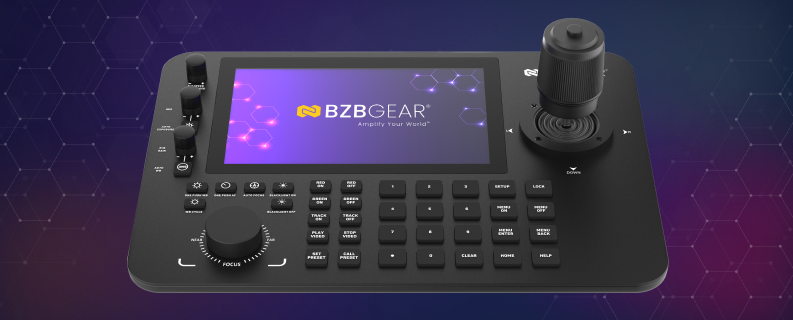

The BG-COMMANDER-PRO is a versatile PTZ camera joystick controller featuring a 7" touch screen, real-time video previews, and Android OS. It supports simultaneous viewing of 4 RTSP streams or a single full-screen image. With H.265/H.264 decoding, it offers efficient video processing.The BG-COMMANDER-PRO also facilitates HDMI projection and can output 4 additional RTSP streams to an external display for simplified monitoring. It provides seamless PTZ control for preset positions, focus, zoom, and exposure settings, and can even access a camera's web interface. Designed for BG-ADAMO cameras, the unit offers quick access to red/green tally lights control and auto tracking activation.
U.S.-Based Company
5-Year Warranty
ProGear Product Line

Features In-Depth

Highly Customizable and Easy to Manage


With HDMI projection and total PTZ control including presets, focus, zoom, and exposure, easily control your PTZ cameras for better broadcasting production. The Commander Pro is also customizable with single IP multi-channel acquisition and ONVIF protocol support, meaning you can add up to 2048 devices.

User-Friendly and Future Proof


The Commander Pro was designed to be user-friendly. It can be upgraded through a standard USB flash drive, utilize an external mouse/keyboard for easier interface control, and even record RTSP streams or take screenshots in the moment using the available Micro-SD expansion storage slot. It also features four RS422/RS485 and one RS-232 control port, making it ideal for large-scale video projects.

The Commander Pro’s unique capabilities such as support for a 2x2 video wall with up to 4 camera inputs, can be controlled via mouse and keyboard, all with Power over Ethernet (PoE) make for a clean, easy setup.

This device is versatile and ideal for installing multi-network PTZ camera systems in various settings such as medium-to-large-scale events, schools, hospitals, hotels, residential areas, factories, and workshops. Its capabilities can quickly achieve unified LAN ONVIF control for seamless monitoring and management of the entire camera network. The Commander Pro provides a simple UI for users to access professional-grade controls, management, and editing tools.
U.S.-Based Company
5-Year Warranty
ProGear Product Line
U.S.-Based Company
5-Year Warranty
ProGear Product Line
U.S.-Based Company
5-Year Warranty

Features

  • IP-Control
    Easily control any compatible IP camera
  • PoE Enabled
    Single cable installation
  • Simple to Use
    Logical layout allows anyone to take control with minimal training
  • 7� Touchscreen
    The large touchscreen makes video viewing and management simple
  • Multiple Control Modes
    RS232, RS422/485, ONVIF, IP VISCA, PELCO-P, PELCO-D, and NDI
  • HDMI Projection
    Transmit audio and video signals from the controller to a larger display device, such as a projector or a TV

Specification

Technical Specifications
Operating SystemAndroid
Screen Size7" capacitive touchscreen / resolution 1024x600
Video OutputHDMI 4K @ 30Hz
Video Output Connectors1x HDMI Type A, 19-pin, female
Decoding1. Supports H264/H265
2. Max supported H264 4x 1080p @ 30fps
3. Max supported H264 16x 720p @ 30fps
4. Max supported H265 1x 4K @ 60fps
ProtocolsIP VISCA, ONVIF, NDI, VISCA, Pelco-P, Pelco-D
PowerStandard 5.5/2.1 power interface, DC 12V2A±10%
Interface Ports1x RJ45 (Network)
1x RS232 (RJ45)
1x RS422/485 (RJ45)
1x HDMI output
1x USB 3.0
1x Micro-SD card slot
Mechanical Specifications
Power consumption<1.5W
Working Humidity10%-90%RH(no frost)
Working Temperature14°F ~ 122°F / -10°C ~ 50°C
Storage Temperature-40°F ~ 140°F / -40°C ~ 60°C
Package dimension14 x 9.6 x 6.1in [365 x 245 x 155mm]
Weight3.75 Lbs [1.7kg]

Awards

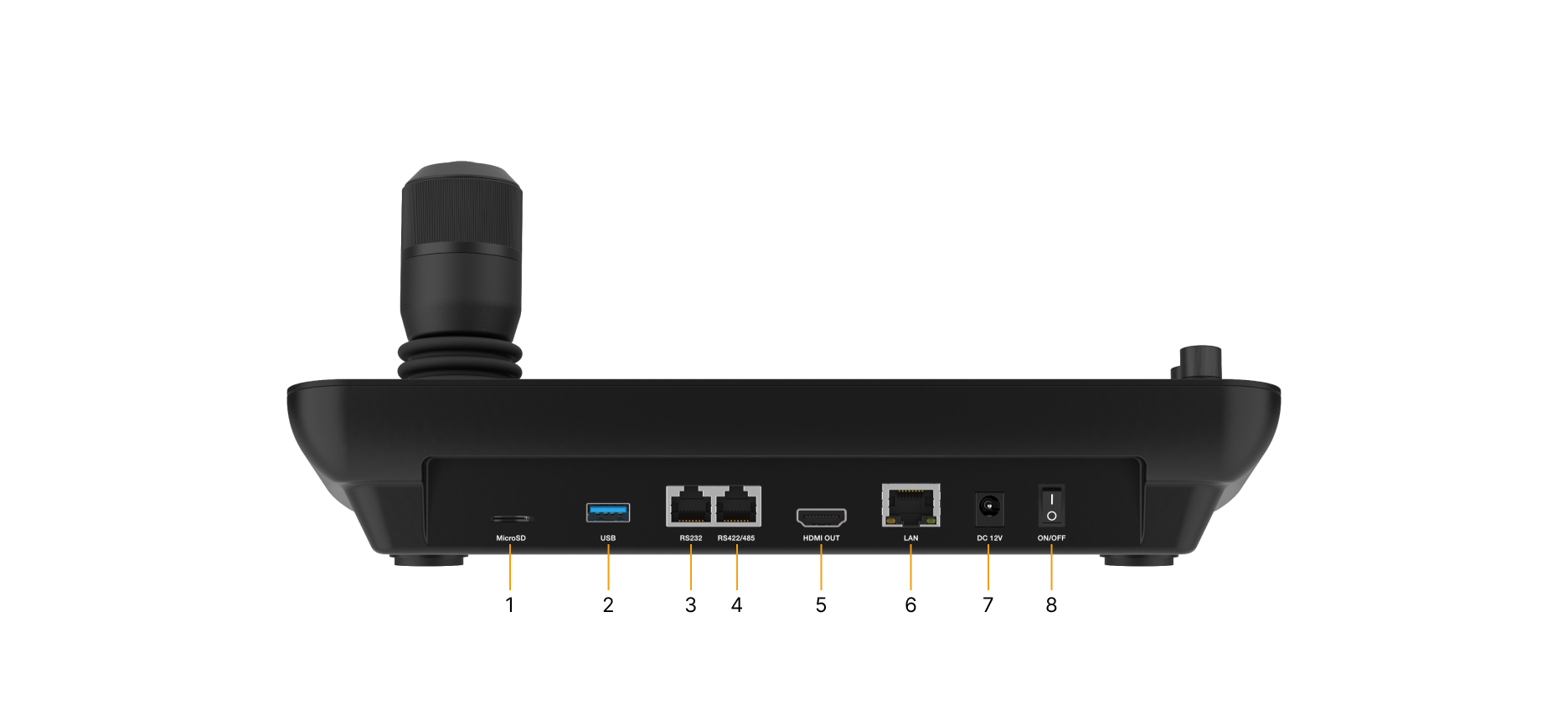

Interfaces

1. MicroSD:
Micro-SD card slot.
2. USB 3.0:
USB Type-A female.
3. RS232:
RJ45.
4. RS422/485:
RJ45.
5. HDMI OUT:
HDMI Type A, 19-pin, female.
6. ETHERNET:
RJ45 TCP/IP connection.
7. DC 12V:
12V 2A power supply port.
8. POWER:
Power toggle switch.

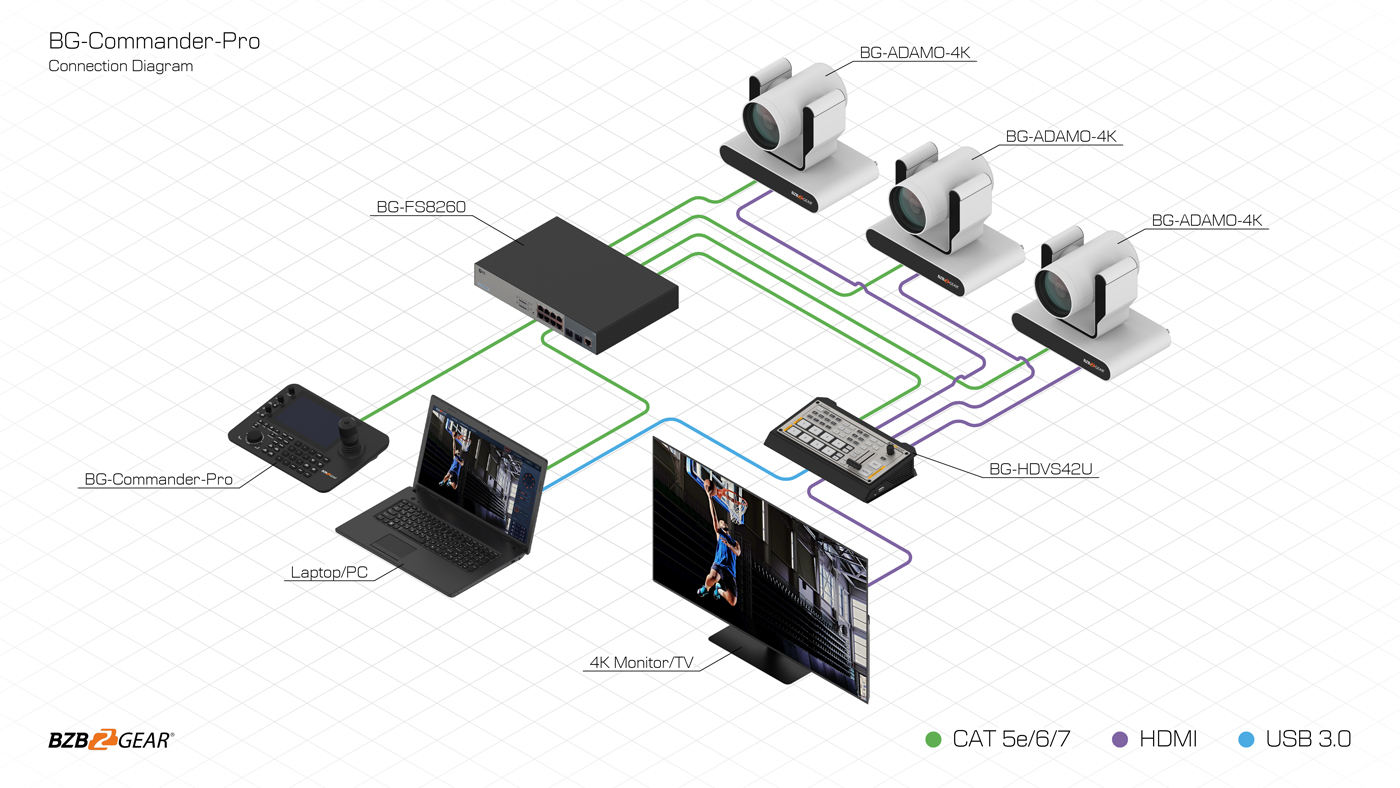

Connection Diagram

Package Contents

  • 1x BG-Commander-Pro
  • 1x Power Adapter (12V DC 2A)
  • 1x User Manual
