Upgrade or build your electric bike with a 16-inch gearless BLDC hub motor available in multiple front-drive and rear-drive configurations.

Choose from 48V 500W, 48V 800W, and up to 60V 1000W options, with both Motor Only and Complete Kit versions available.

Designed for custom E-bike and electric drive projects, with a 100mm front dropout or 135mm rear dropout depending on the selected motor.

Please check your voltage, installation position, dropout width and package option carefully before ordering.

Description :

 Name



Magnetic

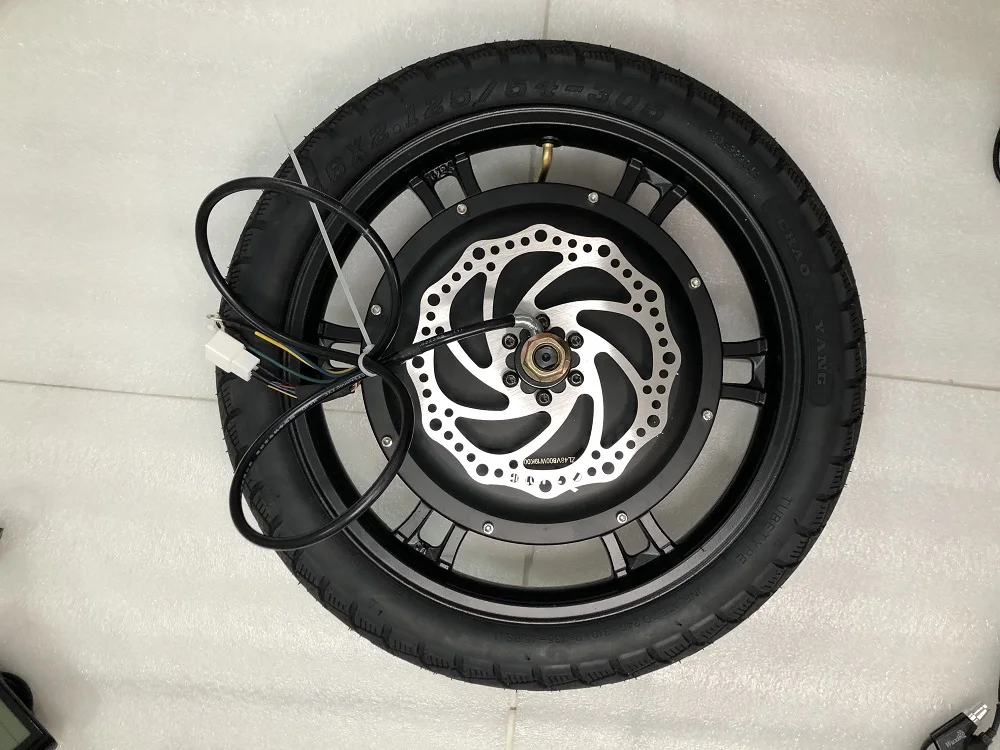

16” BLDC gearless hub motor



23

Drive model

Front Drive

Rear Drive

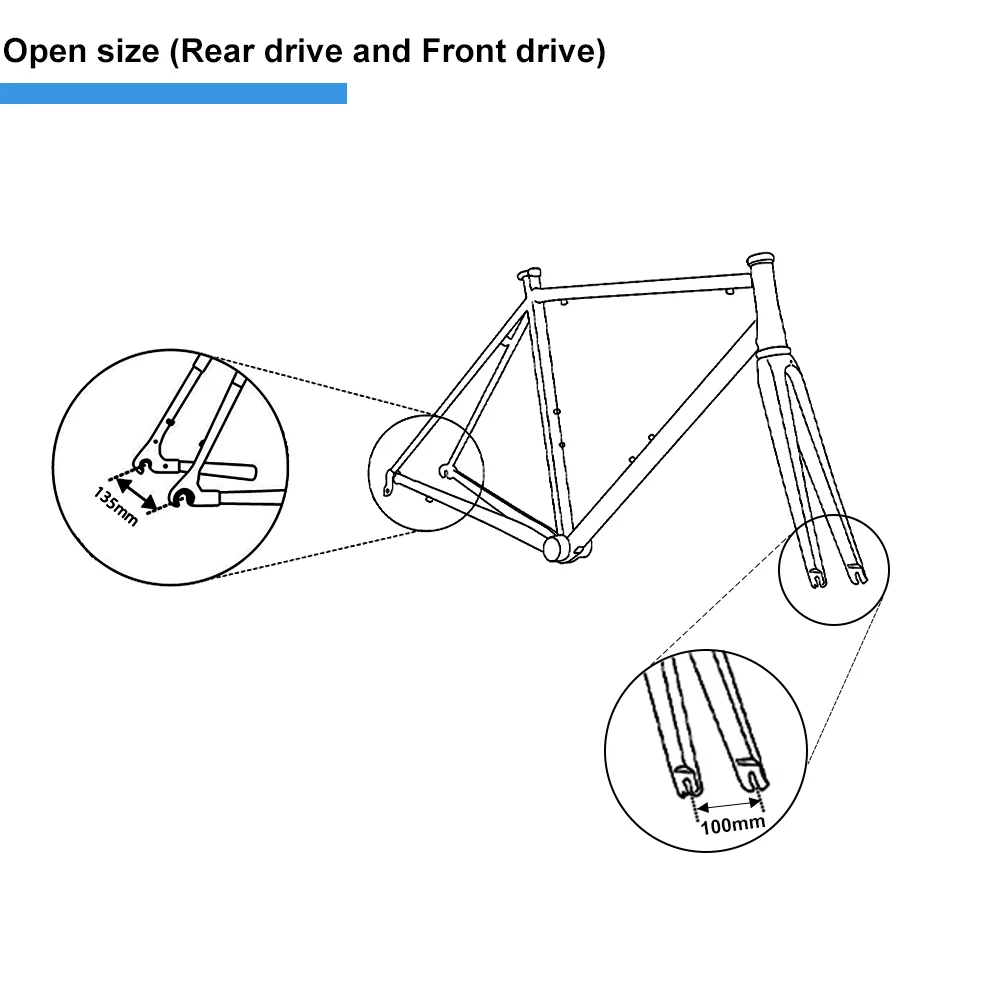

Open Size

100mm for front drive

135mm for rear drive

Shaft diameter

14mm

Rated voltage/ power/speed

48v 500w

42km/h (GPS speed)

48v 800w

50km/h

60v 1000w

55km/h

Tyre model

16*2.5

16*3.0

Brake Design

Disc brake

Brake choice

6 screw standard bike disc brake

Wire location

left

Low power design

48v 350w (kindly please ask service center)

PACKING LIST：

1* 16 inch Hub Motor

If you choose the Kit, the packing list:

1* 16 inch Hub Motor

1* matched Controller

1* SW900 LCD display

1* Thumb Throttle

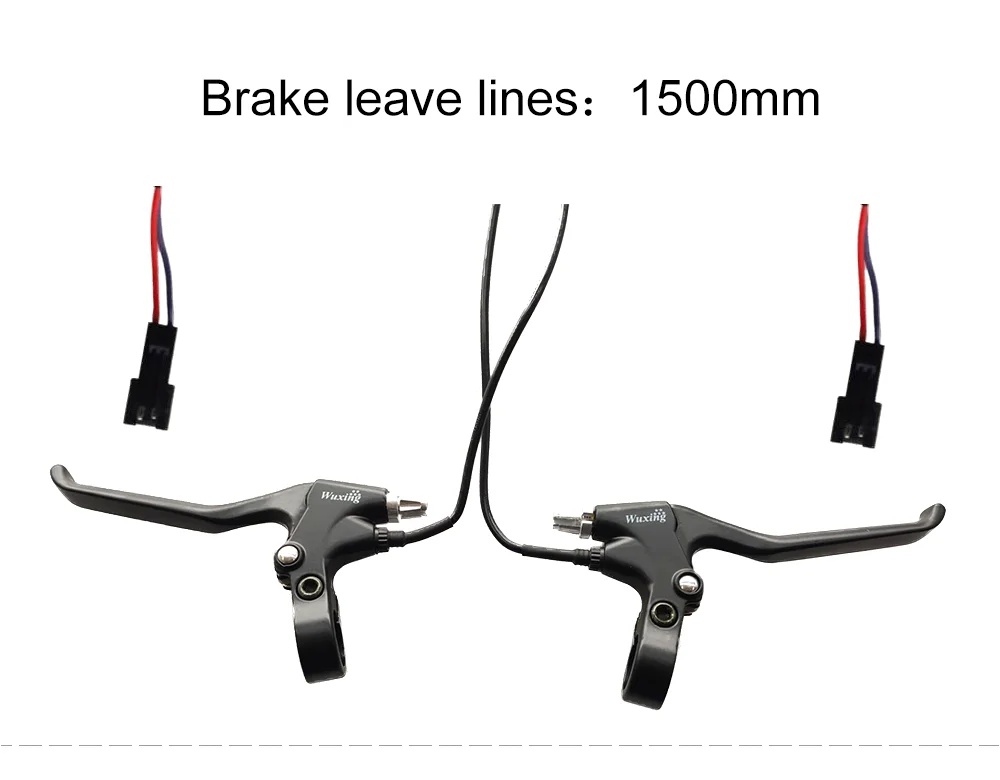

A pair of Brake Lever (all black color)

1 set Disc Brake

1* 7 speed Freewheel (Note: the front drive motor kit is can not the freewheel, the rear drive kit can use it.)



Note：Manufacturer product update, the latest motor cable is orange

PACKAGE NOTICE
Please check your selected variation carefully before checkout.
Motor Only
Does NOT include controller, display, throttle or brake accessories.
Complete Kit
Includes the matched electrical accessories listed above.
Package contents vary depending on the selected Front / Rear and Motor Only / Kit option.

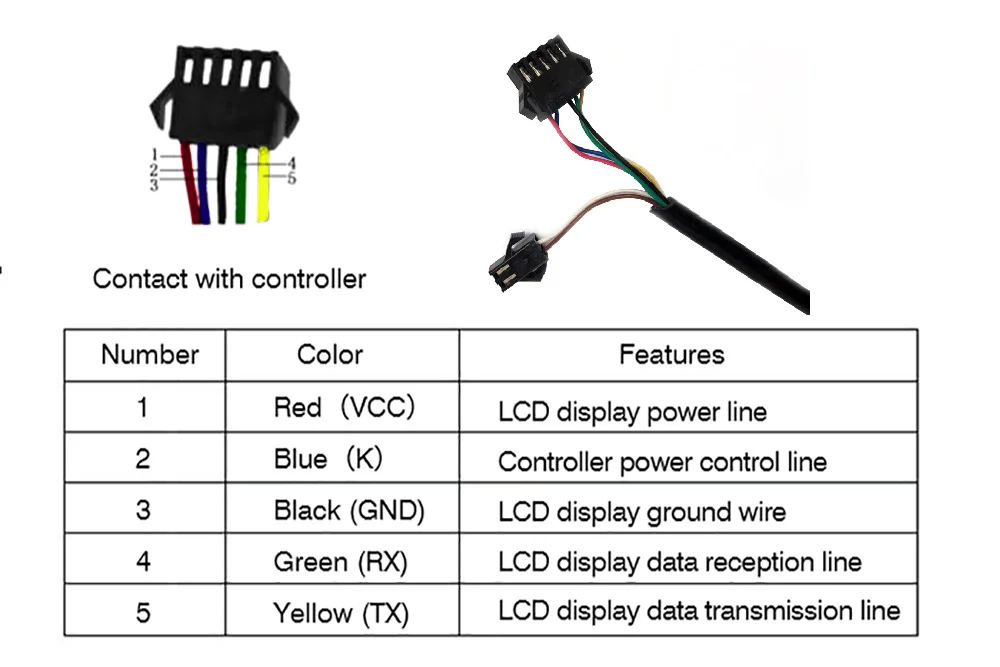

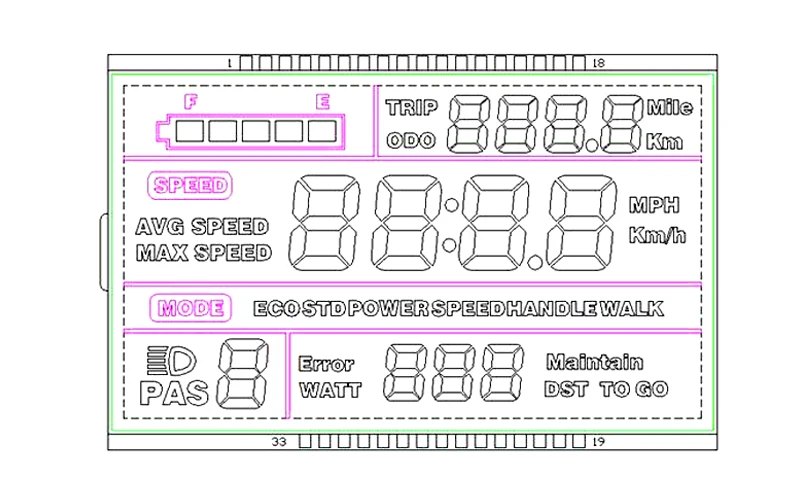

SW900 LCD display shows：

sw900 LCD display setting:

P01: backlight brightness, level 1 is the darkest, level 3 is the brightest;

P02: mileage unit, 0: KM; 1: MILE;

P03: Voltage level: 24V, 36V, 48V, default 36V;

P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minutes;

P05: Power-assisted gear: 0, 3 gear mode: 1 gear 2V, 2 gear, 3V, 3 gear, 4V;

                                          1, 5 gear mode: 1 gear 2V, 2 gear, 2.5V, 3 gear, 3V,
                                           4 files, 3.5V, 5 files, 4V;

P06: Wheel diameter: unit, inch; accuracy: 0.1;

P07: Number of speed magnets: Range: 1-100;

P08: Speed limit: range 0-50km/h, 50 means unlimited speed,

P09: zero start, non-zero start setting, 0: zero start; 1: non-zero start;

P10: Drive mode setting 0 : Power drive (the booster position determines how much power is output, and the switch is invalid).

P11: Boost sensitivity setting Range: 1-24;

P12: Boost start strength setting Range: 0-5;

P13: Power magnetic steel disc type setting 5,8,12 magnetic steel three types

P14: Controller current limit value setting Default 12A Range: 1-20A

P15: The function has not been opened yet.

P16: ODO clear setting Long press the up button for 5 seconds ODO clear

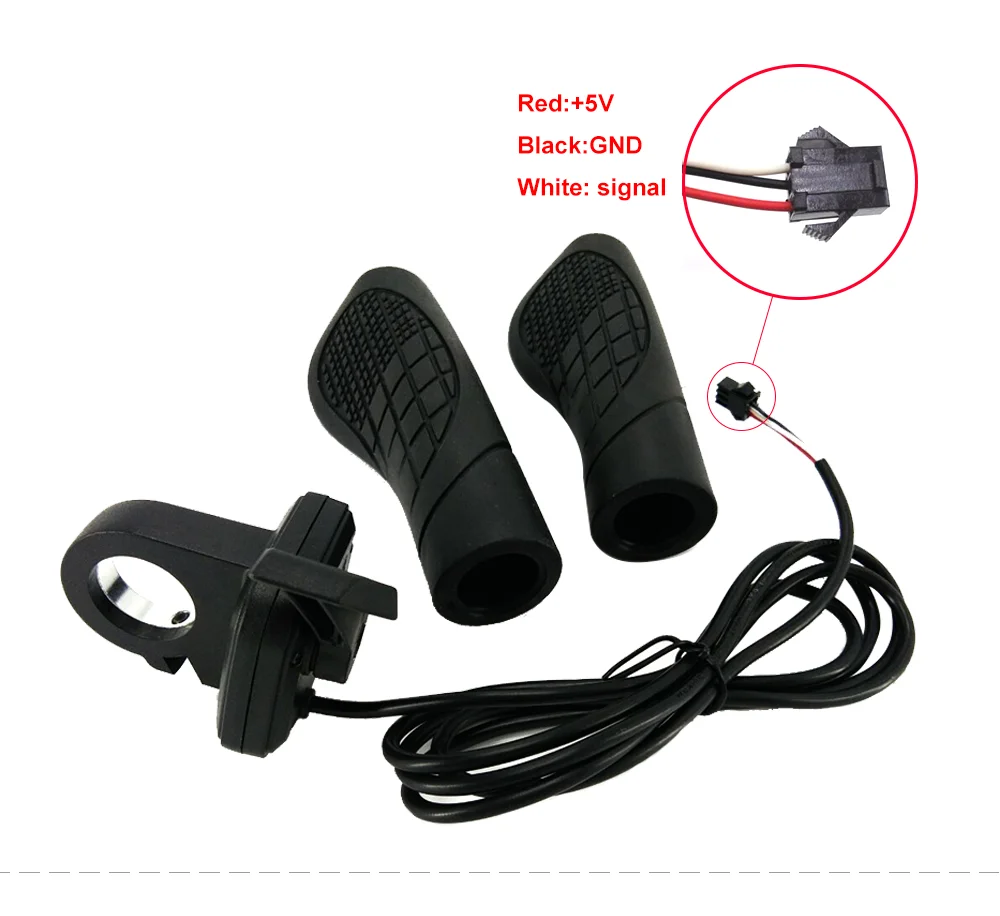

Left thumb throttle (If you need other type throttle, feel free connect me.)



Throttle lines: 1500mm

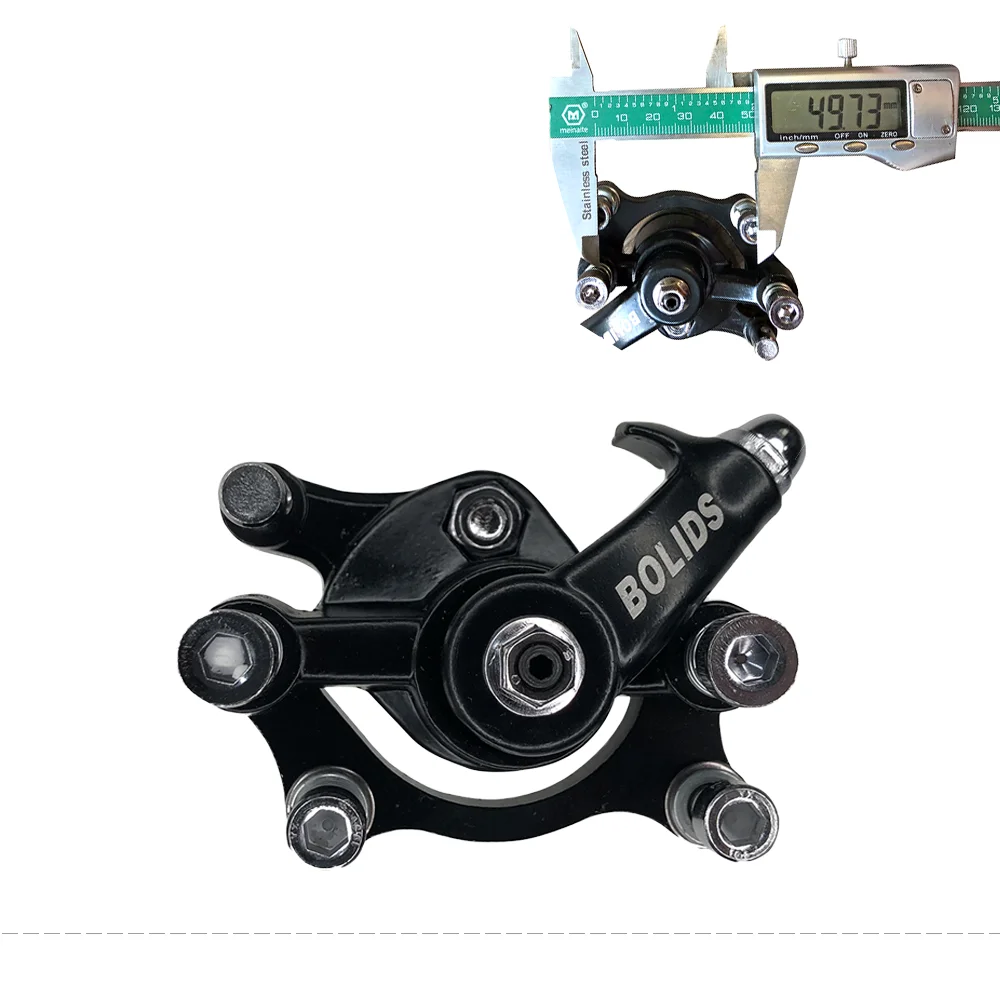

Suitable for the disc brake: 140mm with 6 holes

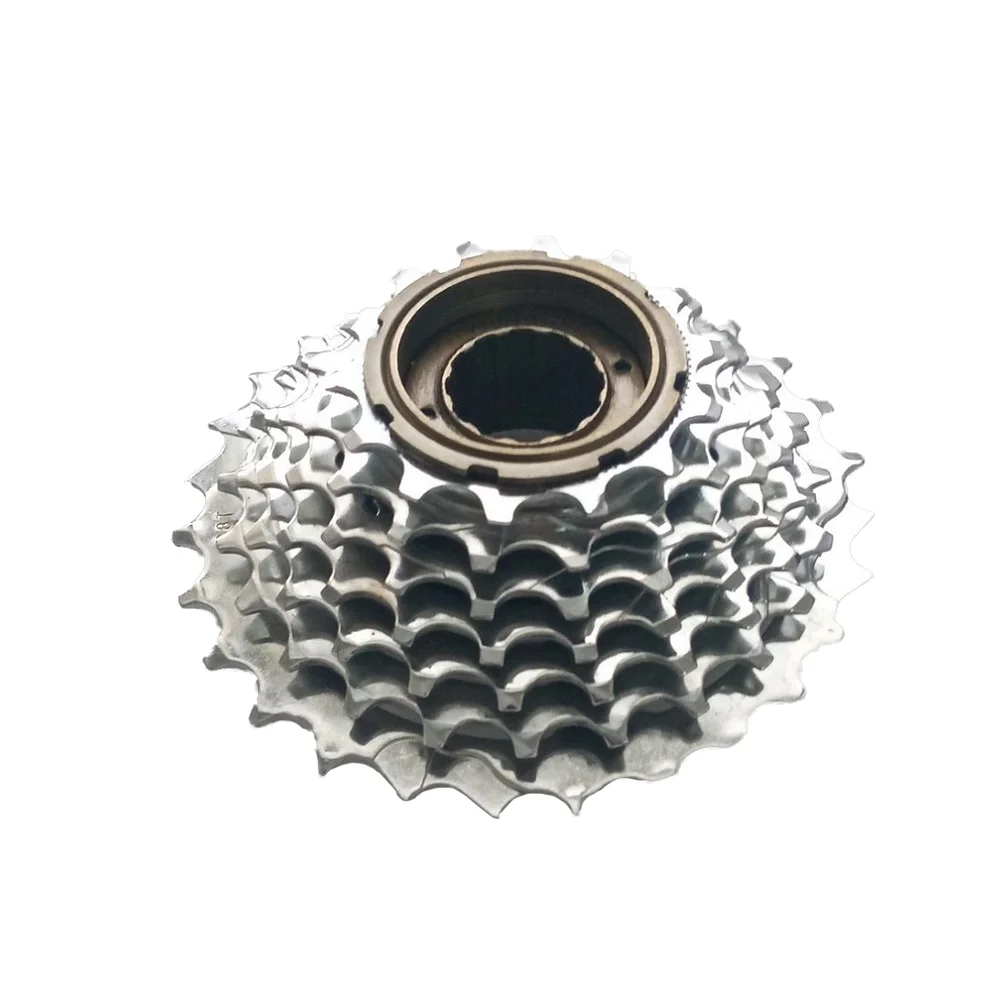

The 7 speed freewheel(Only can use for rear drive motor)

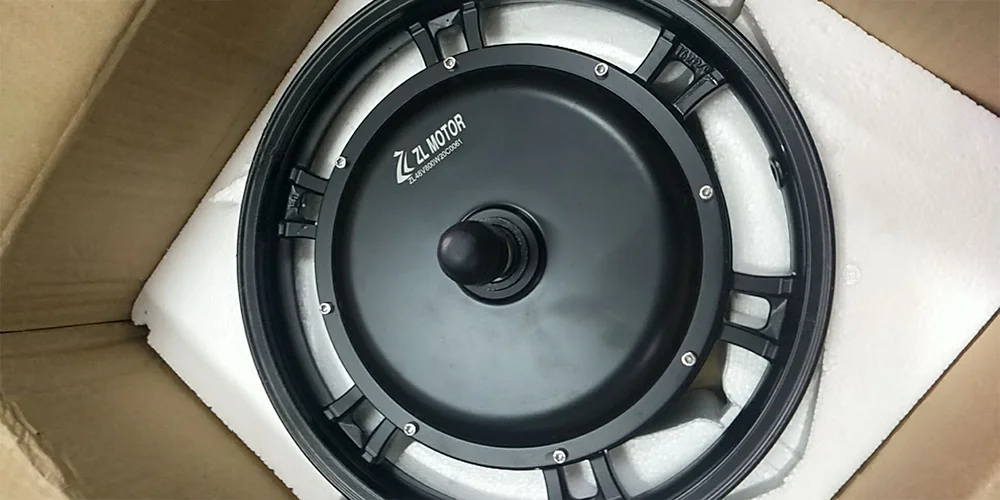

PACKING :
