Description :

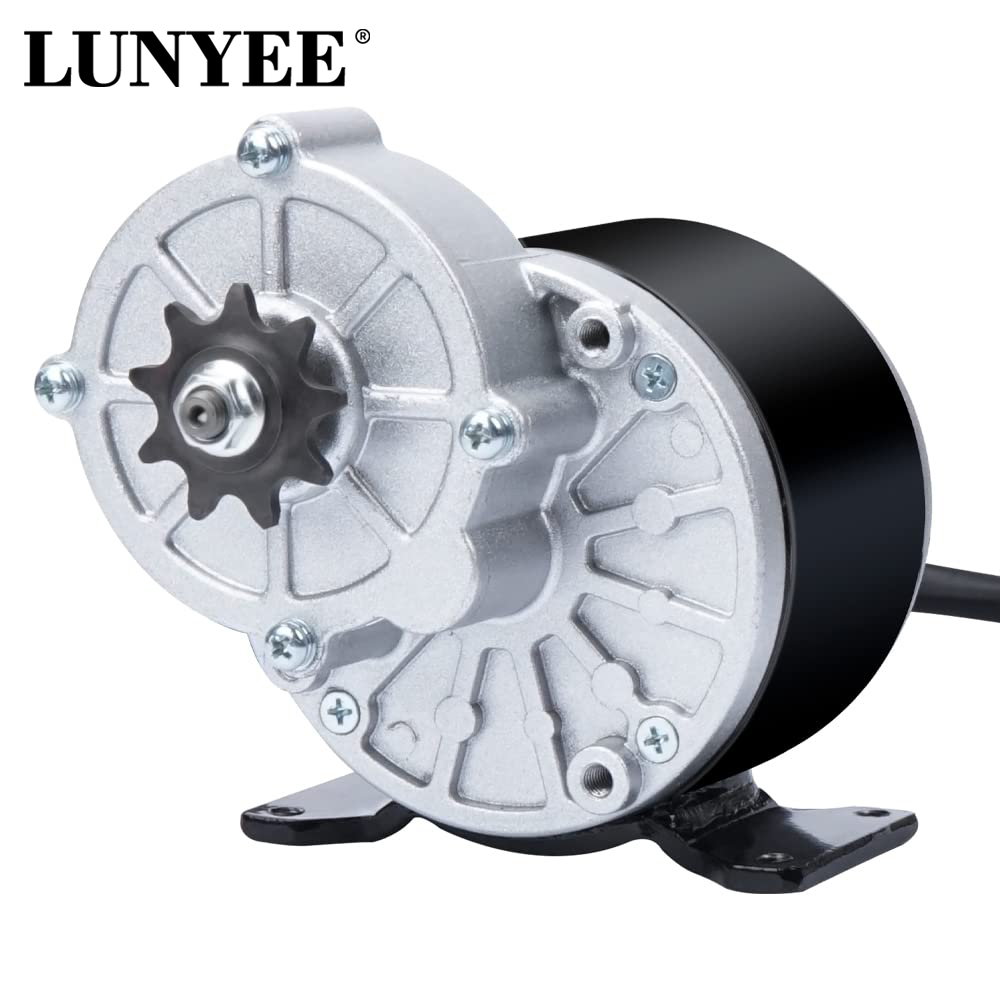

Model: MY1016Z wheelchair motor

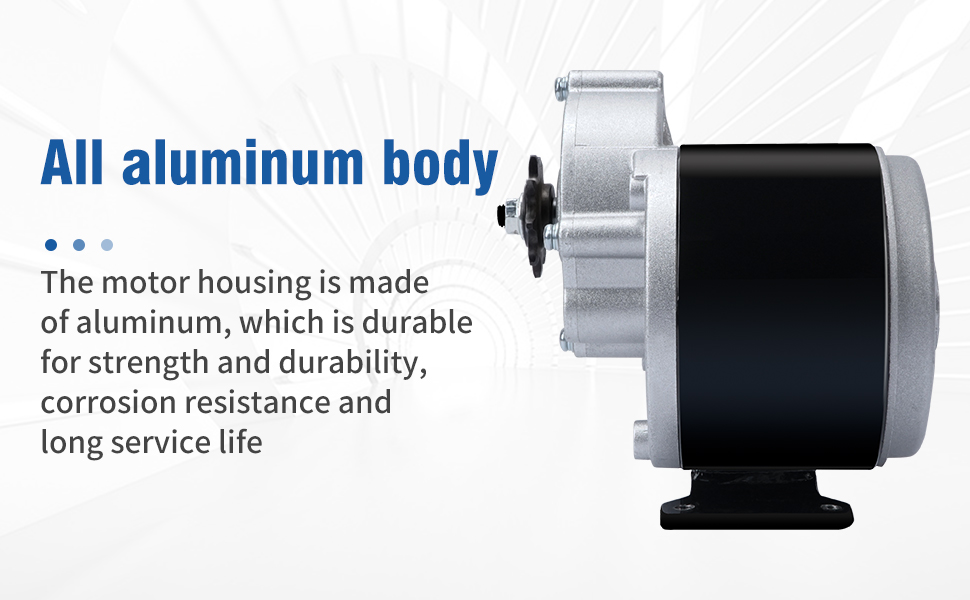

High-quality materials - electric permanent magnet DC brush geared motor, aluminum body, full copper coil, heat resistance, natural air cooling, low noise, high quality, longer service life.

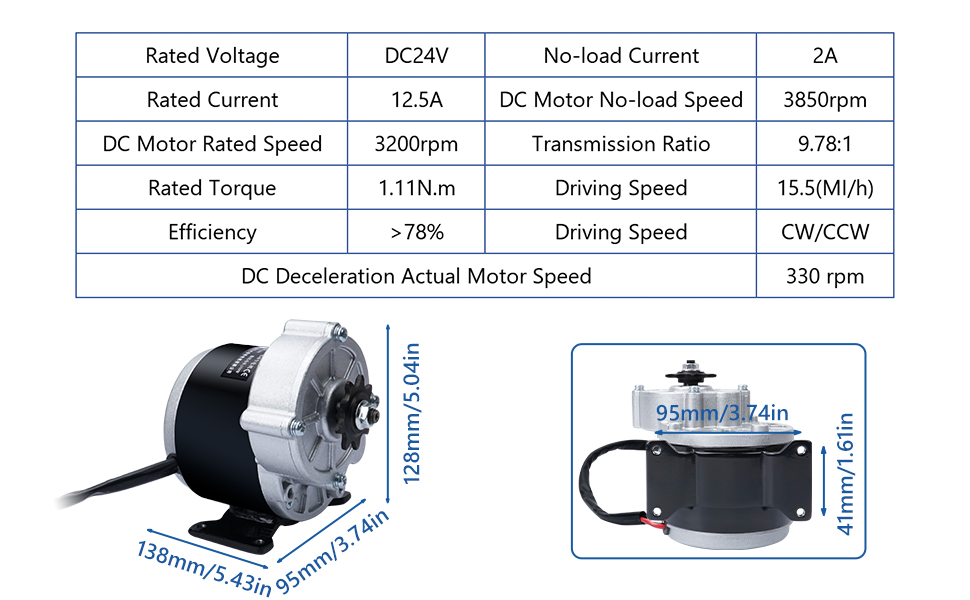

Motor parameters: rated voltage—DC24V;
no-load current—2A;
rated current—12.5A;
DC motor no-load speed—3850rpm;
DC motor rated speed—3200rpm;
transmission ratio—9.78:1;
rated torque—1.11N.m;
DC deceleration Actual motor speed: 330 rpm;
driving speed—15.5(MI/h)

Motor size: pitch: 12.7mm (1/2");
tooth thickness: 3mm;
inner diameter: 11mm;
outer diameter: 41mm;
efficiency >78%;
working direction: CW/CCW

The motor is equipped with a 410 size 9 tooth sprocket from a normal bicycle chain, which can be replaced with a 410 size 13 tooth sprocket, 420/428 size sprockets are also suitable

Ideal for: Mopeds, Mopeds, Mini Mikes, Pocket Bicycles and Electric Dirt Vehicles, Scooters, Electric Bikes, ATVs, Tricycles, Bicycle Conversion Motors, Farm Equipment Motors (not compatible with Razor Dirt Quad)

PACKING LIST：1PC motor
