4500lb Electric Winch Steel Cable
Item Specifications:
Performance Voltage DC 12V
Rated line pull(single line) 4500LB(2041KG)
Motor 2HP(1.5KW)
Gear train 3 Stage Planetary
Gear reduction ratio 136:1
Free Spooling Clutch Turn
Wire Rope Ø6.5mm x 10m
Drum Diameter/Length Ø52mm x79mm
Braking action Automatic in the drum
Fairlead Aluminum Fairlead
Duty Cycle Intermittent
Mounting bolt pattern 76mm*124mm
Remote Control Cable 25m
Wireless Remote Control Optional
Dimensions 368mmX125mmX124mm
G.W/N.W 11.5/10.5kg(1PCS/CTN)
Shipping Carton Size 42*30*19CM(1PCS/CTN)
Features:
4500LB( single line rated pull )Electric Winch
60 Days Return and Backed by a 2 Year Warranty
Power IN and OUT through Wireless/Hand Remote Control
Three-stage planetary gear system for fast line speed and sure hold
Automatic braking in the drum will lock the wire rope and stop pulling when you release button on the switch.
Custom gaskets seal up critical inner components from water and debris infiltration
Package Included:
1x 4500lb Winch
1x Steel Cabl
1x Remote Controller
1x Switch Assembly
1x Control Box

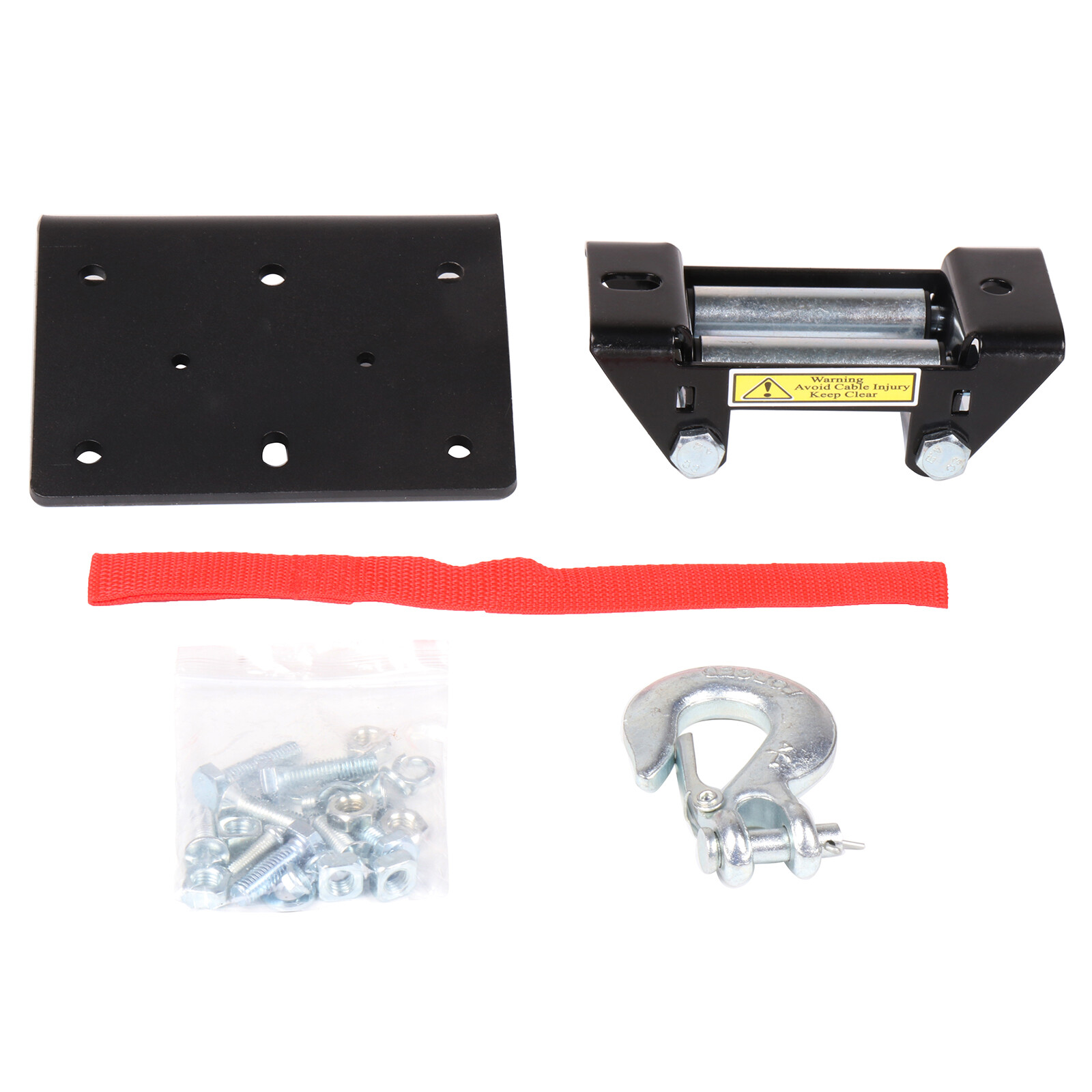

1x 4-way Roller Fairlead
1x Mounting Plate
1x Negative Wire
1x Positive Wire
1x Hook
1x Users Manual
Mounting Screws are Included
| Line Pull (lbs./ kg) | Line Speed FPM(m/min) | Motor (Amps) |
| 0 | 16ft (4.9m) | 17 |
| 1,000 (454) | 10.5ft (3.2m) | 70 |
| 2,000 (907) | 9.2ft (2.8m) | 105 |
| 3,000 (1360) | 7.2ft (2.2m) | 135 |
| 4,000 (1818) | 4.9ft (1.5m) | 180 |
| Layer | Rated Line Pull (lbs./kgs) | Tatal Rope On Drum (ft/m ) |
| 1 | 4000 (1818) | 6.6 (2.0) |
| 2 | 3225 (1460) | 14.1 (4.3) |
| 3 | 2700 (1225) | 23.6 (7.2) |
| 4 | 2325 (1055) | 36.00 (11) |
| 5 | 1840 (836) | 50.0 (15) |
