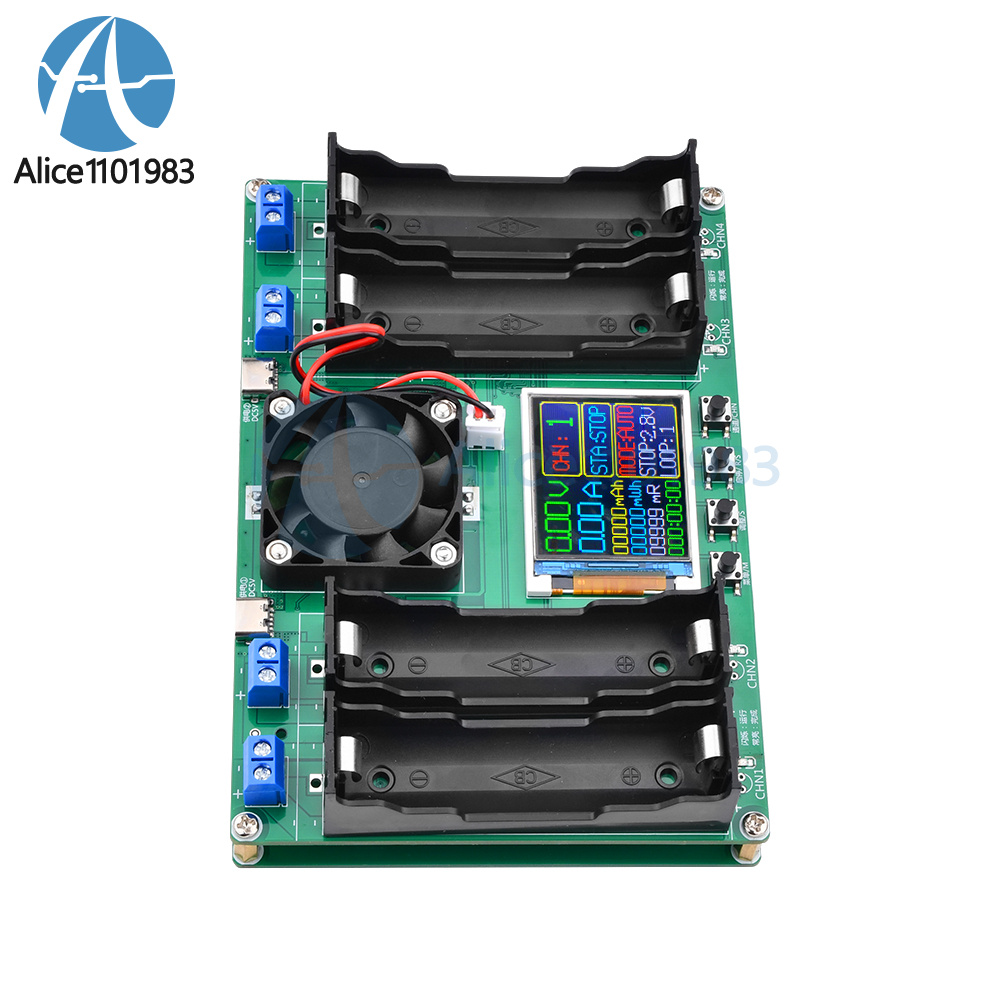

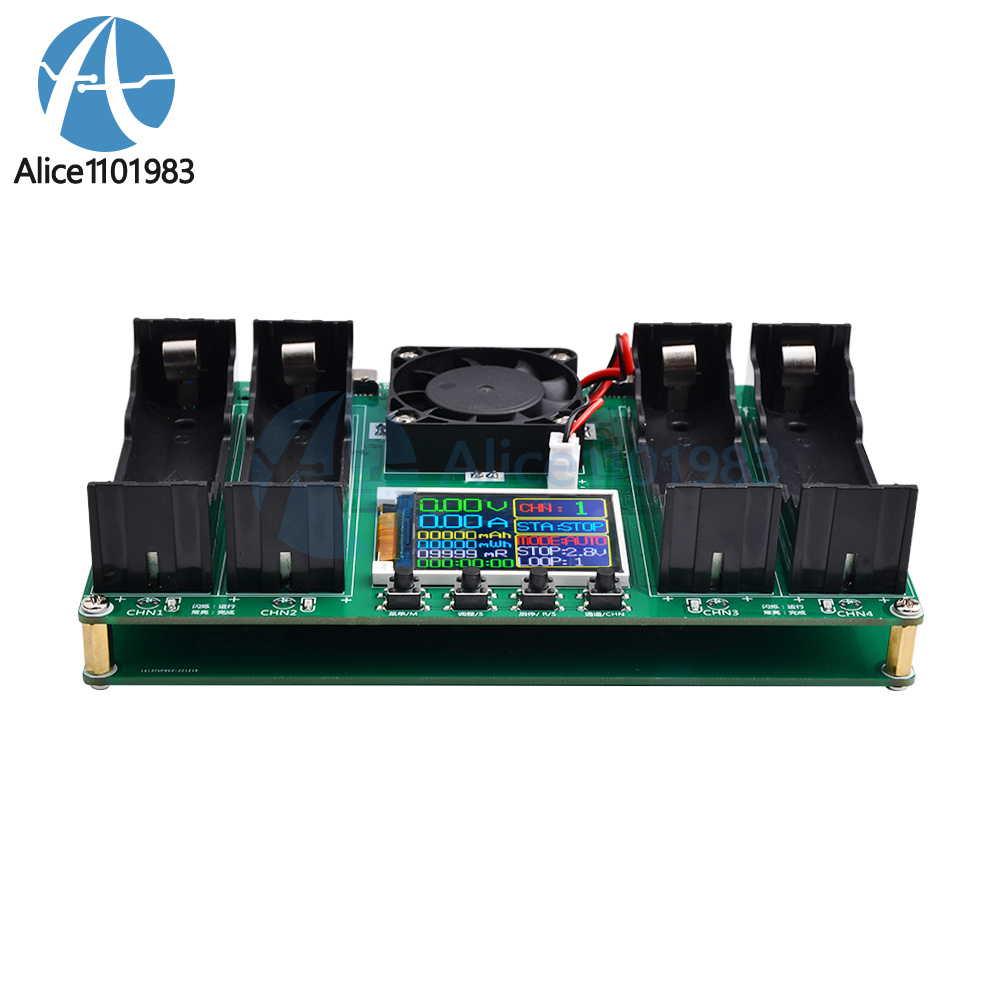

Product Details

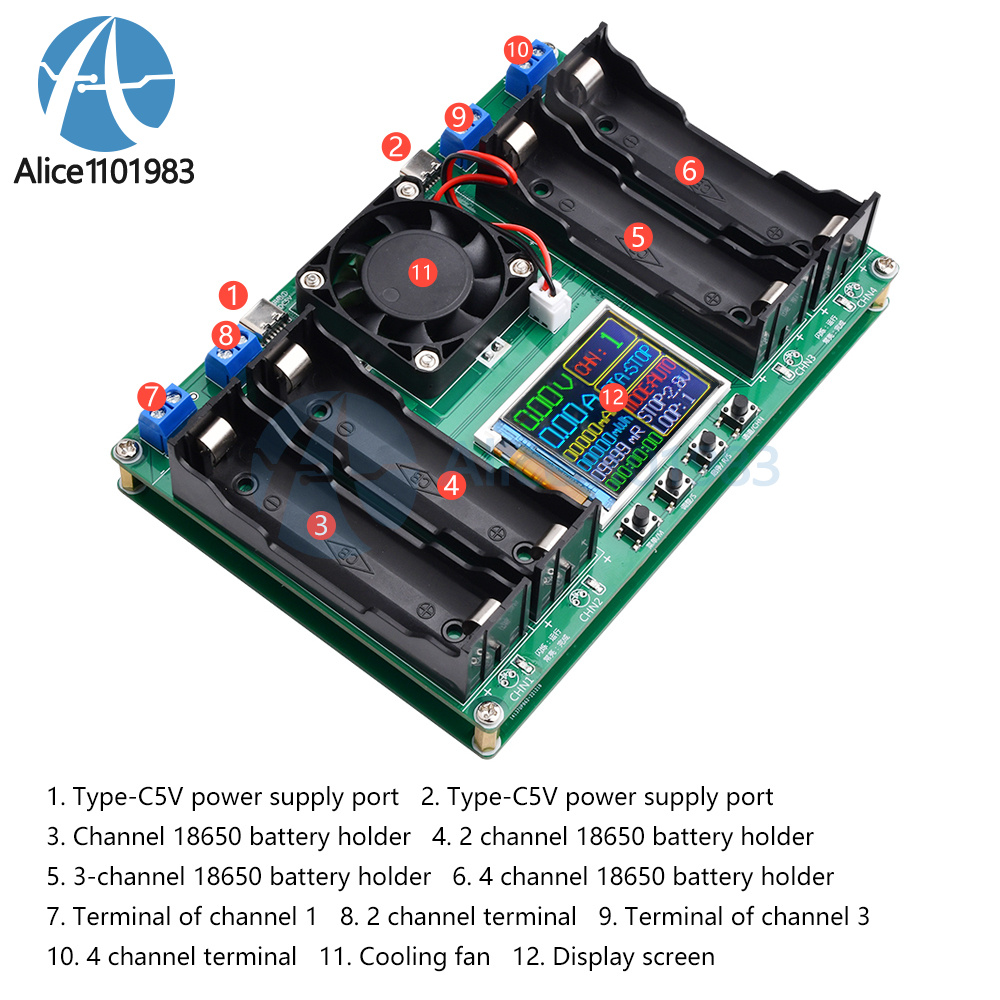

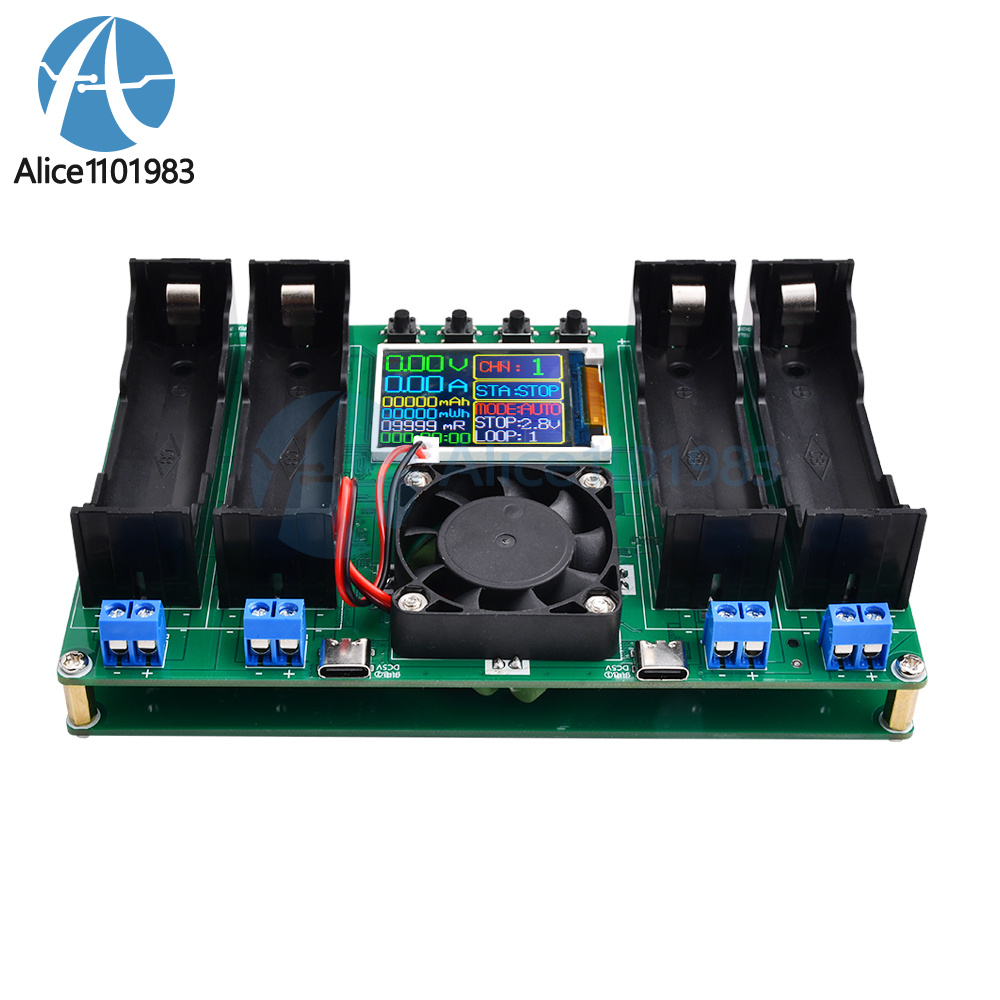

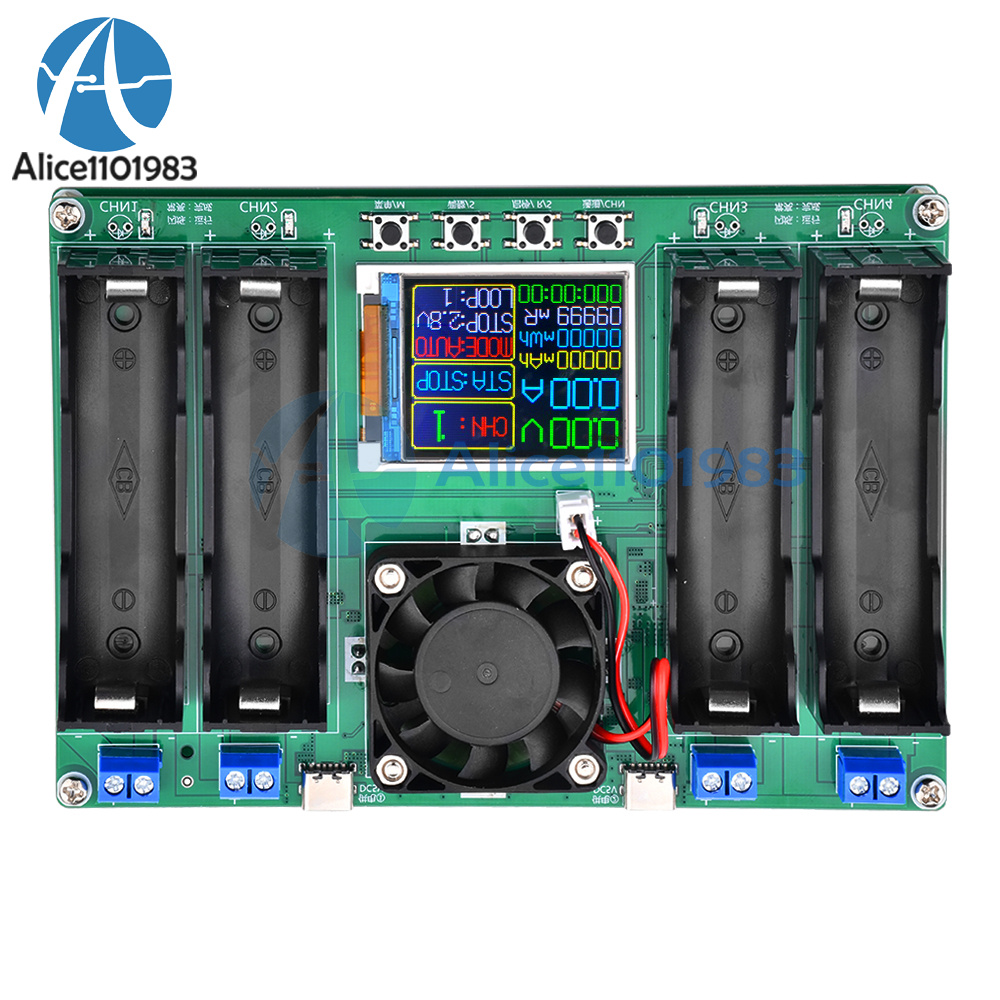

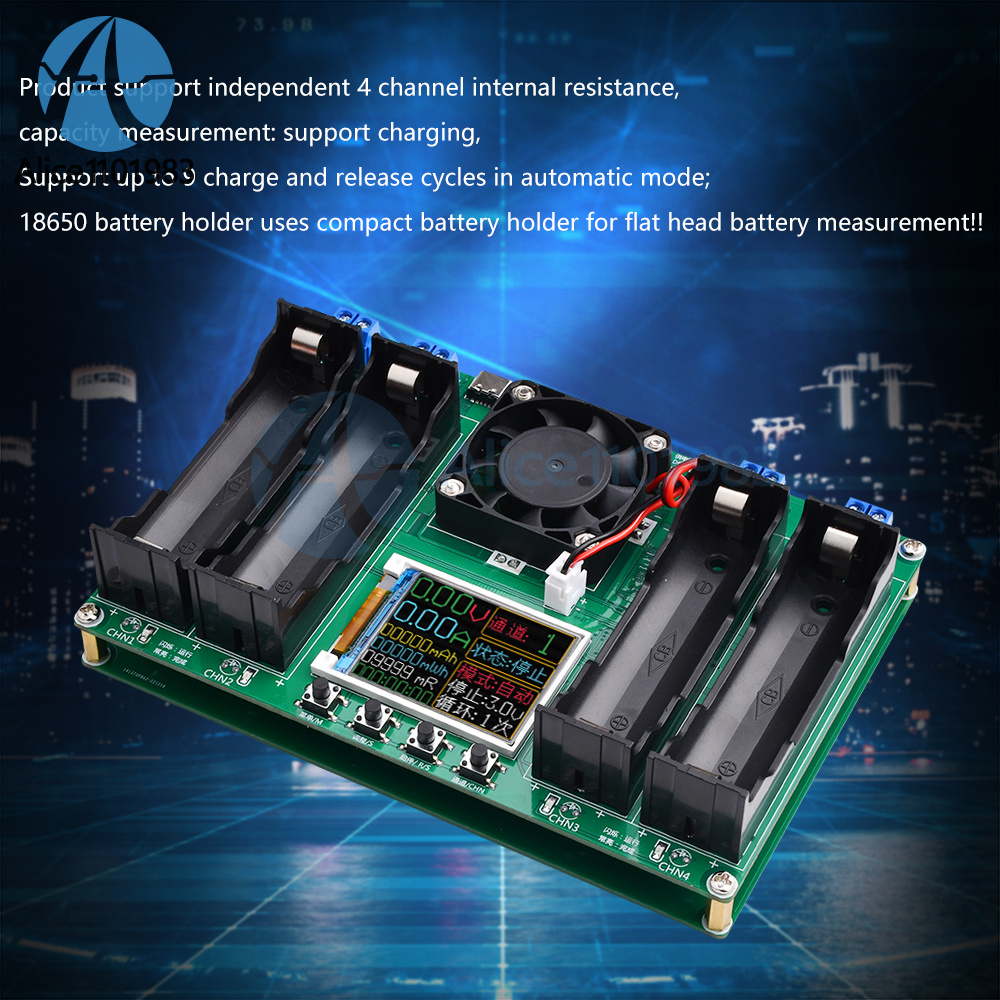

Product supports four-channel capacity and internal resistance measurement
Support separate charging, separate discharging, and up to 9 charging and discharging cycles in automatic mode
Each channel is independent of each other, set up separately, independent operation, no interference
18650 battery holder using compact battery holder, suitable for flat battery measurement
Fan active heat dissipation Support overheating protection
Using DC two-wire method to test internal resistance
Operating voltage: DC5V
Power supply interface: two Type-C power supply interface (power supply and power cable Not provided)
System language: English / Chinese switchable
Test quantity: 4-channel charging and discharging measurement
Internal resistance measurement: support, using the DC two-wire method to test the internal resistance
Charging function: support, full automatic cut off charging (does not support charging of lithium iron phosphate batteries)
Discharge function: support, automatically stop when conditions are met, discharge current is not adjustable
Automatic charging and discharging: support, automatic mode ends when the battery is fully charged
Cycle charging and discharging: support, 1~9 cycles adjustable (only automatic mode support)
Status alert: support
Heat dissipation mode: fan active heat dissipation
Overheat protection: Support
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, a total of 11 grades adjustable
Discharge current: maximum about 1A current, not adjustable, does not support independent transformation
Charging voltage: special battery charging chip control, maximum of about 1A charging, full charge voltage 4.2V
Power failure save: only save the setting parameters, not save the measurement data

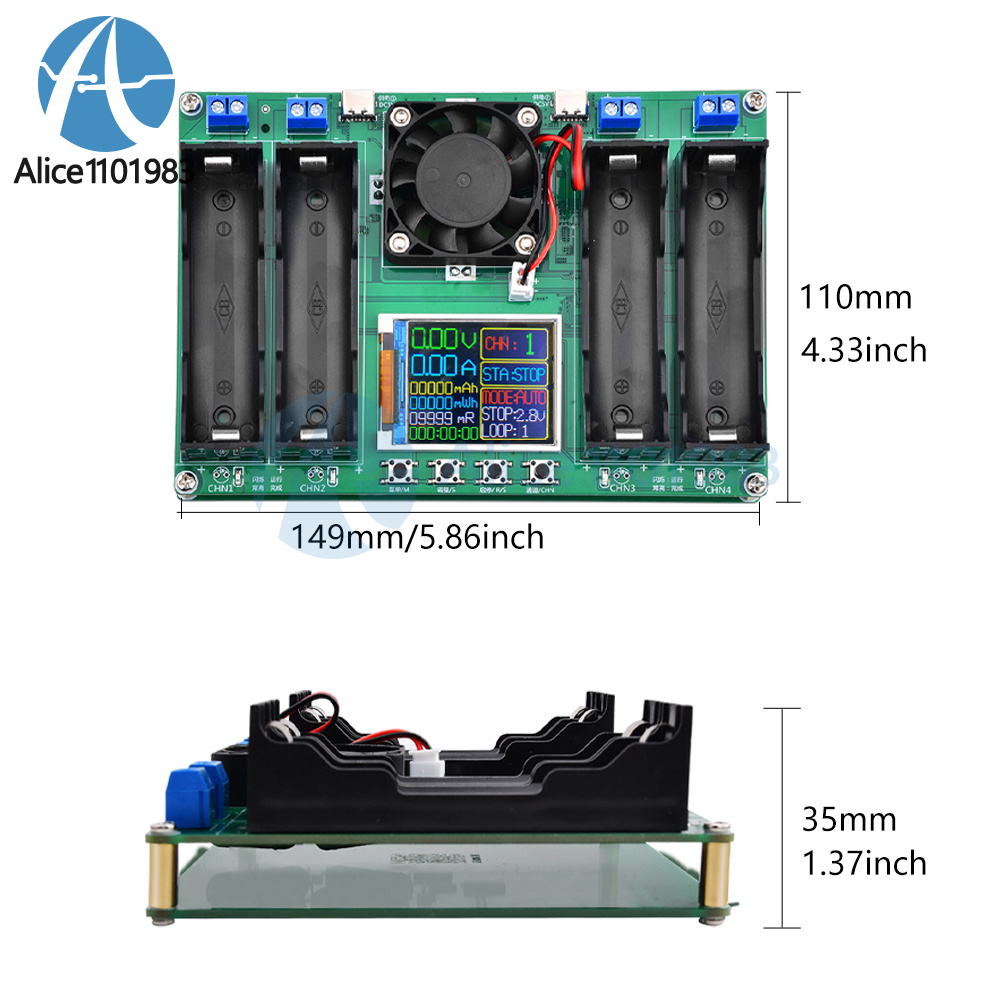

Product size: 150×103×36mm
Package size: 182×112×50mm

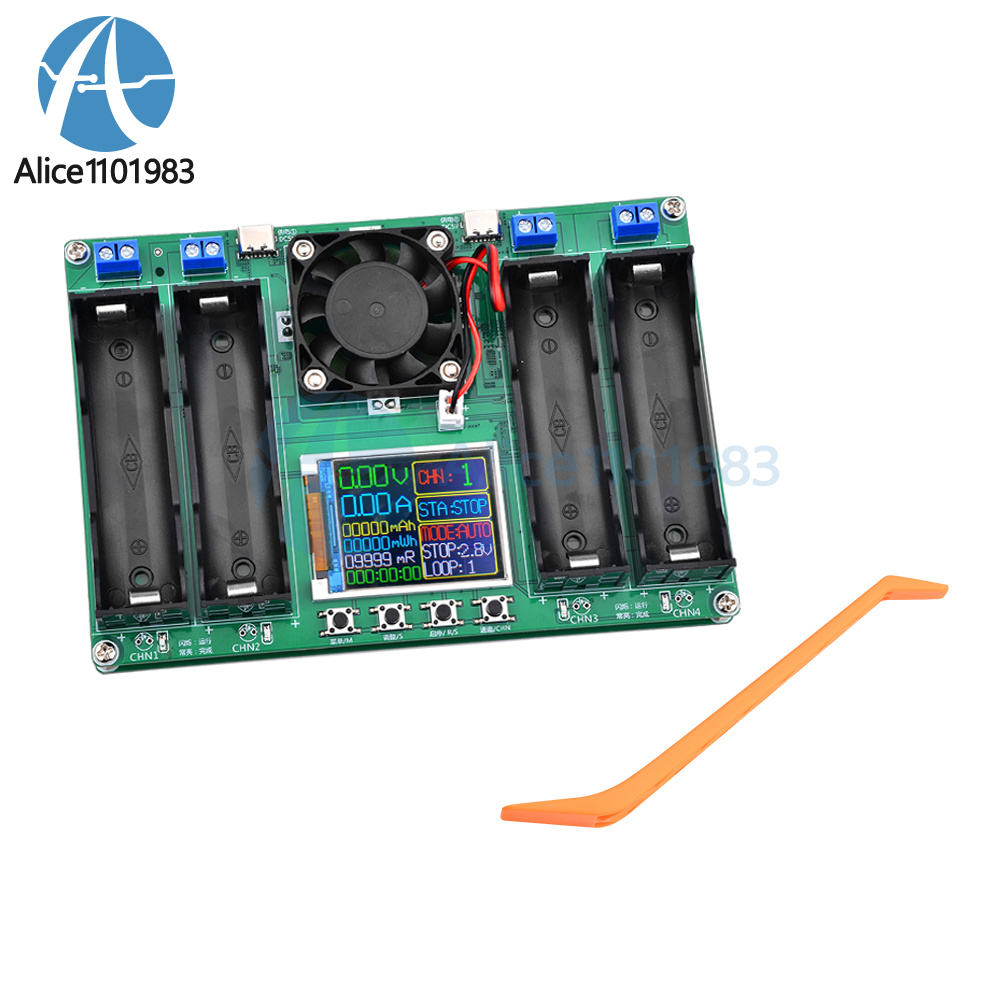

18650 battery capacity internal resistance tester* 1
