Voltage: 48V 60V

Power: 1500W 3000W

Material:Nylon

Open size: 135mm

Tyre Model: 10x4.50-6

Max Load:100Kg(220LBS)

Max Infation:345KPa(50P.S.I)

Package includes:

1* 10 inch doubel shaft design hub motor with tire

1* 10 inch front wheel with axis

1* Matched controller

1* Accelerate instrument

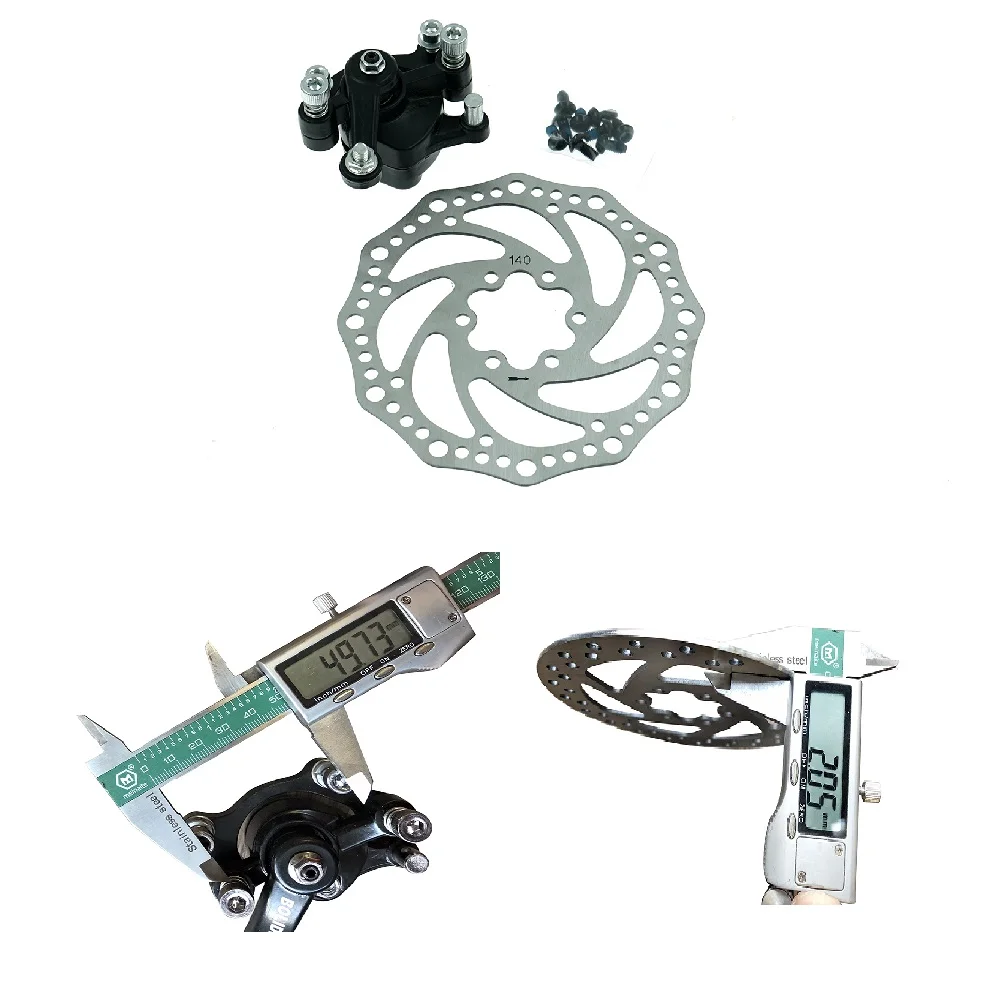

1* Disc brake set

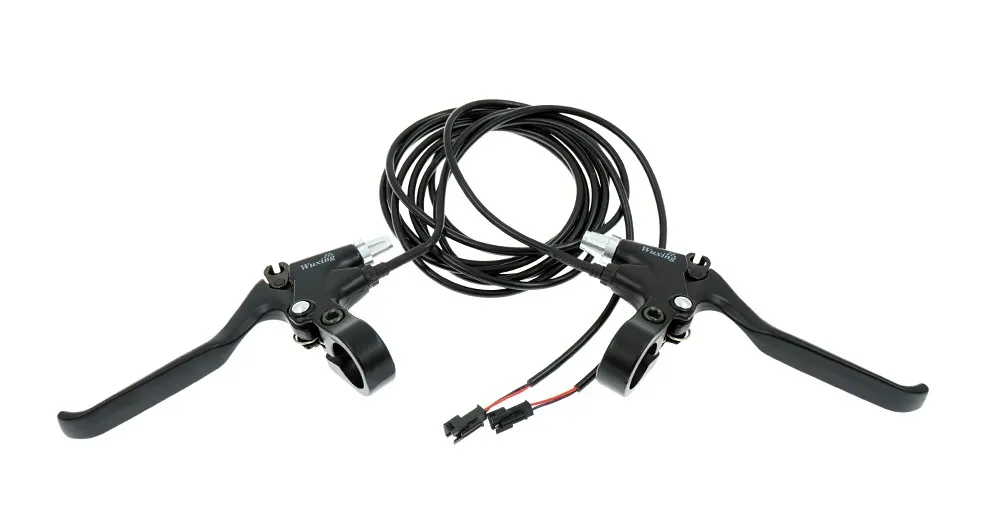

2* Brake lever

1* 3 screw connctor





Controller size: 30*50*90mm

LCD display Features:

With USB  charger port

Two Bottons:Power botton and Fuction botton

Long press power botton:Open the power

Short press function botton:Shoe the TIME,TRIP,ODO,DST,VOL,CH2:00

In the TRIP, long press function botton:Single trip clear.

Short press Power botton, and press function botton:Change the gear position

How to setting the LCD display:

Press power botton and function botton together:

P0= wheel diameter setting

P1= Undervoltage setting

P2= Number of pole pairs settting

P3= Speed signal selection setting

P4= Kilometer/Mile selection setting

P5= Non-zero start/Zero start selection setting

P6= Cruise/No cruise selection setting

P7= Soft start/Hard start selection settting
