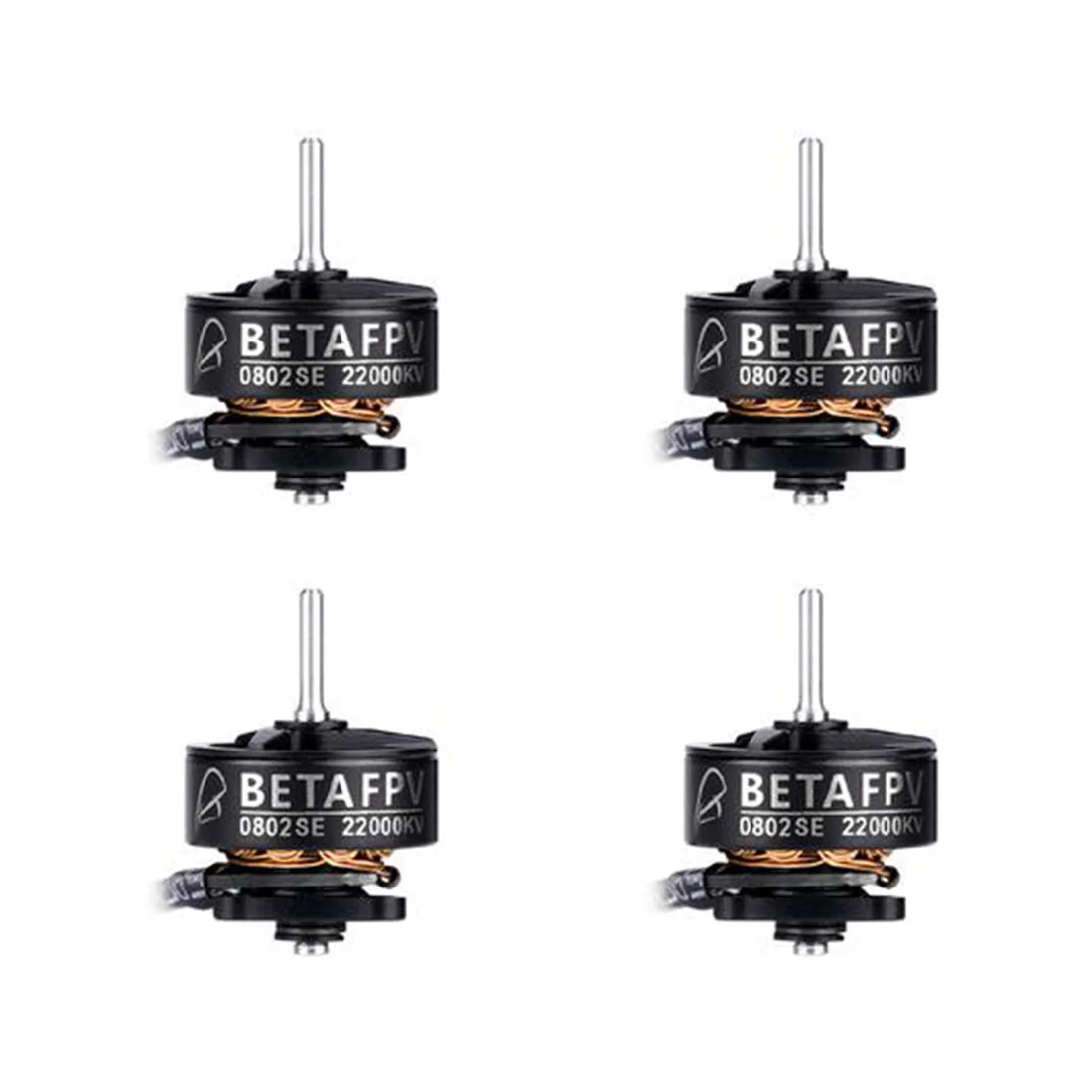

0802SE 22000KV/19500KV lightweight Brushless Motor 1SFOR  65mm Meteor65 HD brushless Bwhoop drone

0802SE Brushless Motors is a lightweight of only 1.8g/pc for 1S whoop drones. It ensures excellent performance of power and thrust and makes the perfect dynamic balance, providing flexibility and longer flying time for drones.

Bullet Point

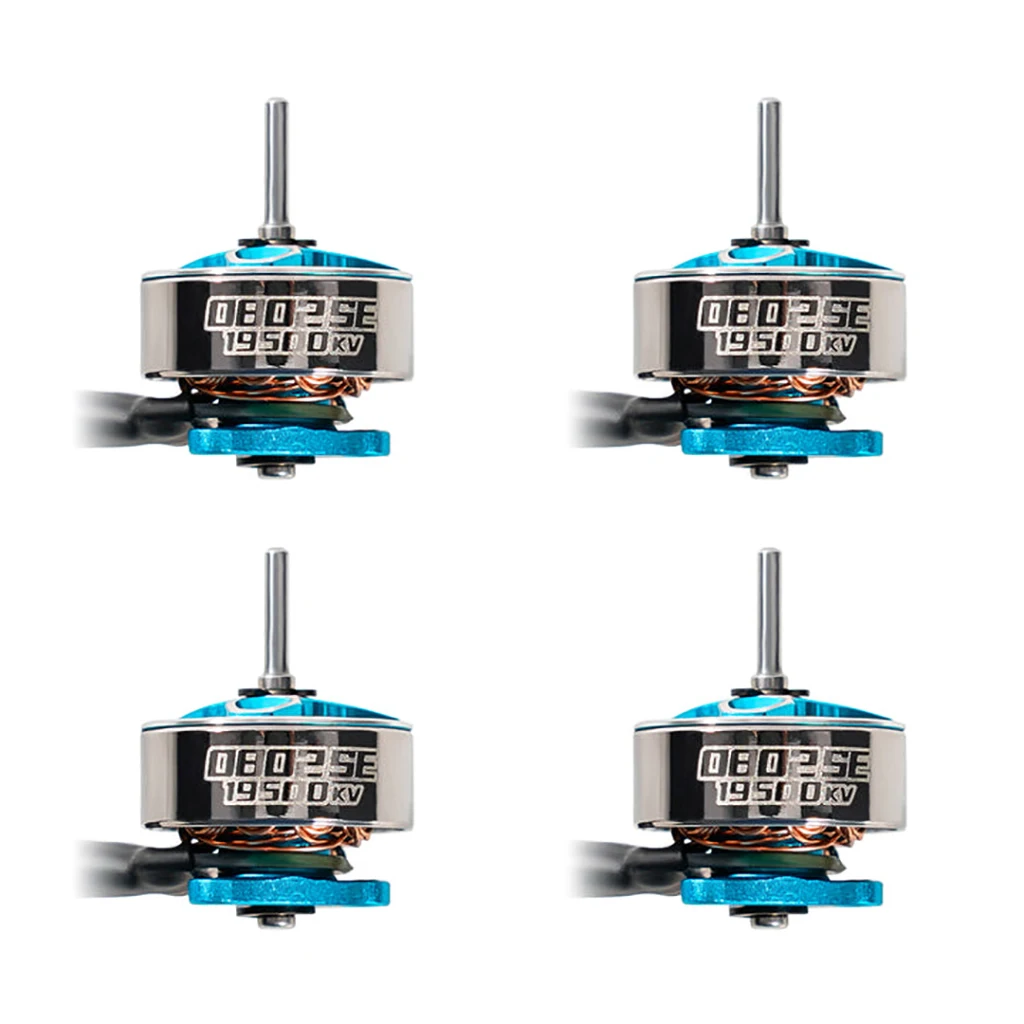

• 0802SE 19500KV/23000KV Brushless Motors (2022 version) come with a completely new look. The whole motors are silver in the air, looking very bright.

• 0802SE Motor makes the perfect dynamic balance, which gives the drone more flexibility and longer flying time. With its lightweight of 1.8g/pc, it is ideal for the weight-sensitive 65mm brushless whoop drone.

• 19500KV and 23000KV options greatly meet the pilots' needs for different flying purposes. The 23000KV motors which provide more punch on the throttle with higher KV value are suitable for indoor FPV racing, making aggressive flying come true.

• Lead wire is soldered to the PCB, allowing you to repair it easier once disconnected.

Specification

• Item: 0802SE 19500KV brushless motor

• Weight: 1.83g/pc (19500KV) / 1.80g/pc (23000KV)

• KV: 19500KV/23000KV

• Color: Black/Ice Blue

• Shaft length: 5mm

• Shaft diameter: 1mm

• Hole distance: 6.6mm

• Motor Mount Holes: M1.4

• Input Voltage: 1S

• Cables: 35mm long, 30AWG cables

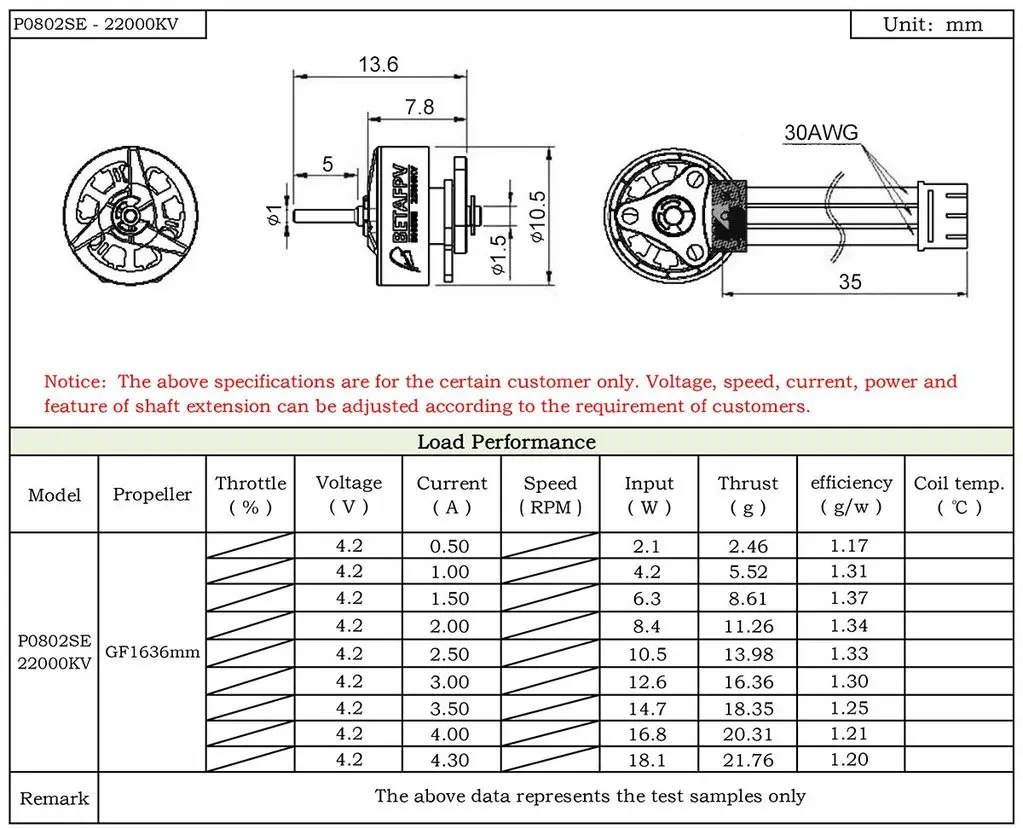

• Dimensions: 10.5*10.5*13.6mm, 10.5*10.5*13.8mm(2022 version)

• Bearings: Brass Bushings

19500KV or 23000KV Motors

Choose 0802SE 19500KV or 23000KV motors. The 0802SE 19500KV motors have a better performance in efficiency and flying endurance. With higher RPM (revolutions per minute), the 0802SE 23000KV requires less throttle for the stronger thrust that has a faster response time, improving the speed of the whoop drone, suitable for aggressive indoor FPV racing. For pilots who fly 65/75mm whoop drones with 19500KV motors, it is a good choice to upgrade motors to 23000KV.

Recommended Parts

• Propellers: 31mm 3-blade, 31mm 4-blade, 35mm 3-blade, 40mm 2-blade

• Frame: Meteor65 frame, Meteor65 Pro frame, Meteor75 frame

• FC: BETAFPV F4 1S 5A Brushless FC

• Battery: 1S Battery

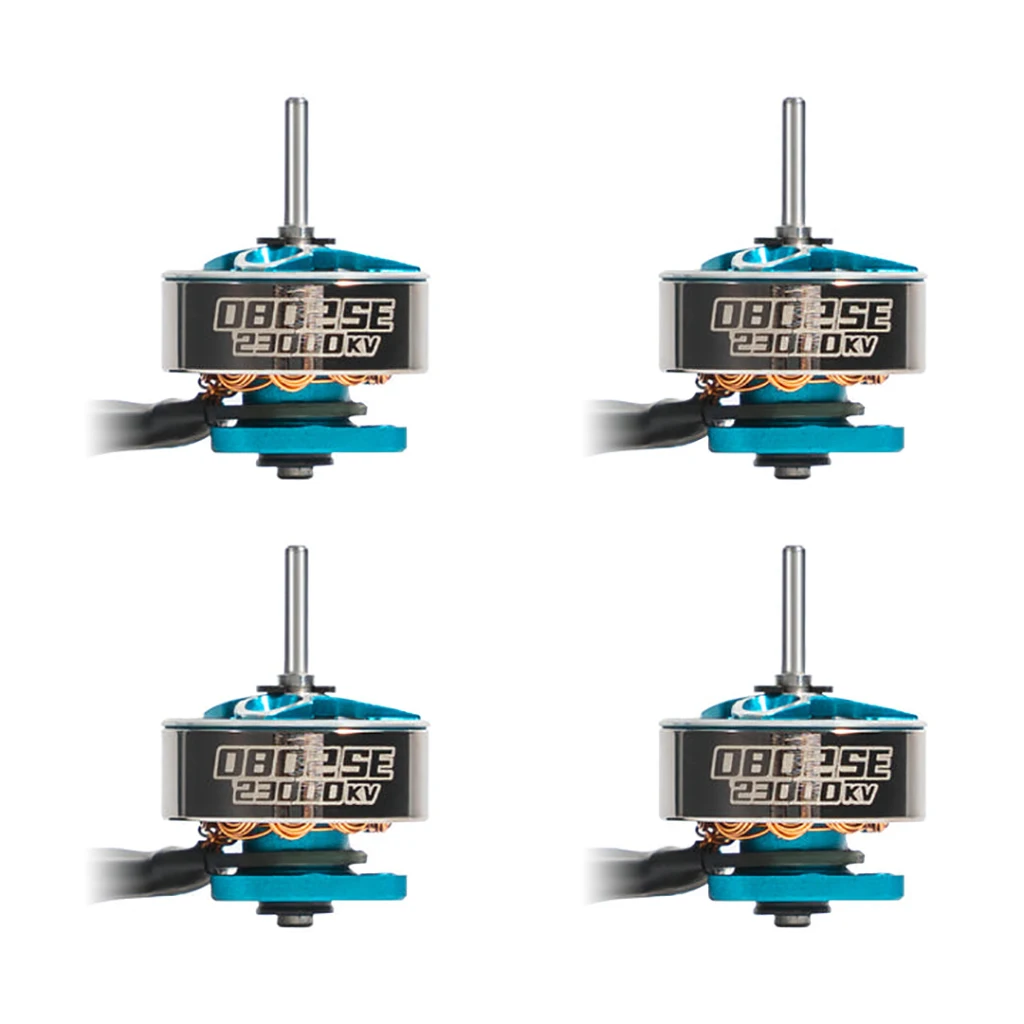

• 0802SE 19500KV/23000KV Brushless Motors (2022 version) come with a completely new look. The whole motors are silver in the air, looking very bright.

• 0802SE Motor makes the perfect dynamic balance, which gives the drone more flexibility and longer flying time. With its lightweight of 1.8g/pc, it is ideal for the weight-sensitive 65mm brushless whoop drone.

• 19500KV and 23000KV options greatly meet the pilots' needs for different flying purposes. The 23000KV motors which provide more punch on the throttle with higher KV value are suitable for indoor FPV racing, making aggressive flying come true.

• Lead wire is soldered to the PCB, allowing you to repair it easier once disconnected.

Bullet Point

0802SE Brushless Motors is a lightweight of only 1.8g/pc for 1S whoop drones. It ensures excellent performance of power and thrust and makes the perfect dynamic balance, providing flexibility and longer flying time for drones.

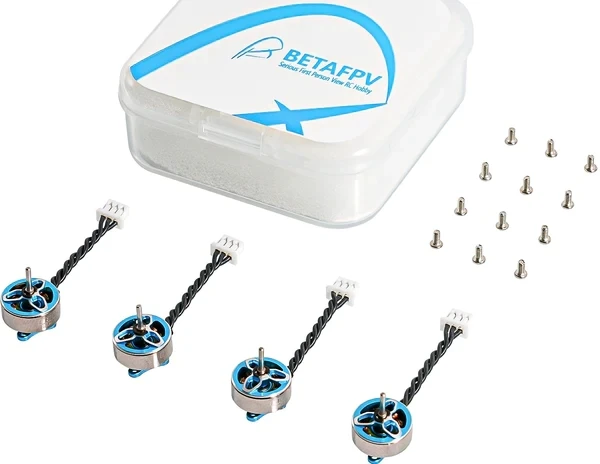

Package

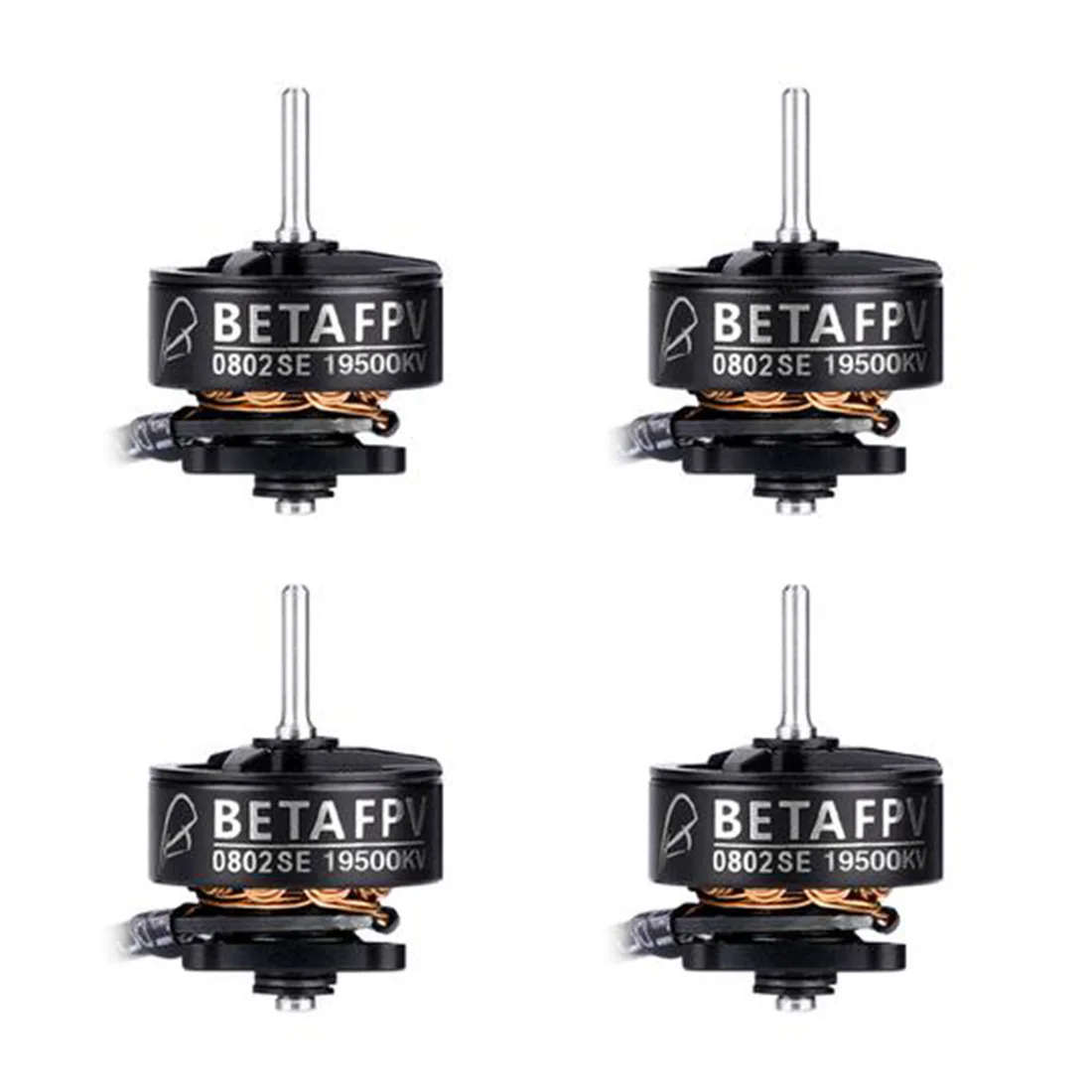

4 * BETAFPV 0802SE Brushless Motors

1 * Pack of M1.4*3 Screws

Feature

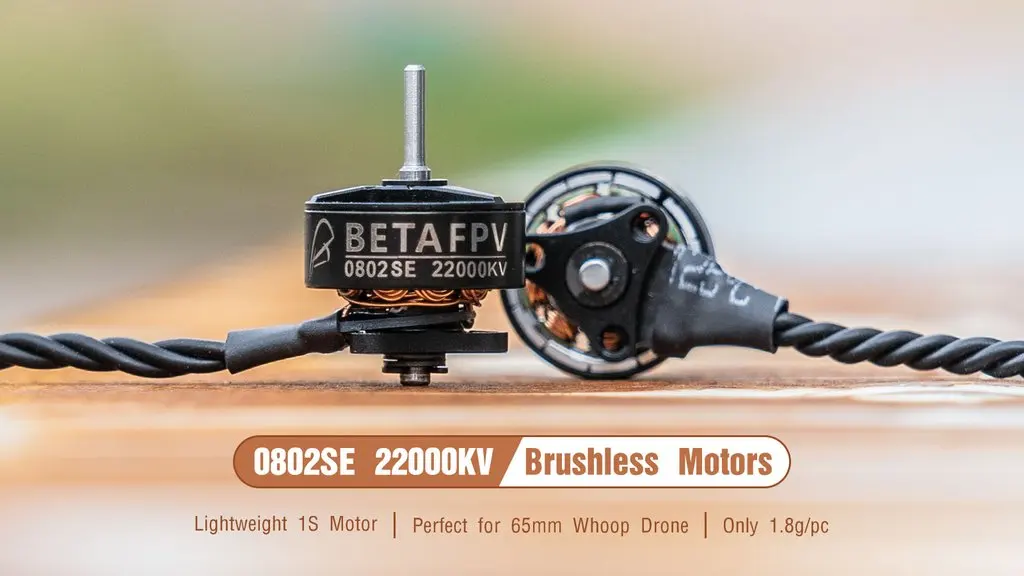

0802SE 22000KV/19500KV motor is a lightweight 1S motor, compared with the 0802 series brushless motors, it is not only significantly reduced the weight which is only 1.83g/pc but also ensuring the awesome performance of power and thrust. It makes the perfect dynamic balance, which gives the drone more flexible and longer flying time. What' more, we highly recommend using it on the weight-sensitive 65mm brushless whoop drone, such as the Meteor65 HD.

Bullet Point

0802SE 22000KV/19500KV motor is a lightweight 1S motor, specially designed for 1S whoop drone-like Meteor65 HD.

Compared with the 0802 series brushless motors, 0802SE 22000KV has significantly reduced the weight, which is only 1.83g/pc. It still ensures the awesome performance of power and thrust.

Compared with 0802 19500KV brushless motors, 0802SE 19500KV is reduced by 0.15g, which is only 1.8g. While it is used on a 65mm drone, pilots can get a  more flexible flight and can fly longer.

If you are trying a stronger violent indoor flight, 22000KV is ideal for you. If you wanna get a longer flight, 19500KV will be more suitable.

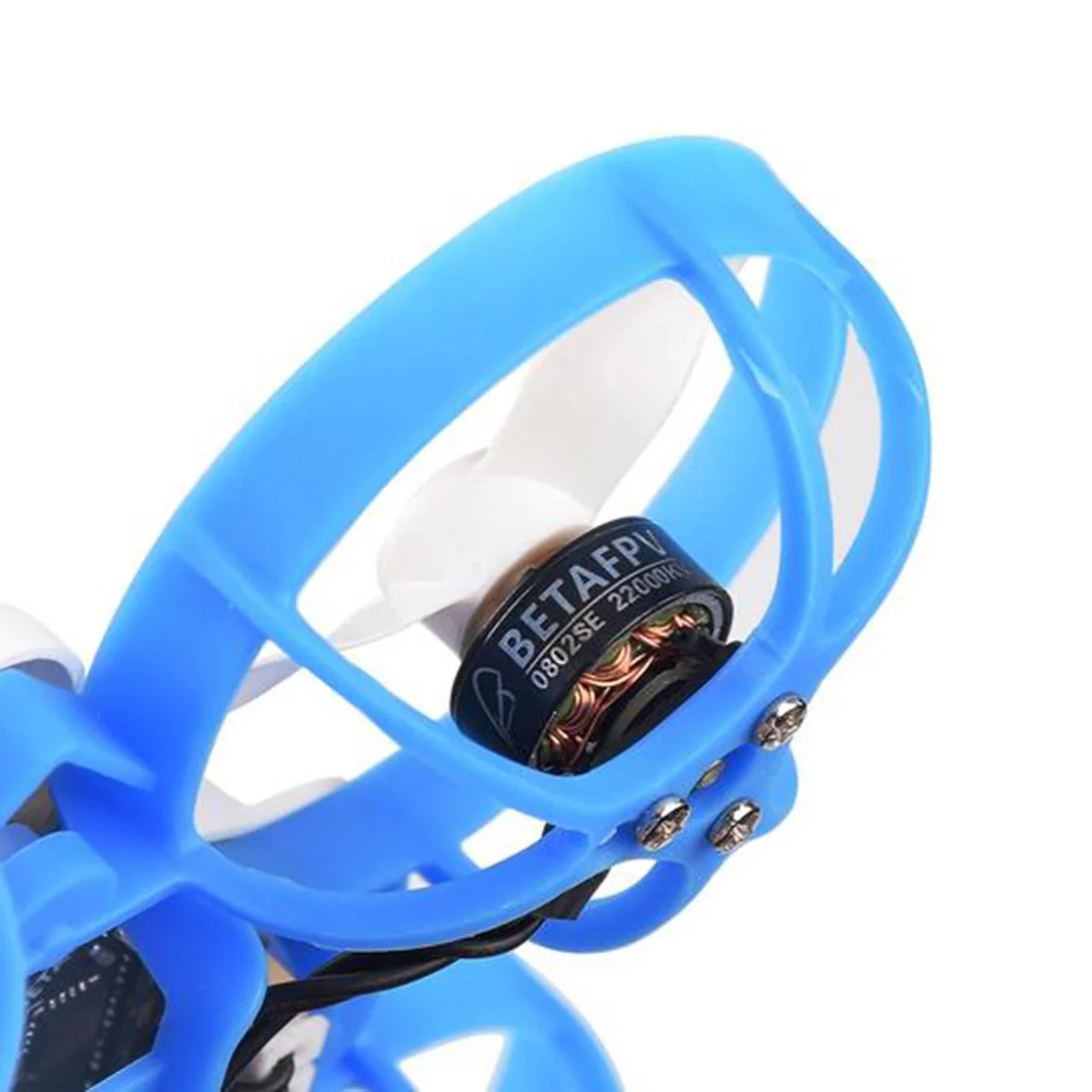

0802SE Motor makes the perfect dynamic balance, which gives the drone more flexible and longer flying time, which is perfect for the weight-sensitive 65mm brushless whoop drone.

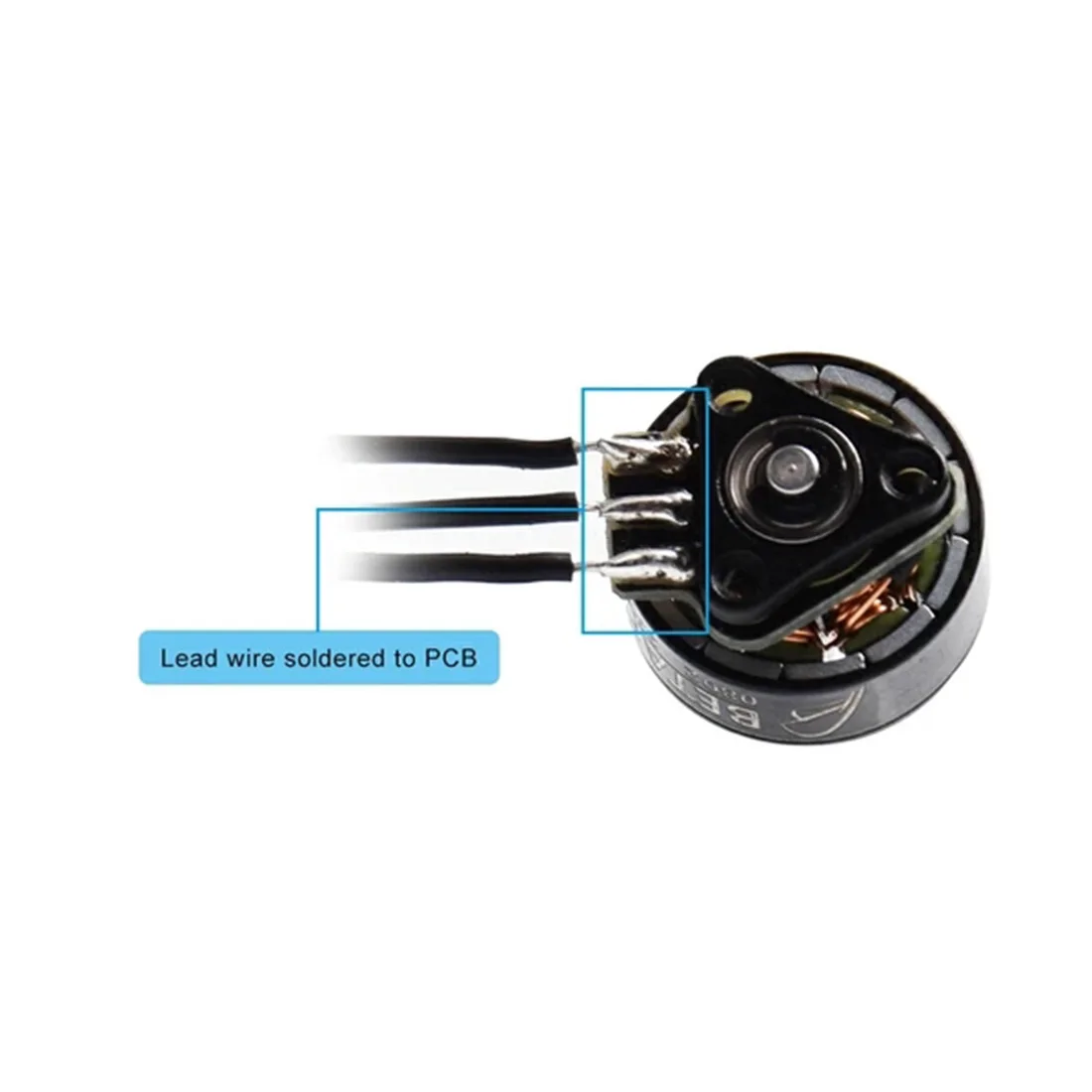

Lead wire soldered to the PCB, which allows you to repair it easier once it disconnected.

Compared with 0802 19500KV brushless motors, 0802SE 19500KV is reduced by 0.15g. When it is used on a 65mm drone, it is more flexible and can fly longer.

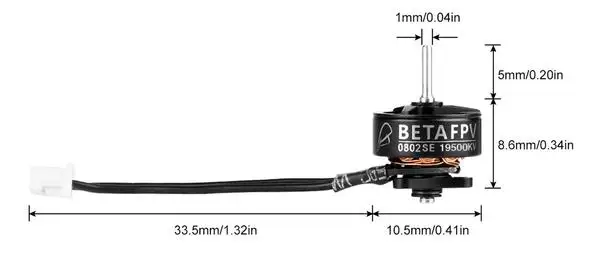

Specification

Item: 0802SE 22000KV/19500KV brushless motor

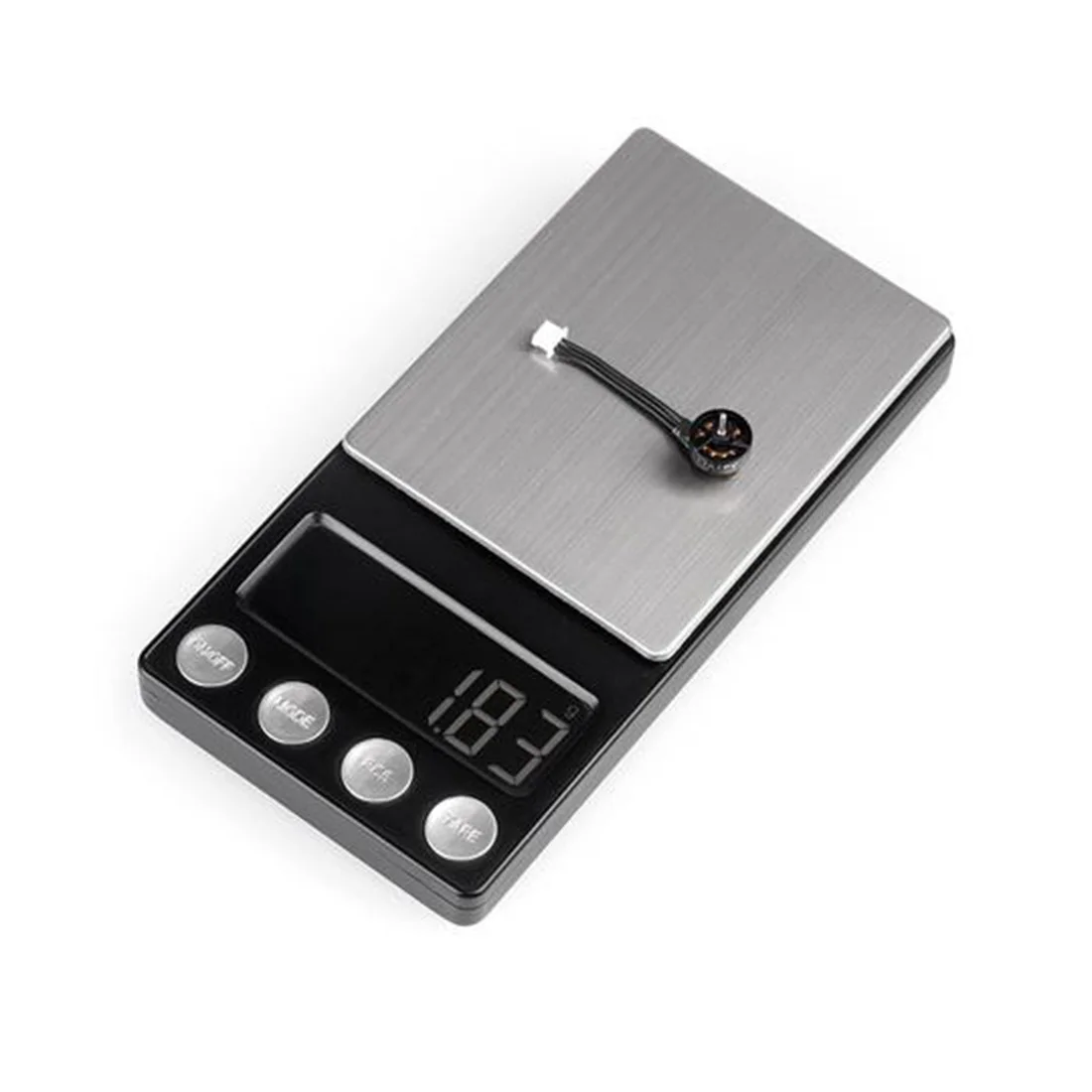

Weight: 1.83g/pc

Color: Black

Shaft length: 5mm

Shaft diameter: 1mm

Hole distance: 6.6mm

Motor Mount Holes: M1.4

Input Voltage: 1S

Cables: 25mm long, 30AWG cables

Dimensions: 10.5*10.5*13.6mm

Bearings: Brass Bushings

Recommended Parts

Propellers: 31mm 4-blade props

Frame: Meteor65 frame

FC: F4 1S Brushless FC /F4 1S AIO FC

Battery: 1S Battery
