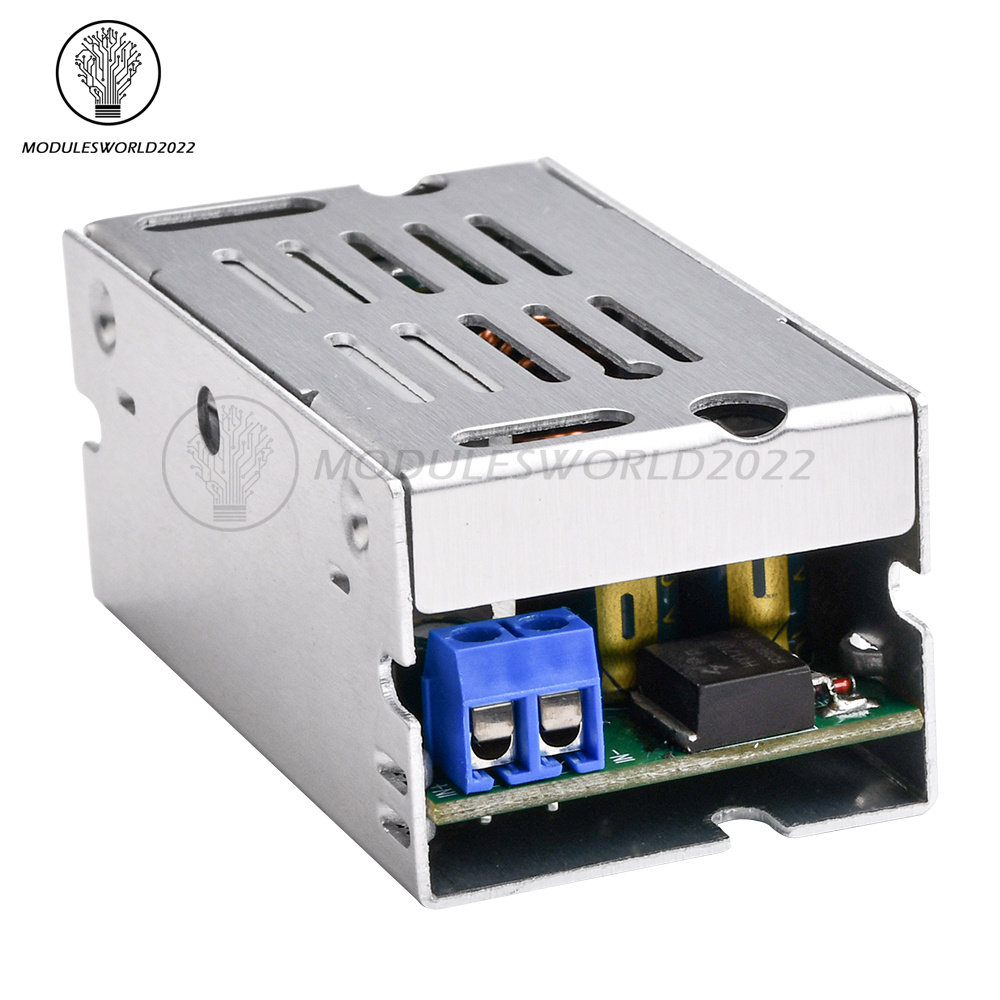

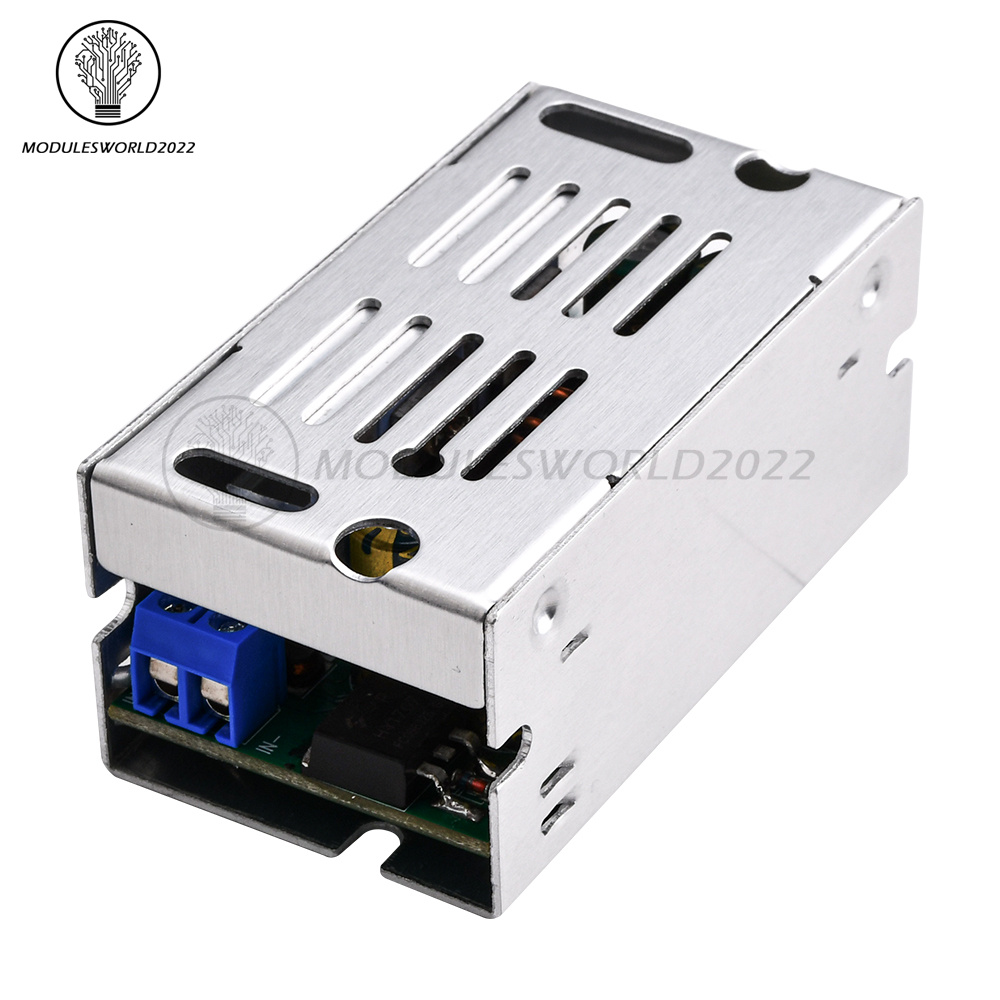

- 200W DC-DC high voltage power synchronous buck module
- 8-60V wide voltage input, 1-36V stepless adjustable output
- The maximum peak output current 15A
- Perfect ultra-efficient circuit design up to 94% Low Ripple
- Name: 200W adjustable synchronous buck module
- Type: Non-isolated step-down module (BUCK)

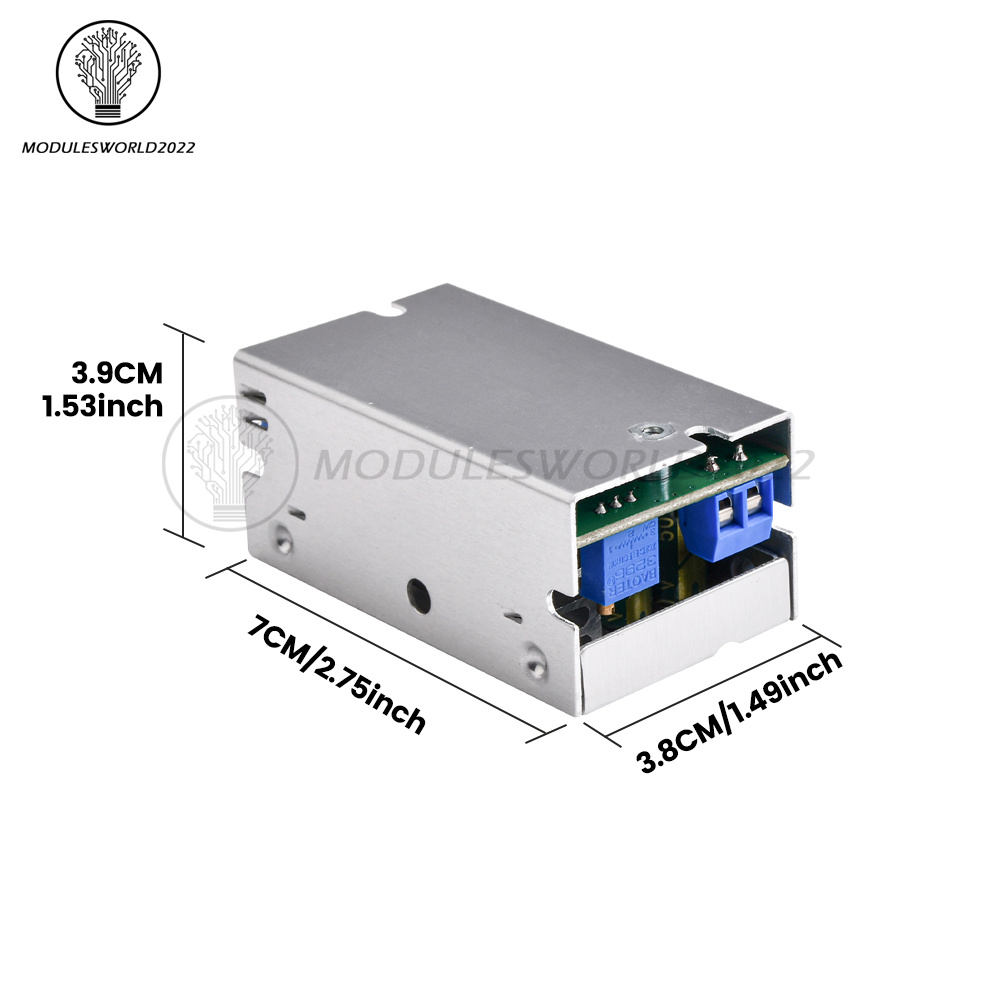

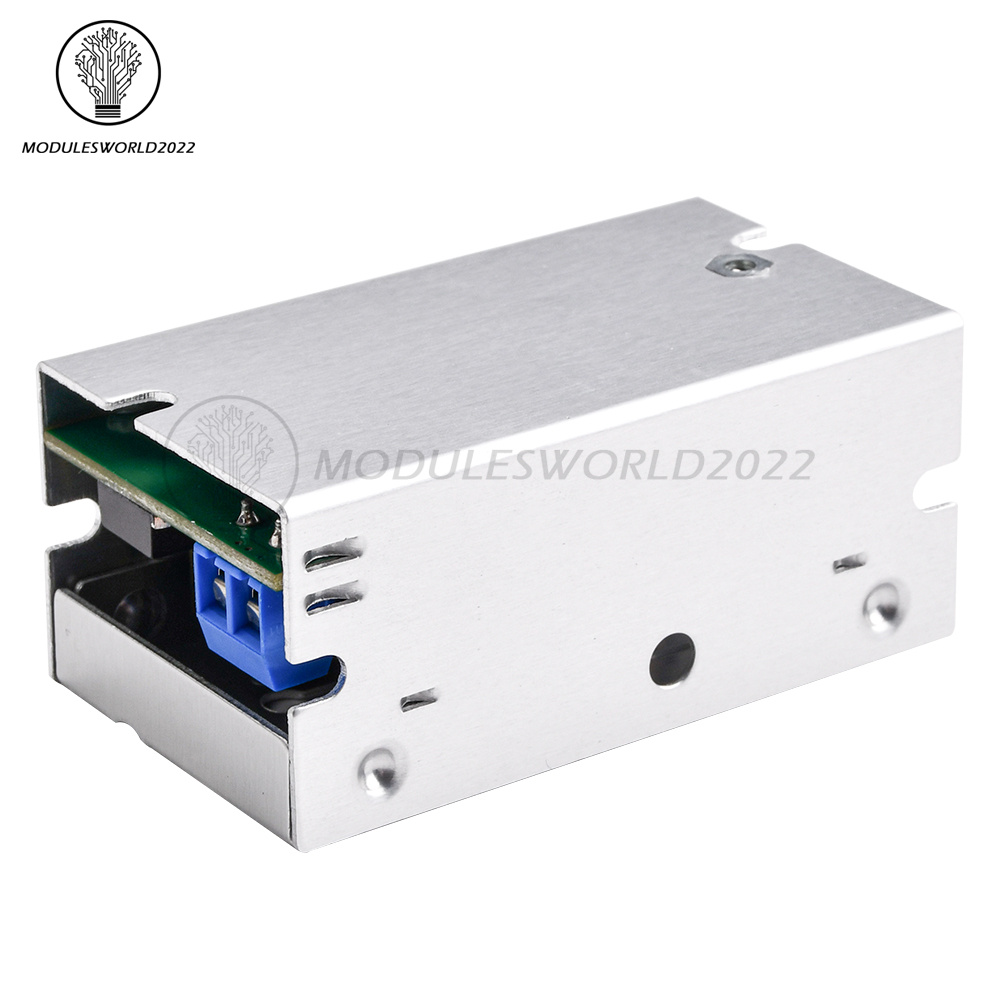

- Aluminum housing Size: 70 x 38 x 31mm / 27.5"x15" x12"
- Input voltage: 8-55V (limit 60V, please leave allowance)
- Output voltage: 1-36V continuously adjustable (the default output 12V)
- Output Current: Normal 10A , MAX15A
- Output power: natural cooling ventilated long-term power 100W
- To enhance heat dissipation up to 200W
- Such as long working hours, please note left margin and make the heat rise
- Operating temperature: -10 to +85 degrees
- Operating frequency: 180KHz
- Conversion efficiency: up to 94%
- Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)
- Reverse polarity protection: (reverse does not burn)

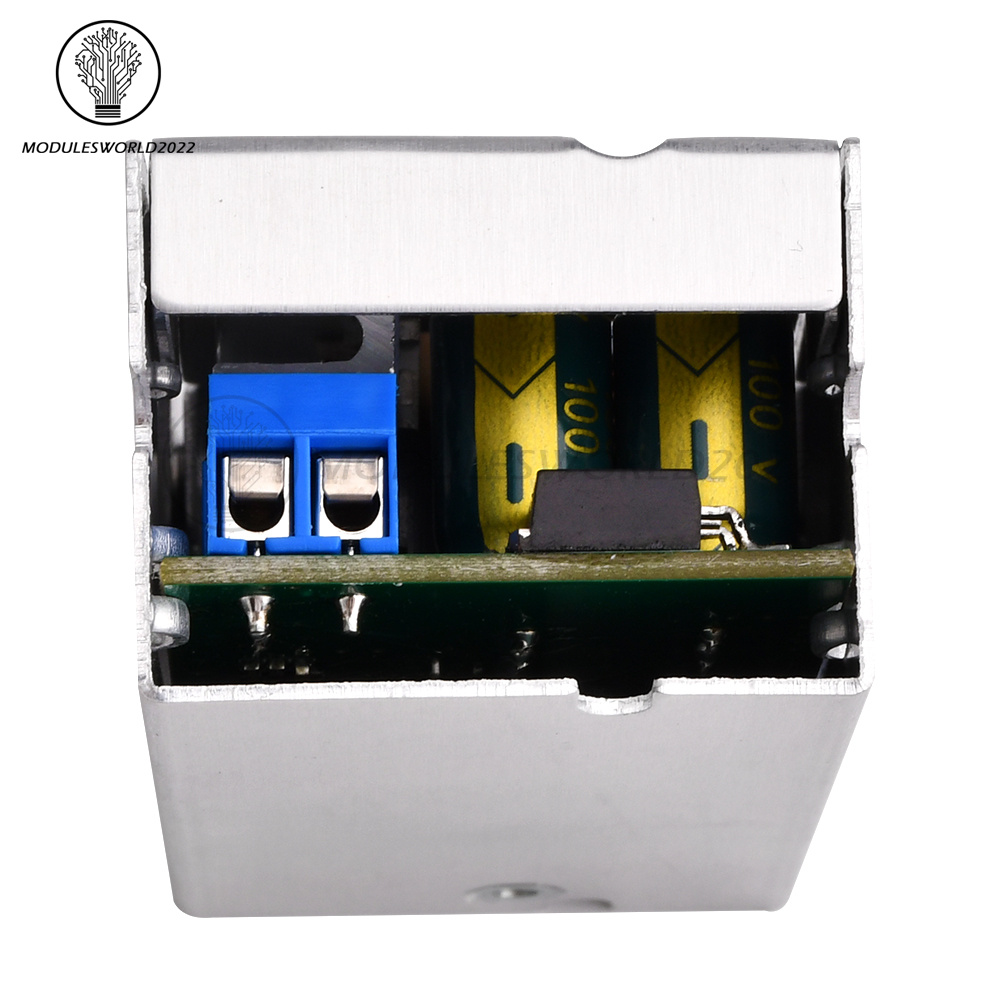

- Wiring: high current terminals, solderless, IN + input is positive, IN- is the input negative, OUT + positive output, OUT- output negative
Package Included:
- 1 x Module
