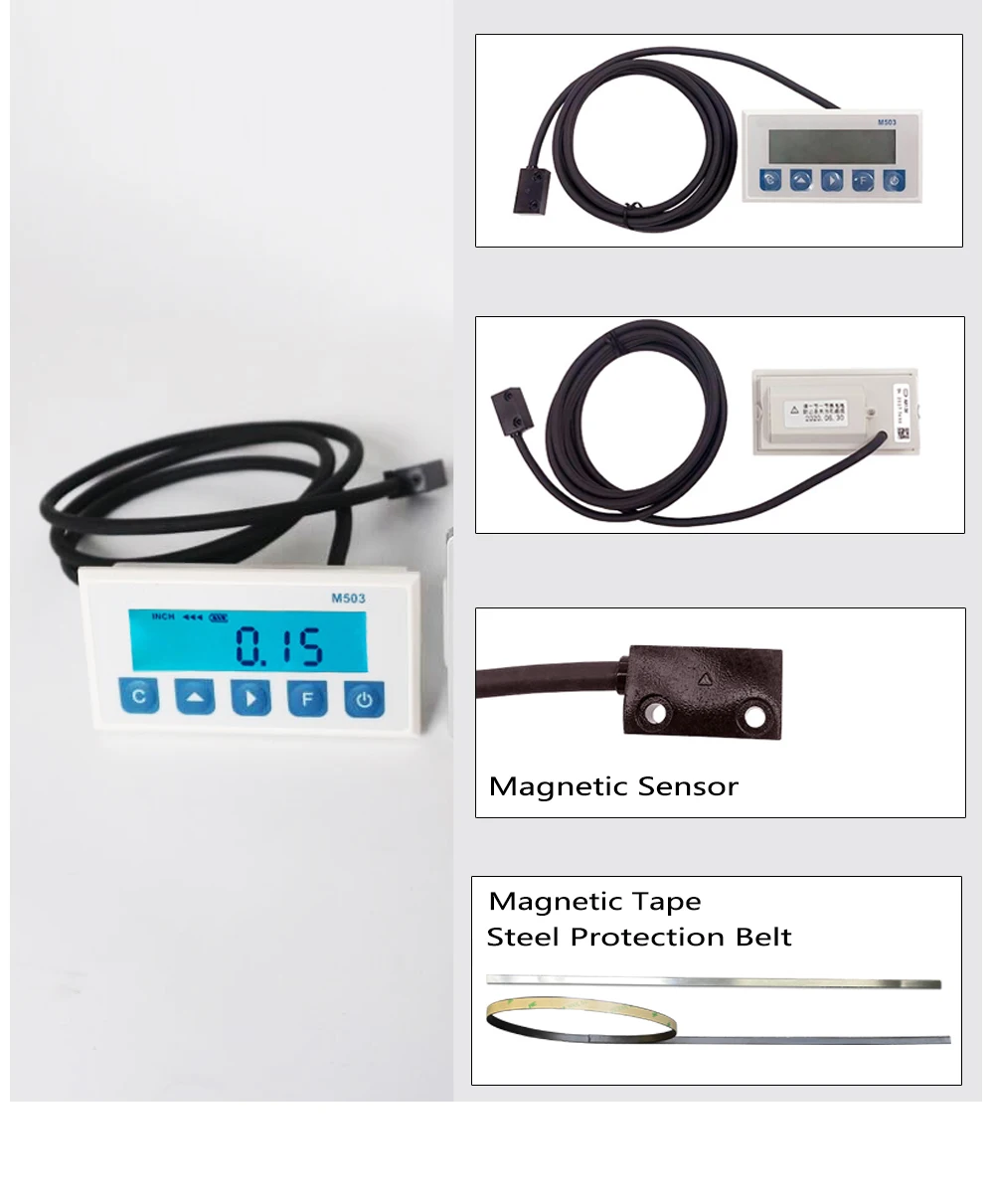

M503 magnetic scale display integrated embedded magnetic measurement system magnetic tape

Basic datasheet:

Resolution: 0.01mm /0.1mm / 1mm

Display mode:MM / INCH

Measuring: Length / Angle

Parameter:

System accuracy: + (0.03+0.01*L) mm

Repeatability: Max. + 0.01mm

Display range: -1999999-9999999

Consumption current: Max.500UA (backlight not opened)

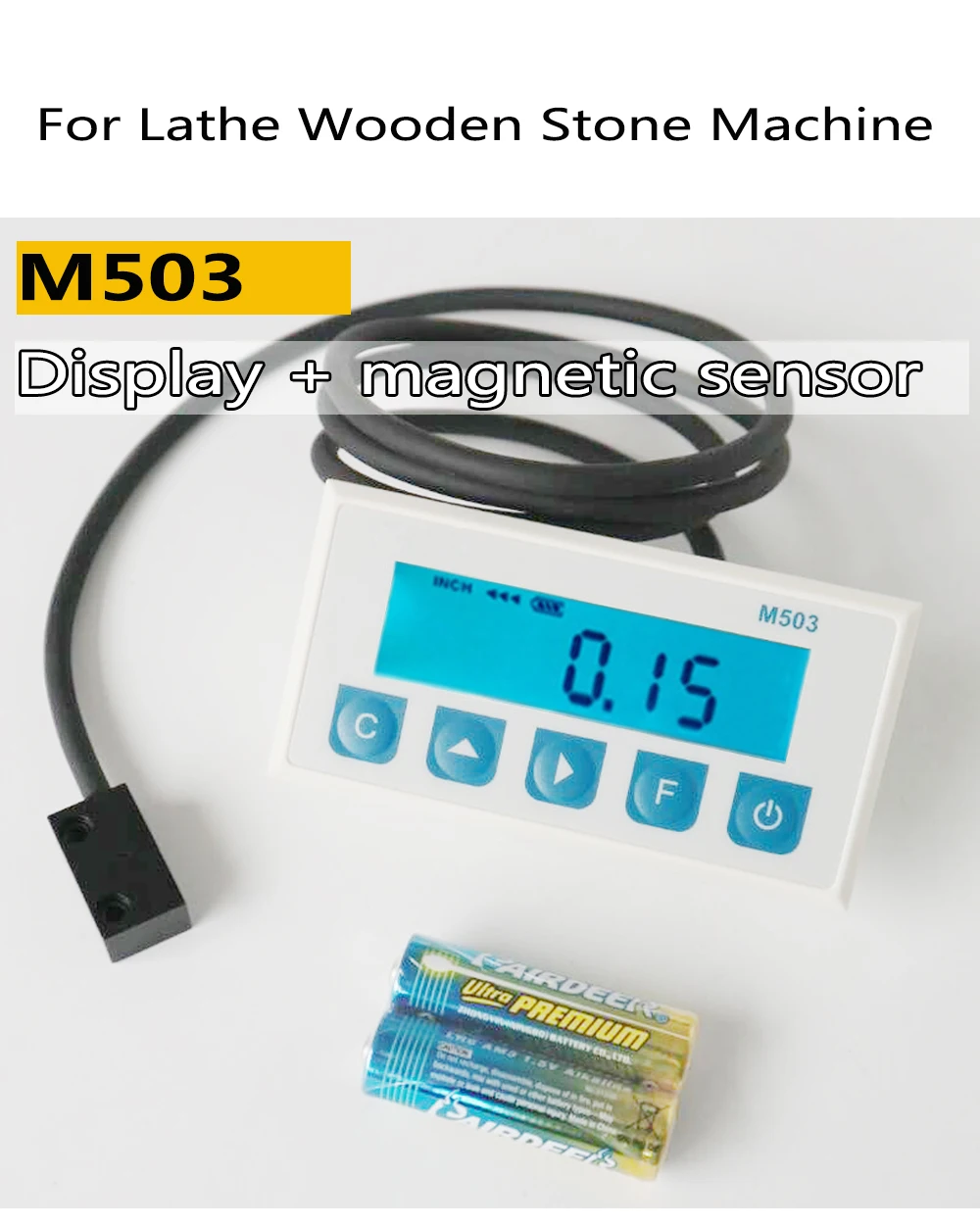

Power supply: two batteries No. 5 (AA)

Operating temperature: 0 degrees Celsius -60 degrees Celsius

Storage temperature: -10 degrees Celsius -70 degrees Celsius

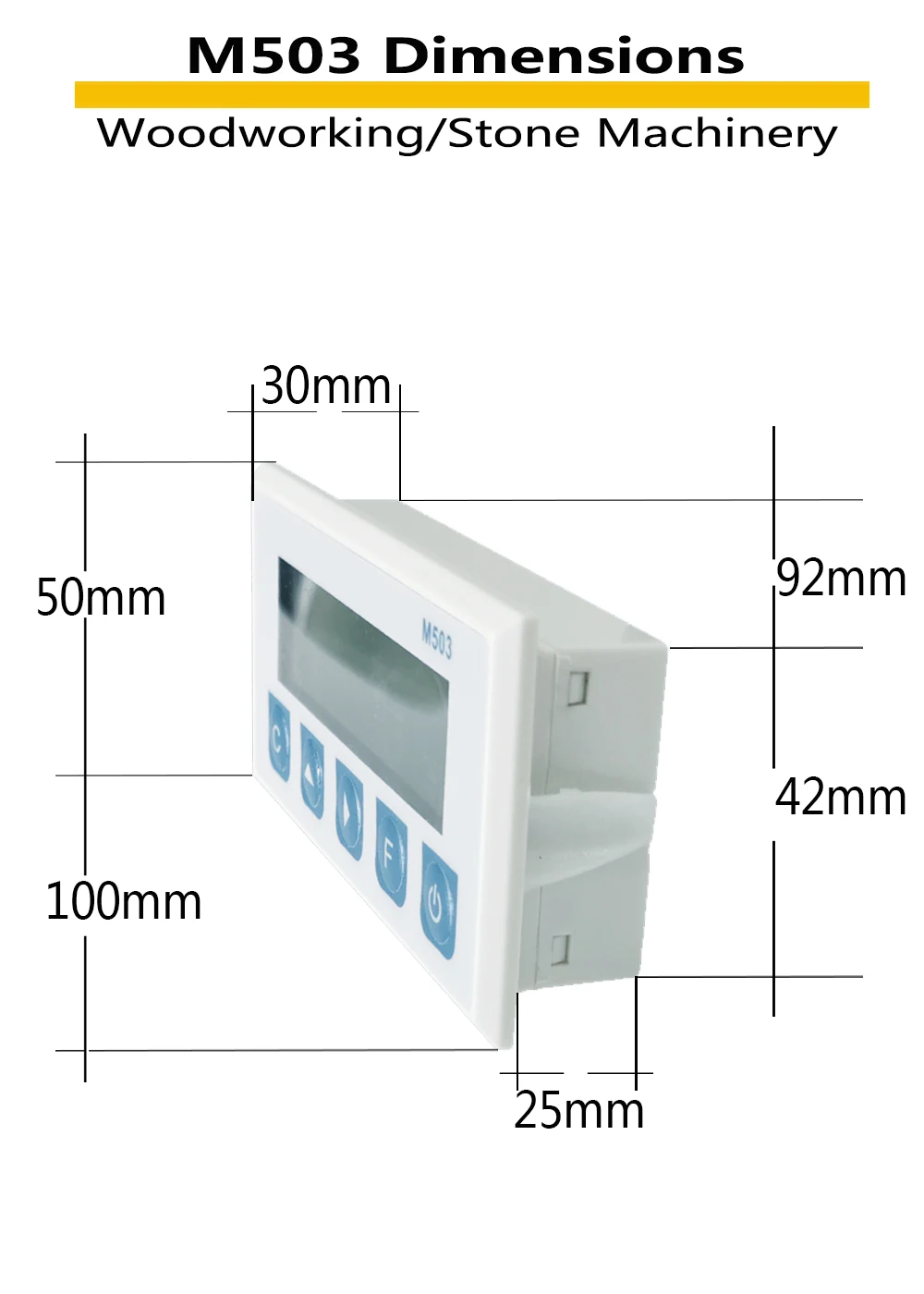

Outline size: 100*52*30mm

Opening size: 92*42mm

Read line length: 1m customizable (2M 3M 5M 6M).

Mobile speed: Max.5m/s

Read gap: Max.2.5mm, recommended 1.5mm

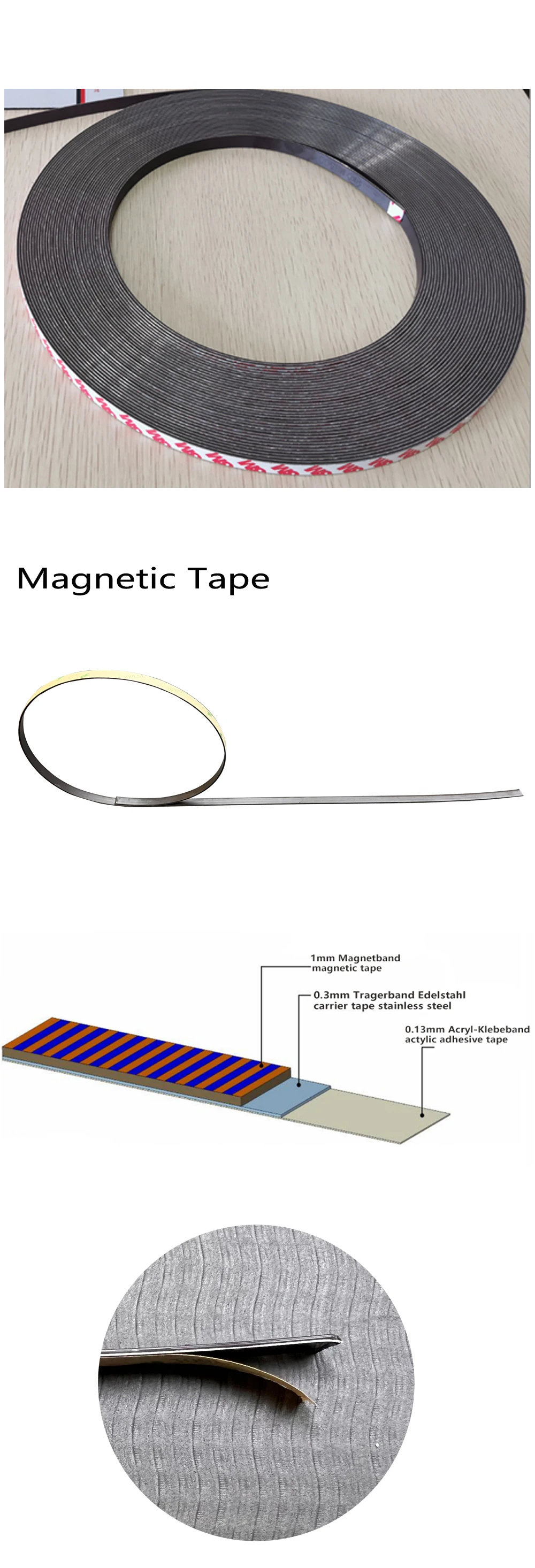

Matching magnetic stripe: FT50

Waterproof grade: digital display IP40, read head IP60

Weight: Max.150g
