Description :

Voltage: DC48V-60V

Current limit: 50A

Undervoltage: 41/51V

Power: 1500W/2000W/3500W

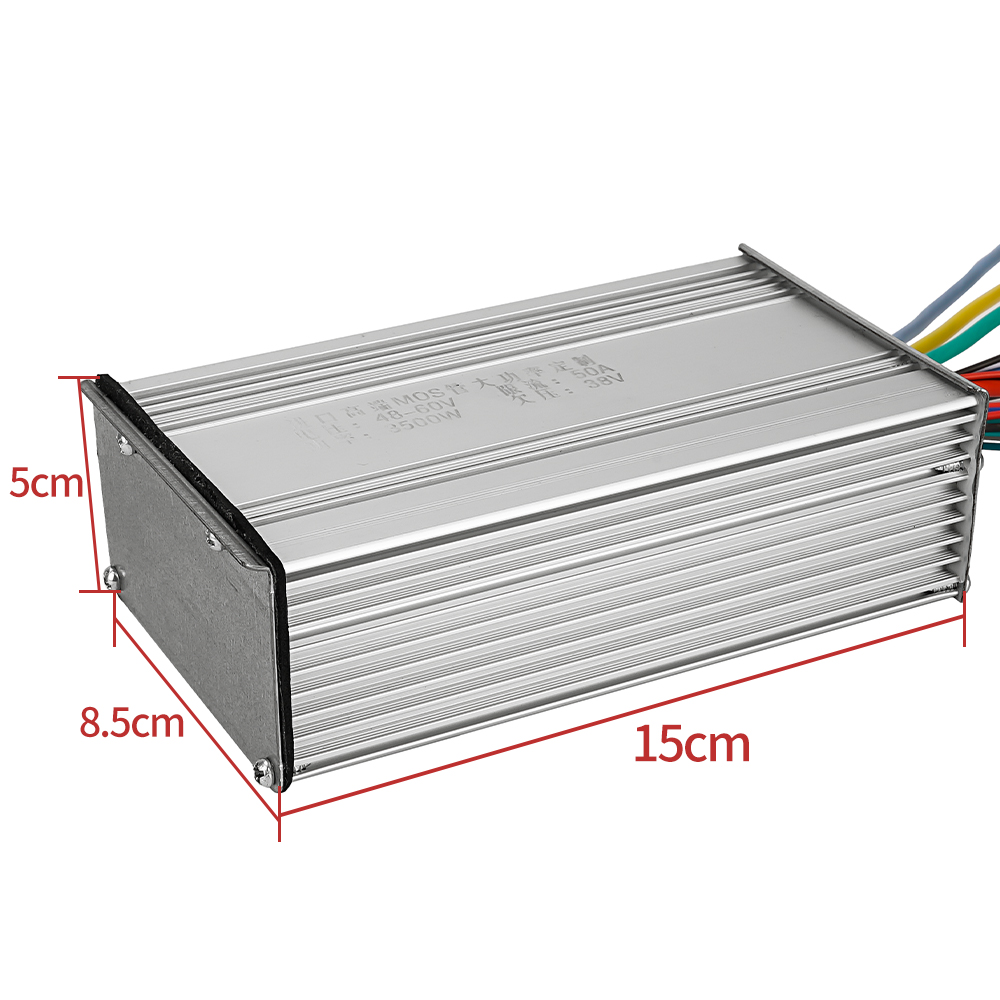

Size:145*80*50MM

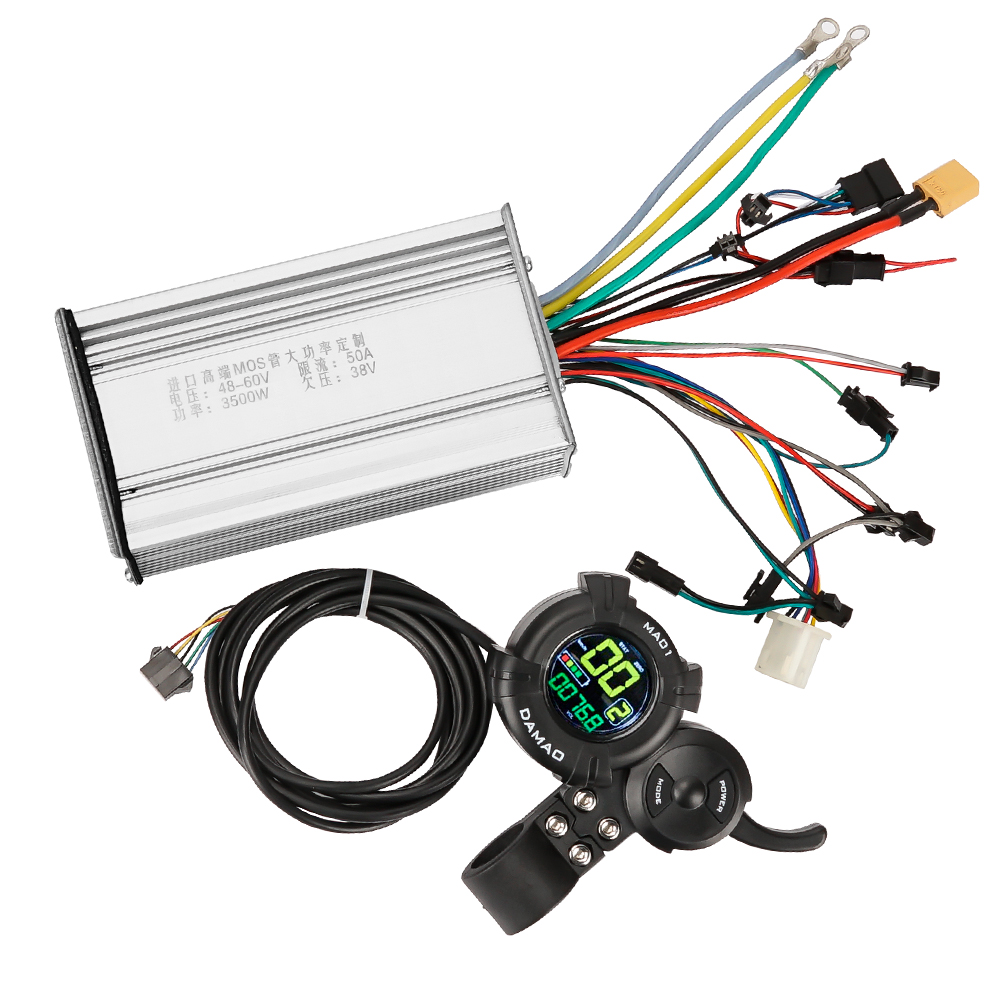

Package includes:

1*Controller

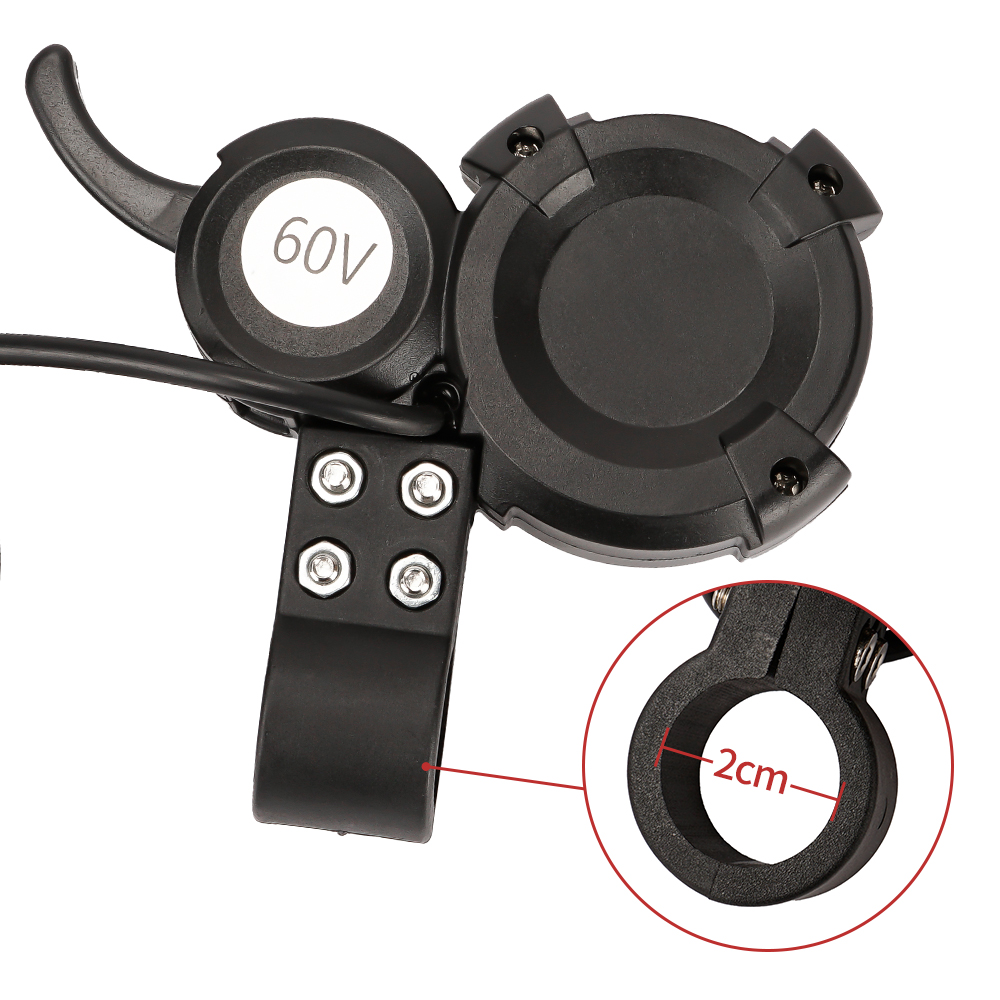

1*LCD display

Appearance size and material：



 The product shell is ABS, and the LCD transparent window is imported high-hardness acrylic, the  hardness value is equivalent to ten tempered glass.



Function description：Power switch control, wheel diameter setting, idle automatic sleep time setting, backlight brightness setting, startup mode setting, driving mode setting, voltage level setting, controller current limit setting.

      1.  Display function: speed display, power indicator, fault prompt, total mileage, single mileage.

      2.  Control and setting functions All contents of the display screen.

            (full display within 1S after power-on)
