Kicker Chevy Silverado 2014 - 2018 43C124 12" 150W Sub and 46CXA4001 800W Amp
SKU:KICKER16-PACK3028

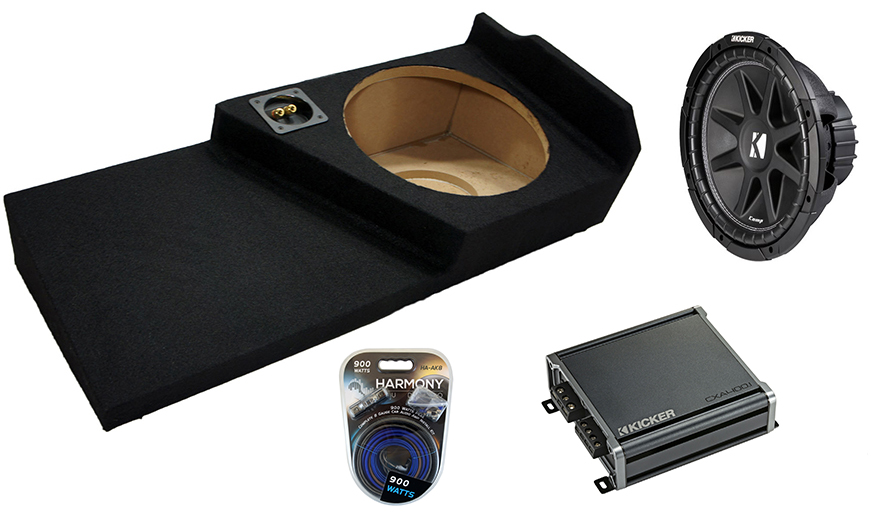

This Package Includes the Following Items:
- 1 x Harmony Audio 3" Wood Build Screws - Quantity 4
- 1 x 2014 - 2018 Chevy Silverado Double Cab Truck Single 12 Sub Box Subwoofer Enclosure
- 1 x Harmony Audio 24" Wire with .205" Spade and Soldered End
- 1 x Kicker 43C124 12" Comp C12 Series Sub 150W RMS 4 Ohm SVC Car Subwoofer
- 1 x Kicker 46CXA4001 Car Audio Class D Amp Mono 800W Peak Sub Amplifier CXA400.1 New
- 1 x Harmony Audio HA-AK8 Car Stereo Complete 8 Gauge 900W Amp Amplifier Install Kit - Nickel
- 1 x Subwoofer Mounting Depth Extender Adaptor Universal 12"
Harmony Audio 3" Wood Build Screws - Quantity 4:

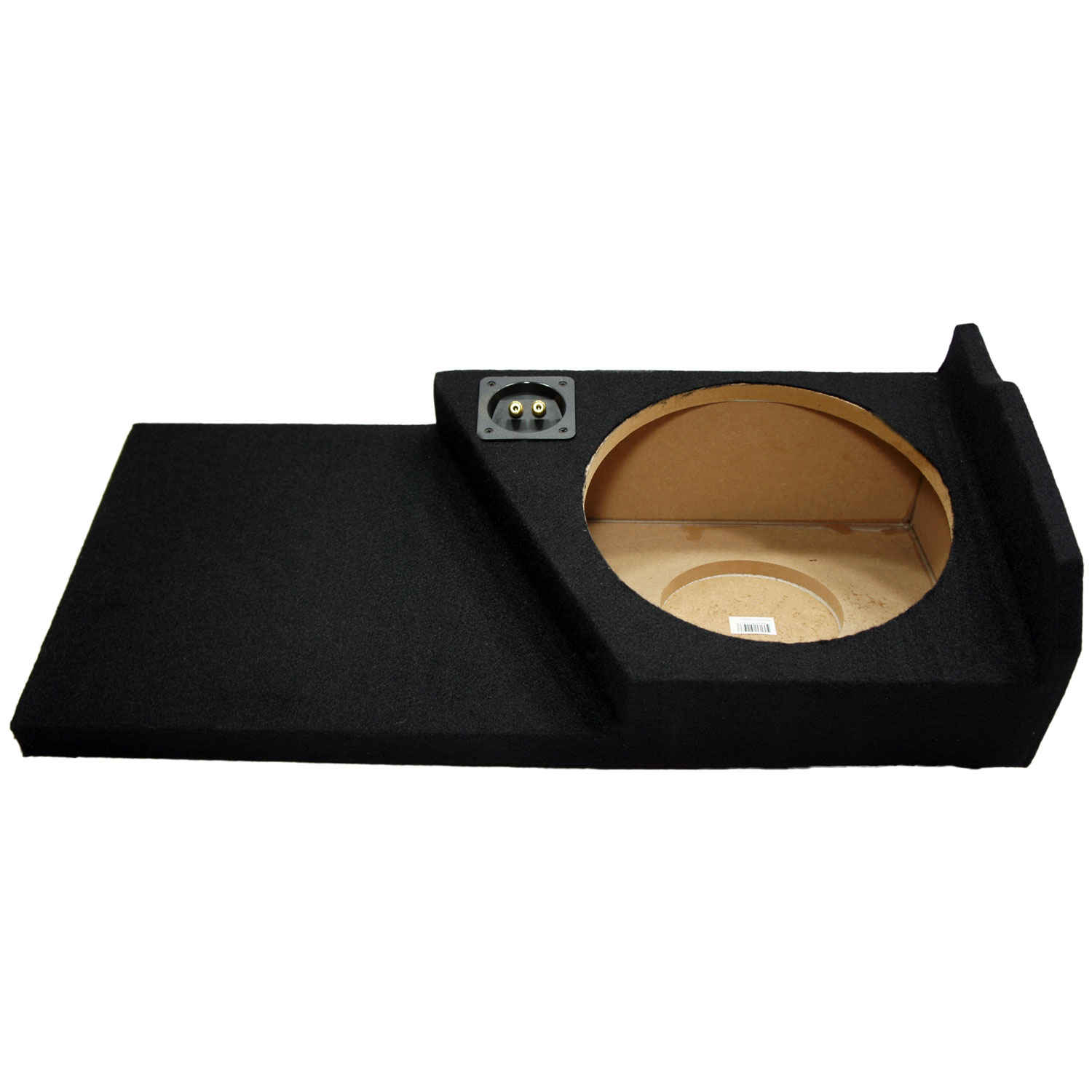

2014 - 2018 Chevy Silverado Double Cab Truck Single 12 Sub Box Subwoofer Enclosure:
Features:
- 2014 - 2018 Chevy Silverado Double Cab Truck Custom Single 12" Subwoofer Enclosure Sub Box
- Mounting Depth: 5-1/2"
- Air Space: 0.55 Cubic Feet
- Sealed Enclosure
- Constructed with High Quality MDF
- High Quality Twist Knob / Banana Plug Terminal Cup (Bare Wire 'up to 10GA')
- High Quality Black Carpet
- Overall Dimensions: 28-3/4" L X 14-3/4" X 9-3/4" H
- Enclosure installs under the rear seat, subs fire downward
This box fits:
- 2014 - 2018 Chevy Silverado Double Cab Truck

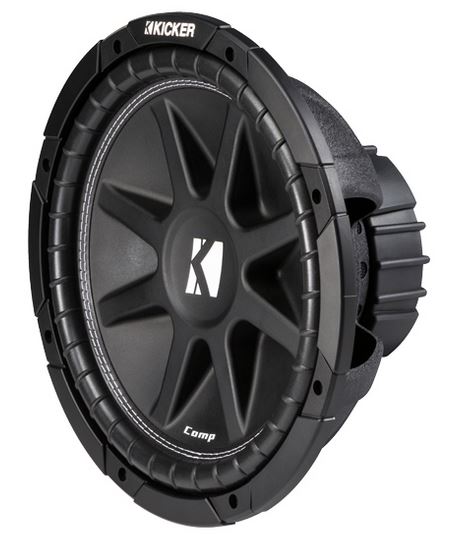

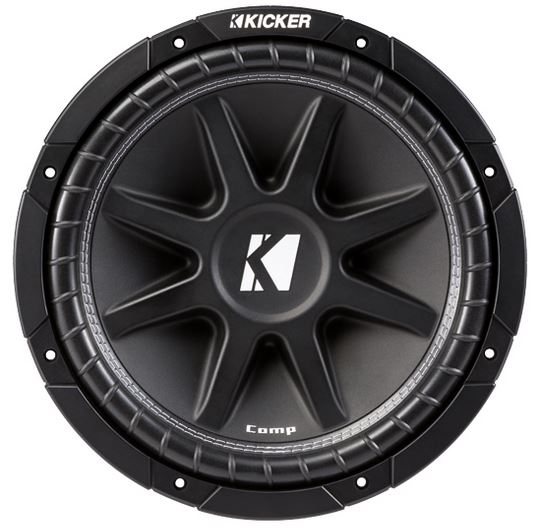

Kicker 43C124 12" Comp C12 Series Sub 150W RMS 4 Ohm SVC Car Subwoofer:

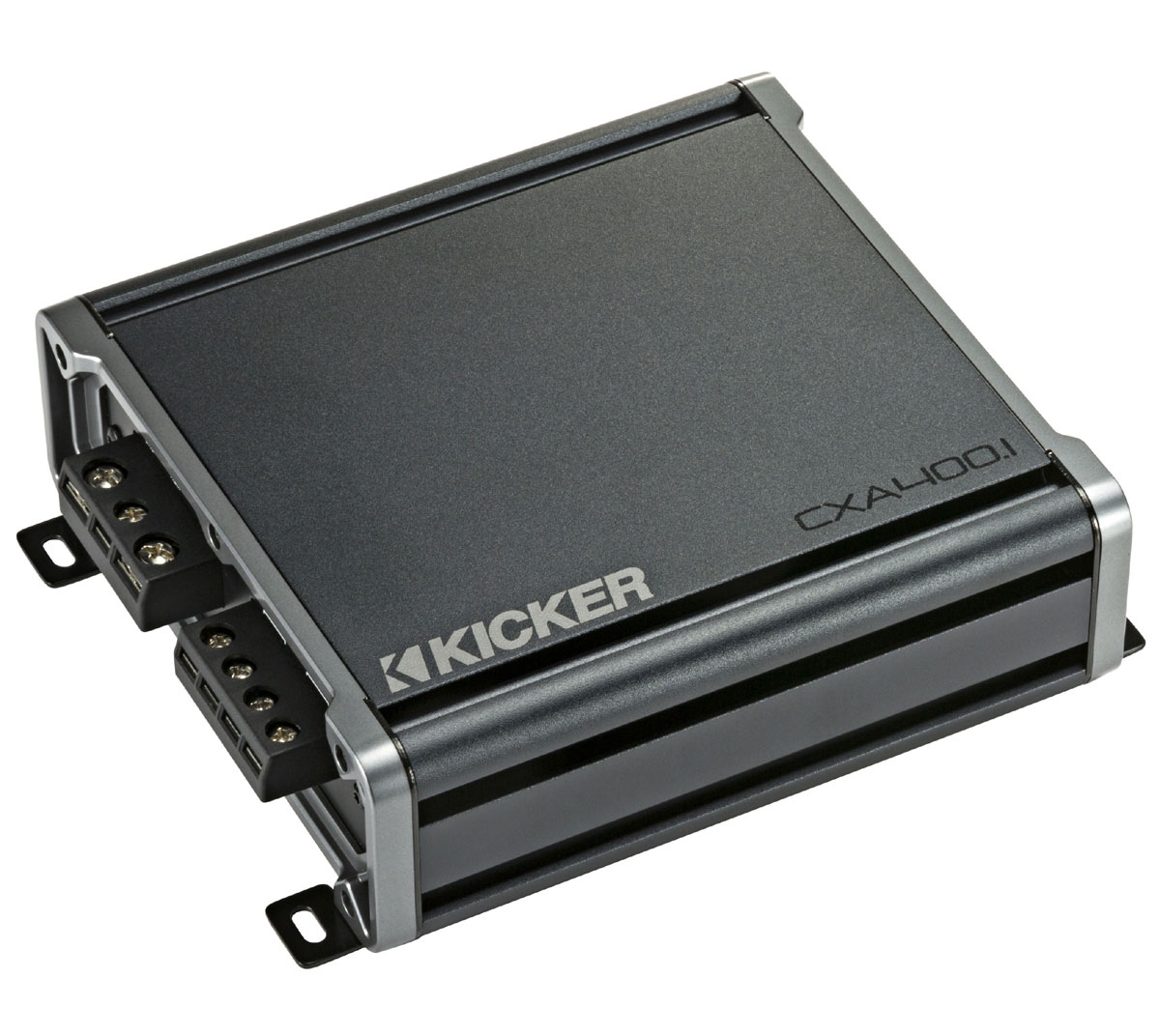

Kicker 46CXA4001 Car Audio Class D Amp Mono 800W Peak Sub Amplifier CXA400.1 New:
Features
- Efficient Class-D amplifier - 1 Ohm Stable
- Three-second turn-on/off delay to eliminate unwanted interference
- Variable 12dB crossovers provides control to dial in perfect sound
- KickEQ 6dB variable bass boost for those additional low frequencies
- 24dB subsonic filter for protection from potentially damaging frequencies
- FIT+ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
- Accepts up to 40-volt input signal
- Small footprint for easier installation
- Vertical mounting hardware included for another unique look
Specifications
- Power Handling:
- 300 Watts x 1 @ 2 Ohm RMS
- 600 Watts x 1 @ 2 Ohm PEAK
- 400 Watts x 1 @ 1 Ohm RMS
- 800 Watts x 1 @ 1 Ohm PEAK
- Frequency Response: 25Hz - 200Hz
- Signal to Noise Ratio: 95dB
- Input Sensitivity:
- High level 250mV-10V
- Low level 125mV-5V
- Active Crossover: 12dB/octave, variable 50-200Hz, low pass only
- Subsonic Filter: 24dB/octave high-pass fixed @ 25Hz
- Kicker EQ Boost: Variable to +12dB, centered @ 40Hz
- Bass Remote Compatible: CXRC (Not Included)
- Dimensions: 8-1/8" Length x 2-3/8" Height x 7-3/16" Width
Harmony Audio HA-AK8 Car Stereo Complete 8 Gauge 900W Amp Amplifier Install Kit - Nickel:
Specifications:
- 17FT Flexible Matte Blue 8GA Power Cable
- 3FT Flexible Matte Black 8GA Power Cable
- 20FT Flexible Matte Blue 16GA Speaker Wire
- 17FT Flexible Matte Gray & Black RCA Cable
- 17FT Flexible Matte Blue Remote Wire
- 6FT Split Loom
- Mini ANL Fuse Holder
- 80 Amp Mini ANL Fuse
- (2) 8GA Blue & Black 5/16" Ring Terminals
- (2) 8GA Blue & Black Spade Terminals
- (5) 16GA Blue & Black Spade Terminals
- (4) Pan Head Screws
- (10) Wire Ties
Subwoofer Mounting Depth Extender Adaptor Universal 12":
Features:- Single 12" Universal Trim Ring Adapter
- Adds 3/4" to total subwoofer depth
- Sold Individually
- Ideal for adding mounting depth
- Constructed with High Quality 3/4" MDF
- High Quality Black Carpet


This comprehensive single 12" subwoofer package is designed for 2014-2018 Chevy Silverado Double Cab trucks. It includes a custom-fit, sealed enclosure for under-rear-seat installation, a Kicker Comp C12 Series 12" subwoofer, and a Kicker CXA400.1 mono amplifier delivering 400W RMS at 1 ohm.
The kit also includes mounting screws, a spade connector wire, a Harmony Audio 8-gauge amplifier installation kit with all necessary wiring and protection, and a 12" subwoofer mounting depth extender. This provides all the essential components for a complete and quality bass upgrade in your Silverado.
