--No driver, light and flexible, plug-and-play.

--High-quality scaling technology for rendering input resolution.

--Support NTSC and PAL standard TV output, support HDMI-compatible 1.4 and backward compatible.

--Power adapter specifications: AC 100V-240V 50/60HZ, DC 5V/1A.

--HDMI-compatible input cable length: ≤7m AWG26 HDMI-compatible standard cable; SCART output cable length: ≤8m AWG26 SCART standard line.

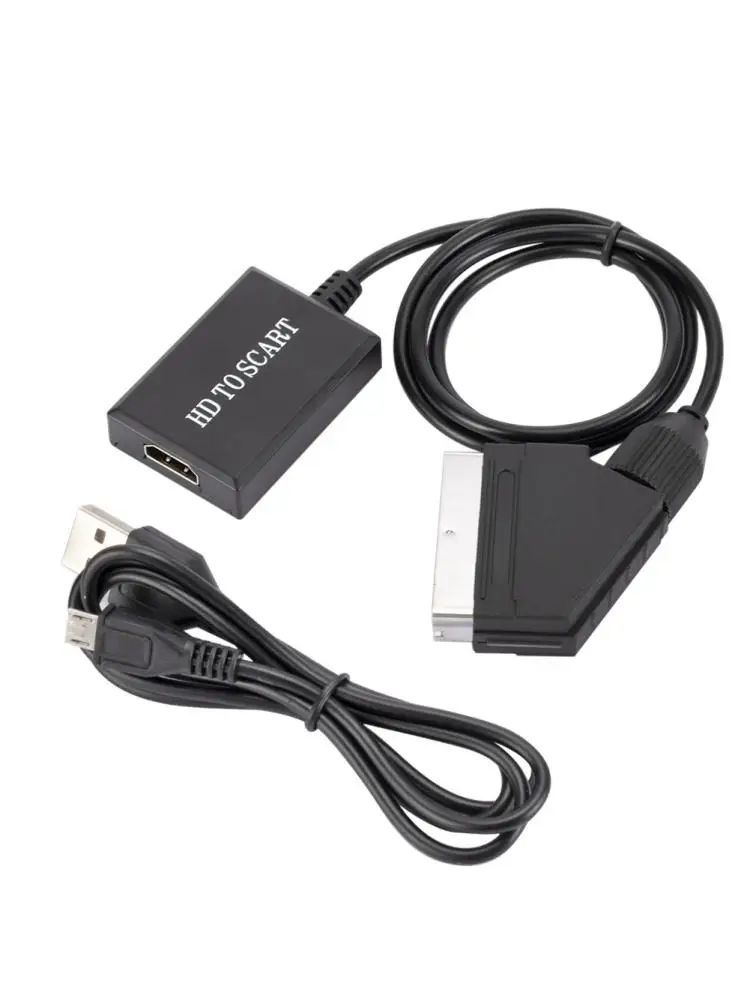

Item Introduction: This mini hdmi-compatible to scart converter can convert hdmi-compatible digital audio and video signals to composite video signals and left and right stereo audio signals. At the same time, it supports DVI system signals, helping users to convert high-quality HDMI-compatible signals into ordinary CVBS signals (standard resolution 480i, 576i), which can be played on CRT TV, VHS Video Recorder, DVD Video Recorder and other equipment, and supports NTSC and PAL TV format output.

Name: HDMI-compatible to SCART adapter

Input: HDMI-compatible

Output: SCART

Resolution: PAL/NTSC switch

Shell: ABS

HDMI-compatible input and output resolution: up to 1.3/60fs

HDMI-compatible supports video color format: 24-bit/Deep 30-bit/36-bit

HDMI-compatible maximum transmission bandwidth: 300MHz

HDMI-compatible maximum transmission speed: 10.2 Gbps

Input and output TMDS signal: 0.5~1.5Vp-p(TTL)

Input and output DDC signal: 5Vp-p (TTL)

RCA analog output (1KHz@0dB): 1V RMS

Signal-to-noise ratio@0dB (CC1R/ARM): ≥90dB

Distortion: ≤0.1%

Frequency response: 20HZ~20KHz

HDMI-compatible input cable length: ≤7m AWG26 HDMI-compatible standard cable

SCART output cable length: ≤8m AWG26 SCART standard line

Maximum working current: 600mA

Power adapter specifications: AC 100V-240V 50/60HZ, DC 5V/1A

Usage:

1. Connect the dvd/bd hdmi-compatible hd output to the hdmi-compatible input of the splitter through an hdmi-compatible cable.

2. Connect the scart output of the converter to the scart input of the TV/Monitor via the scart cable.

3. Turn the switch to the left when you need to display the PAL standard, and turn it to the right when you need to display the NTSC standard.

4. Finally, connect the DC head of the power adapter to the DC input of the converter, and then insert the adapter plug into the power socket.

1 x HDMI-compatible to SCART adapter

1 x USB cable

1 x user manual

1 x packing bag

1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.

2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
