SURPASSHOBBY RC Auto Program Card LED Program Box Specially for 1/10 RC Crawler Car ECS RC Toys Accessory
Features:
1.Initial Start Force:5%,13%,21%,32%(default value 5%).2.Low Voltage Cut-Off: The function is mainly to prevent the lithium battery pack from over discharging. When using lithium battery pack, please set the suitable value for low-voltage protection as your like. WARNING: Never use the default value “Non-protection” for lithium battery! 3.1V.3.3V.2.9V(default value 3.1V).
3.Drag Brake Force: 100%,90%,80%,70%(default value 100%).
4.Maximum Reverse Force: 95%,75%,50%(default value 95%).
5.3 Start Modes (Also called “Punch”) from “soft” to “very aggressive” (default value Medium).
Descriptions:
Specially for RC Car and Truck Crawler ECS RC Car Accessory.
Brand Name: SURPASS HOBBY
Use: 1/10 RC Crawler Car ECS
For Vehicle Type: 1/10 RC Crawler Car Cars
Remote Control Peripherals/Devices: LED Program Card
Material: ABS
Color: Black-red

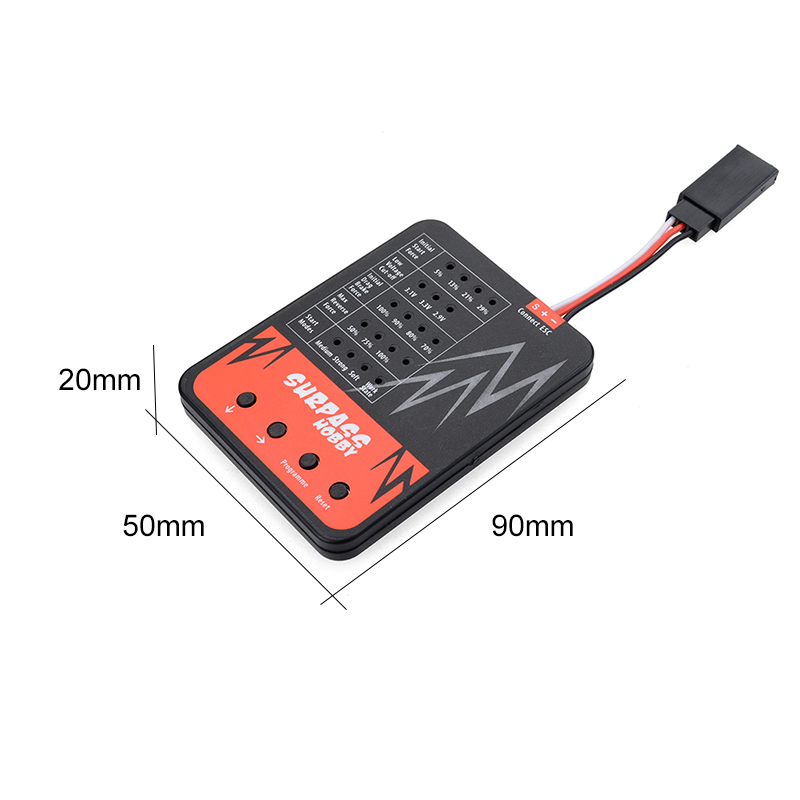

Size: 90x50x20mm/3.51x1.95x0.78in
Weight: 19g/0.665oz
Programme Card Method:
1.Connect BEC wires with the program car then turn on the ESC.
2.The Green LED flashes for 2 times then LED off, that is, the connecting program car with ESC is successful, and the Red LED on presents the current value of that item. Otherwise, the connecting is failed.
3.Please press the Key “↓” to select different programs
4.Please press the Key “→” to select different value of the current program
5.Please press the Key “Program” to confirm above selections, the Green LED on immediately and has gone out within 5 seconds, that is, this process is successful.
6.Please press the Key “Reset” to reset the factory setting.
Package Information:
Package Size: 9*5*2cm
Package Weight: 26g/0.91oz
Polybag Package
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
