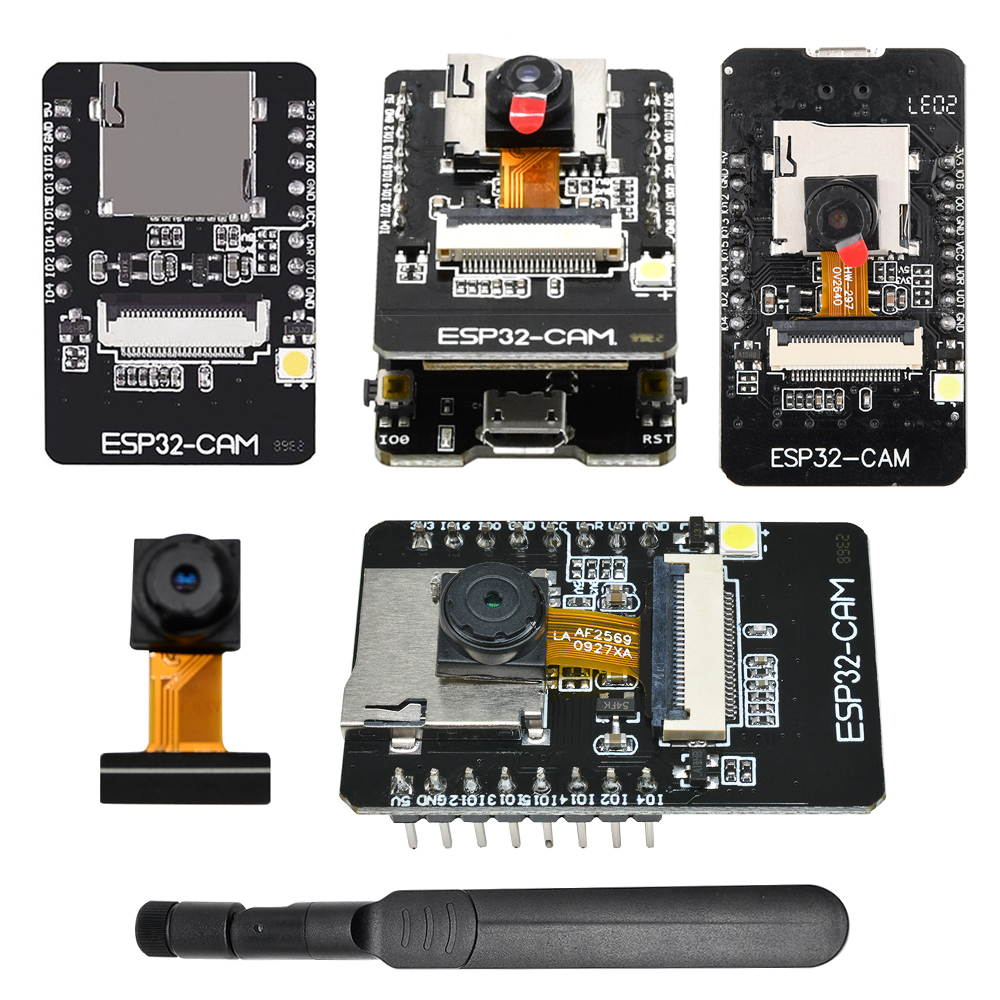

ESP32-CAM With Antenna

Product parameter

Module type: ESP32-CAM Enhanced Version

Product Size: 27*40.5*4.5(±0.2)mm

SPI Flash: 32Mbit

RAM: internal 520kb + external 4M PSRAM

Bluetooth Version: Bluetooth V4.2 BR/EDR And BLE Standard

WI-FI: 802.11 b/g/n/e/i

Supported interface: UART, SPI, I2C, PWM

Supported TF card: Max. 4GB

Serial port rate: 115200bps

Image output format: JPEG(Only OV260 Support), BMP, GRAYSCALE

Frequency Range: 2412-2484MHZ

Antenna form: External sword-shaped dual-band antenna interface, 8dbi

Transmit Frequency:802.11b:17±2 dBm(@11Mbps)

802.11g:14±2 dBm(@54Mbps)

802.11n:13±2 dBm(@MCS7)

Receiving sensitivity: CCK, 1 Mbps: -90dBm

Light-sleep:

Power supply: 5V

Working temperature range:-20℃-85℃

Storage environment：-40℃-90℃, <90%RH

Package Included:

1x ESP32-Cam Module

1x 2MP OV260 Camera

1x Antenna

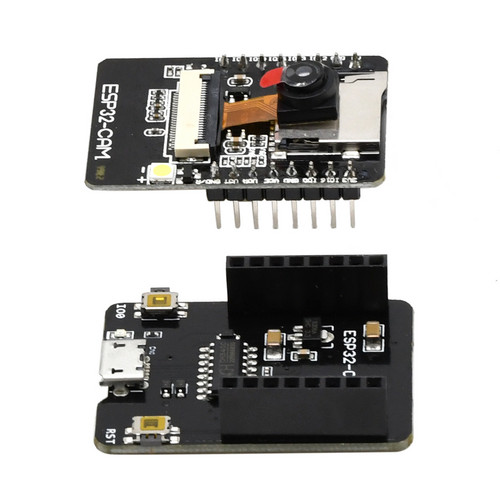

ESP32-CAM-MB

Parameter	Description
Working Voltage	4.75-5.25V
SPIFlash	Default 32Mbit
RAM	Internal 520KB+ 8MB PSRAM
Wi-Fi	802.11b/g/n/e/i
Bluetooth	Bluetooth 4.2BR/EDR and BLE standard
Supported interface （2Mbps）	UART、SPI、I2C、PWM
Support interface TF Card	Max. 4G
IO Port	9
Serial port rate	Default 115200bps
Spectrum range	2400-2483.5MHz
Antenna form	Onboard PCB Antenna , Antenna Gain 2dBi
Image output format	JPEG(Only OV2640 Support),BMP,GRAYSCALE
Packaging method	DIP-16
Transmit power	802.11b:17±2dBm (@11Mbps) 802.11g:14±2dBm (@54Mbps) 802.11n:13±2dBm (@MCS7)
Receiving sensitivity	CCK,1Mbps:-90dBm CCK,11Mbps:-85dBm 6Mbps(1/2BPSK):-88dBm 54Mbps(3/464-QAM):-70dBm MCS7(65Mbps,72.2Mbps):-67dBm
Power consumption	Turn off the flash:180mA@5V Turn on the flash and adjust the brightness to maximum:310mA@5V Deep-sleep:Minimum 6mA@5V Moderm-sleep:Minimum 20mA@5V Light-sleep:Minimum 6.7mA@5V
Safety	WPA/WPA2/WPA2-Enterprise/WPS
Operating temperature	-20 ℃~ 70 ℃
Storage environment	-40 ℃~ 125 ℃, < 90%RH
weight	10g

Package Include:

1x ESP32-CAM-MB 5V WIFI Bluetooth Development Board USB to CH340G

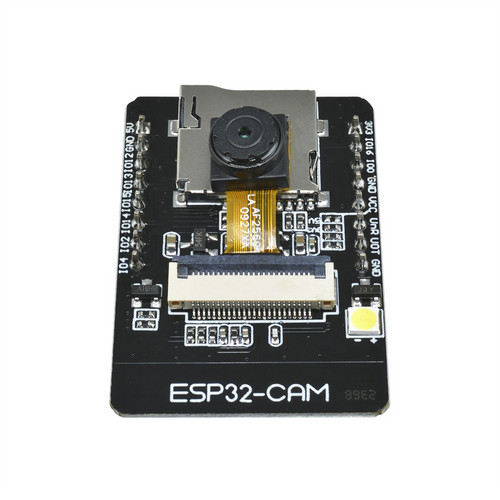

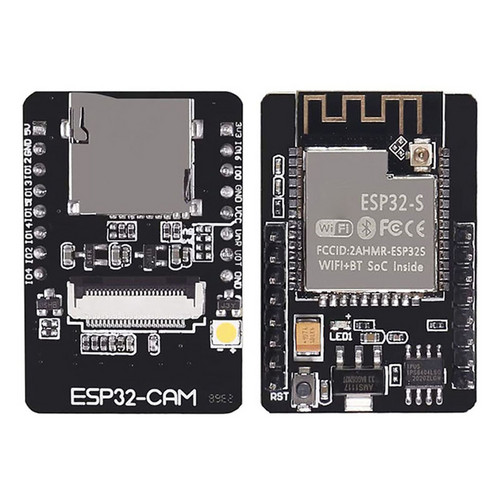

ESP32-CAM

With Camera	without Camera

Features:
Low-power dual-core 32-bit CPU for application processors.
Main frequency up to 240MHz, computing power up to 600 DMIPS.
Built-in 520 KB SRAM, external 4M PSRAM.
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC.
Support OV2640 and OV7670 cameras, built-in flash.
Support image WiFi upload.
Support TF card.
Support multiple sleep modes.
Embedded Lwip and Free RTOS.
Support STA/AP/STA+AP working mode.
Support Smart Config/AirKiss one-click distribution network.
Support secondary development.

Specification:
Voltage: 5V
Current: 2A
Dimensions: 2.7x4cm/1.06x1.57inch
Color: As shown
Quantity: 1Pc

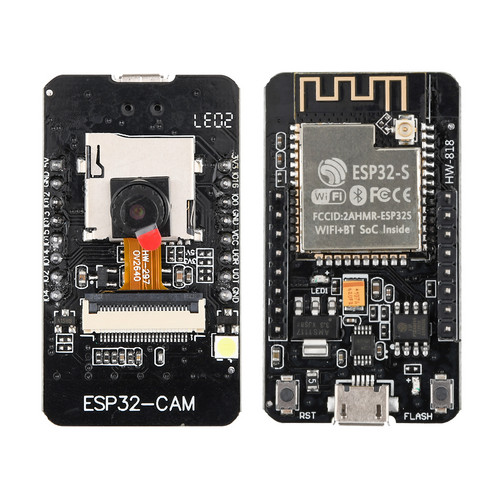

ESP32-CAM Integrated CH340

Introduction (1)

ESP32-CAM-Integrated CH340 WIFI Bluetooth development board OV2640 camera module Support manual and automatic download MICRO USB interface USB to serial port CH340
Product name: ESP32-CAM-CH340 camera module
Product model: HW-818
Working voltage: DC5V
Product size: 27*48.5*4.5mm (excluding pin header)
Product application: This module can be widely used in various IoT applications, suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It adopts DIP package and can be used directly by plugging in the bottom plate.

Format/Size	QQVGA	QVGA	VGA	SVGA
JPEG	6	7	7	8
BMP	9	9	/	/
GRAYSCALE	9	8	/	/

Introduction (two)
Program download
1. Download the software and set it up, select the program or burn the file
2. The module presses the FLASH button (to keep pressing), and then connect the module through the USB cable
MICROUSB port and computer USB port.
3. To download the software, select the correct download port and download it. When the program starts to download, you can release the FLASH button
