1969-1970 Chevrolet Bel Air Base
1969-1970 Chevrolet Biscayne Base
1969-1970 Chevrolet Brookwood Base
1969-1970 Chevrolet Caprice Base
1969-1970 Chevrolet Impala Base
1969-1970 Chevrolet Kingswood Base
1969-1970 Chevrolet Impala Base Convertible 2-Door
1969-1970 Chevrolet Caprice Base Hardtop 2-Door/4-Door
1969-1970 Chevrolet Impala Base Hardtop 2-Door/4-Door
1969 Chevrolet Bel Air Base Sedan 2-Door
1969-1970 Chevrolet Bel Air Base Sedan 4-Door
1969-1970 Chevrolet Impala Base Sedan 4-Door
1969-1970 Chevrolet Impala Base Wagon 4-Door
1969-1970 Chevrolet Bel Air Base Wagon 4-Door
1969-1970 Chevrolet Caprice Base Wagon 4-Door
1969-1970 Chevrolet Kingswood Estate
14" Fans Details:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050”
Thickness (in): 2.500”
Number of Blades: 8 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

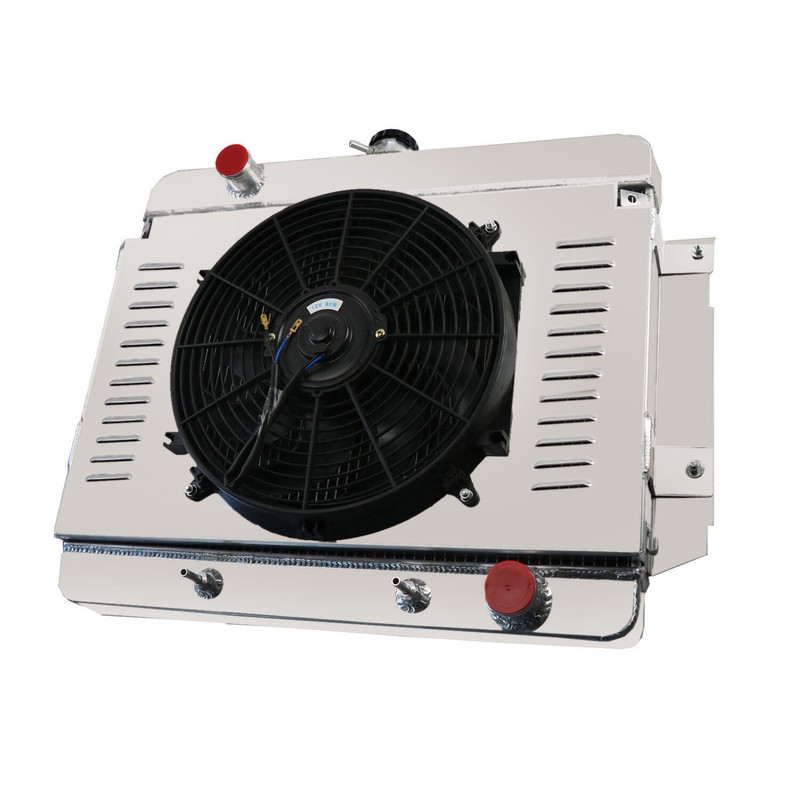

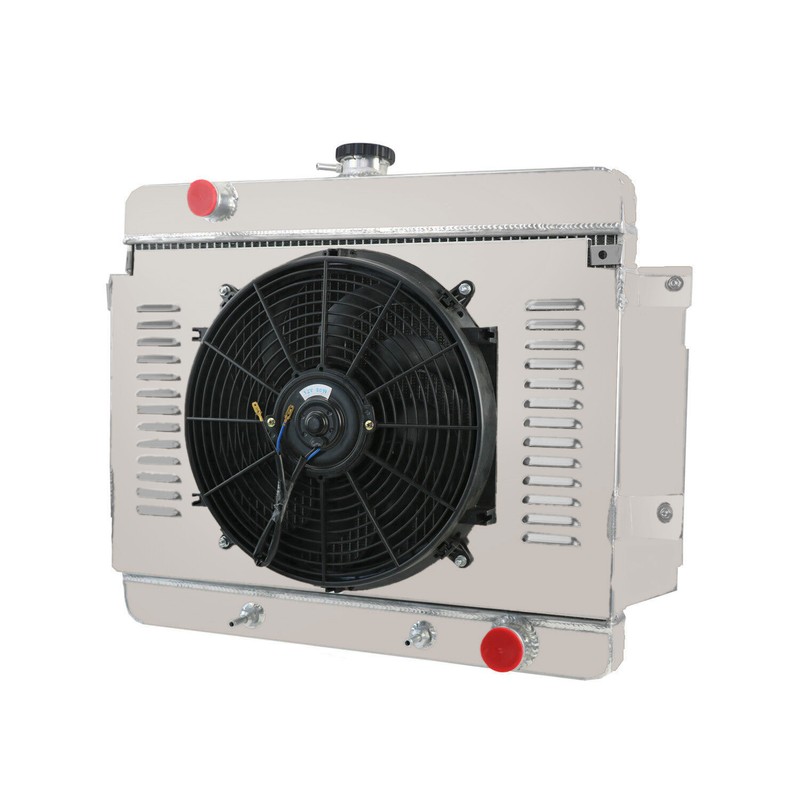

AA5052 Aluminum Shroudand Fans:
The New Design fanand the AA5052 fan shroud effectively drive the heat over and out theengine compartment rather than thrusting it into the front of the engine. Thefan shroud basically houses the fan blades securing it in place and keeping itfrom damaging the other engine components that may disturb the smooth and evenoperation of the engine. With excellent operating temperature management,allowable levels of engine temperature are stabilized. Investing in propermaintenance though will considerably benefit the ride and driving quality inmaintaining the ideal working conditions of the engine.
- Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently. Make your engine bay perfect!
- S blade fans, Push or Pull Type design, lightweight Plastic Durable Material.
- Additional with thermostat, professional matching advice, consider for every detail and needed.
The Advantage ofour Radiator:
Our Radiator ismade of AA5052 aircraft aluminum. It’s different from other sellersT-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.
More than 90% ofaftermarket manufacturers use the T-3303 series Aluminum, because it is cheaperand easier to get the material. However, T-3303 aluminum has manydisadvantages, such as poor polishing effect, softness, easiness to scratch andcorrode, poor heat dissipation effect. If the T-3303 aluminum radiator isoperated in high pressure and high temperature for a long time, the leakingproblem would occur very soon.
AA5052 Aluminum is anAl-Mg alloy with good corrosion resistance, excellent reliability and coldworkability and strength. The main alloying element of AA5052 is magnesium,which has good forming and processing properties. It is widely used in themanufacture of aircraft fuel tanks, oil pipes, and sheet metal parts oftransportation vehicles and ships, hardware products, and electrical-appliancecasings.
This AA5052 Aluminum Radiatoris designed to provide maximum cooling efficiency to prevent premature enginefailure. Its light-weight, and high-heat transferring aluminum features a tubeand fin design that, dramatically increases surface area that enables the heatto dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% moreefficient than stock ones. Most importantly, it has a much higher capacity forcoolant than stock ones, which means that your cooling system will be moreefficient and will be more resistant to temperature surges in racingapplications.
- Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
- Brazed core technology to guarantee optimum performance and dependability
- All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable
- Carefully crafted to exceptional OE standards for precise fit.
- Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
- Billet Aluminum CNC machined fill neck rugged and durable
