Typical Application for:

Compressor Scarifier Lawnmower Pump Generator Pressure Washer Gokart Lawnmower Cement Mixer Dust Collector Flail Mower.

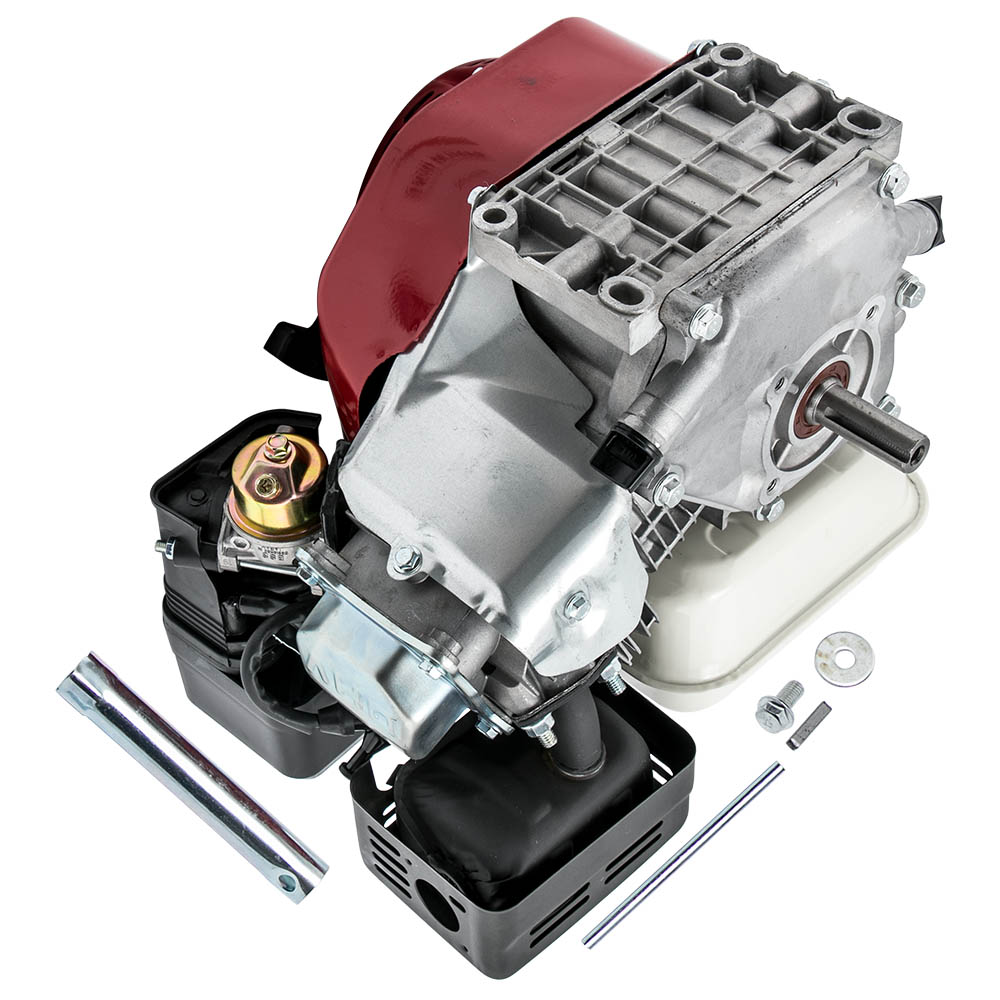

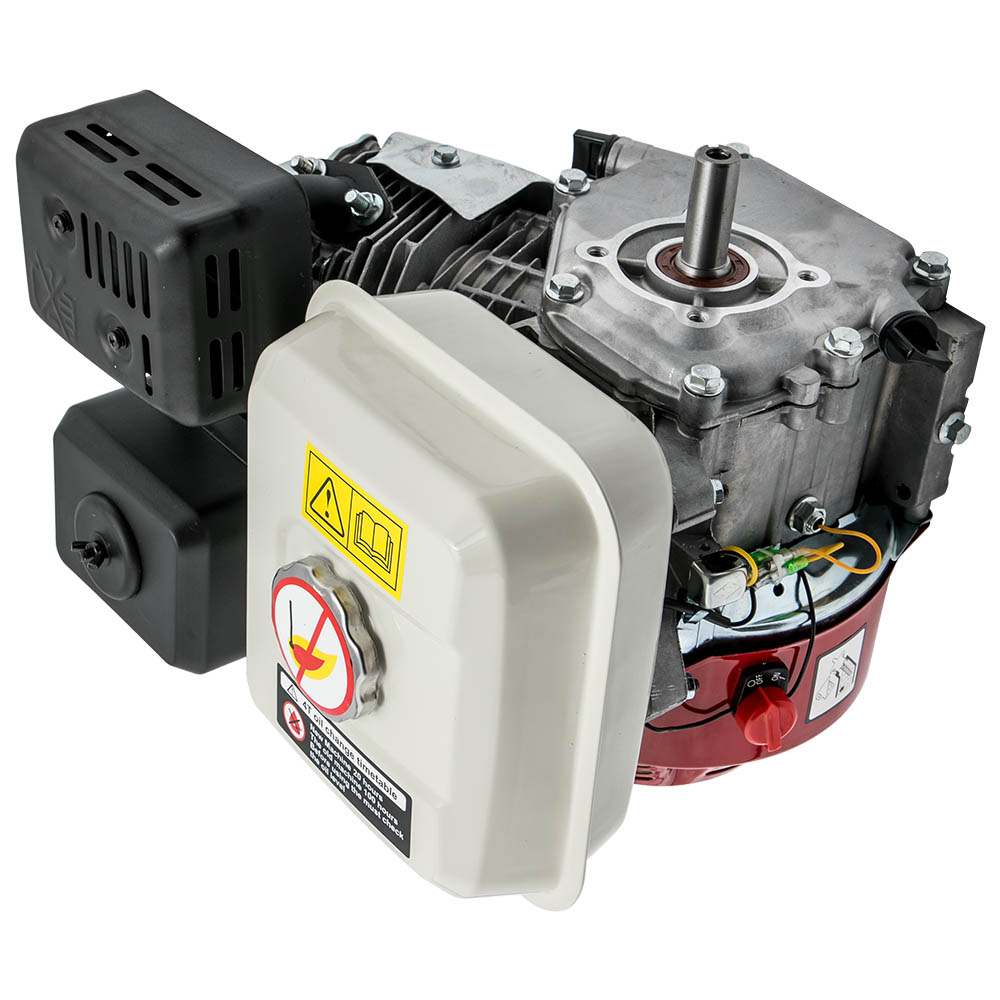

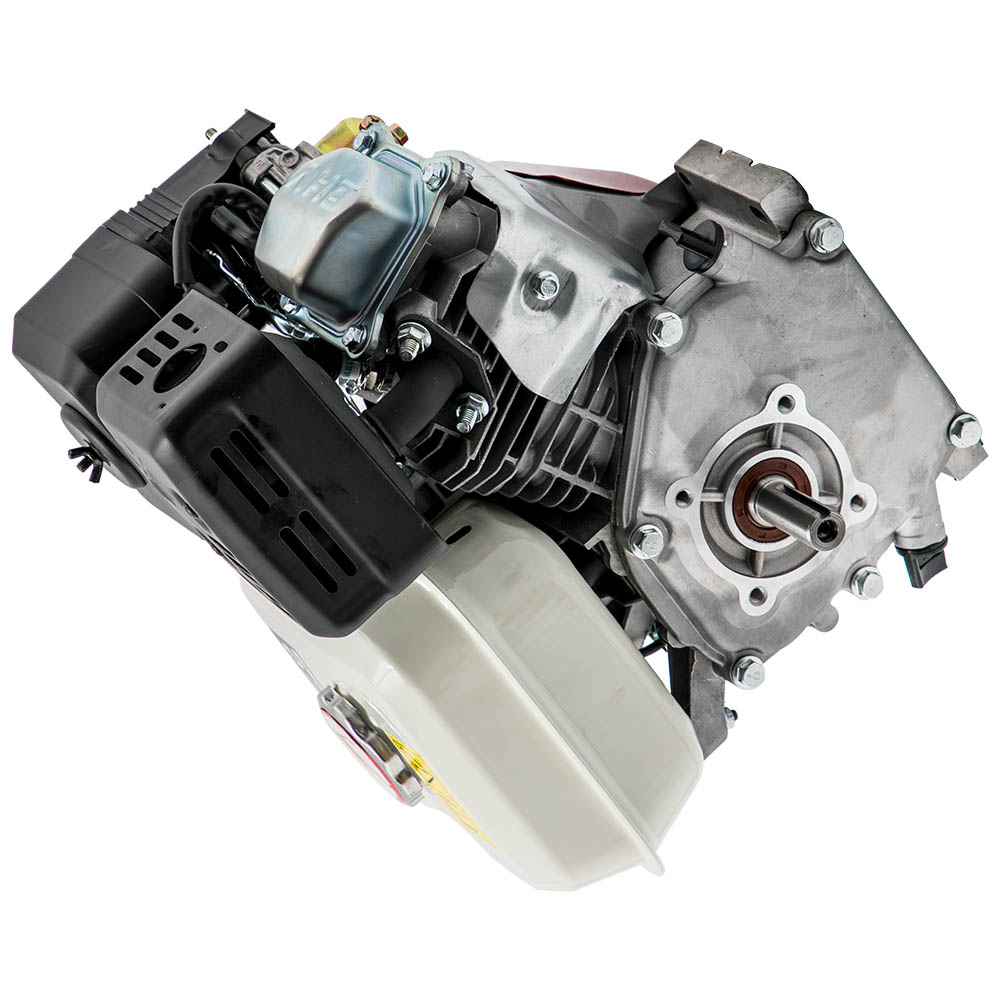

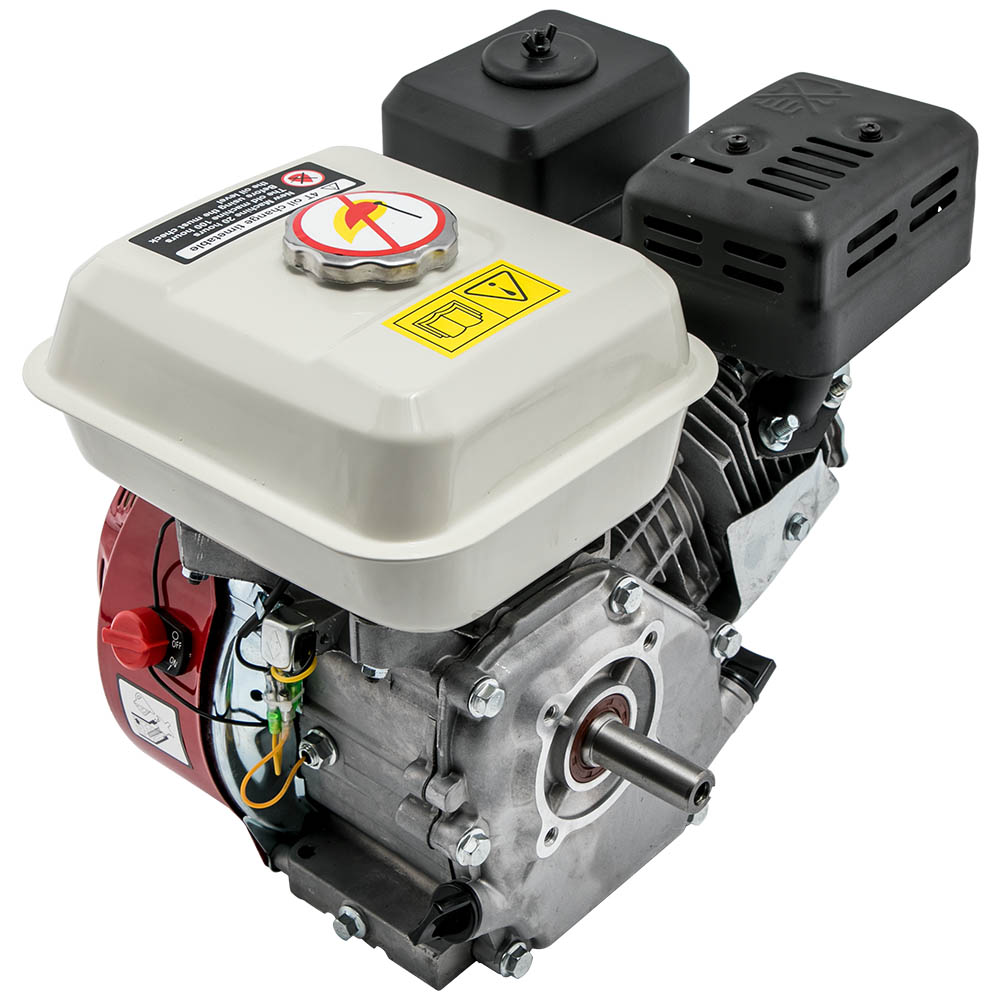

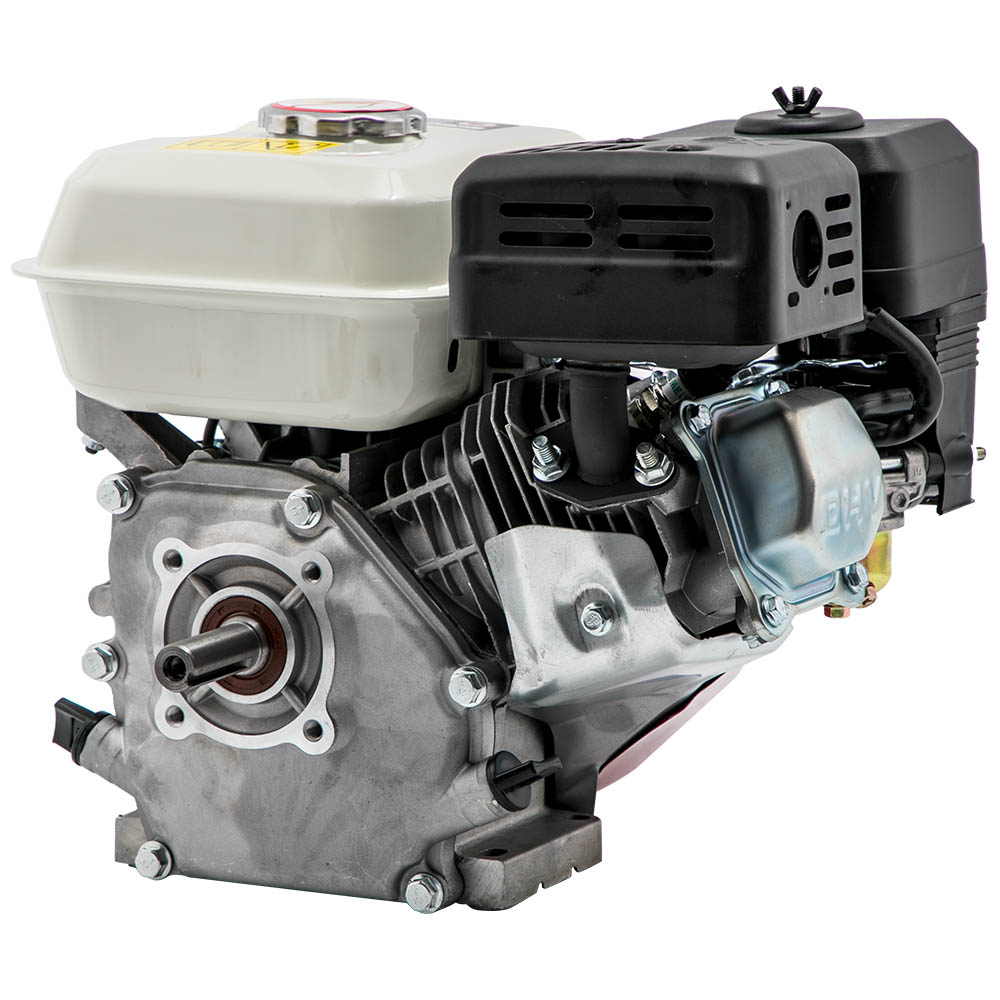

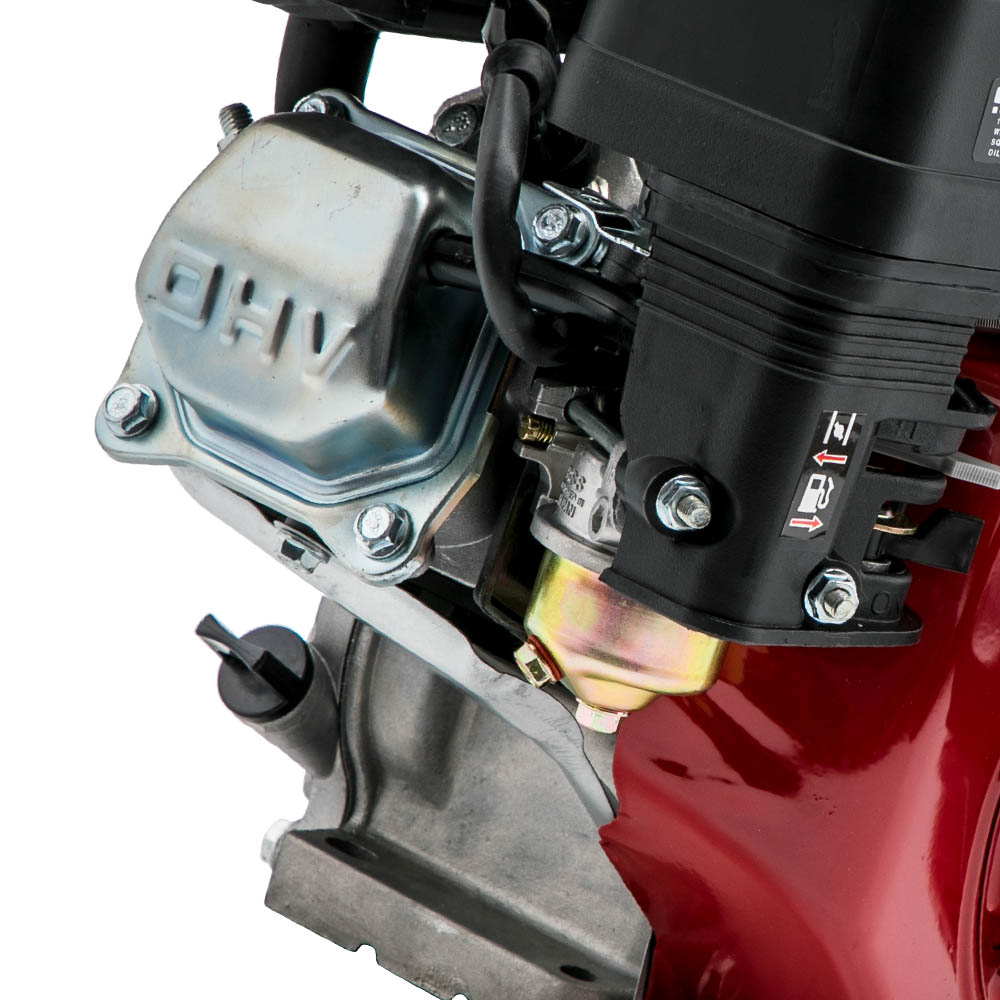

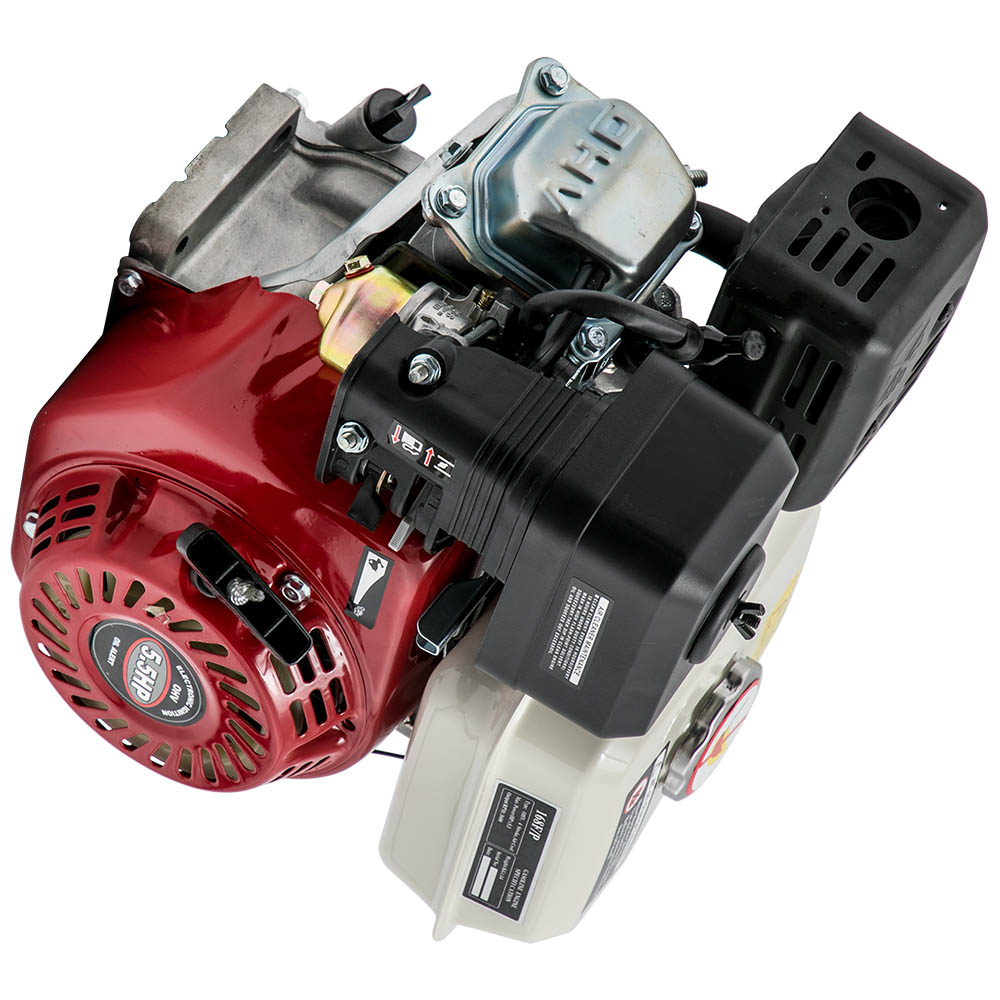

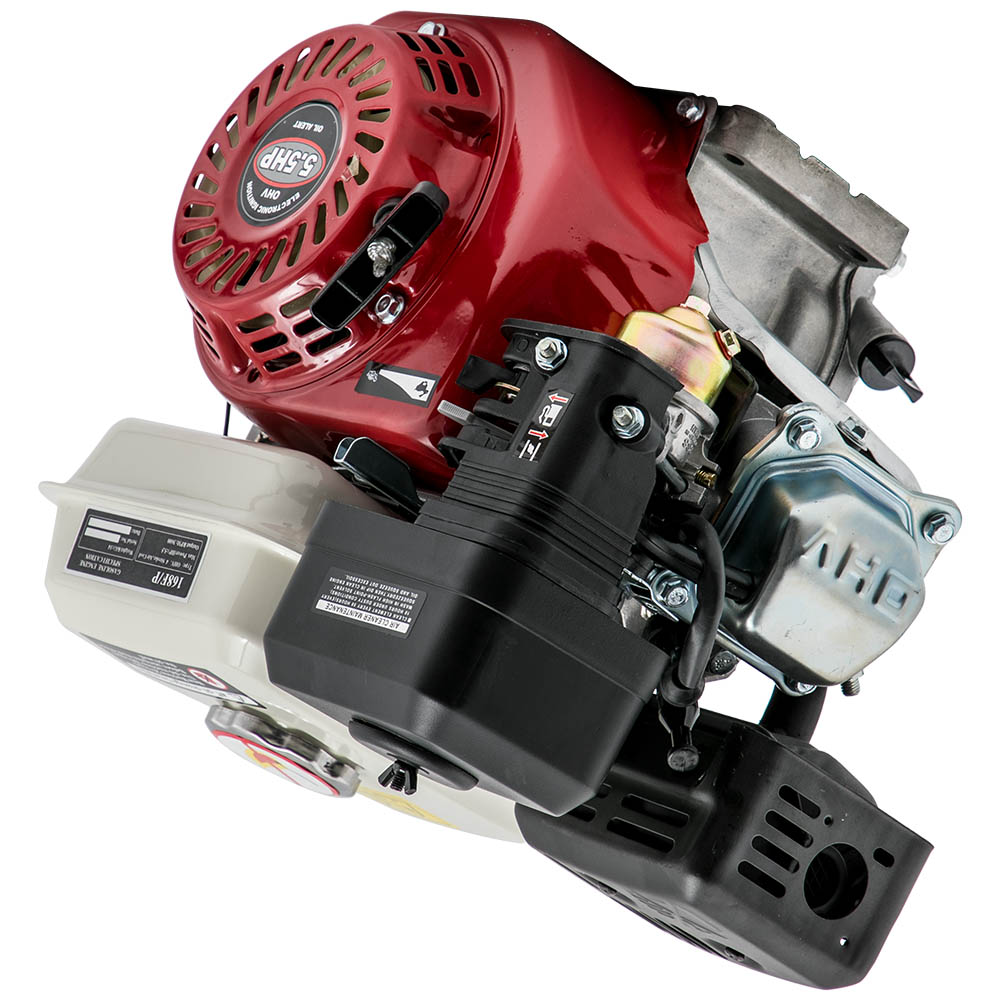

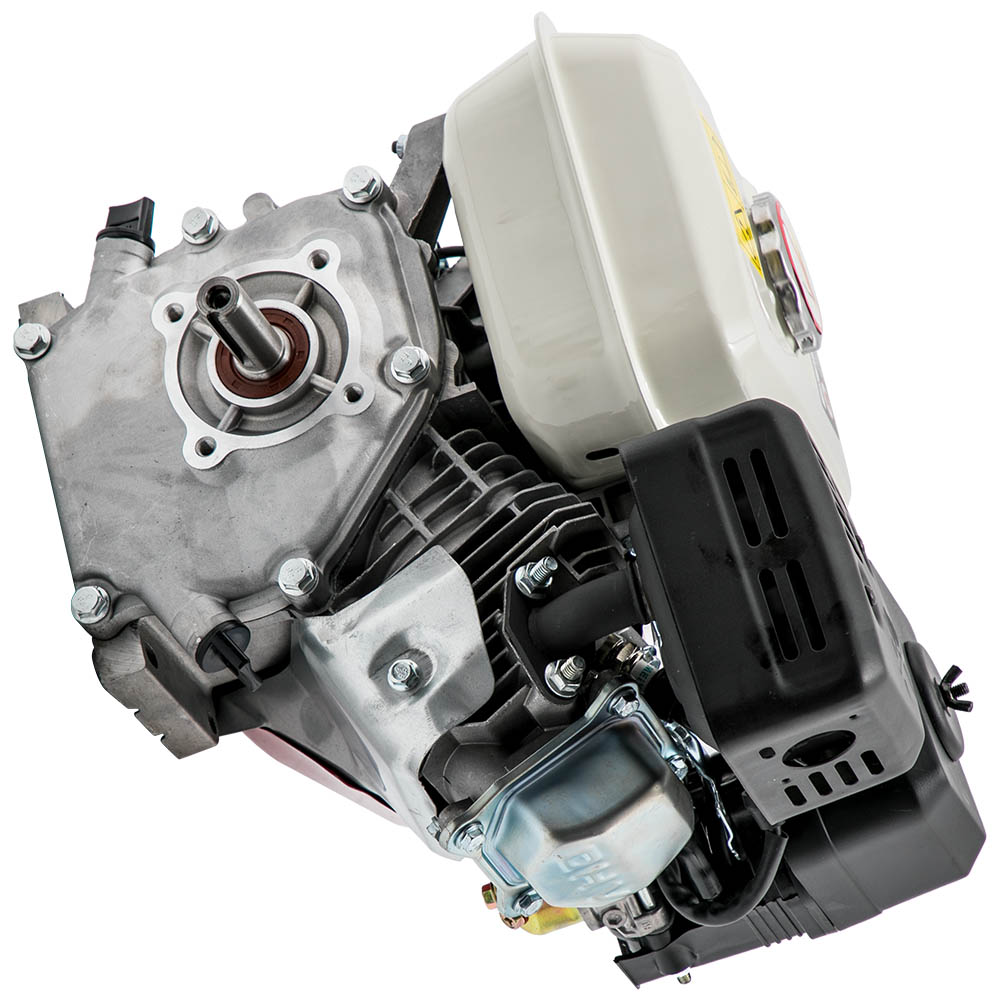

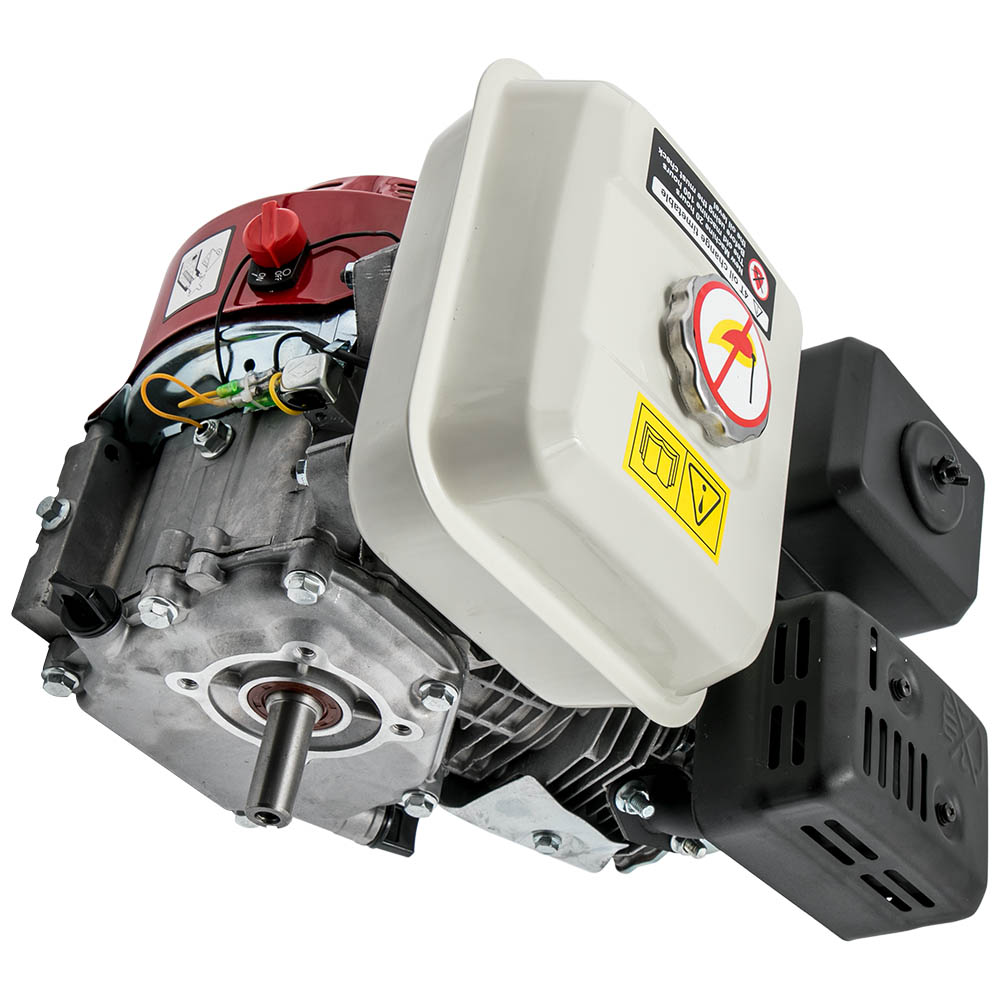

Direct replacement for Honda compatible the 4 stroke GX160 5.5HP engine

Technical Data:
Engine Type : 168F / Forced Air Cooled 4 Stroke OHV Single Cylinder

Bore & Stroke : 70x55mm

Displacement (ml) : 168cc

Compression Ratio : 8.5:1

Maximum Output : 5.5HP/ 4.1KW

Rated Output : 4.0 HP / 3.0 KW

Max. Torque (Nm / rpm): 10.7 / 2500

Starting System : Pullstart

Engine Oil Capacity : 0.6 Litre

Fuel Capacity : 3.6 Litres

Dimensions : 330H x 360L x 305W mm

Gross Weight : 16 KG

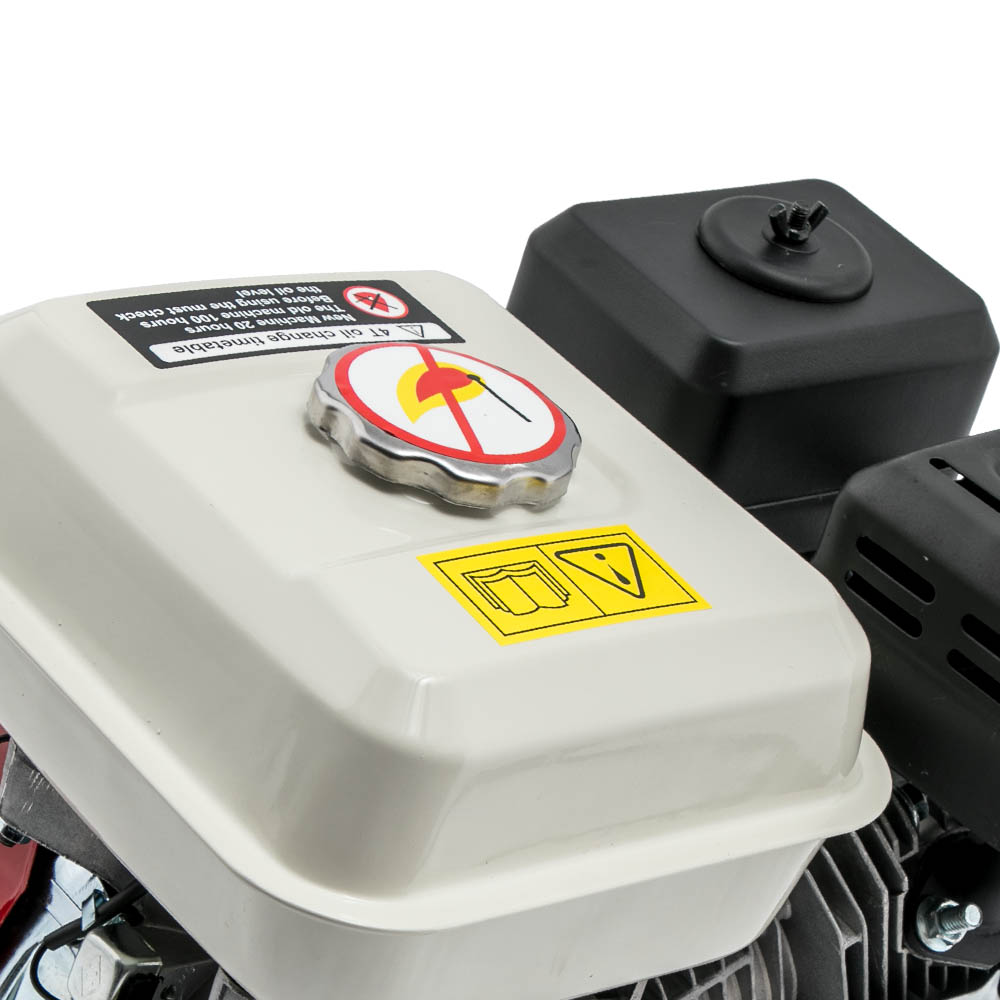

Air Cleaner : Semi Dry

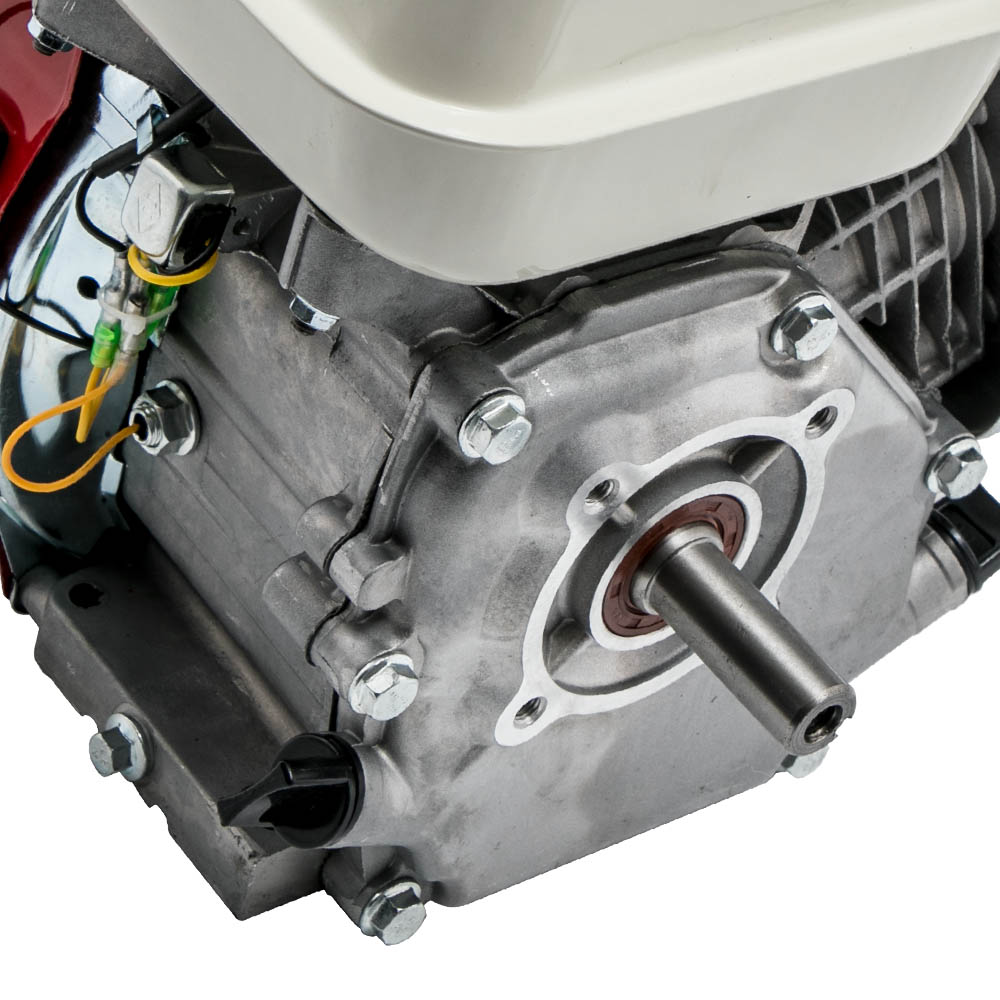

Diameter of drive shaft : 20 mm / 0.79 inches

Length of Drive Shaft: 250mm / 9.84 inches (The length of the protruding part is 50 mm)

Thread diameter of crankshaft / driveshaft: 7mm

Engine rotation: Anti clockwise

Specifics

Overall Length: 360 mm / 14.17 inches
Overall Width: 305 mm / 12.01 inches
Overall Height: 330 mm / 12.99 inches
Length of Drive Shaft: 250 mm / 2.3 inches
Diameter of Drive Shaft: 20 mm / 0.79 inches
Distance Between Bottom Fixing Holes (Clutch Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches
Distance Between Bottom Fixing Holes (Pullstart Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches
Distance Between Bottom Fixing Holes (Pullstart to Clutch across, Centre of Eye to Centre of Eye): 77.06 mm / 3.03 inches

Features

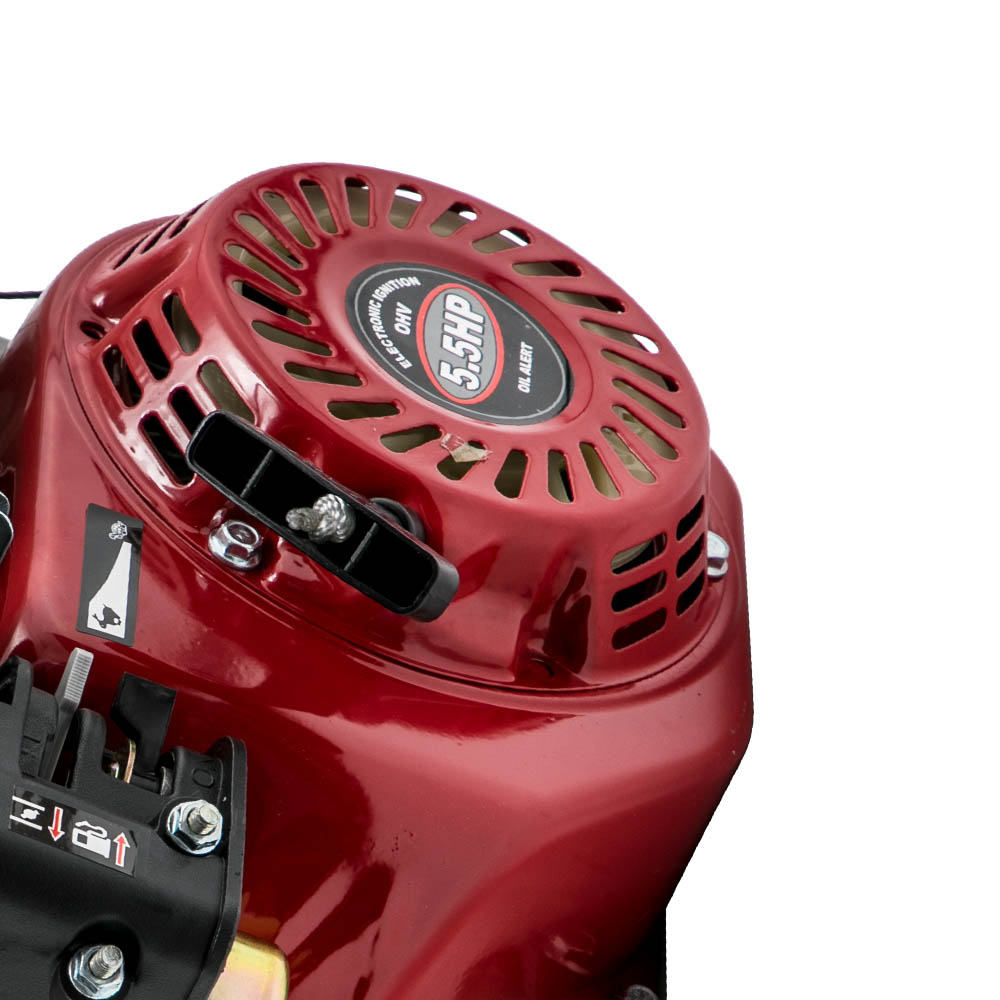

* Recoil pullstart with manual choke and fuel cut off
* Durable, reliable and versatile capable of multiple domestic and commercial applications

Notes

* Please measure your shaft with digital callipers before ordering to make sure you get the right model.
* All engines are brand new and packed without engine oil.
* Engine oil should be added as per the specification table.
* When first adding petrol / gasolene for initial start up, use the carburettor drain plug to bleed the carburettor for easy starting.
