Alpine iLX-F509 Halo9 Digital Multimedia Receiver 9" HD Display & Hi-Res Audio
SKU:ALP22-iLX-F509
Features:
- 9-inch Adjustable Floating Style Display (Adjustable Height, Depth, and Viewing Angle)
- Standard 1-DIN Chassis for Flexible Vehicle Application
- Tapered Display Housing and Silver Trim for a Clean, Modern Fit & Finish
- Hi-Res Audio Playback (96kHz / 24bit)
- Wireless Hi-Res Audio (requires LDAC compatible device)
- Apple Carplay (Wired & Wireless)
- Android Auto (Wired & Wireless)
- The Google Assistant is Available on Android Auto
- Bluetooth Hands-Free
- SiriusXM-Ready (compatible with SXV300 (G2) add-on tuner, sold separately; SiriusXM subscription required)?
- Built-in HD Radio
- iDatalink Maestro Compatible
- Alpine DVR-C320R Dash Cam Compatible (sold separately)
- Navigation Compatible with KTX-NS01 (sold separately)
- Media Xpander
Tech Specifications:
- Screen Size: 9”
- Screen Resolution: WXGA 1280 x 720px (720p HD)
- AUX Input: 1
- HDMI Input: 1
- HDMI Output: 1
- Camera Inputs: 2 Direct (1 Rear input & 1 input that can be set as Front, Side, or Other)
- Dash Cam Input: 1 (Alpine DVR-C320R)
- USB Inputs: 2 (1 data & 1 charge only port)
- 4V Pre-Outs: 3
- Built-in Amplifier: 18W RMS x 4
- EQ: 13-Band Parametric (per channel)
- Time Correction: 6-Channel
- DAC: 24 Bit
- Crossover: High Pass / Low Pass
- Audio Playback: AAC, APE, FLAC, MP3, WMA, WAV
- Video Playback: AVC, FLV, H.263, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, MOV
The Next-Generation Alpine Halo9 display takes your dash to new heights with even more features to bring out the full potential of your music.
The Next-Gen Alpine Halo9 features Apple CarPlay, Android Auto, and built-in Bluetooth hands-free which allow access to music, messages, phone calls, and maps on a smartphone via either a wired USB connection or wirelessly. Get even more entertainment options with built-in HD Radio, Pandora Internet Radio (via iPhone or Android connection), and SiriusXM for even more choices in entertainment (tuner and subscription sold separately).
Experience incredible music detail with Hi-Res Audio Playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music, Tidal, Amazon Music HD, and more. The Alpine Halo9 plays Hi-Res music at it's intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like HDtracks and plug directly into the Alpine Halo9 for Hi-Res playback.
The Alpine Halo9 has on-board tuning features including a 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle. If more power is needed, additional amplifiers can be added using the three sets of true 4V preamp outputs with front, rear, and subwoofer control.

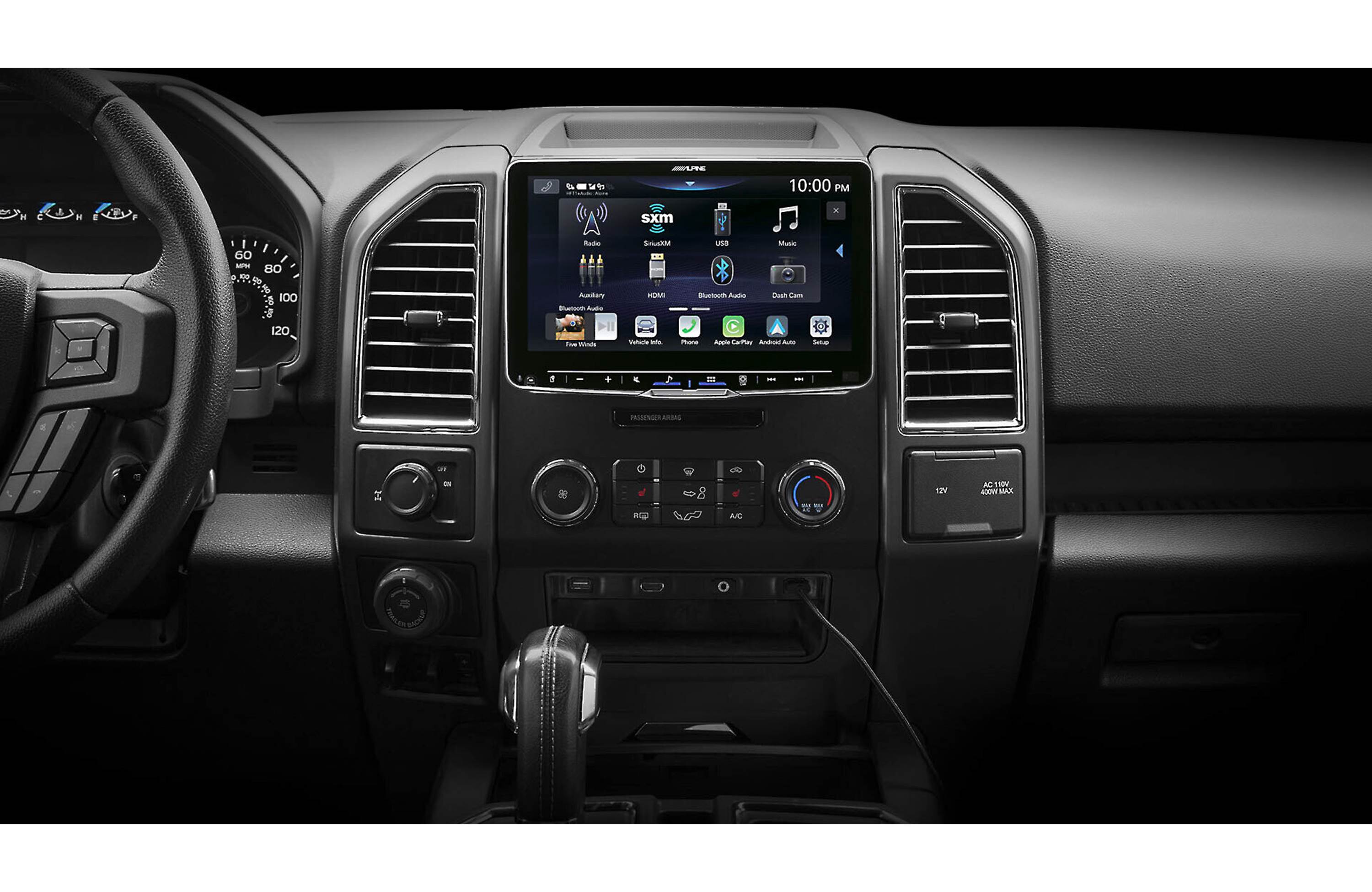

The screen is attached to an adjustable mount on a single-DIN chassis that's designed to fit in most dash openings. Once the unit is installed, the screen has five vertical adjustments and two separate depths that lock into position for a sturdy installation. A new pressure tilt mechanism allows for more flexibility when positioning the screen for optimized viewing and access to dash and HVAC controls.
SKU:ALP22-iLX-F509
Features:
- 9-inch Adjustable Floating Style Display (Adjustable Height, Depth, and Viewing Angle)
- Standard 1-DIN Chassis for Flexible Vehicle Application
- Tapered Display Housing and Silver Trim for a Clean, Modern Fit & Finish
- Hi-Res Audio Playback (96kHz / 24bit)
- Wireless Hi-Res Audio (requires LDAC compatible device)
- Apple Carplay (Wired & Wireless)
- Android Auto (Wired & Wireless)
- The Google Assistant is Available on Android Auto
- Bluetooth Hands-Free
- SiriusXM-Ready (compatible with SXV300 (G2) add-on tuner, sold separately; SiriusXM subscription required)?
- Built-in HD Radio
- iDatalink Maestro Compatible
- Alpine DVR-C320R Dash Cam Compatible (sold separately)
- Navigation Compatible with KTX-NS01 (sold separately)
- Media Xpander
Tech Specifications:
- Screen Size: 9”
- Screen Resolution: WXGA 1280 x 720px (720p HD)
- AUX Input: 1
- HDMI Input: 1
- HDMI Output: 1
- Camera Inputs: 2 Direct (1 Rear input & 1 input that can be set as Front, Side, or Other)
- Dash Cam Input: 1 (Alpine DVR-C320R)
- USB Inputs: 2 (1 data & 1 charge only port)
- 4V Pre-Outs: 3
- Built-in Amplifier: 18W RMS x 4
- EQ: 13-Band Parametric (per channel)
- Time Correction: 6-Channel
- DAC: 24 Bit
- Crossover: High Pass / Low Pass
- Audio Playback: AAC, APE, FLAC, MP3, WMA, WAV
- Video Playback: AVC, FLV, H.263, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, MOV
The Next-Generation Alpine Halo9 display takes your dash to new heights with even more features to bring out the full potential of your music.
The Next-Gen Alpine Halo9 features Apple CarPlay, Android Auto, and built-in Bluetooth hands-free which allow access to music, messages, phone calls, and maps on a smartphone via either a wired USB connection or wirelessly. Get even more entertainment options with built-in HD Radio, Pandora Internet Radio (via iPhone or Android connection), and SiriusXM for even more choices in entertainment (tuner and subscription sold separately).
Experience incredible music detail with Hi-Res Audio Playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music, Tidal, Amazon Music HD, and more. The Alpine Halo9 plays Hi-Res music at it's intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like HDtracks and plug directly into the Alpine Halo9 for Hi-Res playback.
The Alpine Halo9 has on-board tuning features including a 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle. If more power is needed, additional amplifiers can be added using the three sets of true 4V preamp outputs with front, rear, and subwoofer control.
The screen is attached to an adjustable mount on a single-DIN chassis that's designed to fit in most dash openings. Once the unit is installed, the screen has five vertical adjustments and two separate depths that lock into position for a sturdy installation. A new pressure tilt mechanism allows for more flexibility when positioning the screen for optimized viewing and access to dash and HVAC controls.
