Product Type: Alternator |
Replaces: 0R3654 10-284 6T1396, 7T2096, 110312, 10284 |
  • Amperage: 51 |
  • Fan: External |
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today

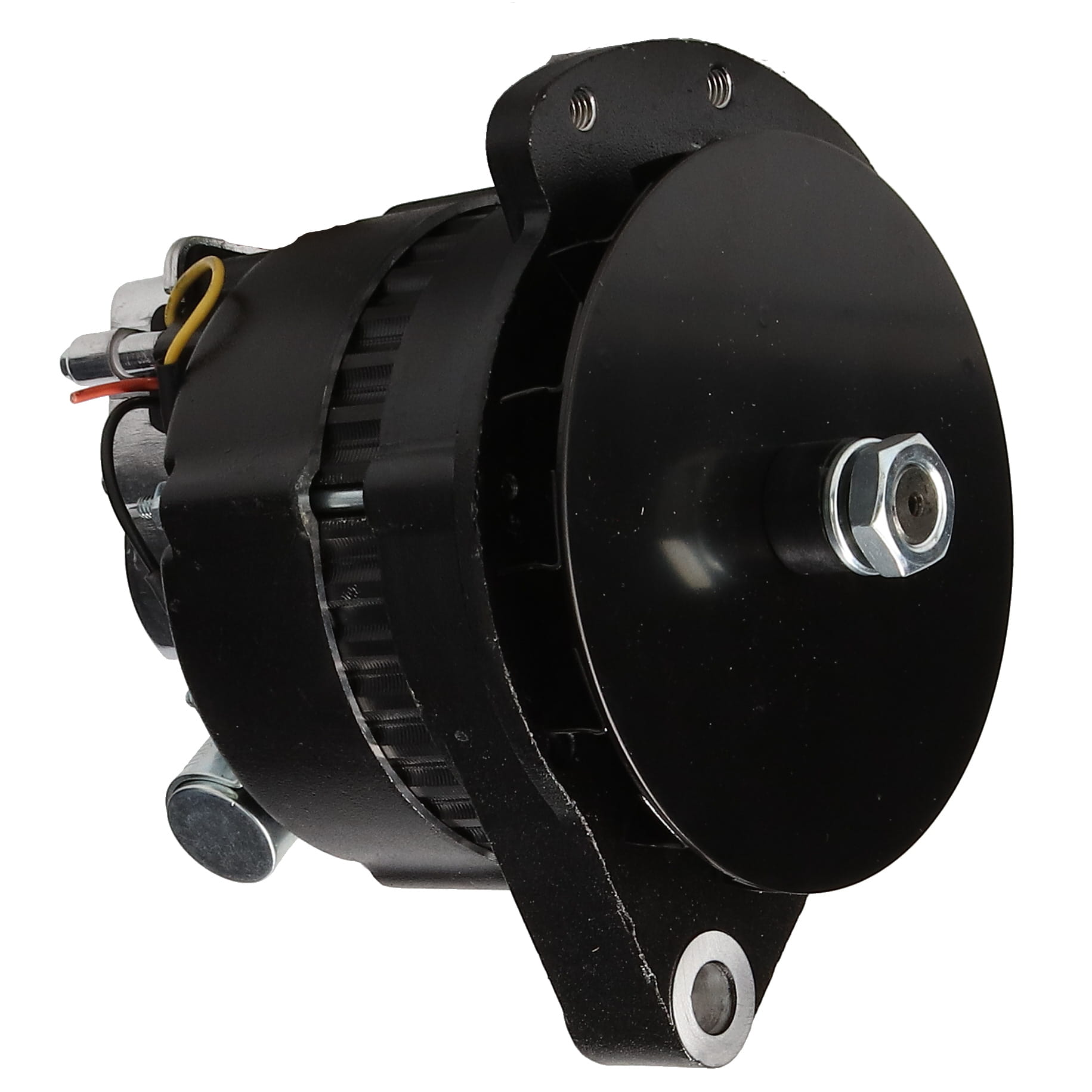

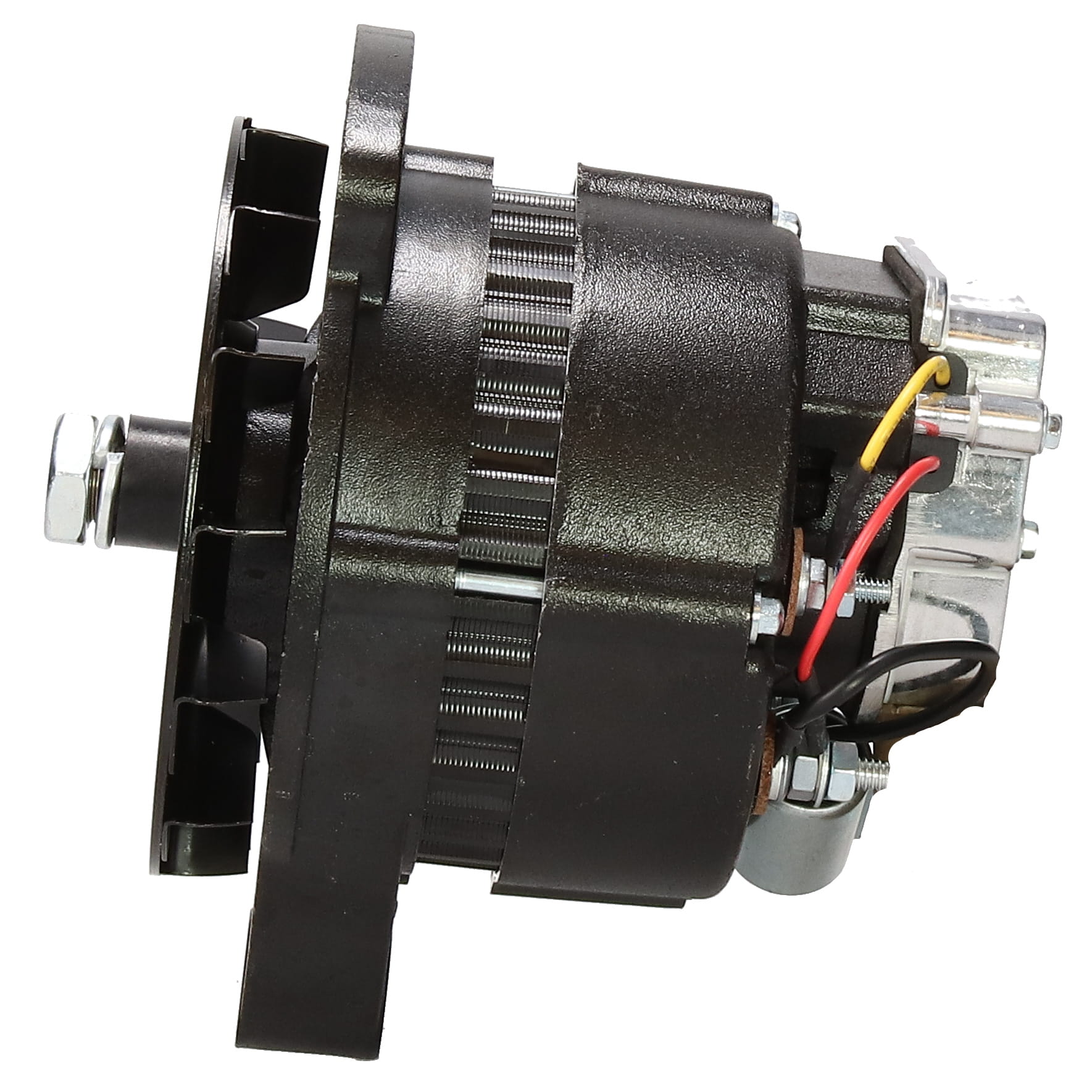

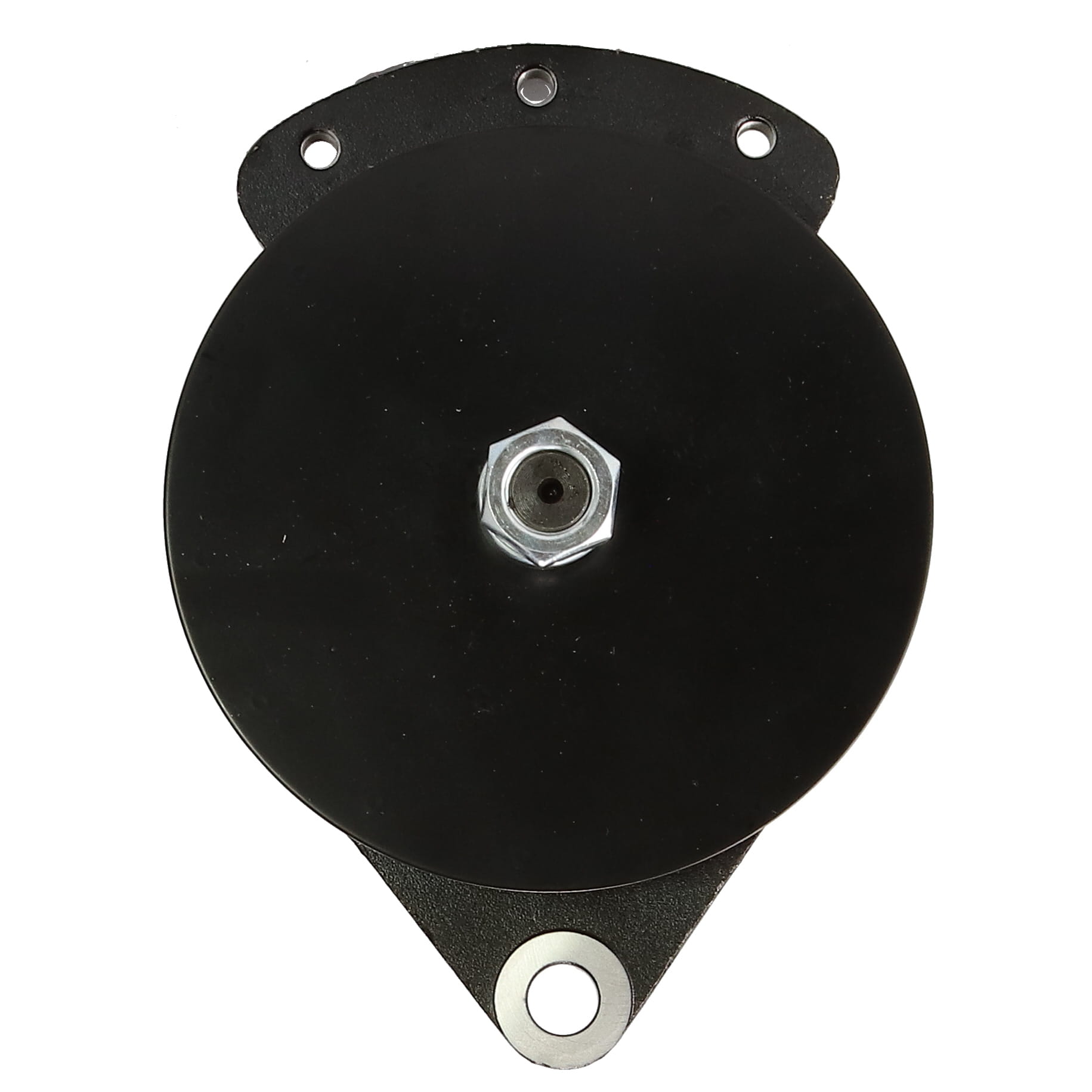

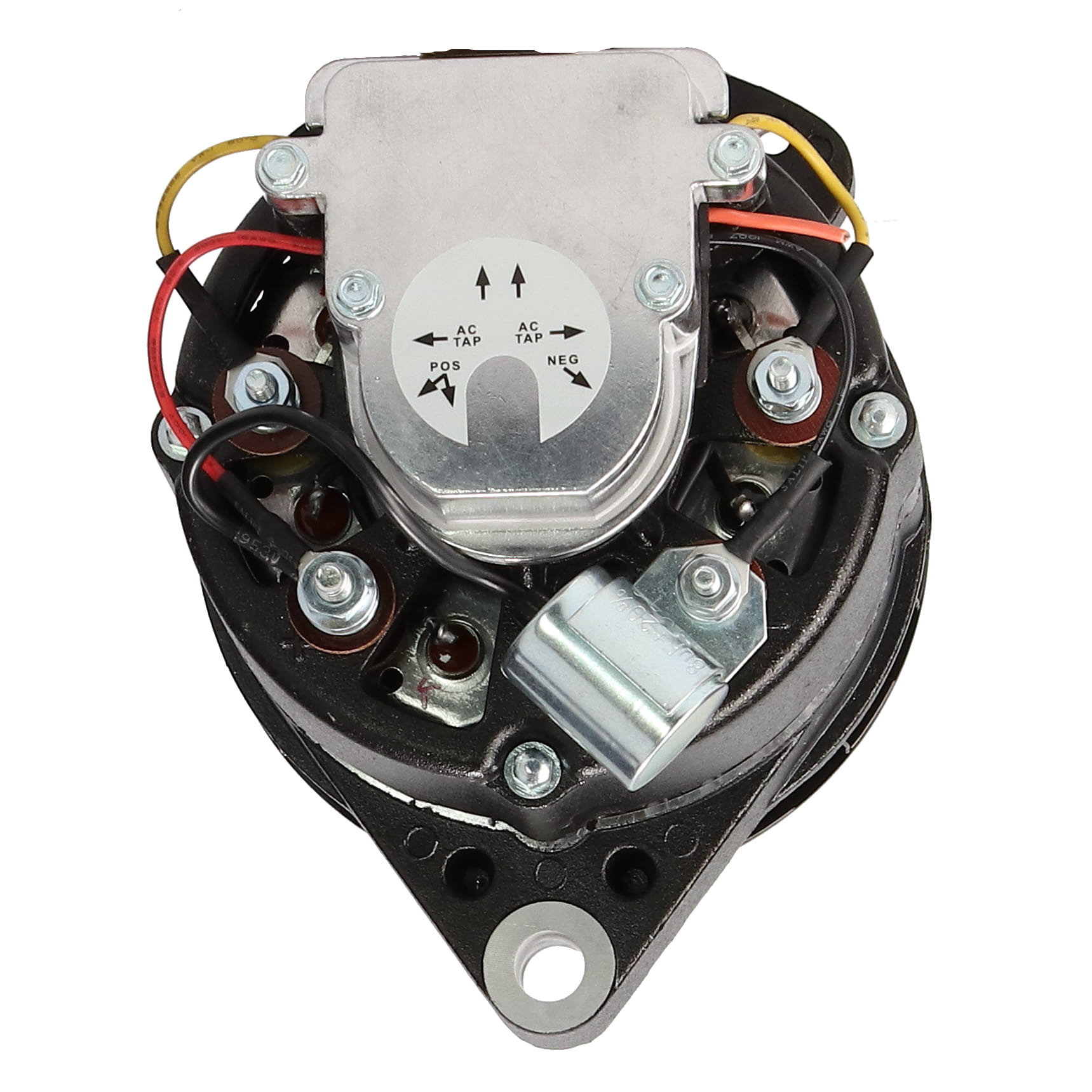

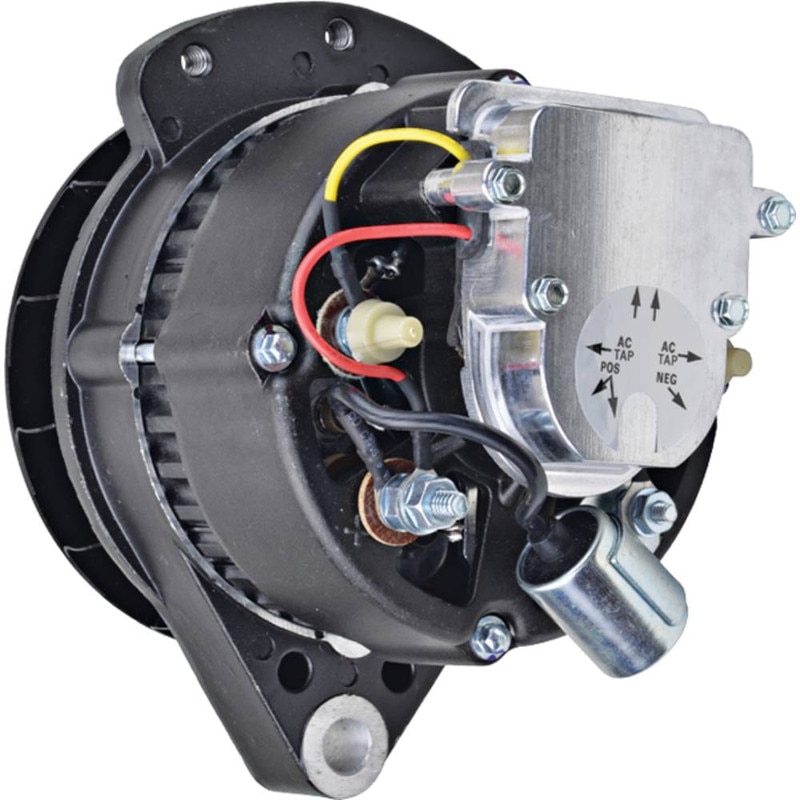

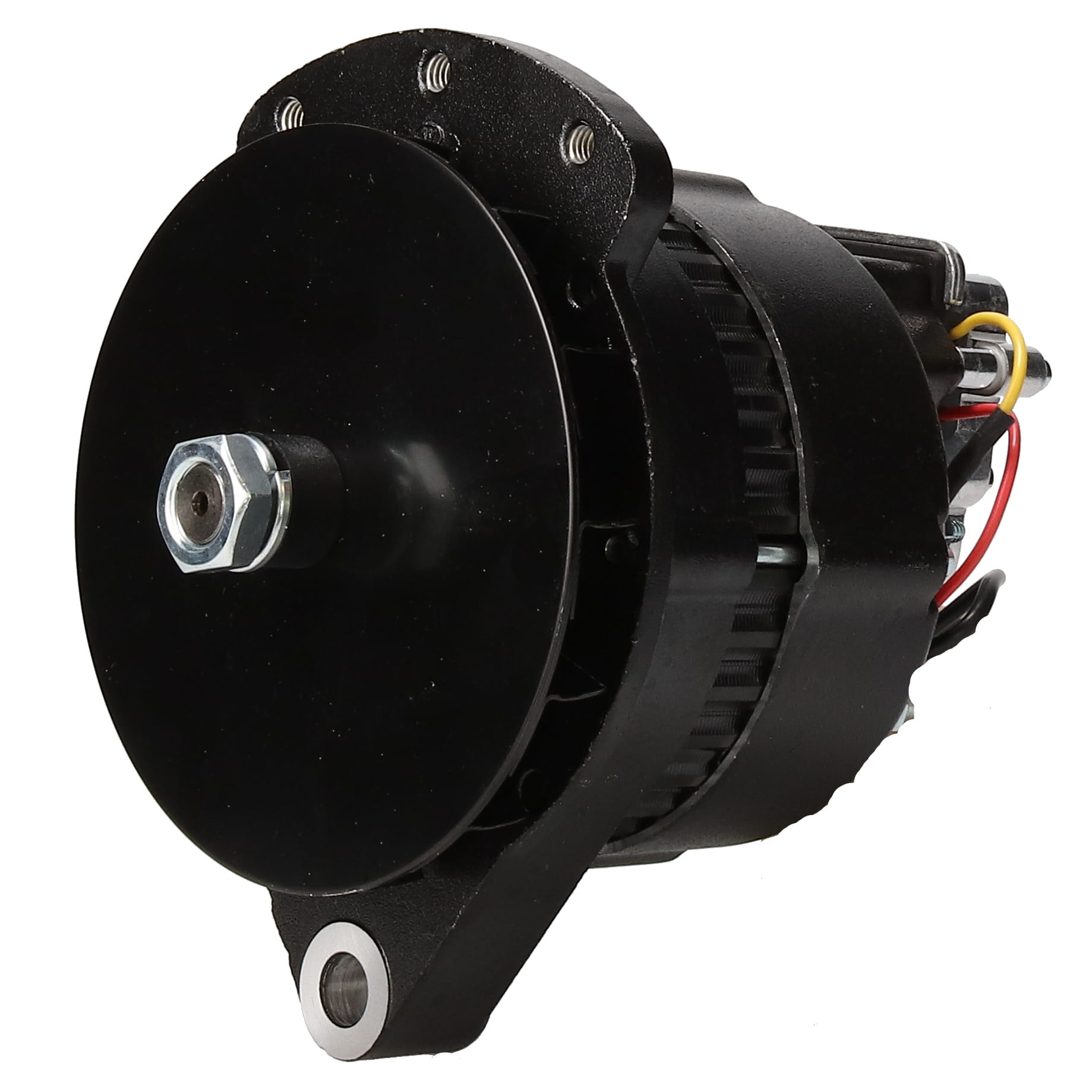

CAT Alternator 12V 51A 0R3654 6T1396 Sullair 375 ARCO 60198

Replaces Part Numbers & Specifications

CATERPILLAR OEM PART NUMBERS:
• 0R3654
• 6T1396
• 7T2096 (712096)
• 2N6396
• 2N7759

MOTOROLA PART NUMBERS:
• 8HC2023K, 8HC2023KS
• 8HC2024K, 8HC2024KA, 8HC2024KS
• 10-284, 10-312

PRESTOLITE/LEECE-NEVILLE:
• 110-284, 110-312

ARCO MARINE:
• 60198

AFTERMARKET PART NUMBERS:
• AMO0078 (Arrowhead)
• PL110-284 (Arrowhead OEM)
• 400-16052, 400-16153 (J&N)
• 8049, 8077 (Lester)
• 210-117, 210-166 (PIC)
• 90-05-9145, 90-05-9146 (Wilson)
• A-9220, A-9221 (Dixie)
• 160-8077 (Barsanco)
• 022018, 022019 (Andre Niermann)
• 47-4779R, 47-4780 (Minnpar)

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 51A
• Unit Type: Motorola
• Design: IR/EF (Internal Reg/External Fan)
• Rotation: Bi-Directional
• Polarity: Negative Ground
• Pulley: Not Included
• Weight: 12.4 lbs / 5.64 kg

IMPORTANT NOTES:
• Pulley Not Included - Reuse Original
• Direct Replacement for OEM Units
• Verify Part Number Before Ordering

Product Notice





CATERPILLAR MARINE ENGINES:
• 3116 - Various Models
• 3176B (1992-1997)
• 3176C - Various Models
• 3196C - Various Models
• 3208 - Various Models
• 3406 (1980-1996)
• 3408 (1980-1996)
• 3412 (1980-1996)

CATERPILLAR INDUSTRIAL ENGINES:
• 3114 - Various Models
• 3116 - Various Models
• 3126 - Various Models
• 3176B (1992-1997)
• 3176C (1997-On)
• 3196 (1997-On)
• 3208 (1991-1997)
• 3306 - Various Models
• 3406 All (1992-1997)
• 3408 All (1992-1997)
• 3412 All (1992-1997)

CATERPILLAR EQUIPMENT:
• CP553 Compactor
• CS551 Compactor
• G3306 Generator
• Various Industrial Models (1980-1997)

SULLAIR COMPRESSORS:
• Sullair 375 (1985-1991)

APPLICATIONS:
• Marine Vessels
• Industrial Equipment
• Generator Sets
• Air Compressors
• Construction Equipment
