Description:

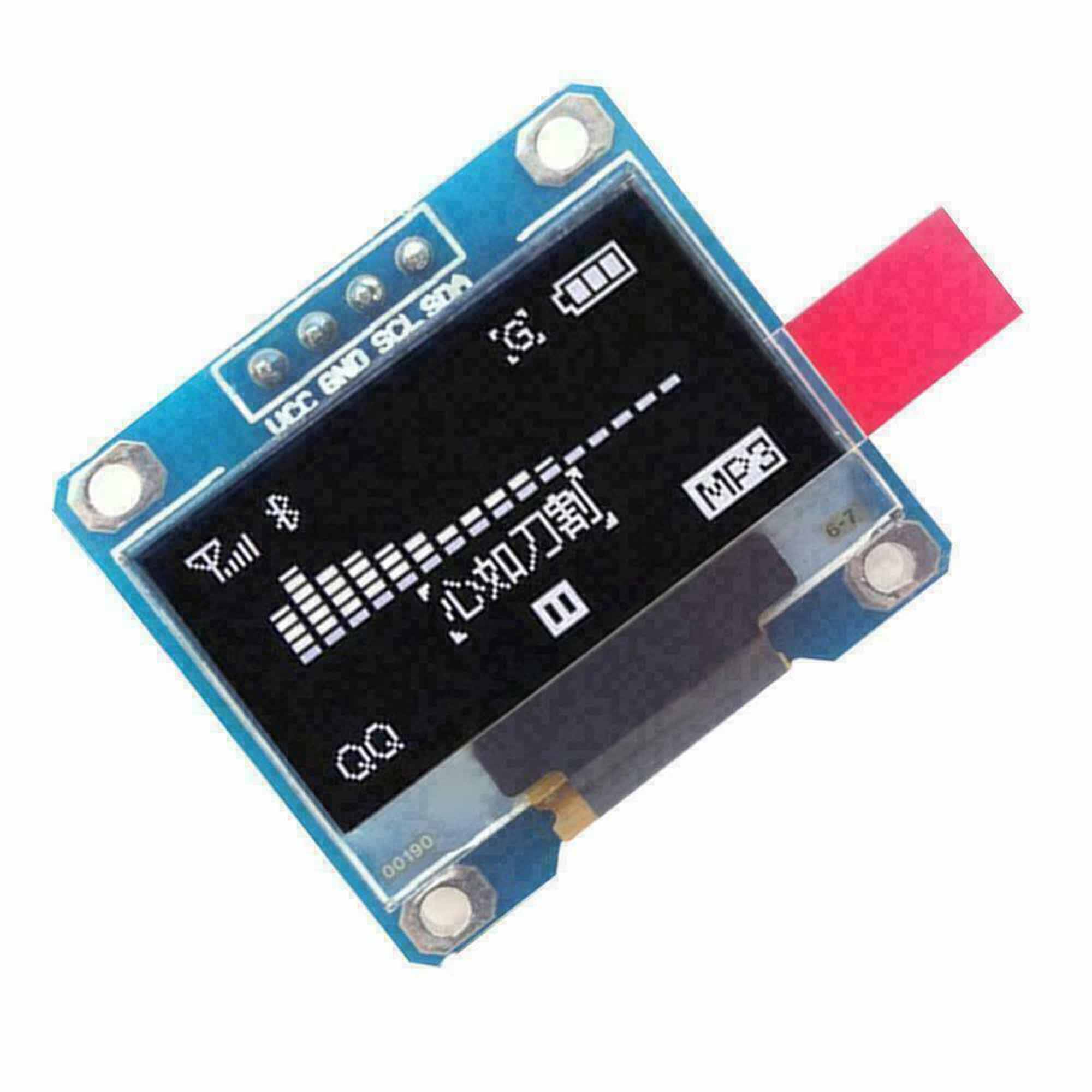

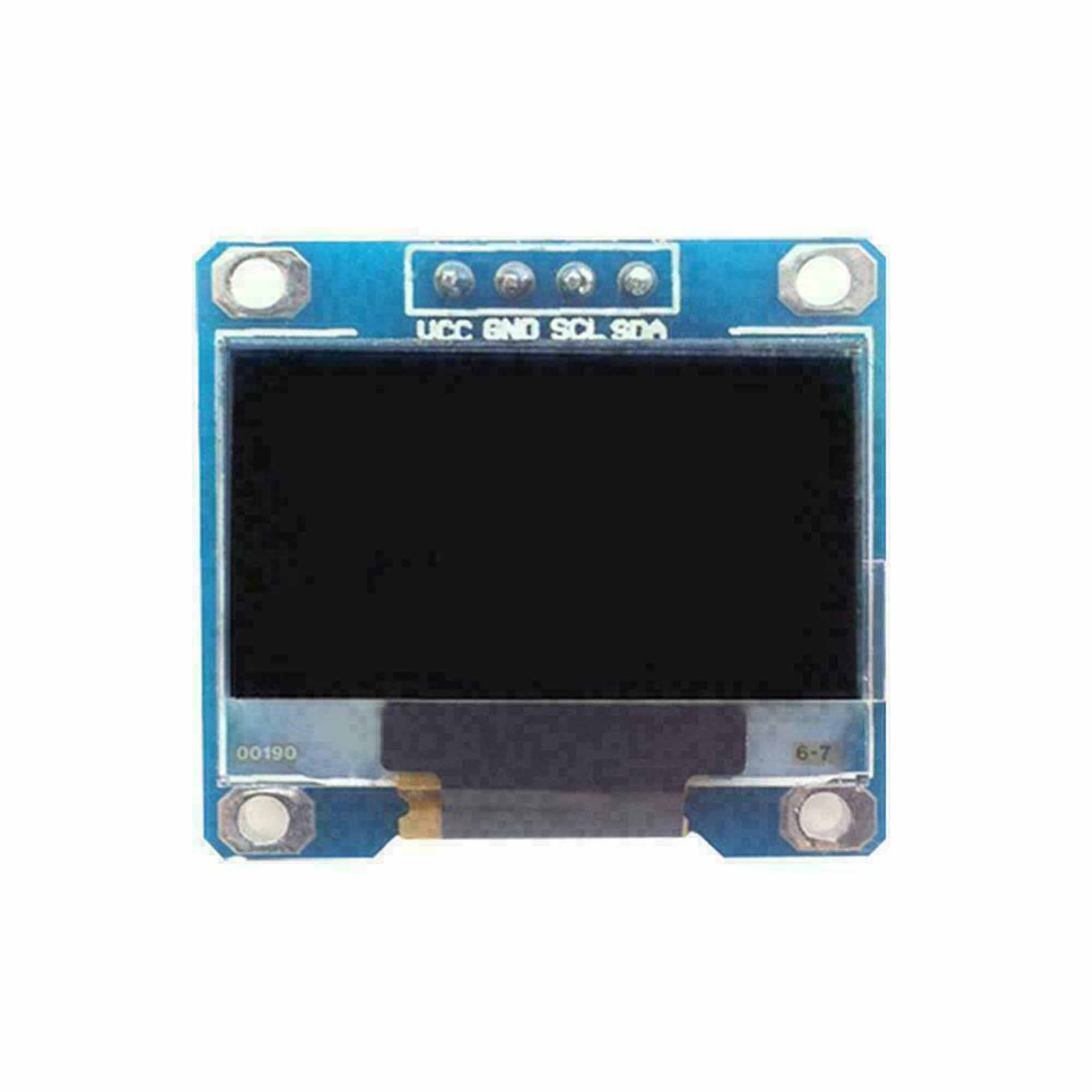

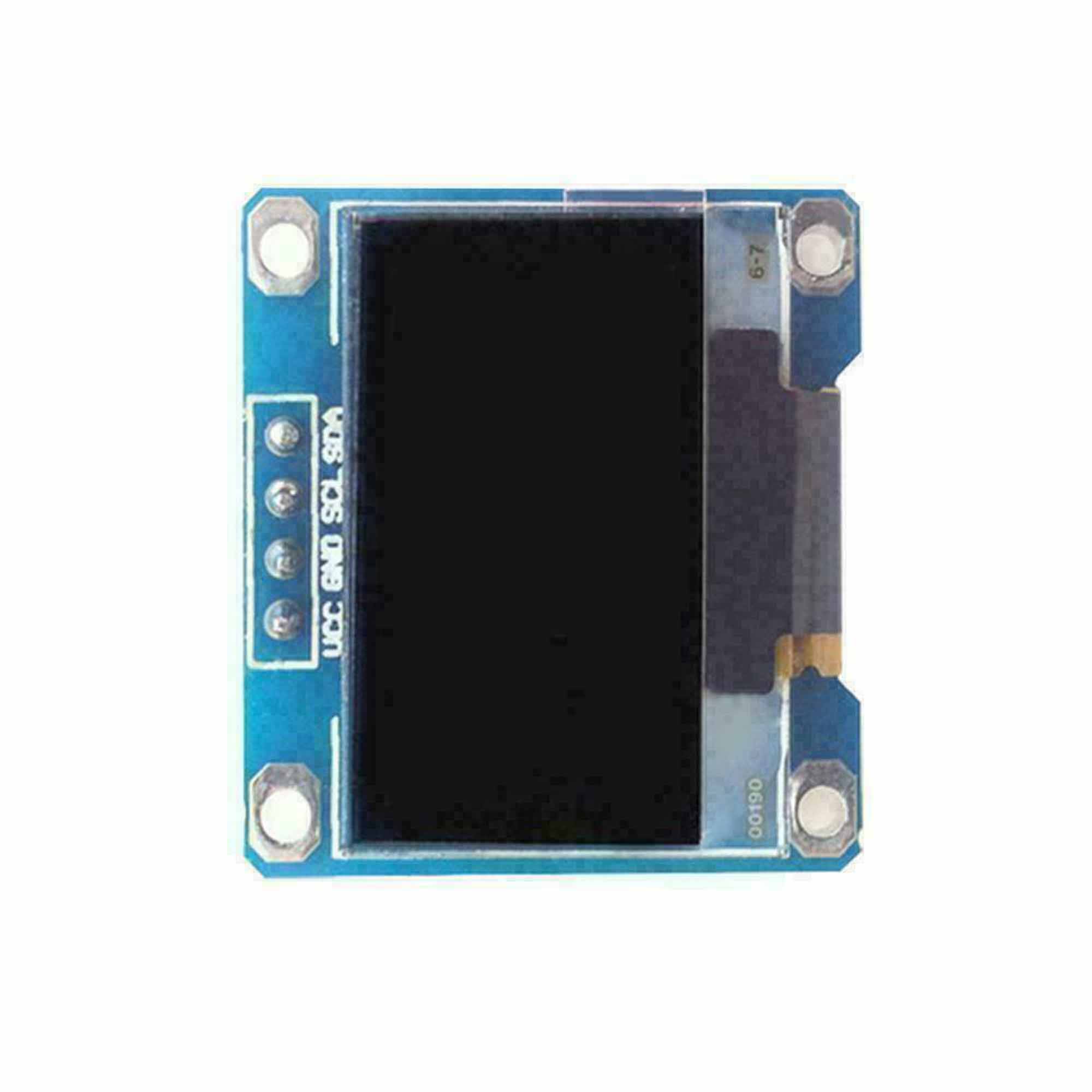

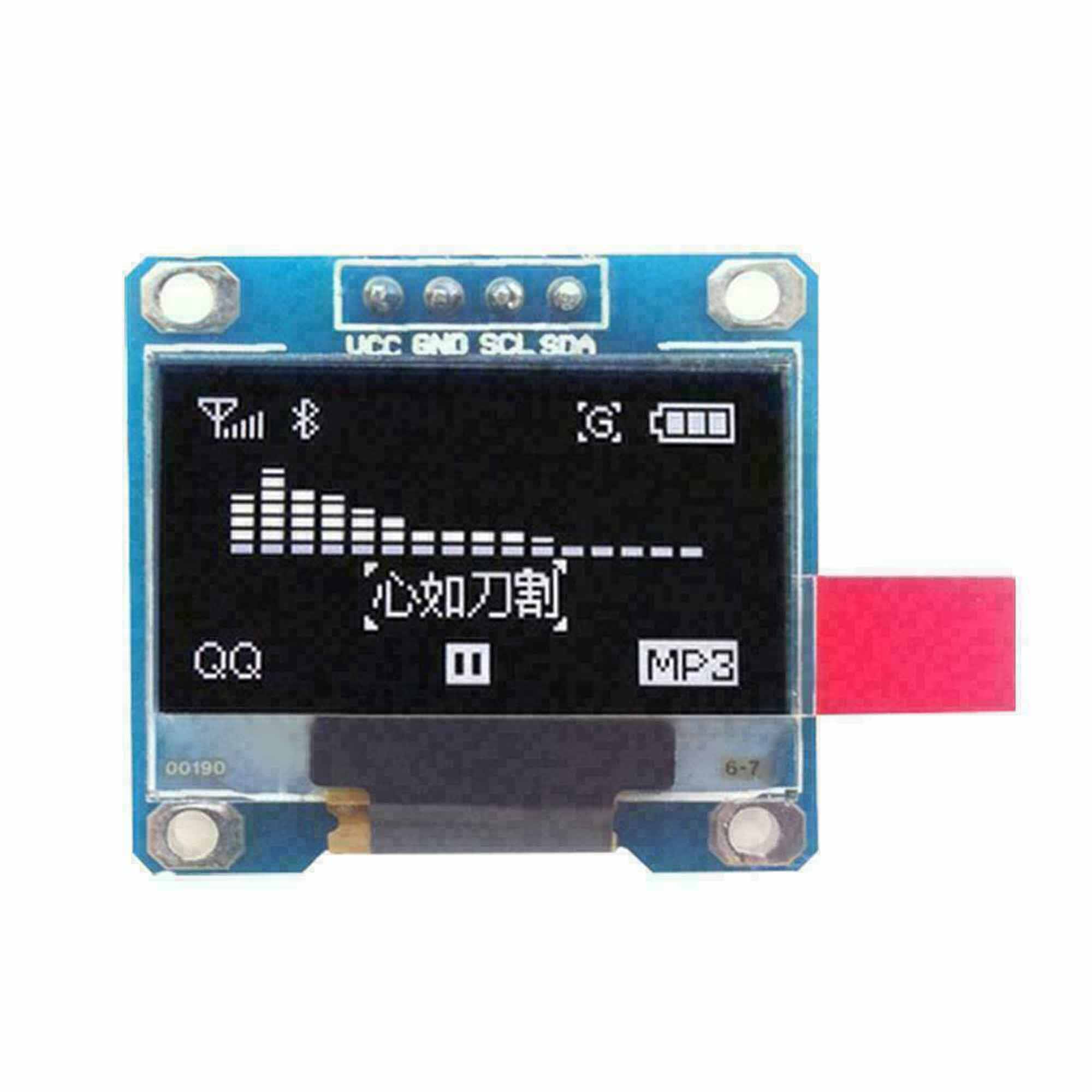

128*64 LED display module for Arduino, supports many control chip.
Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC
Pin Definition: VCC, GND, SCL, SDA
1. VCC (OLED power supply is 3.3~5V)
2. GND (OLED power ground)
3. SCL (OLED IIC clock line)
4. SDA (OLED IIC data cable)
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ℃ ~ 70 ℃
Character Colors: White
Drive Duty: 1/64 Duty
High resolution: 128 * 64

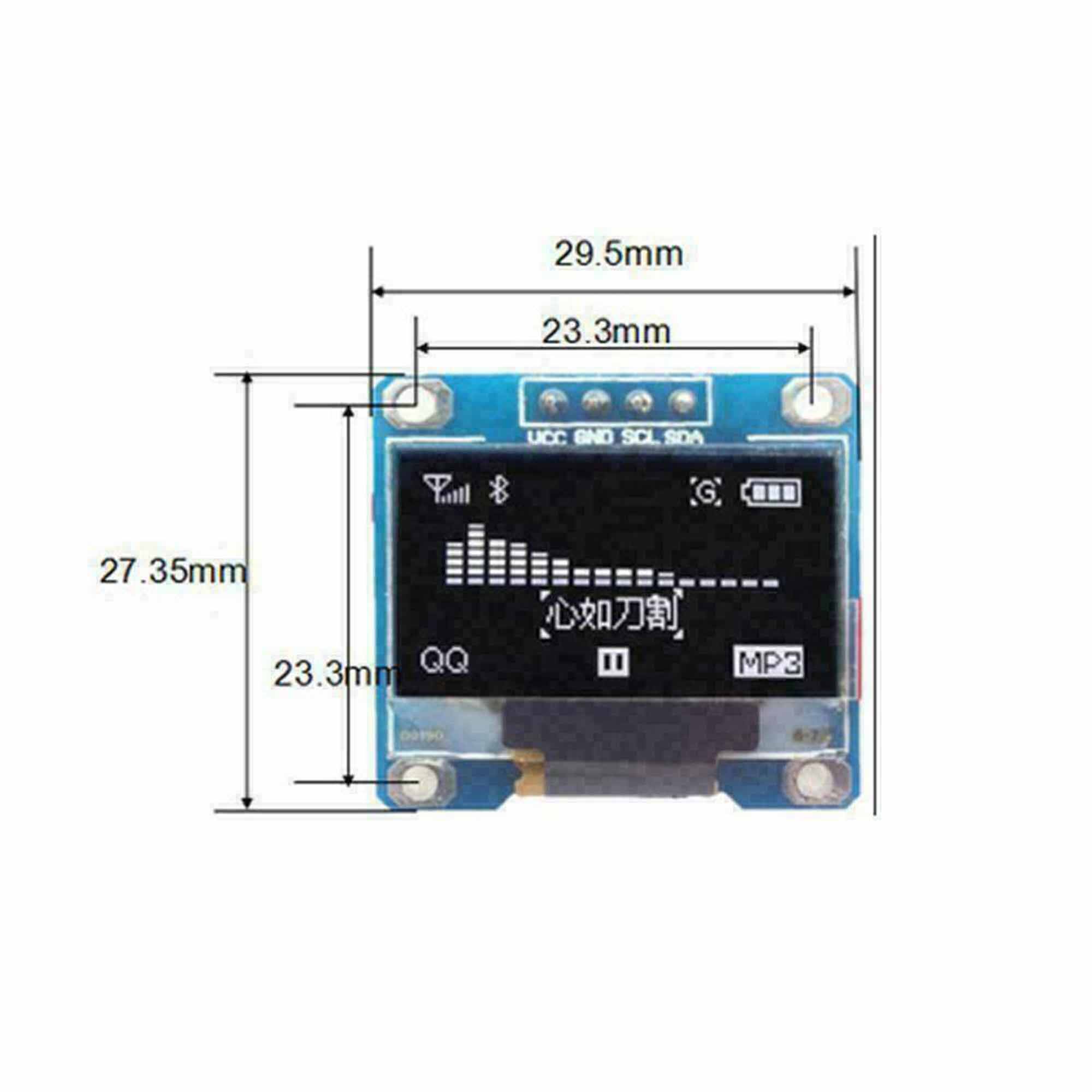

Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
Driver IC: SSD1306

Package Includes:
1*LCD screen
