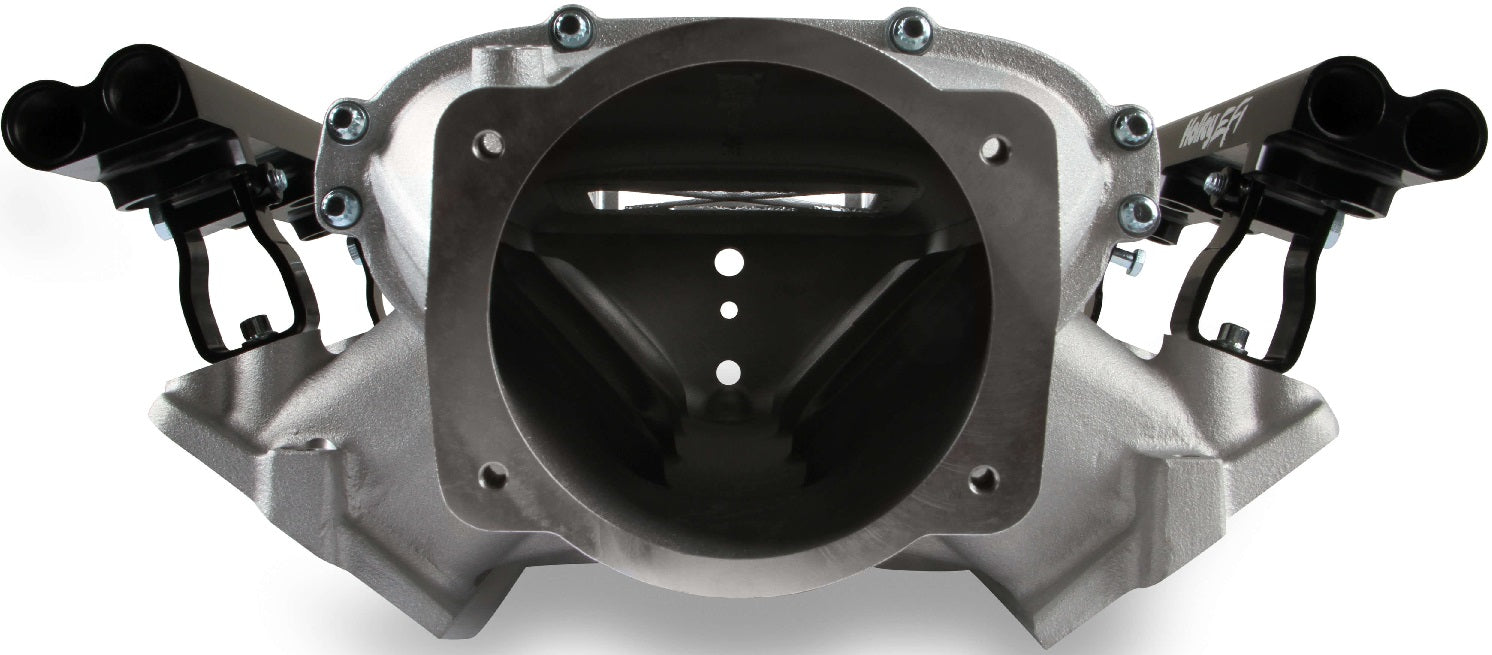

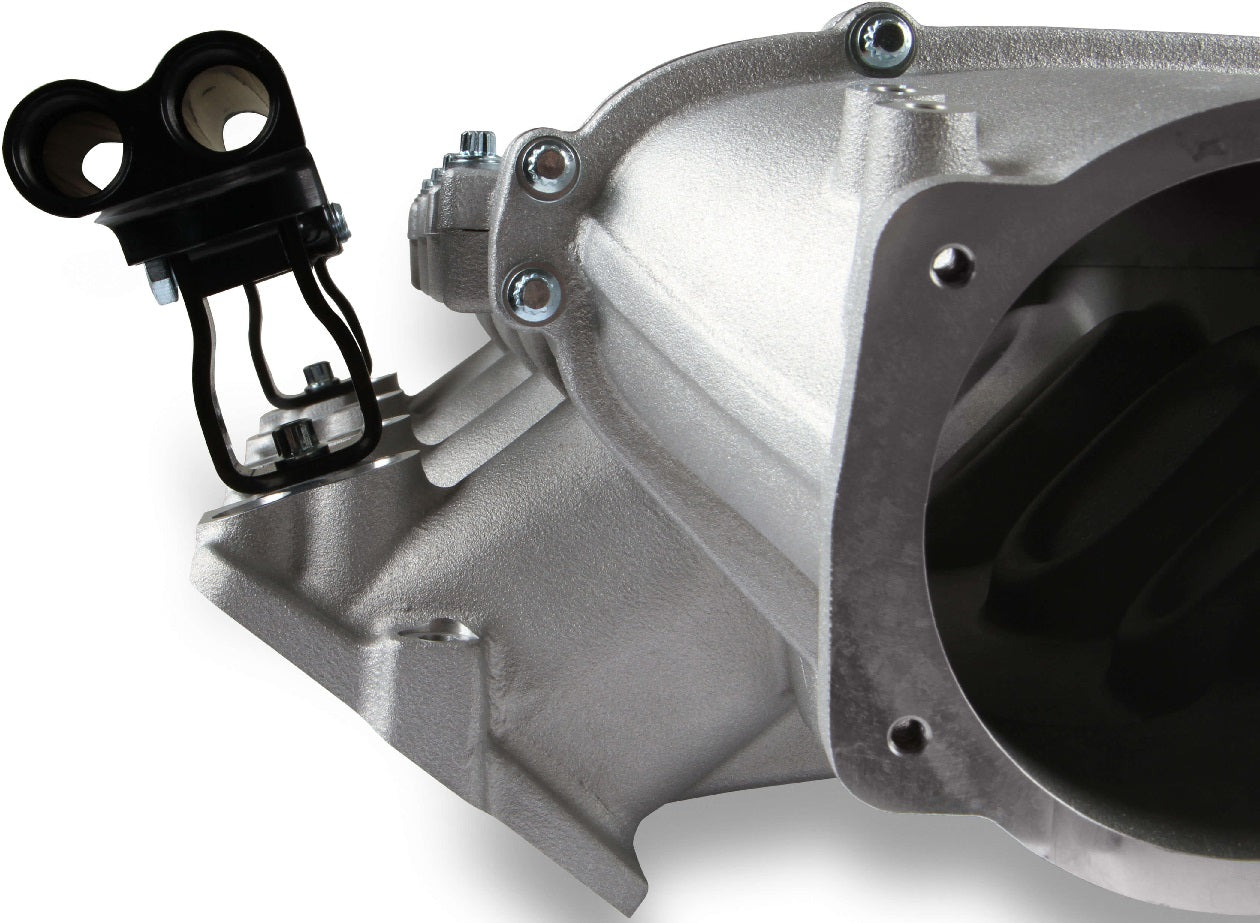

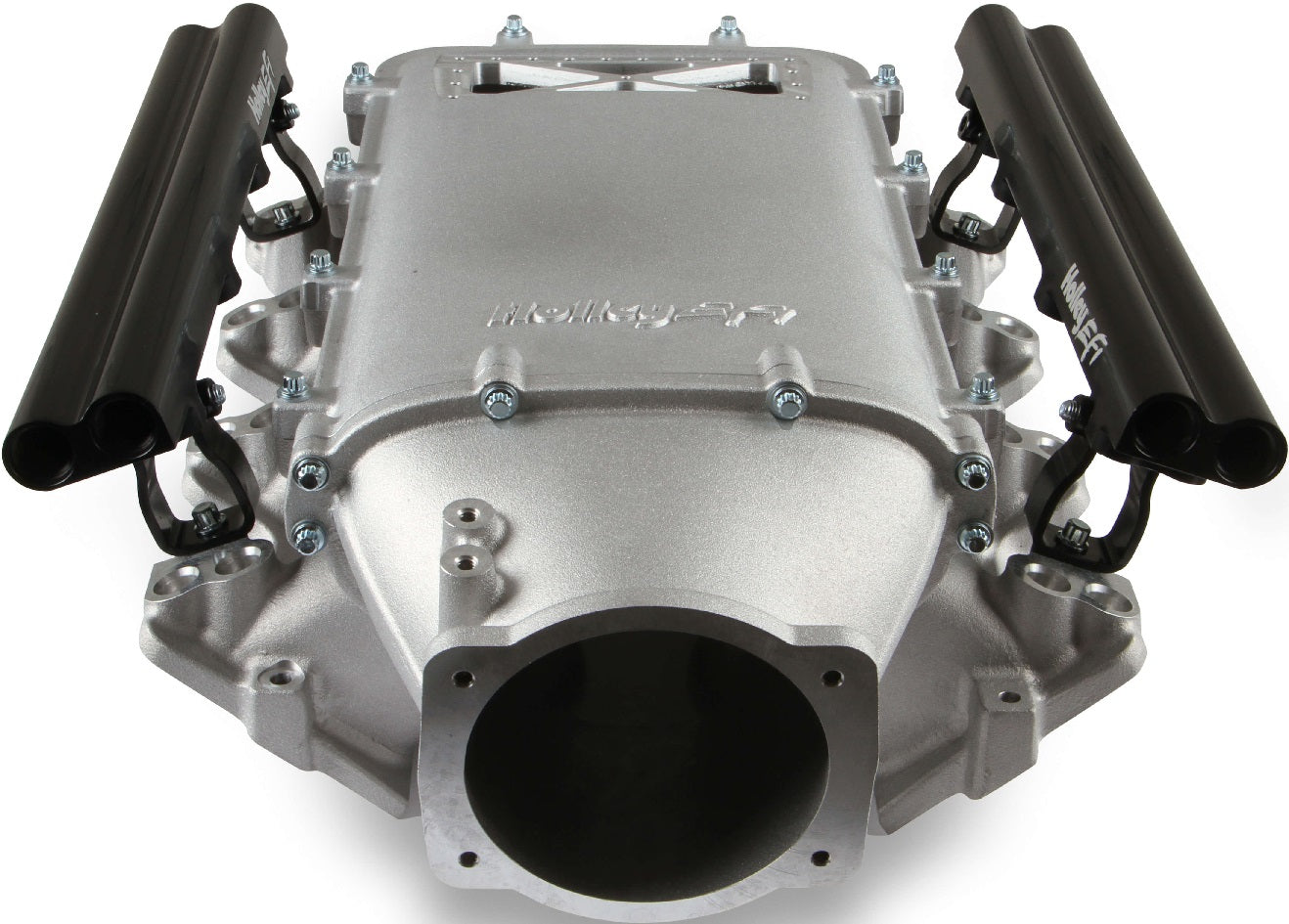

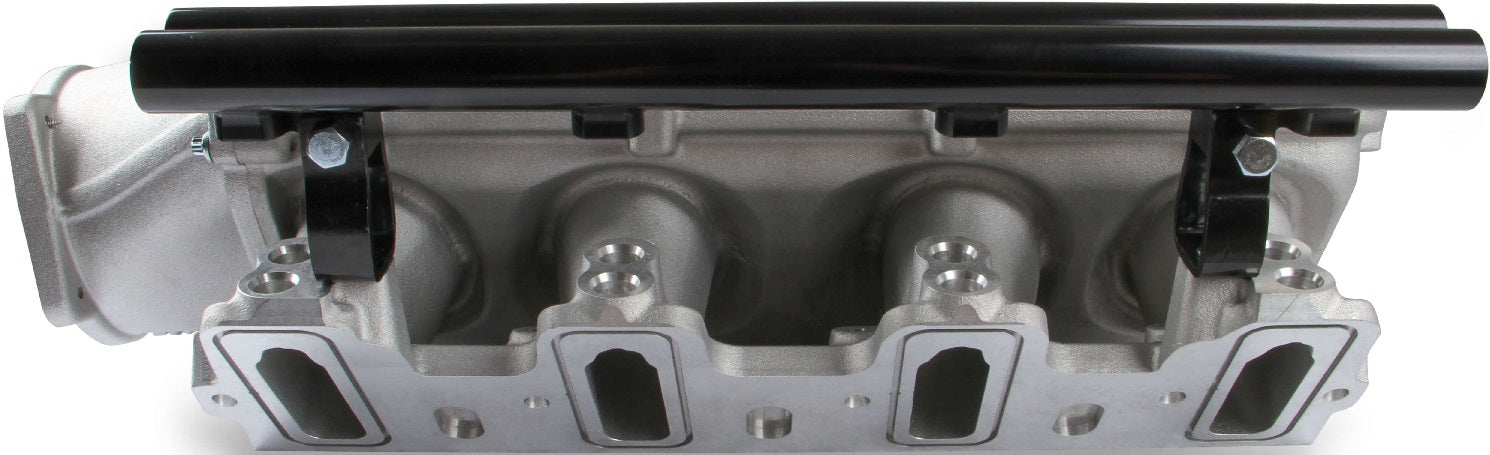

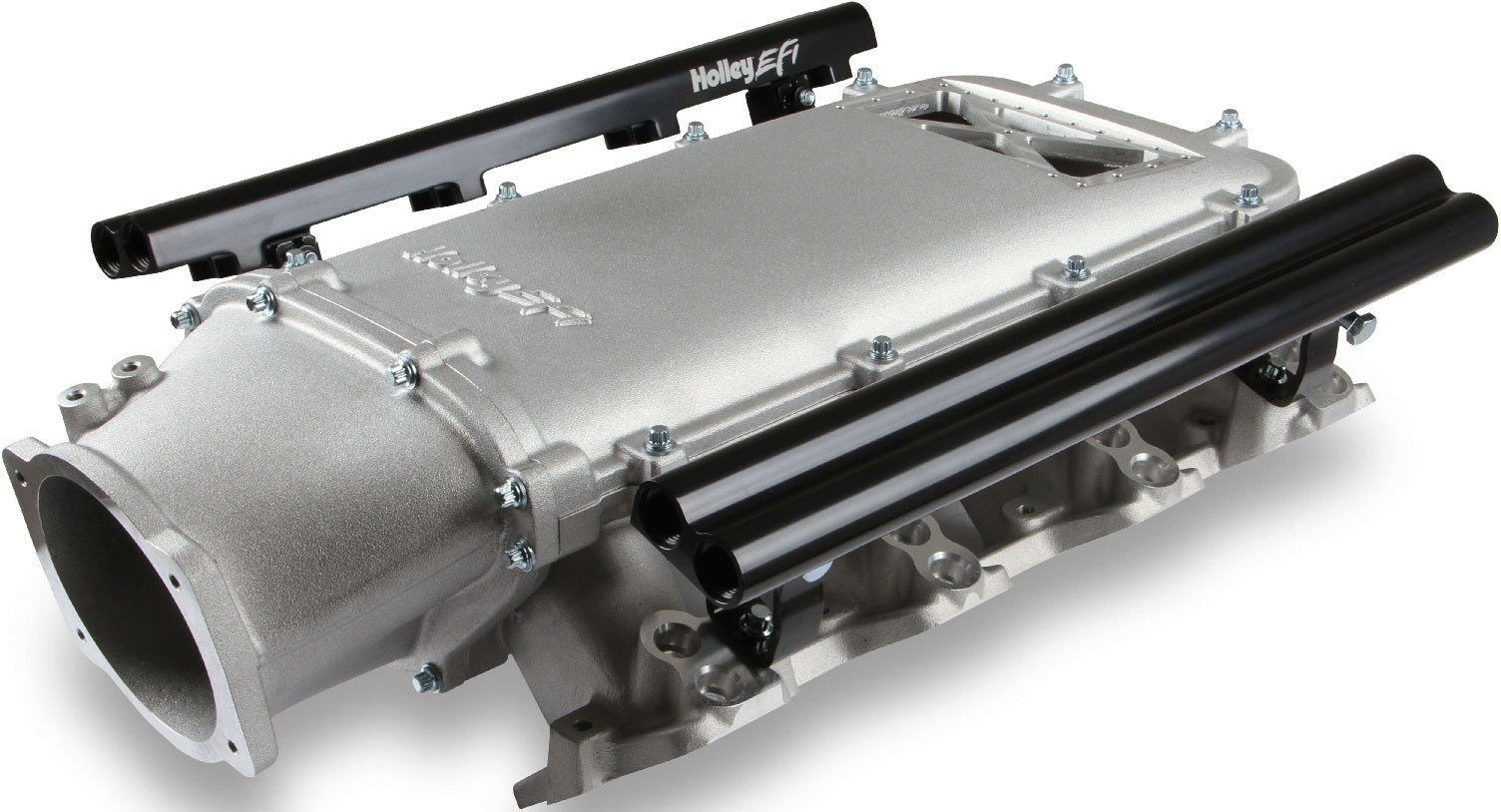

You are bidding on a Brand New Dual Fuel Injector LS1 Lo-Ram Front-Feed ЕFI Intake Manifold Kit, Silver Satin Finish (Part #300-625).

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III & IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold & rail kits will work with OE (Original Equipment) or aftermarket cylinder heads.

Kit provides 2 injectors per cylinder for hi-volume fuel demands, flexible fuel supply strategies & dual-fuel capability. Also a standard 6-1/8" x 3-1/8" burst panel flange. SFI approved burst panels, burst panel frame sets & gaskets may be purchased from various manufacturers. Includes all sealing o-rings, plugs & fasteners required for the installation.

The front-feed, short runner, low-profile base intake manifold was conceived to package with high-boost turbocharged or supercharged induction systems with a short overall height not possible with other existing intake manifolds. This kit is configured for a 105mm throttle body. The fuel rail kits come with 2 sets of brackets. A set for long (usually standard length) fuel injectors & a set for short (Pico, or LS7) fuel injectors.

Features:

  • Designed for GM LS Gen III & IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
  • Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 RPM, depending on application
  • Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
  • Modular LS1 Lo-Ram design allows customization for user desired configurations
  • Low height & compact packaging allows installation in most applications often under stock hoods

Specs:

  • Brand: Holley ЕFI
  • Color: Silver
  • Construction: Cast
  • Engine: GM LS1/LS2/LS6
  • Finish: Satin
  • Flange Style: ЕFI
  • Front Height: 9.07" without Intercooler
  • Fuel System Type: ЕFI
  • Manifold Type: Lo-Ram
  • Product Type: Manifold

You can view and download the complete assembly instruction booklet for this Intake Manifold here.
