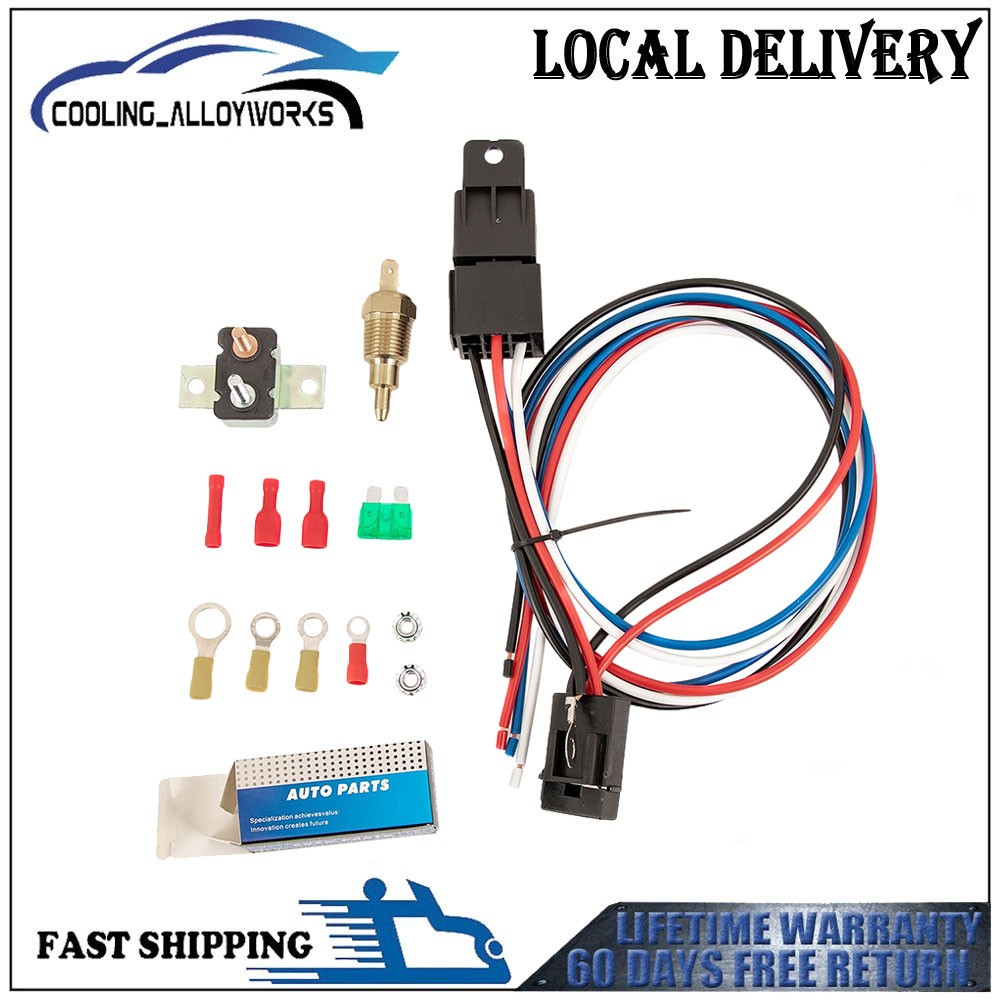

New Thermostat Temp Control Switch Electric Radiator Cooling Fan Relay Kit ASI.
Welcome to our store!!! Cooling_alloyworks hope you are happy with your purchase. Thank you for choosing us, have a great day!
All products support easy return & lifetime warranty!!!Orders paid before 9:30am support same-day shipping. (Notes: Pls make sure the post code&city is right, so that we can send your order in time) Good Feedback is very important to us. Any questions, please feel free to contact us.We will try our best to solve your problem.
Pls check the item pictures and size to get the suitable items.
This Monster Cooling relay wiring kit takes all of the guess work out of installing a single or a dual fan setup.
Perfect for the professional auto mechanic,the weekend mechanic and for all DIY'ers.
It will make installing any Electric Fan(s) to your cooling system project that much easier
Relay is an electrical control device that usually used in automatic control circuit.
The relay in fact is an automatic switch which uses a smaller current to control a larger current.
Compatible with almost all automobiles and devices equipped with a 12V DC power supply.
Like starter kills, power door lock/actuator control, change a low current output to high current,
add ignition/accessory outputs,control motors/other electronics.
It is also suitable for automobile used for control, alarms, horn, headlight and more.
Pins 85 & 86 - are used to turn 'on' the relay. You need a positive (+) and negative (-) power source to
turn on the relay.
- Pin 85 - is usually negative (-)
- Pin 86 - is usually positive (+)
Pin 30 - is either a (+) or (-) source that feeds Pin 87 or Pin 87a
Pin 87 - when the relay is 'on': Pin 30 and Pin 87 are connected
Relay Kits Instructions
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
What's Note
* The relay is rated for 30A, while the socket 14AWG wires are not big enough for the rated 30/40 amps.
If you are intending to run 30 amps continuously, you could remove the spade contacts from the connector,
carefully open the crimps securing the wire to the contact and recrimp/solder 10 gauge wires to it.
Also, you can use 6.3 mm female connectors
to connect directly to the relay pins. The relay should be good for 30 amps.
