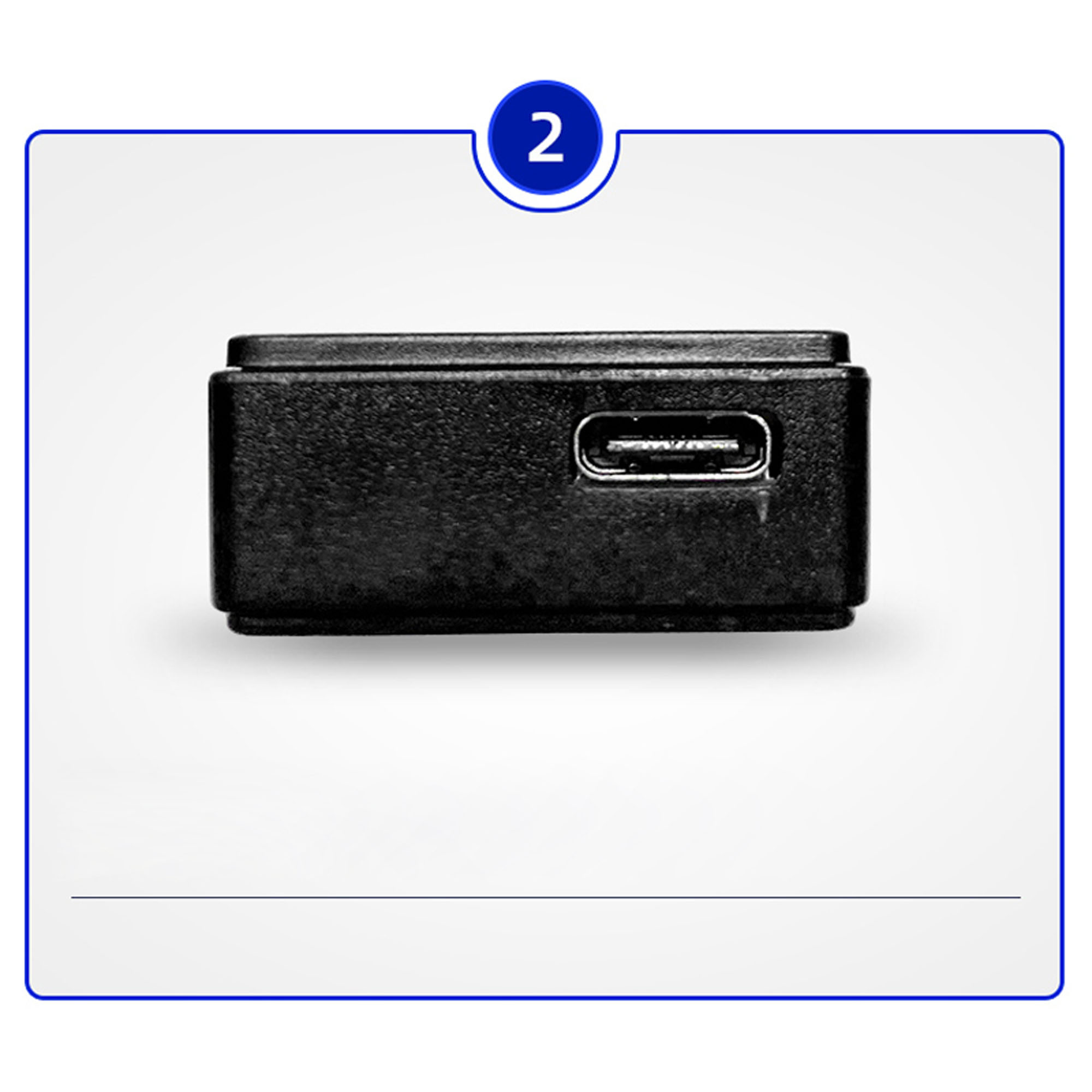

(HT-M00 Dual Channel LoRa Gateway)
Features:
CE Certificate
ESP32 + SX1276
Size: 75 x 30 x 13mm
Emulates LoRa demodulators
Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional
Maximum output: 18 ± 1dBm
Communication interface Type-C USB
The power supply voltage:5V
Support for LoRaWAN Class A, Class C protocols

Frequency range:
Europe – 868MHz ISM band (863MHz to 870MHz range)
Europe – 433MHz ISM band
USA/Australia – 915MHz ISM band (902MHz to 928MHz range)
China – 470MHz ISM band (470MHz to 510MHz range)

Technical Parameters:
Main control chip:esp32
LoRa RF chip :SX1276
Working Band (optional):EU_433, CN_470_510, EU_863_870, US_902_928
LoRa maximum output power:18dB ± 1dB
Receiving sensitivity
Interface:USB Type-C x 1
USB to Serial chip:CP2102
size :75 x 30 x 13mm
Working temperature: -40 ~ 80 ℃

Package Include:
1 x HT-M00 Dual Channel LoRa Gateway

(Wireless Stick Lite Development Board（868-915MHZ）)
Features:
1. The main control chip uses ESP32-based ESP32-PICO-D4 module (dual-core 32-bit MCU + ULP core), with LoRa node chip SX1276/SX1278;
2.Micro USB interface, with complete protection measures such as voltage regulation, ESD protection, short circuit protection, and RF shielding;
3. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
4. Integrated WiFi, LoRa, Bluetooth three network connection methods, on-board Wi-Fi, Bluetooth dedicated 2.4GHz metal 3D antenna, reserved IPEX (U.FL) interface for LoRa use;
5. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
6. Support the Arduino development environment;
7. With good RF circuit design and low power consumption design (sleep current ≤ 40uA), it is convenient for IoT application vendors to quickly verify solutions and deploy applications;

Package Include:
1 x Wireless Stick Lite Development Board（868-915MHZ）
