Product Details

Product selling points:

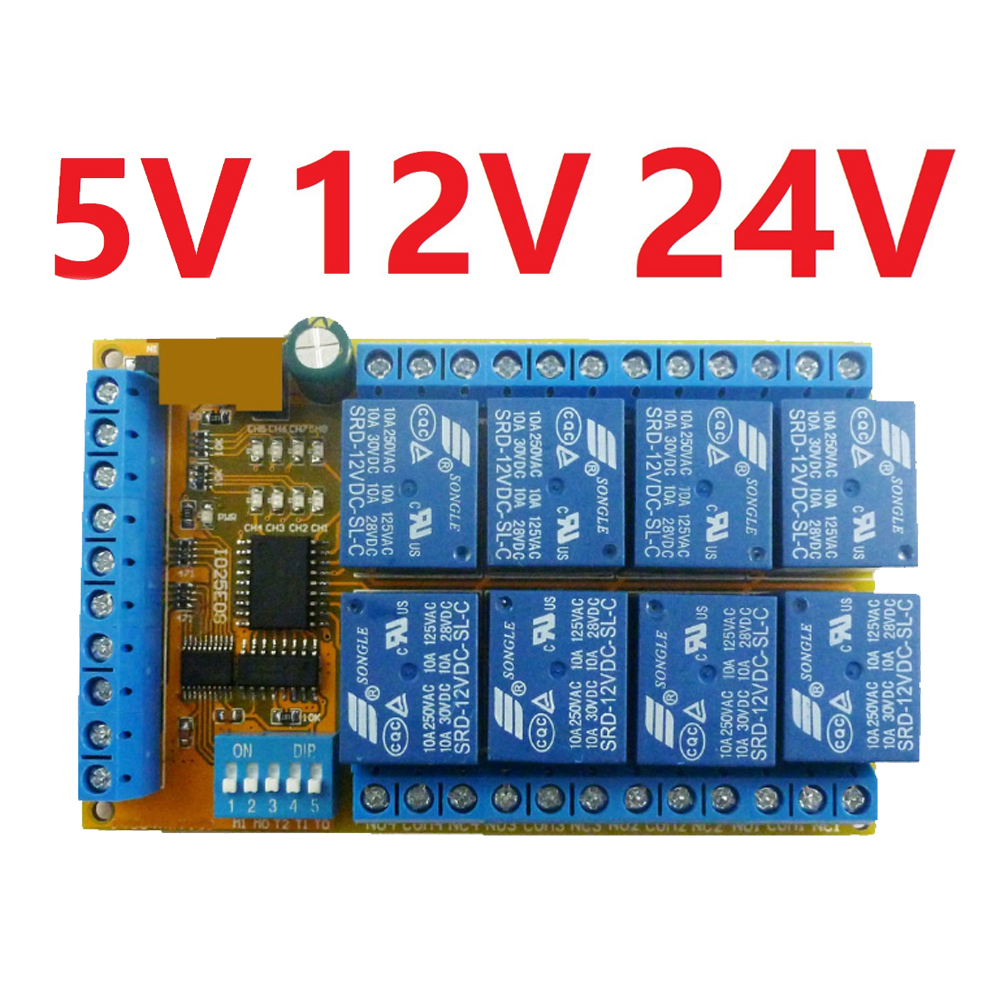

1: 8-channel relay, each channel works independently and does not interfere with each other (except for interlock mode)
2: 4 functional modes: delay (inching); self-locking; interlocking; power sequencer (when the power is turned on, the relays are opened in sequence)
3: Low pulse trigger (connect to power GND through trigger button or low level control through MCU IO port)
4: The function mode and delay time are selected by the dial switch on the board
5: Widely used
Product Description
1 Working voltage: DC 12V (DC 5V/ 24V optional)
2 Working current (DC 12V): standby current 6MA, 1 relay working 35MA, 2 relay working 64MA, 3 relay working 92MA, 4 relay working 120MA, 5 relay working 148MA, 6 relay working 176MA, 7 Relay working 204MA, 8 relays working 231MA
3 Dimensions: 99 x 62 x 20 mm
4 weight: 119g
5 Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A

Features:
8-channel relay, each channel works independently and does not interfere with each other (except for interlock mode).
4 functional modes: delay (inching); self-locking; interlocking; power sequencer (when the power is turned on, the relays are opened in sequence)
Low pulse trigger (connect the trigger button to the power supply GND or control by the low level of the MCU IO port)
The function mode and delay time are selected by the dial switch on the board

Packing list
1*Relay module
