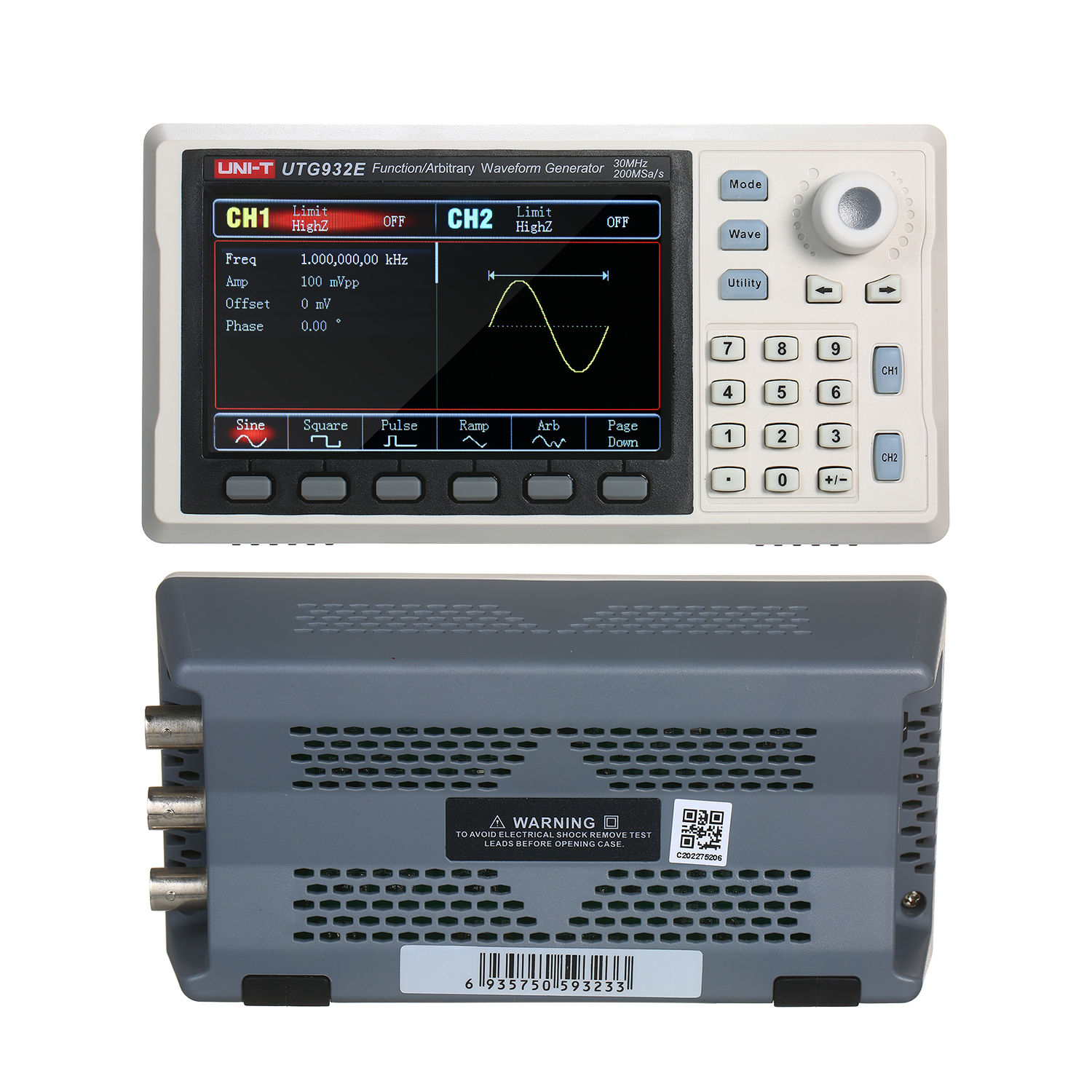

UNI-T UTG962E Function Singal Generator 1μHz-60MHz Dual Channel Frequency Sine Wave Arbitrary Waveform Generator 200MS / s Sample rate

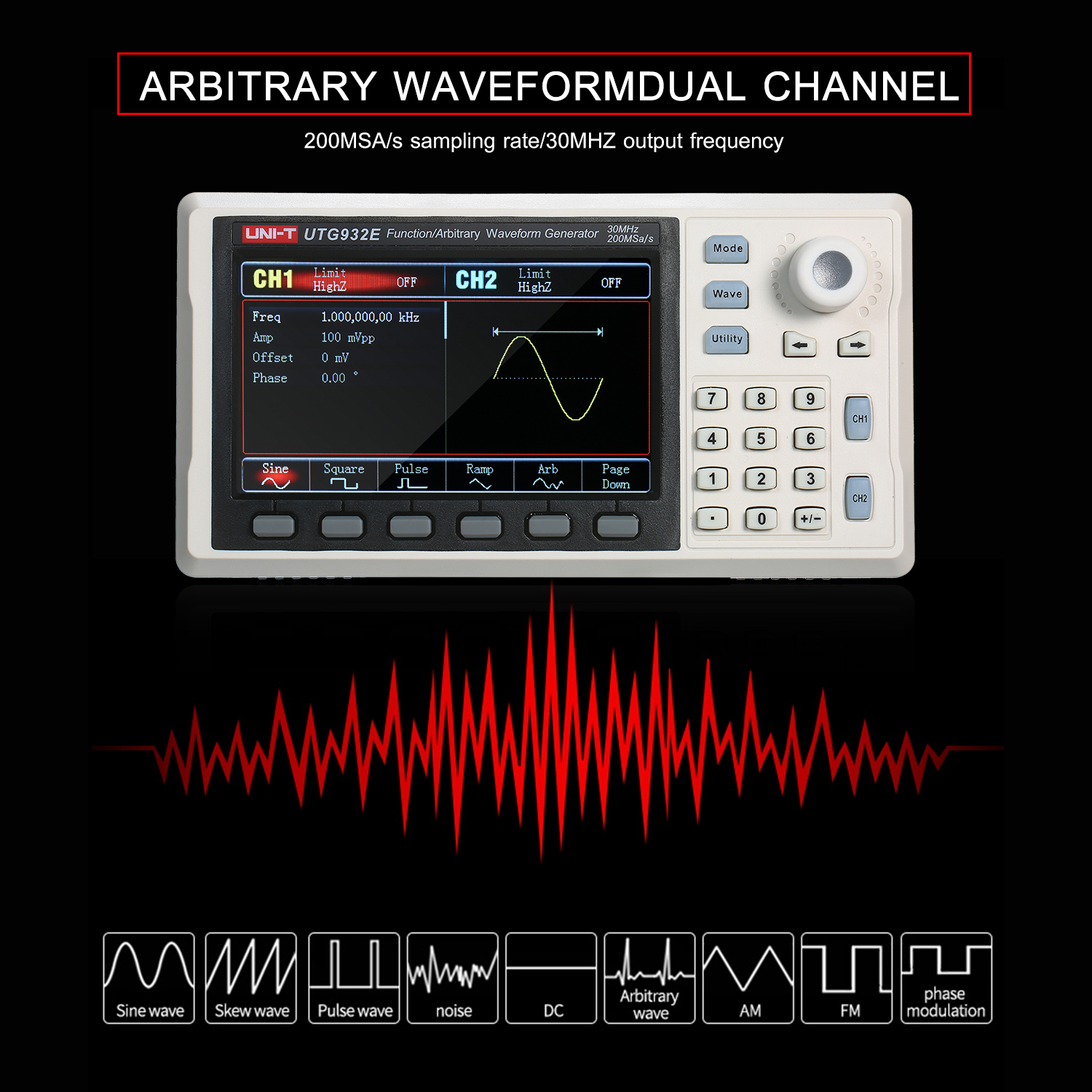

The UTG900 series function arbitrary waveform generator uses direct digital synthesis technology to produce accurate and stable waveform output, with a resolution as low as 1μHz.
It is an economical, high-performance, and versatile function arbitrary waveform generator. It can generate accurate, stable, pure, low-distortion output signals, convenient operation,
superior technical indicators and humanized graphic display. It is a multi-purpose device that meets the needs of learning and testing and improves work efficiency.
| Specifications | ||
| Model | UTG932 | UTG962 |
| Channel | 2 | |
| Max frequency | 30MHz | 60MHz |
| Sampling rate | 200MS/s | |
| Vertical resolution | 14 bits | |

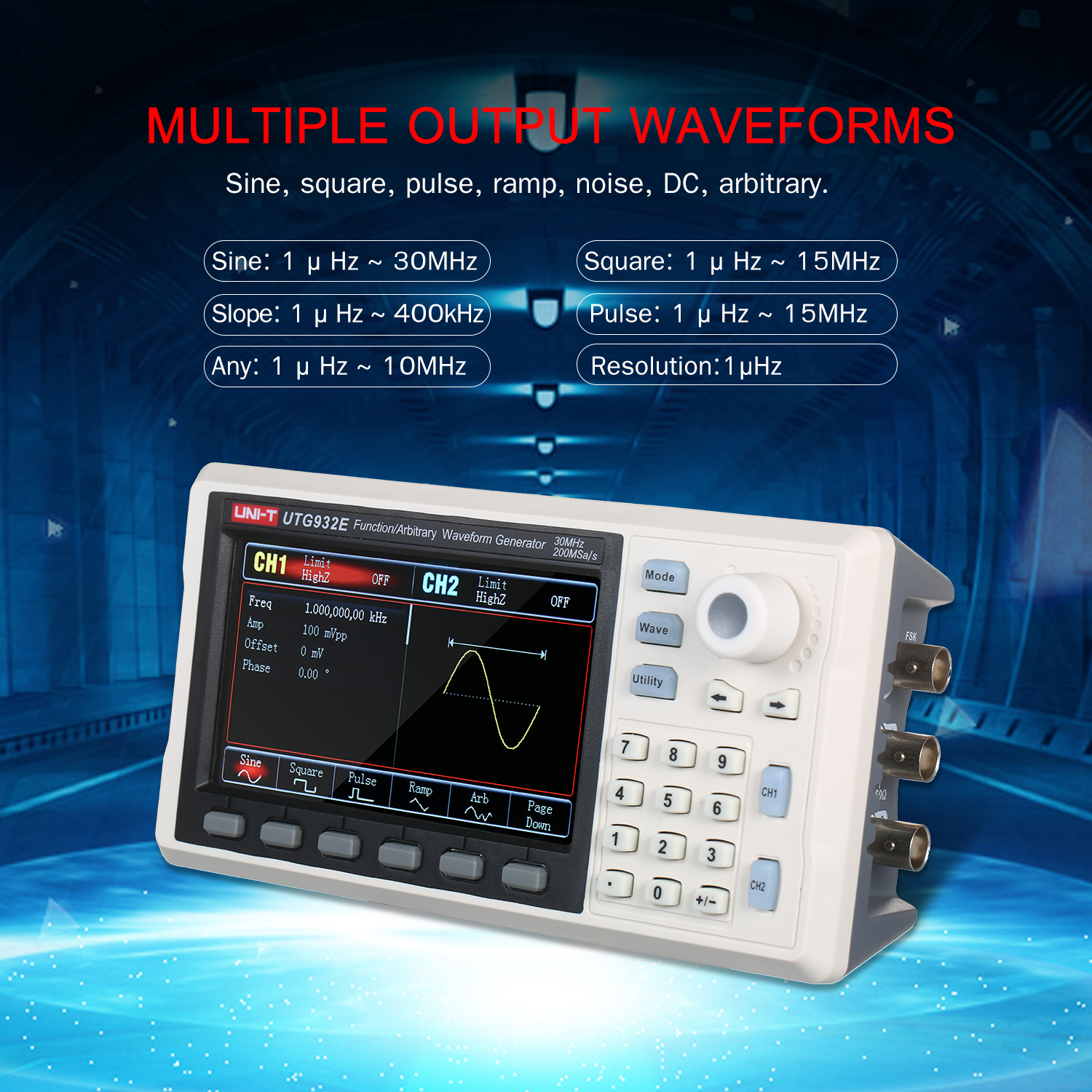

| Waveforms | Sine, square, pulse, ramp, noise, DC, arbitrary | |
| Sweep modes | Logarithmic, linear | |
| Frequency Characteristics | ||
| Sine | 1μHz~30MHz | 1μHz~60MHz |
| Square | 1μHz~15MHz | 1μHz~20MHz |
| Ramp | 1μHz~400kHz | 1μHz~400kHz |
| Pulse | 1μHz~15MHz | 1μHz~20MHz |
| Arbitrary | 1μHz~10MHz | 1μHz~10MHz |
| Resolution | 1μHz | |
| Accuracy | Within 90 days ± 50ppm | |
| Within 1 year ± 100ppm | ||
| 18℃~28℃ | ||
| Output Characteristics | ||
| Impedance | 50Ω/High Z | |
| Amplitude range | 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z) | |
| DC offset range (AC+DC) | ±5V (50Ω); ±10V (high Z) | |
| Amplitude resolution | 1mV | |
| General Characterisitics | ||
| Power | 100~240VAC, 50Hz/60Hz | |

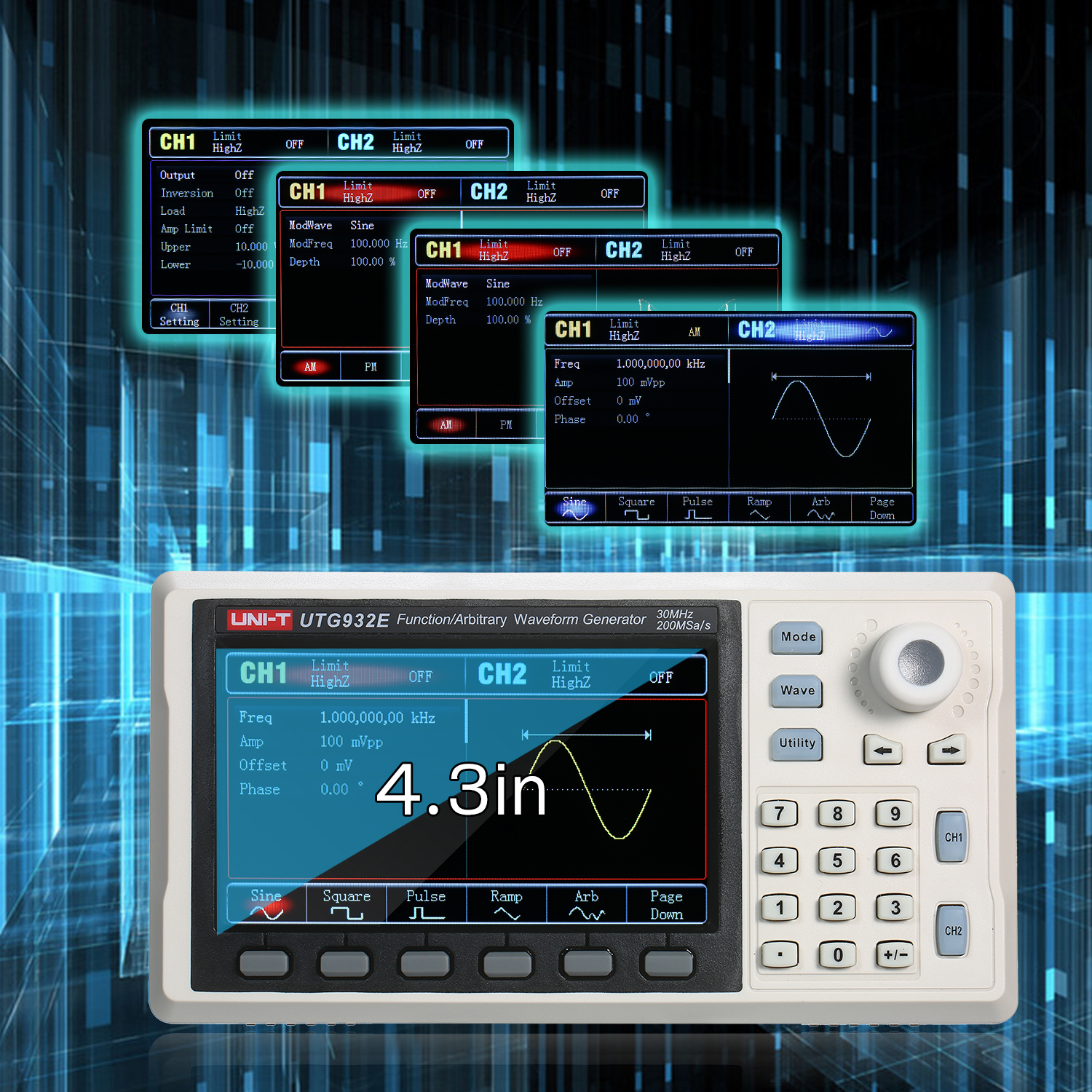

| Display | 4.3”TFT LCD (480×272) | |
| Product color | White and grey | |
| Product net weight | 0.33kg | |
| Product size | 172mm x 90mm x 68mm | |
| Standard accessories | USB interface cable, power cord, BNC cable with alligator clips | |
| Standard individual packing | Carton box | |
Packaging List:
1 * Signal Generator
2 * Alligator Clip
1 * Plug(Supply US/ EU Style)
1 * Switching Adapter
1 * Power Cord
1 * Coaxial Cable
