EssentialGear Product Line

Overview

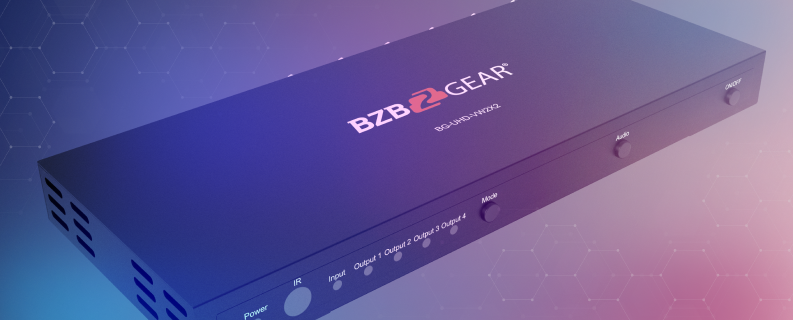

Video walls shouldn’t be difficult to create. That’s why the BG-UHD-VW2X2 video wall processor requires almost no configuration. All users need to do is plug in their devices, select the layout, and adjust for bezel correction with three simple button presses. If needed, 180° output rotation is an option available for inverted displays to help with bezel obstructions.These features combine to make this video wall processor a great industry-compliant device with no-fuss setup. With its ease of use, this video wall processor is a great and affordable choice for any application that would benefit from an eye-catching video wall display.

Connectivity

Simplicity is one of the BG-UHD-VW2X2’s greatest strengths. This video processor supports high resolution 4K@60Hz 4:4:4 input resolutions. The four HDMI outputs have a maximum resolution of 1080p@60Hz. This video processor is compliant with both HDCP 2.2 and HDMI 2.0. The device also supports loop out up to 4K@60Hz 4:4:4 for additional local display connectivity. For audio extraction, RCA and TOSLINK audio outputs are available.

Control

Operators have access to multiple control options for the BG-UHD-VW2X2, including an IR remote control, front panel buttons, and RS-232. On the IR remote, five preset bezel adjustments are available. Operators can also rotate the display 180° for inverted displays if needed. These configurations work for both commercial displays and for consumer-based TVs.
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty

Video

Features

  • Video Wall Processor
    Spread a Source Across Multiple Displays
  • High Input Resolution
    Input Up To 4K@60Hz 4:4:4
  • HDMI Loop-Out
    Additional Local Display Connectivity
  • Audio De-Embedding
    1 x RCA, 1 x TOSLINK
  • Alternate Layouts
    Choose From a Variety Of Video Wall Configurations
  • Multiple Control Options
    Front panel, IR Remote, RS232

Specification

HDMI resolutionInput: Up to 4K @ 60Hz 4:4:4
Loop Out: Up to 4K @ 60Hz 4:4:4
Video Wall Output: Up to 1080p @ 60Hz
HDMI versionHDMI 2.0, HDCP 2.2
Support video color format36-bit Deep Color all channels maximum
Audio output HDMI: PCM 2CH L/R: Stereo audio Toslink: PCM 2CH
Max bandwidth per channel600MHz
Max baud rate per display18Gbps (Input)
Input/Output TMDS signal0.5~1.5V p-p (TTL)
Input/Output DDC signal5V p-p (TTL)
Input cable distance≤16ft/ 5m 24 AWG HDMI high speed Cable at 1080P@ 60Hz
Output cable distance≤50ft/15m 24 AWG HDMI high speed Cable at 1080P@ 60Hz
Operating Temperature range5°F to 131°F / -15°C to 55°C
Operating Humidity range5% to 90% RH (No Condensation)
Max working current1A
External Power SupplyDC12V/2A
Dimensions10 5/8" (L) x 4 3/8" (W) x 1 1/4" (H)
Weight1 lb 11oz [765g]

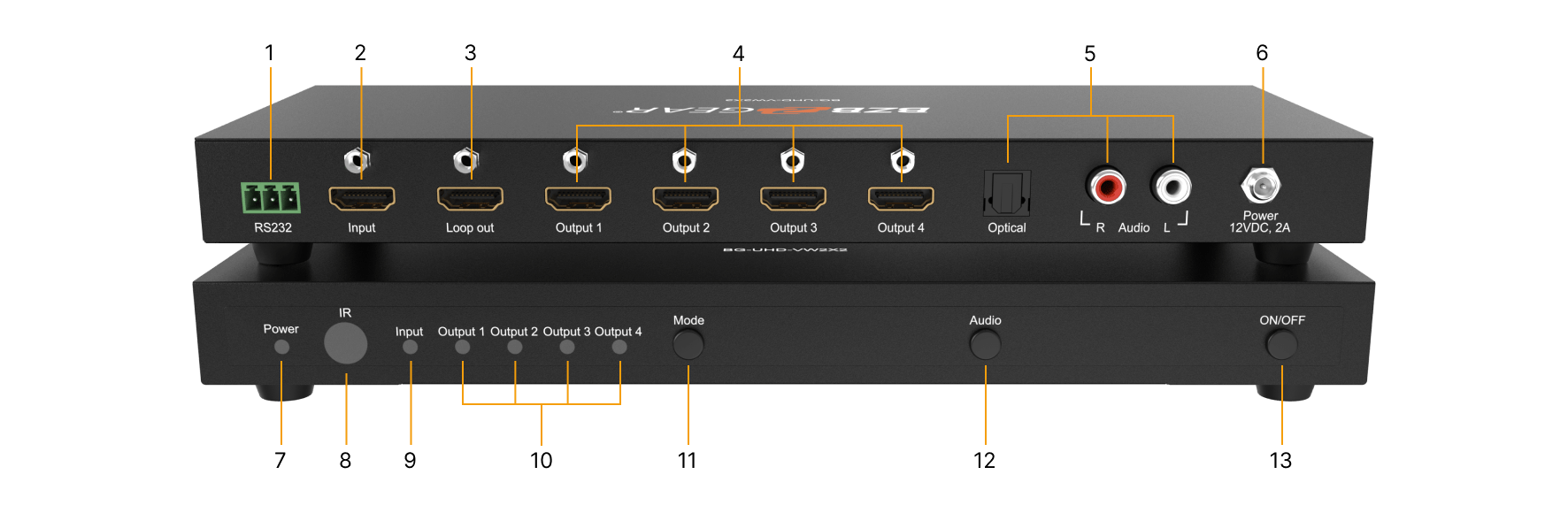

Interfaces

1. RS232:
RS232 control Port.
2. HDMI Input:
Connect to the HDMI output of your source equipment such as DVD player or PC.
3. HDMI Loopout:
Connect to a local monitor to display the full signal of the signal source.
4. HDMI Output 1-4:
Connect to the monitor to display the splitted signal of the signal source.
5. AUX and TOSLINK audio output:
Connect to the amplifier.
6. Power:
Connect to the 12V DC.
7. Power LED indicator:
Power On/Off indicator.
8. IR:
Remote control sensor.
9. Input LED Indicator:
HDMI input LED indicator.
10. Output 1 - Output 4:
HDMI output LED indicators.
11. Mode switch:
Press the “Mode” button to switch the Layout mode.
12. Audio switch:
Press the “Audio” button to switch the audio output from L\R or Optical.
13. ON/OFF:
Power ON/OFF button.

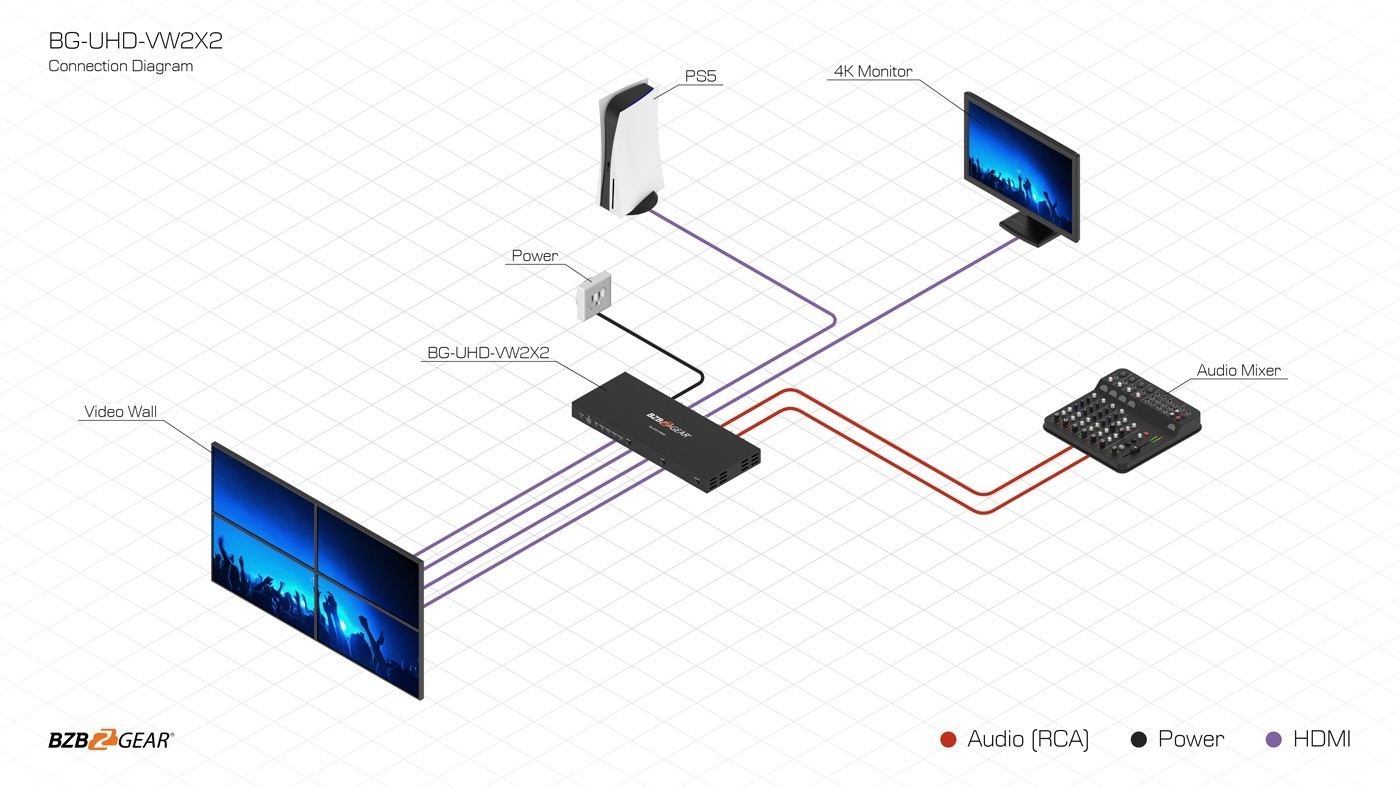

Connection Diagram

Package Contents

  • 1x Main unit
  • 1x DC Power Supply
  • 1x Remote control
  • 1x User’s Manual
  • 1x Phoenix plugs for RS232 cable termination
