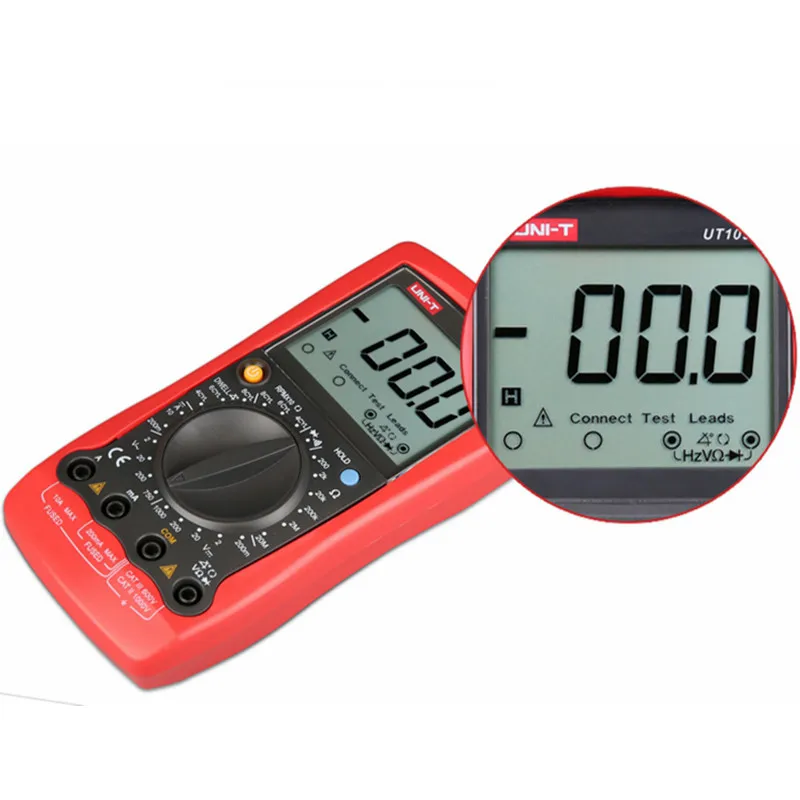

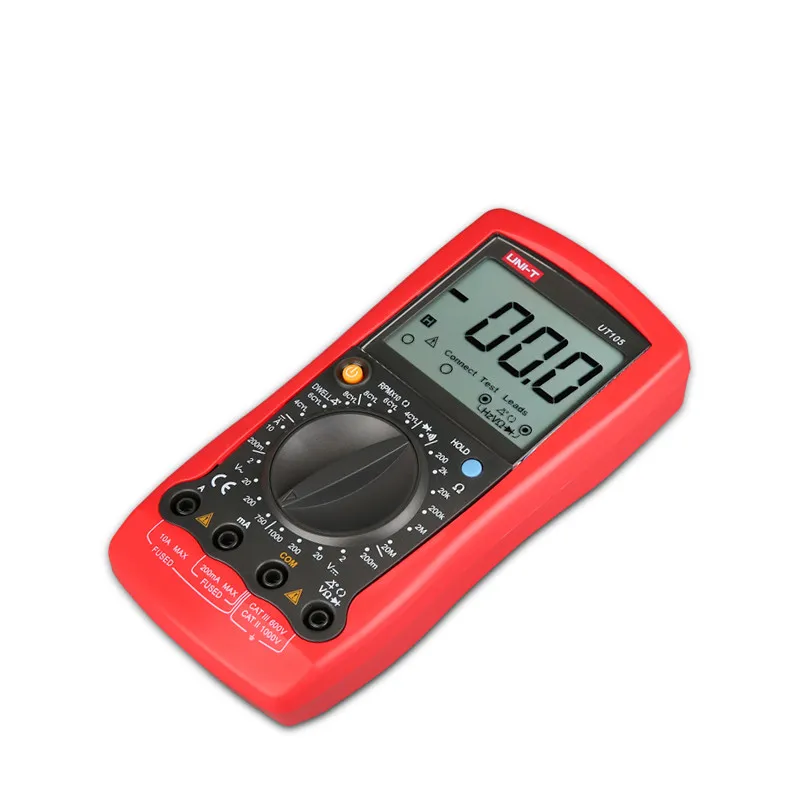

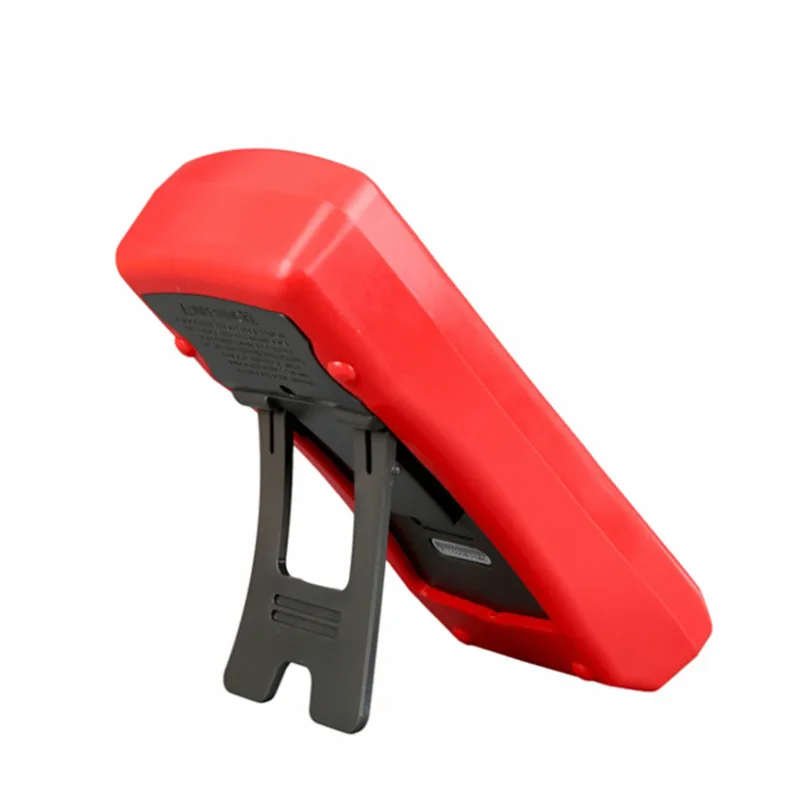

Automotive Multimeter UNI-T UT105 LCD 2000 Bits DMM ACV/DCV Tester Tach Dwell RPM OHM Test
Great news , UNI-T UT105 had upgraded into UT105+, will be shipped UNI-T UT105+ multimeter.
Features
1. Input notification for reducting misplugging risks
2. Low battery indication, over-range display
3. Data hold; diode/continuity buzzer
4. Dwell: Measure the dwell angle of points-type ignition systems
5. RPM: Measure engine spindle rotation per minute
Product Specifications
| Specifications | Range | Best Accuracy |
| Model | UT105 | |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+5) |
| AC Voltage (V) | 2V/20V/200V/750V | ± (0.8%+5) |
| DC Current (A) | 200mA/10A | ± (0.8%+5) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ± (0.8%+5) |
| Features | ||
| Display Count | 2000 | |
| Manual Range | √ | |
| Diode | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Input Protection | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| Dwell | 4CYL/6CYL/8CYL | ±(3%+5) |
| Tach | 4CYL/6CYL/8CYL | ±(3%+5) |
| General Characteristic | ||
| Power | 9V Battery（6F22) (Battery was not included) | |
| LCD Size | 60mm X 54 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 351g(Including Holster) | |
| Product Size | 179mm X 88mm X 39mm | |
| Standard Accessories | Test Lead，Holster | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 645mm×450mm×340mm (0.0987 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 24.6 Kg | |
