Product Type: Starter |
Replaces: TY6615 TY6615 11.130.819 AZJ3181 |
  • Starter Type: DD |
  • Volts: 12 |
  • Teeth On Drive: 10 |
  • Rotation: Clockwise |
  • Kw: 3.1 |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today
Rare Electrical
Parts for all applications

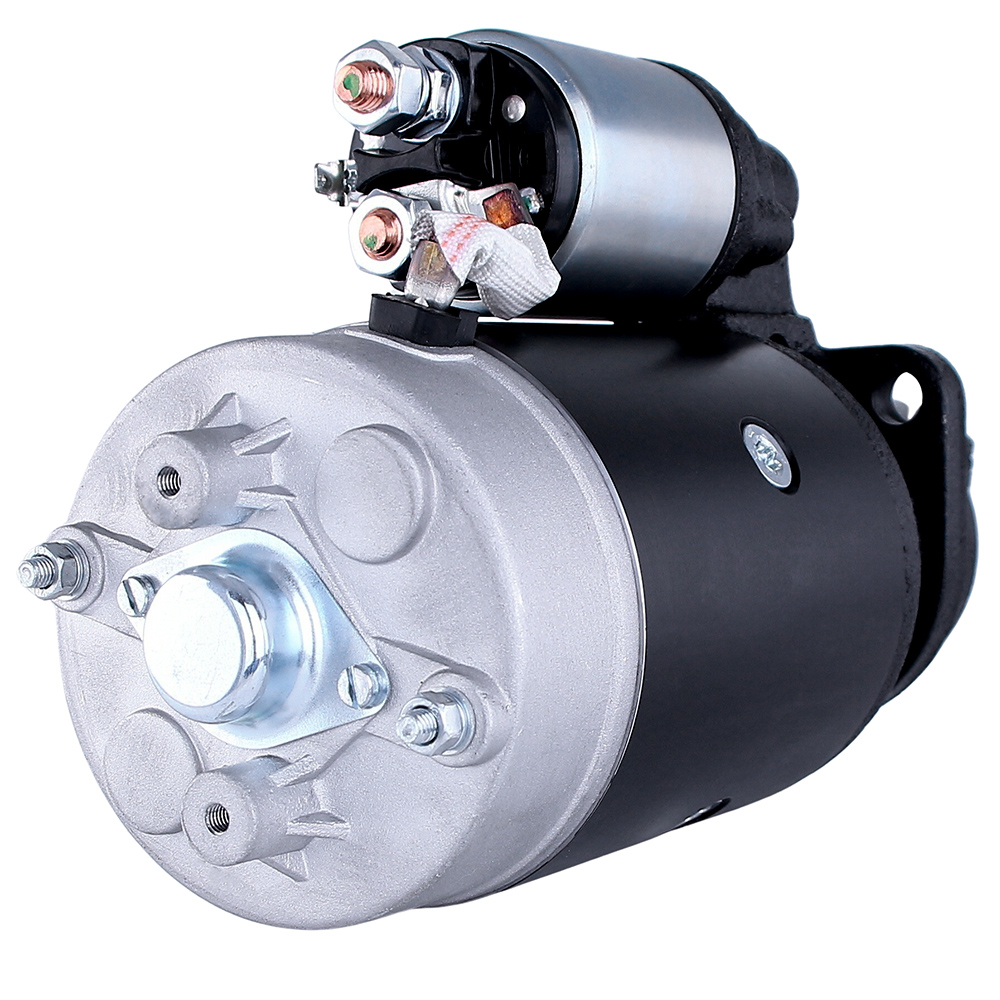

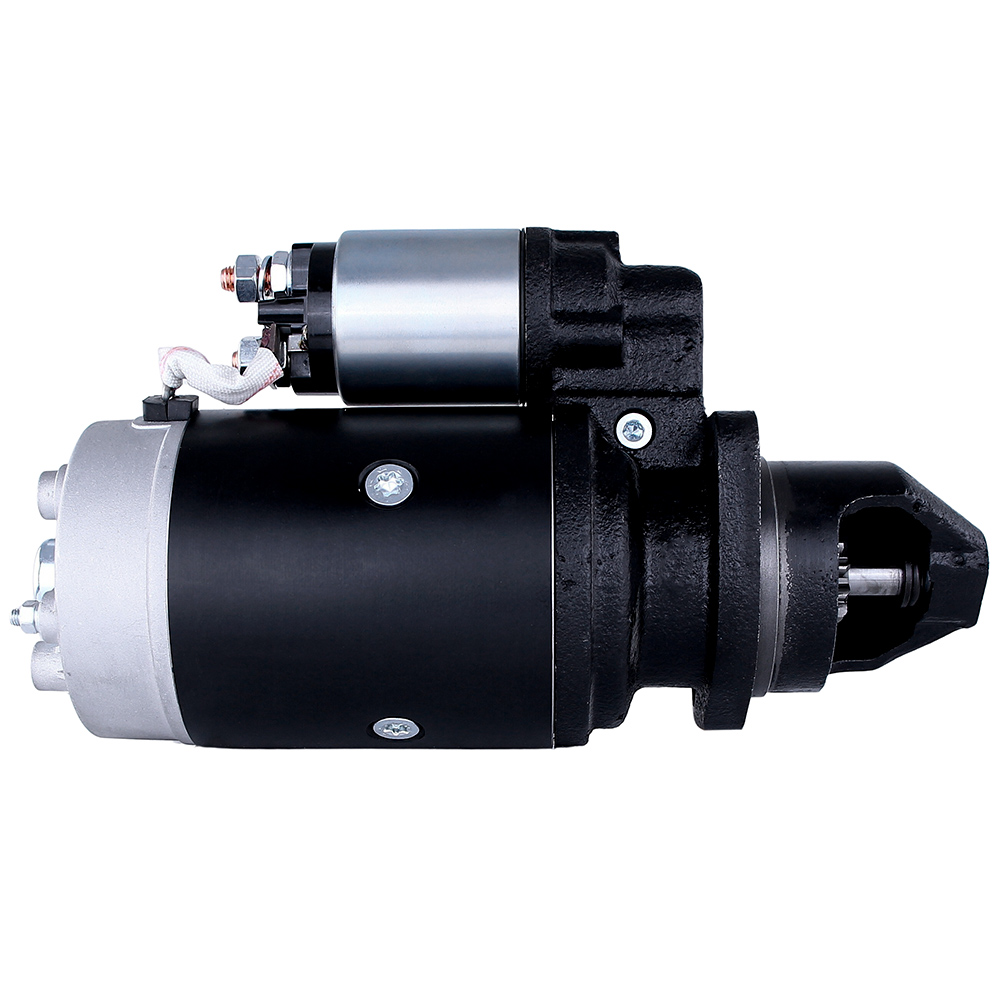

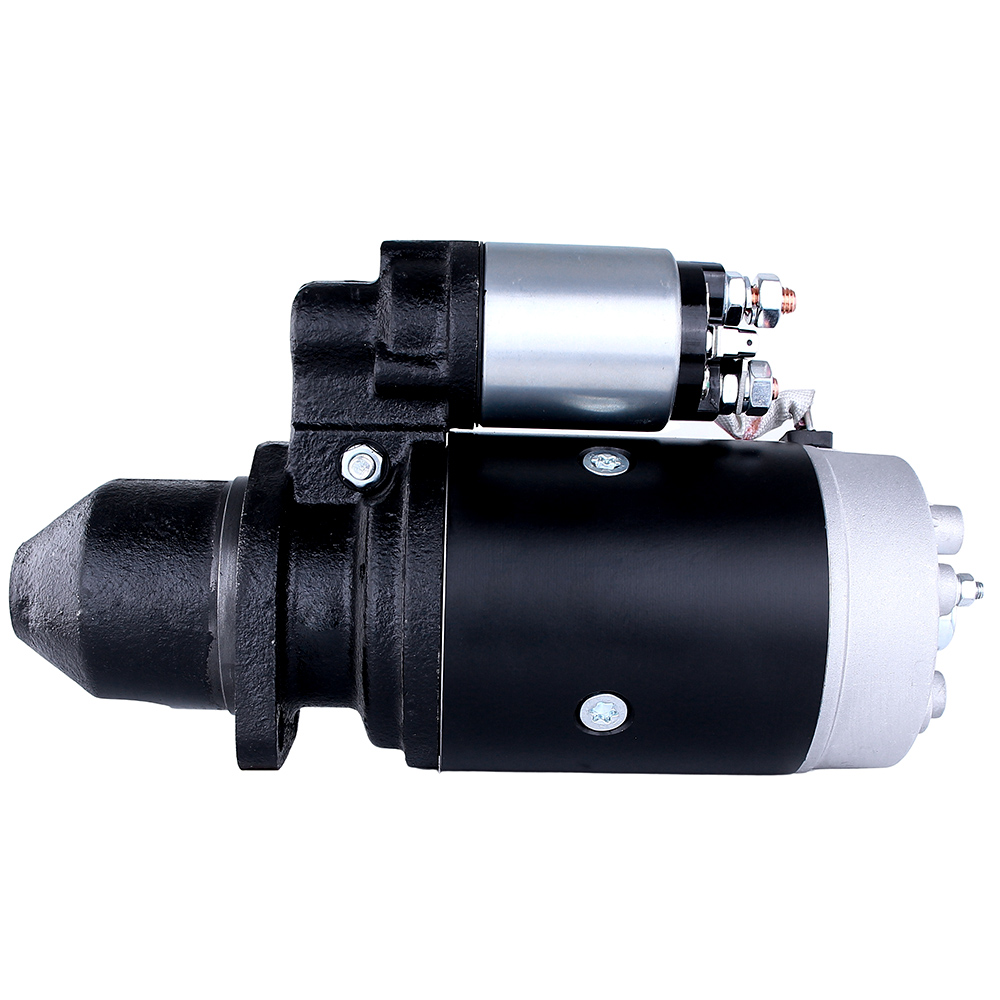

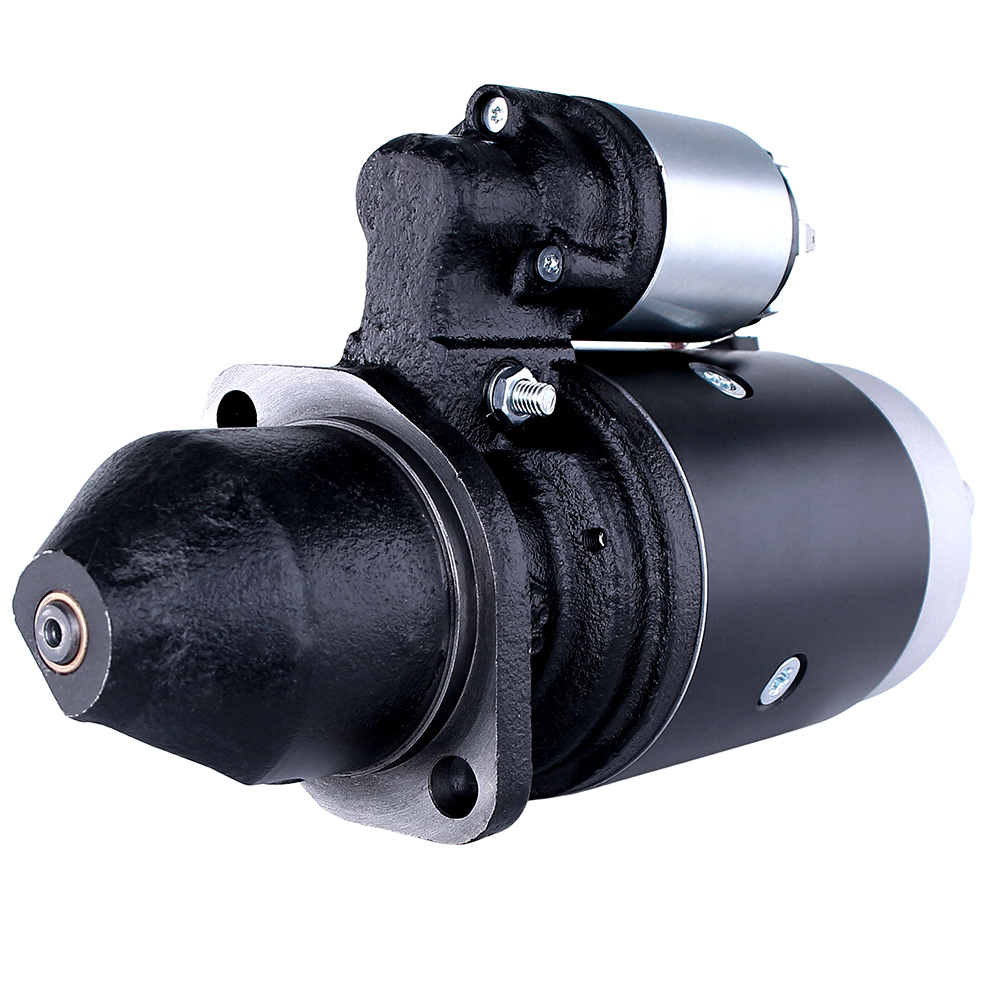

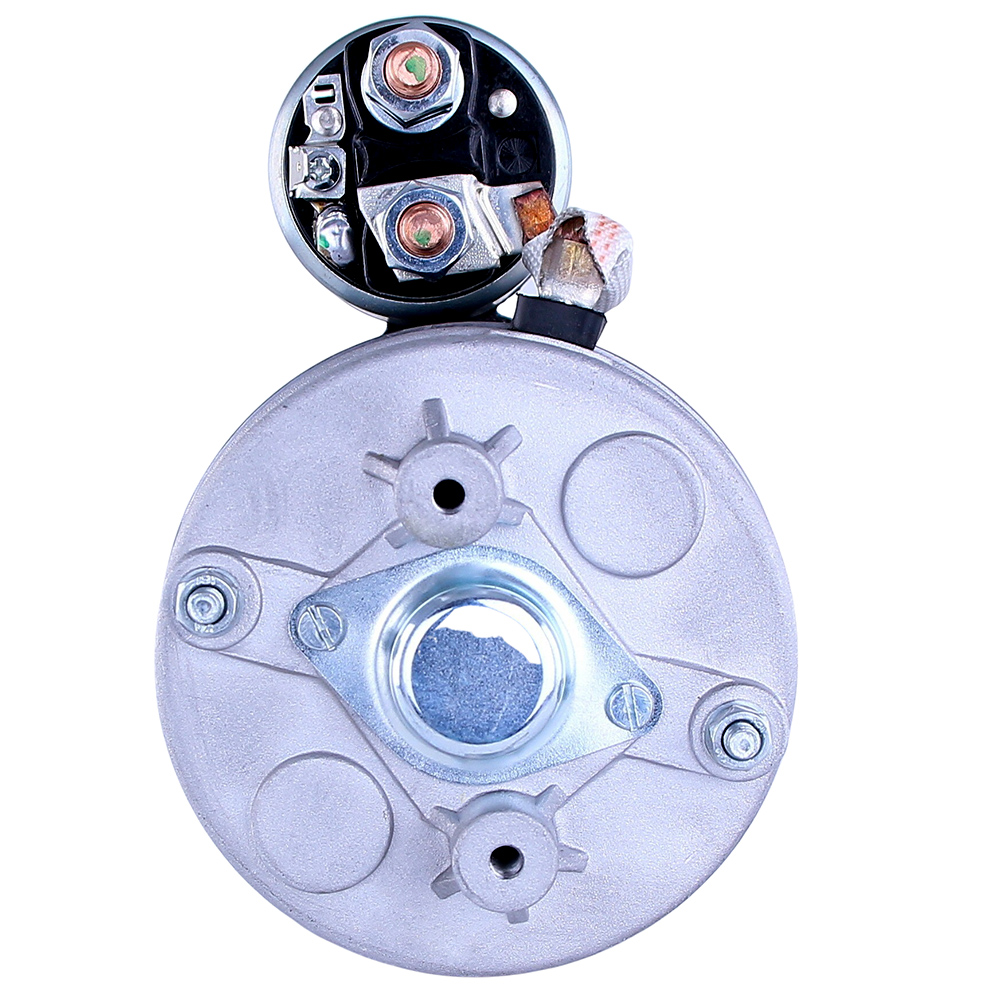

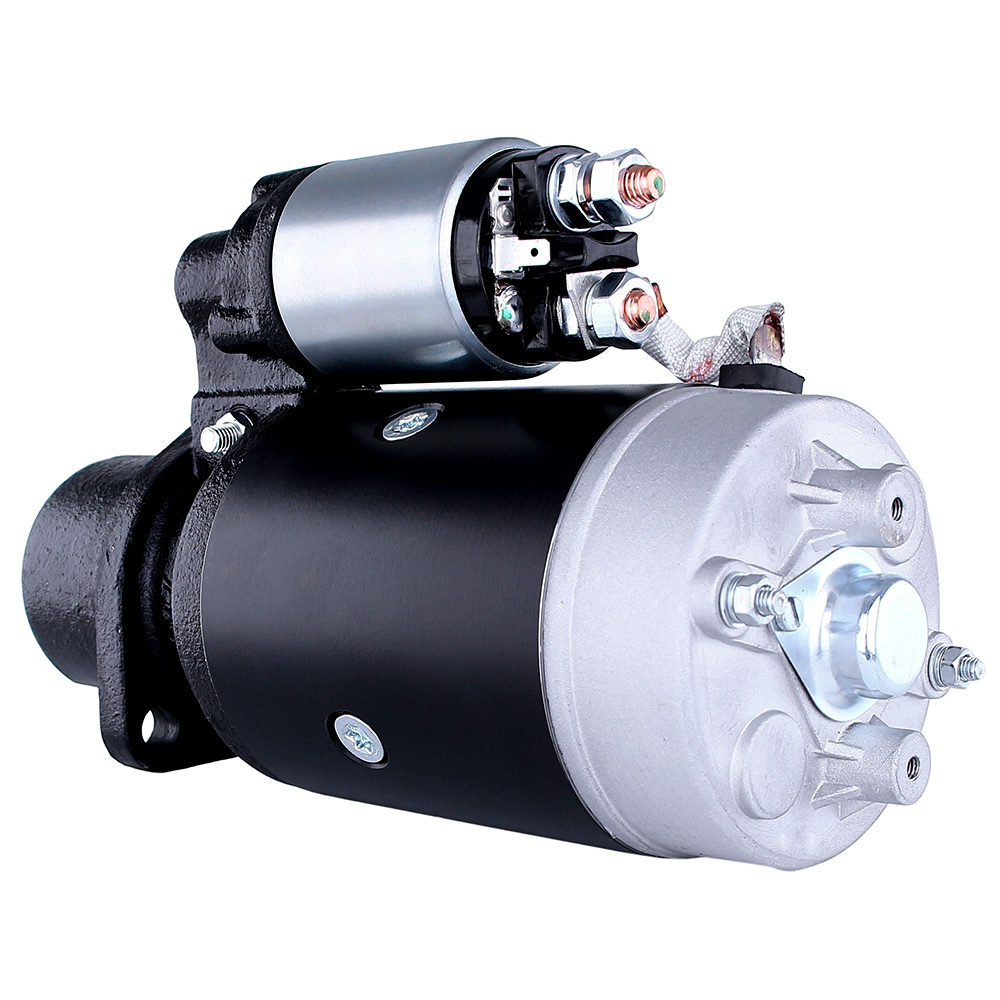

12V Starter 1975-1992 John Deere 3210 3300 3310 3400 3410 Tractor TY6615

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• Iskra: 11.130.819
• Iskra: AZJ3181
• John Deere: TY6615
• John Deere (Additional): RE60384 / AL62773 / TY25950 / SE501411

SPECIFICATIONS:
• Voltage: 12V
• Type: DD (Direct Drive)
• Power: 3.1 kW
• Rotation: CW (Clockwise)
• Tooth Count: 10
• Gear OD: 32mm / 1.260 in
• Mounting Ear 1: 13.4mm ID Unthreaded
• Weight: 29.49 lbs / 13.40 kg
• Condition: New

APPLICATION:
• John Deere Farm Tractors 925-975, 3210-3410 (1975-1992)
• John Deere Industrial Tractors 2150/3055/3155/3255 (1983-1992)

12V 3.1kW Starter Motor - John Deere 3210-3410 / 925-975 Tractor
New Bosch-type DD 12 volt 3.1 kW starter for John Deere 3210-3410 and 925-975 series farm tractors plus 2150/3055/3155/3255 industrial tractors. CW rotation, 10-tooth pinion with 32mm (1.260 in) gear OD. 13.4mm unthreaded mounting ear. Weight 29.49 lbs (13.40 kg). Replaces Iskra 11.130.819/AZJ3181, John Deere TY6615, RE60384, AL62773, SE501411, Magneton 443-115-142-700, and Renault 6005012976.

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



JOHN DEERE FARM TRACTORS:
• 3210/3300/3310/3400/3410
• 3340 Built in Spain
• 925 (1975)
• 930VU Built in Spain
• 932 (1980)
• 935 (1975)
• 940 (1980-1984)
• 940/940V Built in Spain
• 942 (1980)
• 945 (1975)
• 952 (1977)
• 955/965/968/975 (1981-1983)

JOHN DEERE INDUSTRIAL TRACTORS:
• 2150 (1983-1986)
• 3055 359 Diesel (1992)
• 3155 359 Diesel (1987-1991)
• 3255 359 Diesel (1992)

NOTE: Verify OEM part number from your original unit before ordering.
