Intelligent Powerful Economical Green
Inversion Efficiency 90%

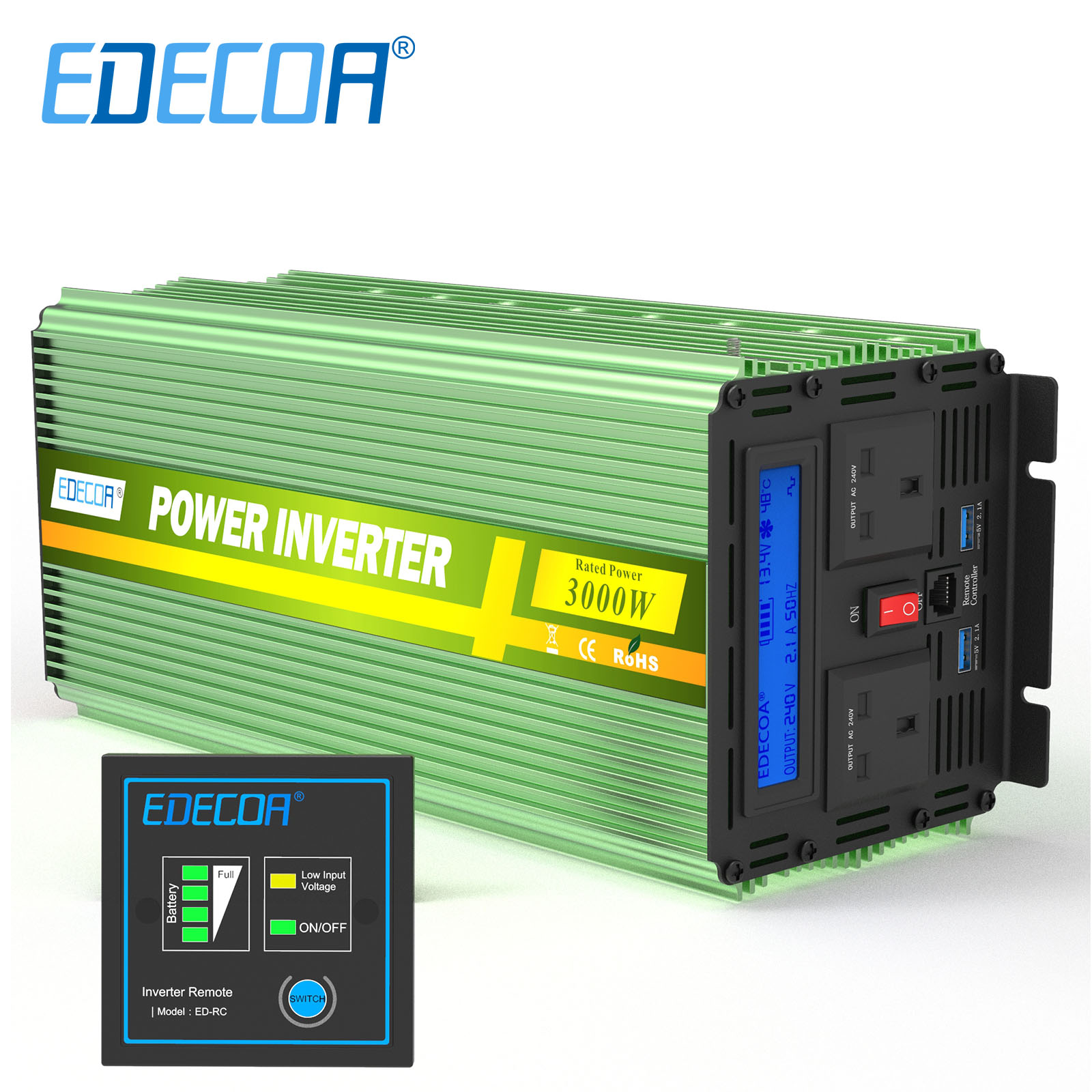

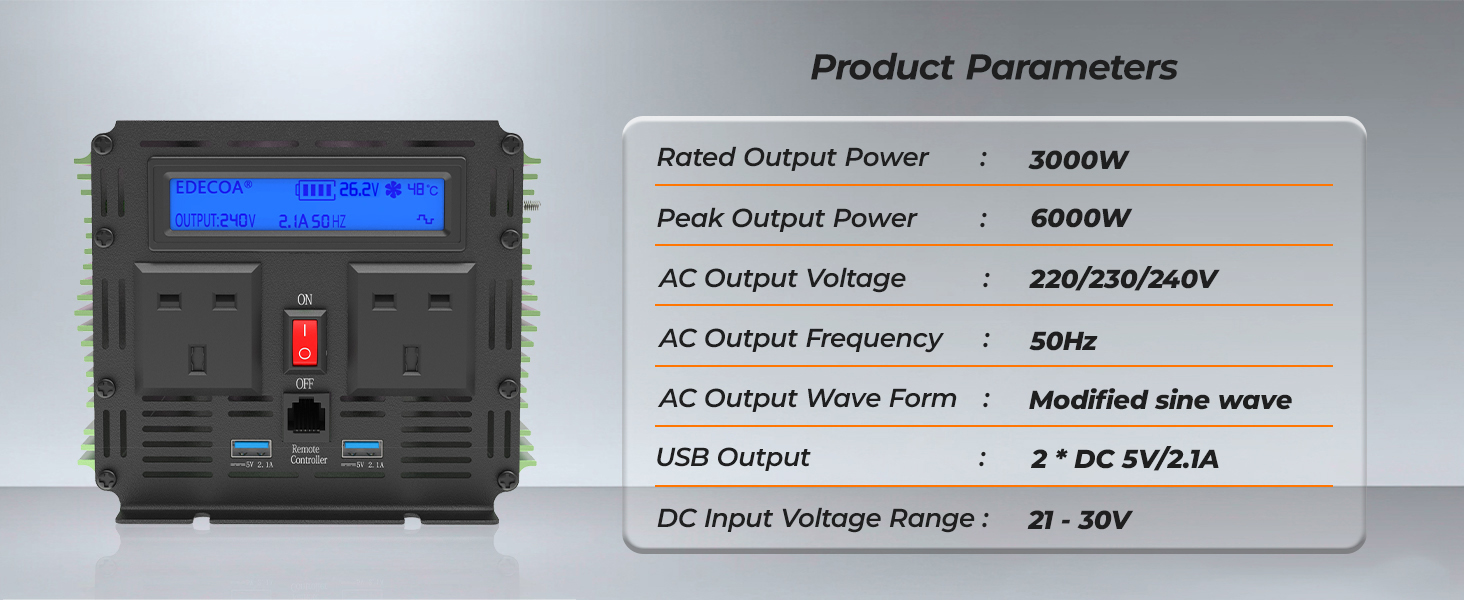

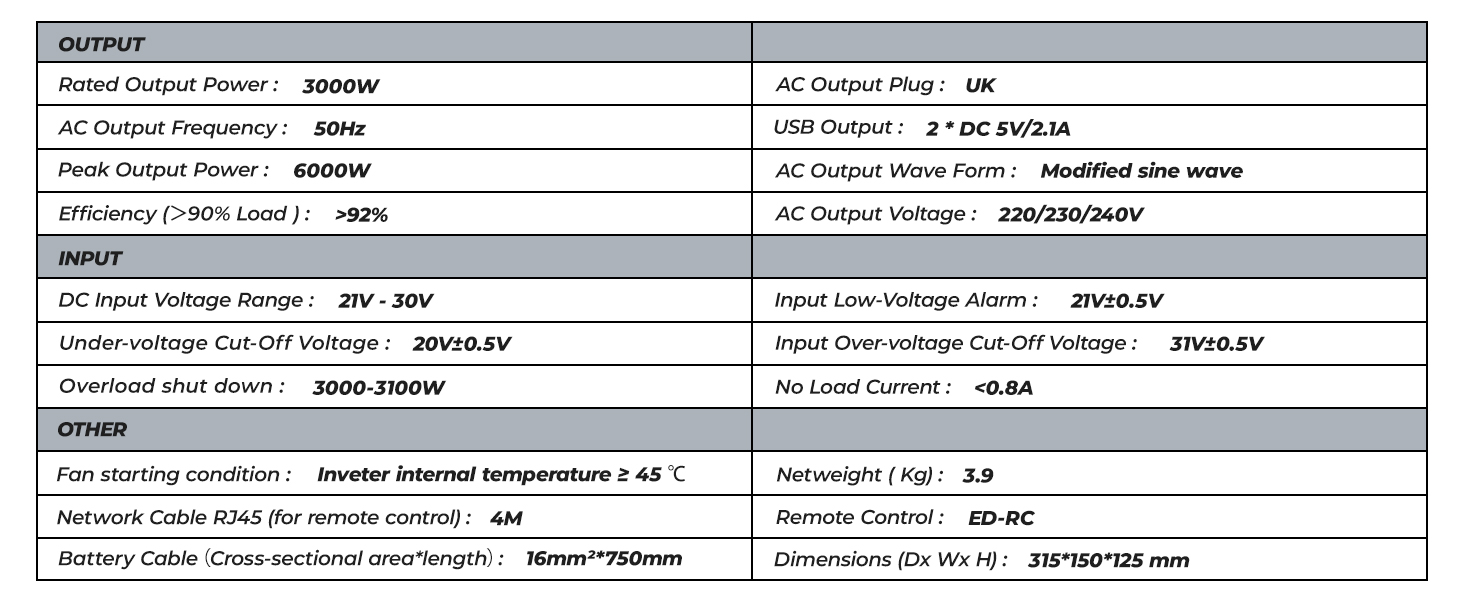

EDECOA Intelligent Inverter can supply 3000W continuous power/6000W max peak power.Connecting the inverter to battery,it can convert 24V DC to 230V 240V 50HZ AC.
Modified Sine Wave Inverter is reliable and economical for Resistive Loads.
If you need to run inductive loads or precision communication equipments, it is recommended to use a Pure Sine Wave Inverter in our store.
- ED-RC remote controller
- 2 USB Ports (5V 2.1A)
- Quite Cooling Fan
- UK Sockrts - 220V/230V/240V Devices
- Remote Control - With 4m Network Cable

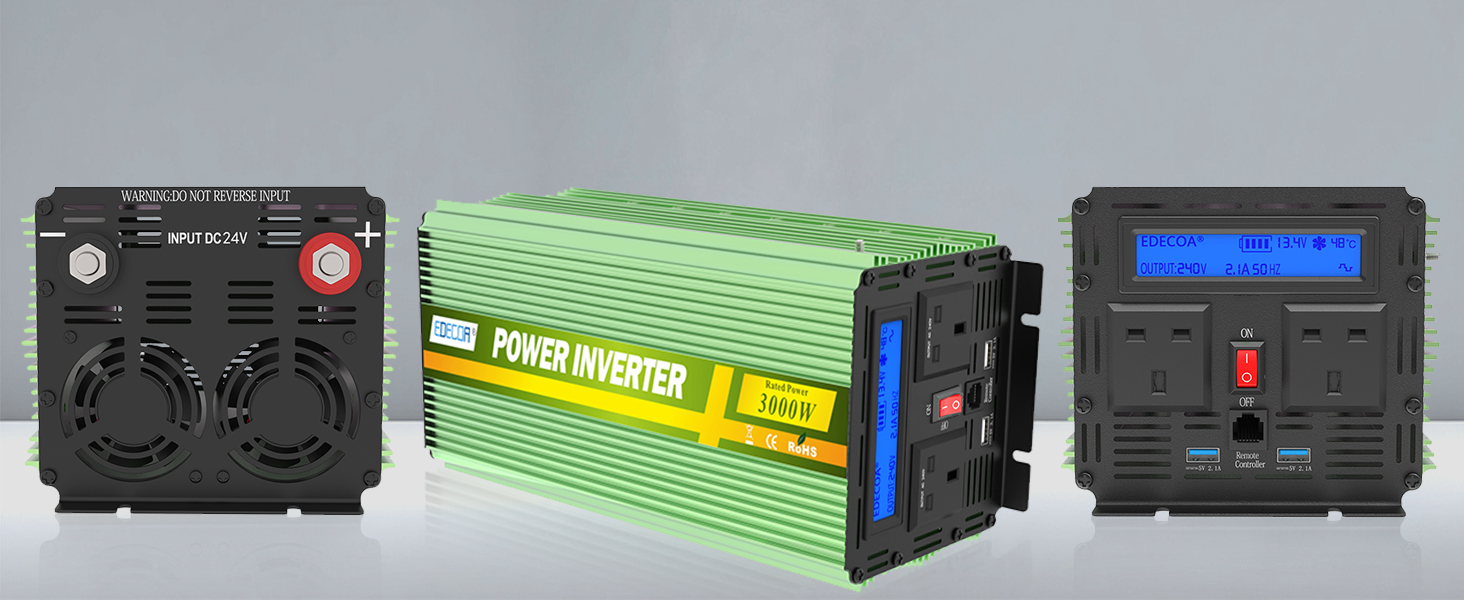

- Rugged Aluminum Housing
World Inverter Expert
- 15 years of brand
- Sold to 60 countries
- Exclusive Conversion Technology
1 Inverter
1 Pair of battery cables
1 Remote controller
1 Manual(IT/EN/DE/FR/ES)
- Industrial-grade durability: All-aluminum shock-resistant casing, designed to withstand extreme environments ranging from -20℃ to 60℃.
- Smart Power Manager: Low-voltage automatic power-off protection (cuts off at 21V), ensuring vehicle startup power.
- Remote Controller with 4m-RJ45 cable can turn ON/OFF the inverter and display battery capacity with 4-level indicator lights. You can replace a longer cable(<15M) according to the usage.
- Isolation design: input and output isolation, safer to use in RVs and boats
- Multi-Protection: Low voltage, high voltage, overload, over current, short circuit, over temperature and galvanized isolation;
- Multi-Interface Expansion:2 AC outlets + 2 USB-C ports，supports multiple devices simultaneously，Can simultaneously power both the air fryer and the electric kettle.USB/DC Outputs: Charges small devices like phones.
1.Craving a hot meal during a long drive, only to settle for cold fast food at rest stops?
2.Struggling with unbearable heat during nighttime breaks, while worrying the car’s AC might drain the battery?
3.Needing to digitize freight documents, but your phone or laptop keeps running out of power?
Freedom of Hot Meals
Supporting air fryers and electric kettles, enjoy the freedom of hot meals and say goodbye to stomach protests.
Mobile office
Stable voltage output to protect freight terminal equipment, ensuring no delay in waybills.
Sleep Protection
Say no to a stuffy cabin, powered by a small fan or car mini air conditioner

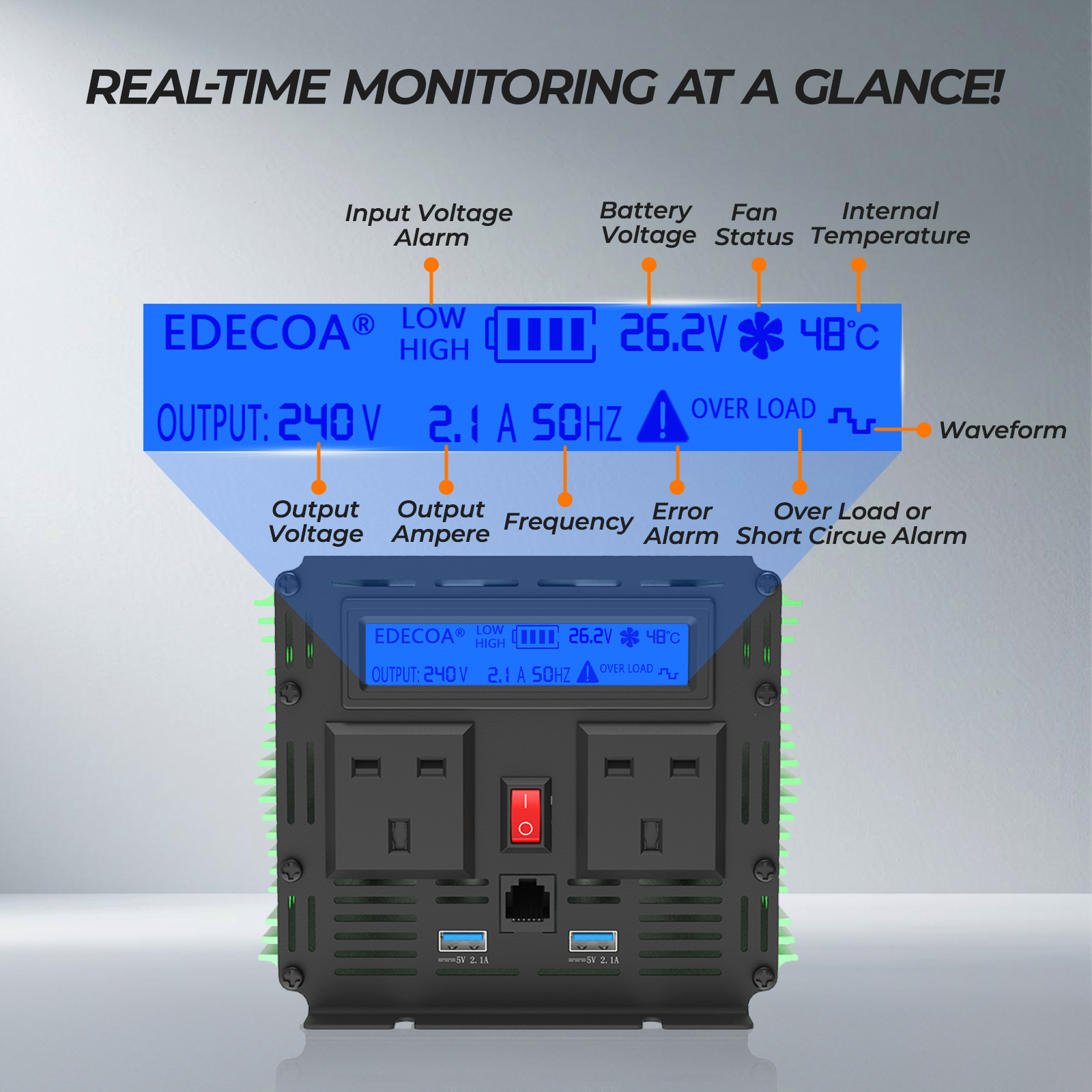

LCD Display Screen
At a glance, monitor power levels, temperature, waveforms, and load; high-temperature auto-cooling, overload warning lights, PD fast charging, remote control—a true 'panoramic smart protection' Modified sine wave inverter.

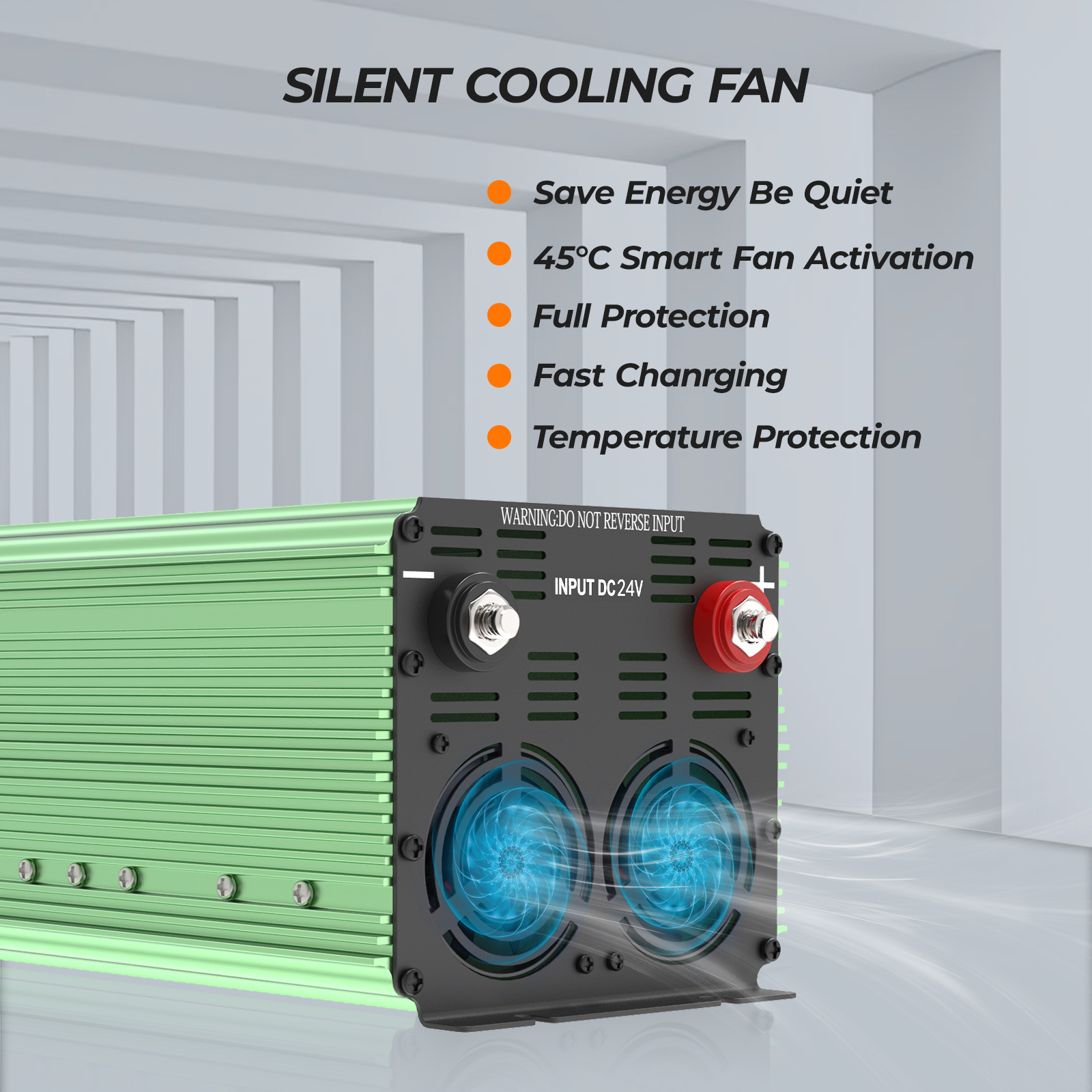

Smart Fan
Intelligent temperature-controlled start-stop: Automatically activates at 45℃ and stops when the temperature drops below, saving power and extending lifespan.
Fast Charging：Built-in high-current boost module, reduces charging time by 30% with the same battery capacity.

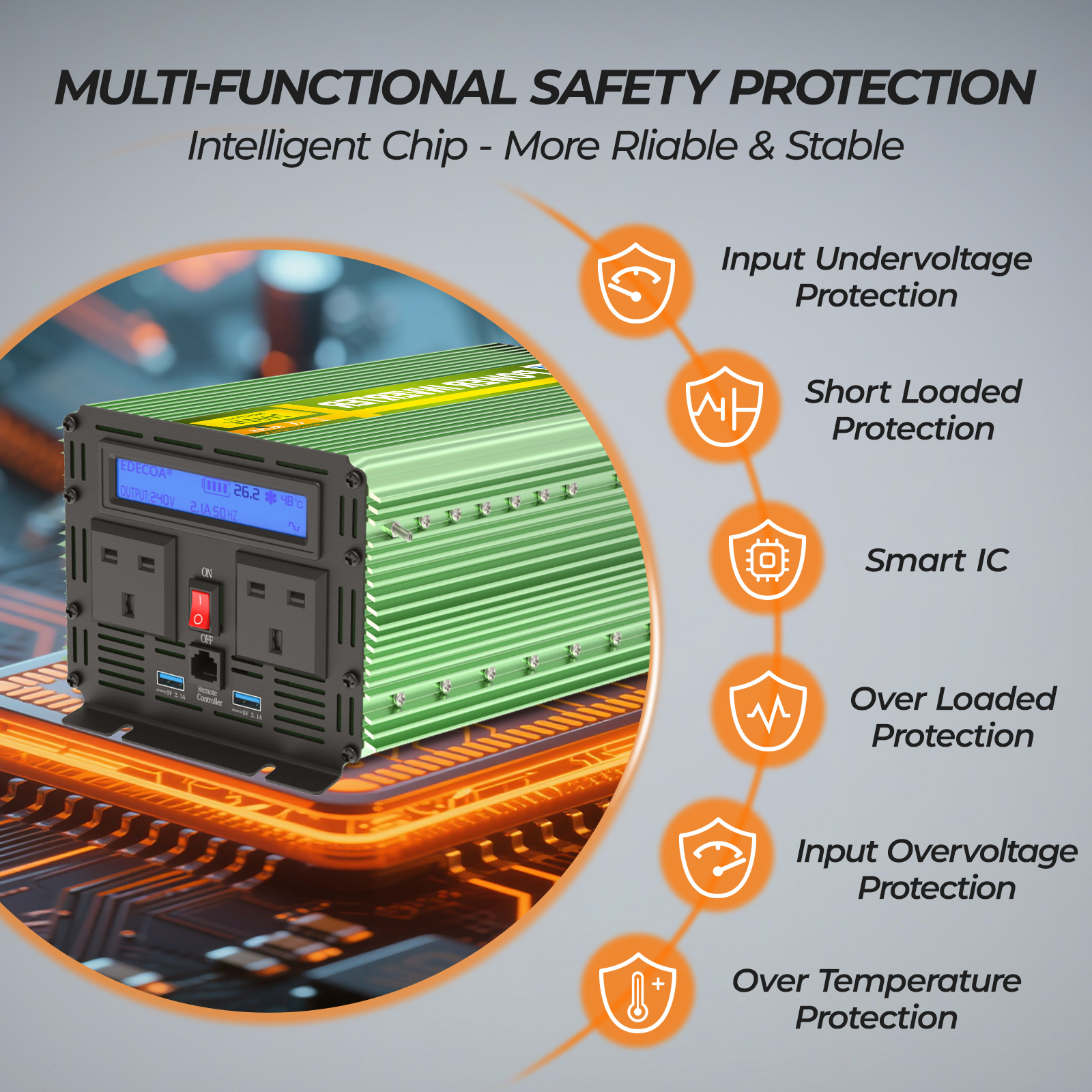

Safety Protection
Multi-Functional Safety Protection: Multiple protections including input over/under voltage, output overvoltage, over-temperature, overload, and short circuit, ensuring dual safety for both the machine and the battery.
Battery Choice Tips:
Before you connect your devices, think about the battery capacity you need. A small battery cannot run a high wattage device.
For example, if you run an 800W heater for 2 hours, how many AH batteries should be used? Take a 24V battery as an example:
Rated wattage 800w/conversion efficiency of inverter (calculated at the lowest 85%)/battery voltage (24V)/ battery discharge coefficient 80%*working time (2 hours)=800W/85%/24V/0.8*2H=98AH
|
Maximum wattage of devices |
DC volt |
Battery Recommended |
Running Time |
|---|---|---|---|
| 3500W | 24V | 200AH | 1h 00min |
| 3000W | 24V | 180AH | 1h 03min |
| 2500W | 24V | 150AH | 1h 03min |
| 2000W | 24V | 120AH | 1h 03min |
| 1500W | 24V | 100AH | 1h 10min |
| 1200W | 24V | 60AH | 0h 53min |
| 850W | 24V | 50AH | 1h 02min |
| 600W | 24V | 40AH | 1h 10min |
 |
 |
 |
 |
|
|---|---|---|---|---|
| Output Waveform | Pure sine wave | Modified sine wave | Modified sine wave | Pure sine wave |
| UK Socket | 2 | 2 | 2 | 2 |
| Remote Control | 1 | 1 | 1 | 1 |

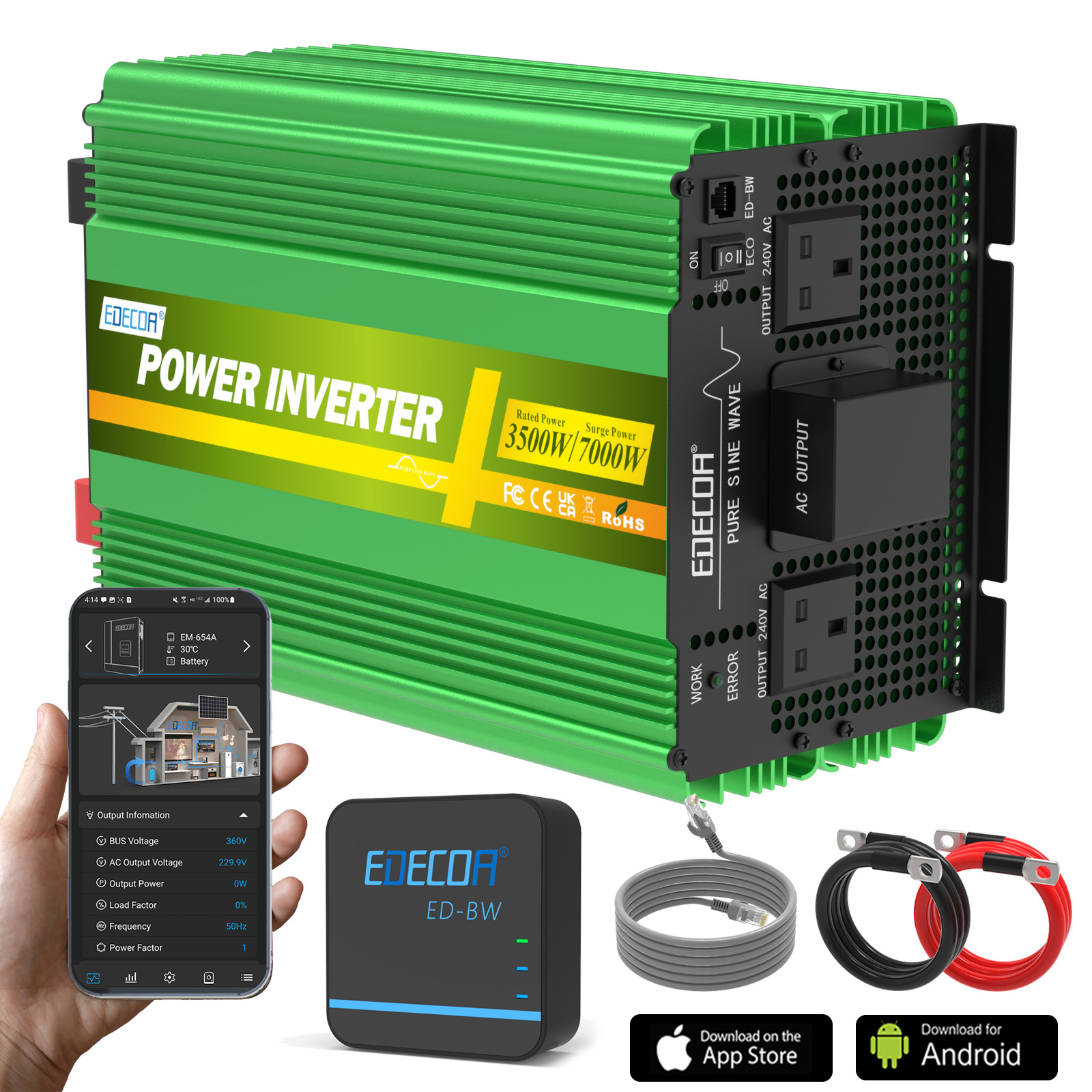

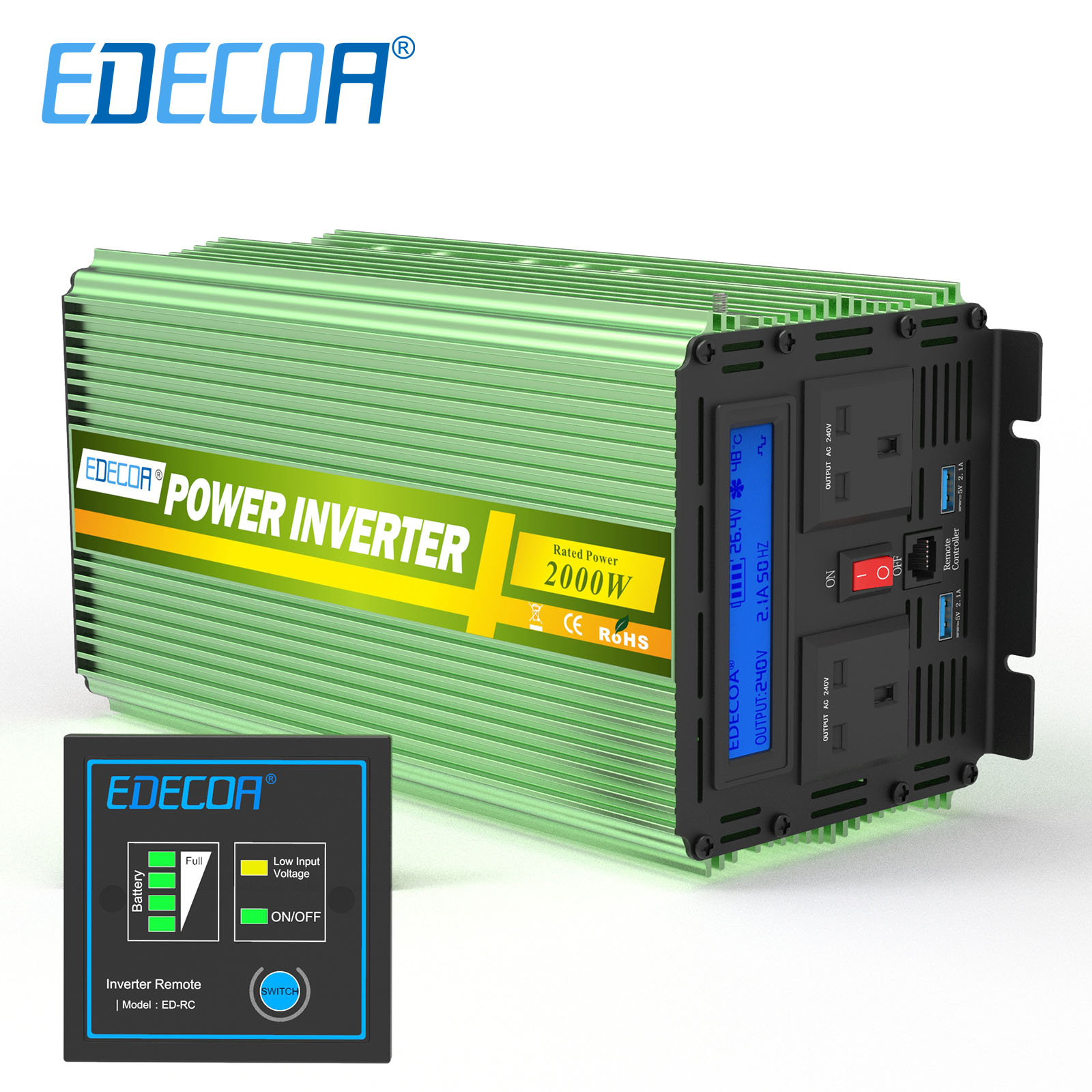

| Continuous Output | 3500W | 3000W | 2000W | 1500W |
| Maximum Peak | 7000W | 6000W | 4000W | 3000W |
| Input Voltage | 12V | 12V | 24V | 12V |
| Output Voltage | 220-240V | 220-240V | 220-240V | 220-240V |
How to choose a Proper Inverter?
There are two types of Inverter, one being a modified sine wave inverter, the other a pure sine wave type.
For Inductive Load
If connecting with inductive loads (e.g. Microwave, coffee machine, k7 karcher power washer, Compressor, Water Pump, Saw, Drill, old CRT TV, Refrigerator, Ice conditioner, Air conditioner, Relays，Fluorescent lamp, Vacuum cleaner, smoke machine, random orbit sander, orbital polisher), please choose a PURE SINE WAVE inverter whose rate power is 3-7 times higher than the load's rate power. For example, for a 150w refrigerator(10 times), please choose a 1500w Pure Sine Wave inverter or higher; for a 800w air conditioner, please choose 2500w Pure Sine Wave inverter or higher.
For Resistive Load
If connecting with resistive loads (e.g. electric heating, toaster, incandescent lamp, electric kettle, rice cooker, oven, heater, electric stove), please choose either modified sine wave or pure sine wave inverter whose continuous power is a little higher than the load's rate power. For example, for loads near 700w, it's better to choose inverter with continuous power more than 800w.
